Black plate (16,1)

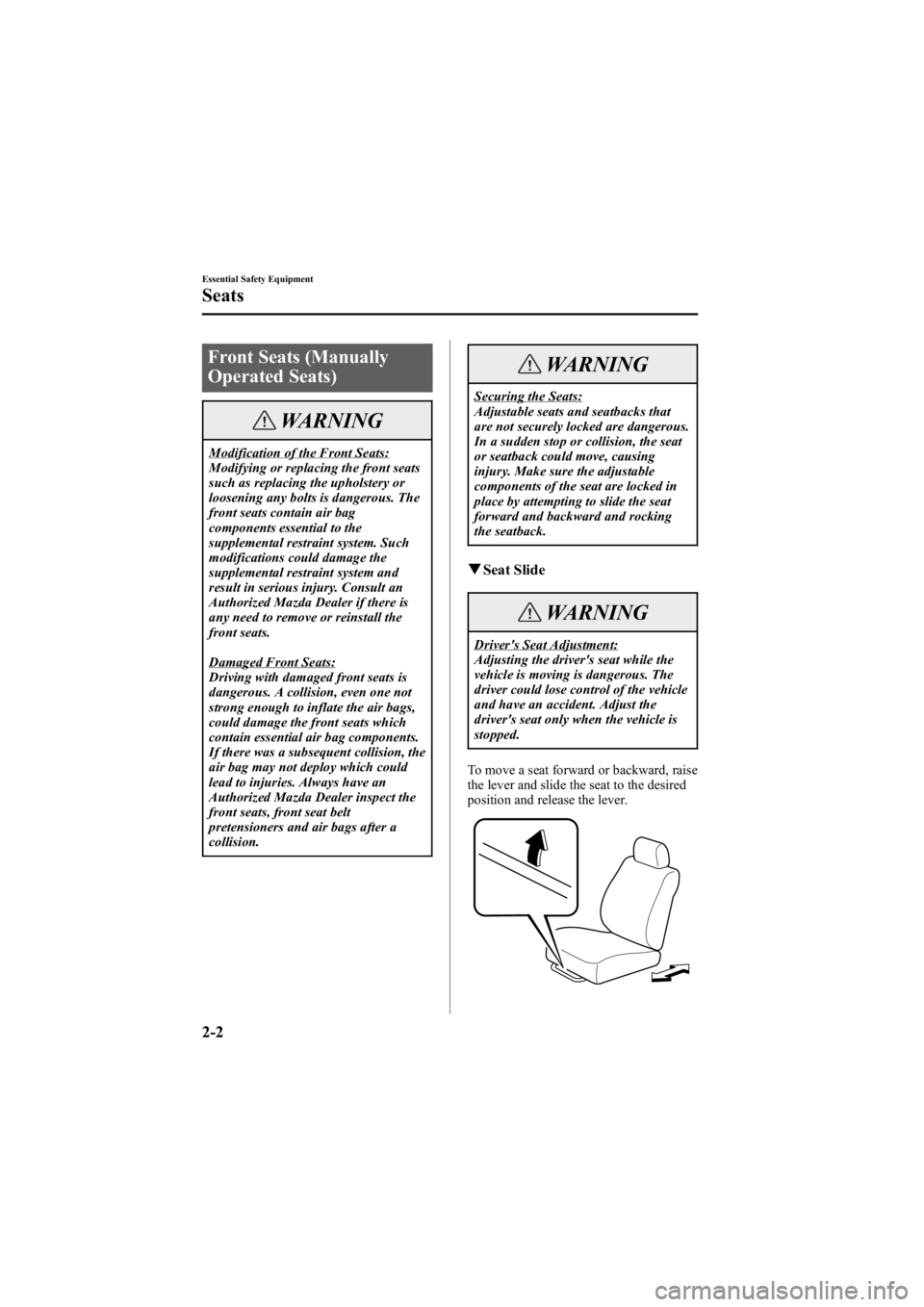

Front Seats (Manually
Operated Seats)
WARNING
Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, the
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
WARNING
Securing the Seats:
Adjustable seats and seatbacks that
are not securely locked are dangerous.
In a sudden stop or collision, the seat
or seatback could move, causing
injury. Make sure the adjustable
components of the seat are locked in
place by attempting to slide the seat
forward and backward and rocking
the seatback.
qSeat Slide
WARNING
Driver's Seat Adjustment:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident. Adjust the
driver's seat only when the vehicle is
stopped.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
2-2
Essential Safety Equipment
Seats
Mazda6_8V40-EA-05L_Edition1 Page16
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (18,1)
qHeight Adjustment (Driver's Seat)
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
q
Head Restraint
WARNING
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
2-4
Essential Safety Equipment
íSome models.
Seats
Mazda6_8V40-EA-05L_Edition1 Page18
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (19,1)

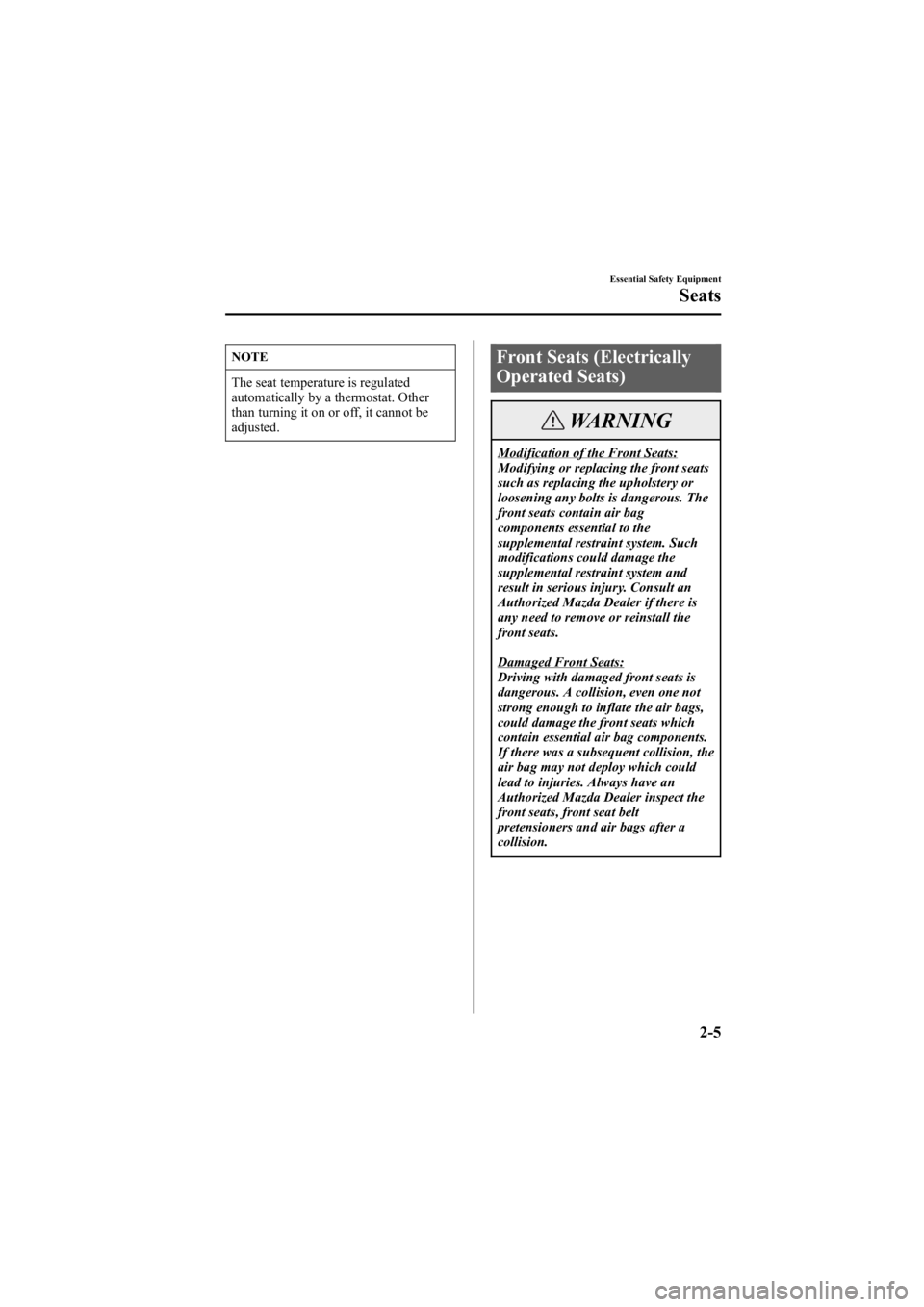

NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
Front Seats (Electrically
Operated Seats)
WARNING
Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, the
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
Essential Safety Equipment
Seats
2-5
Mazda6_8V40-EA-05L_Edition1 Page19
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (22,1)

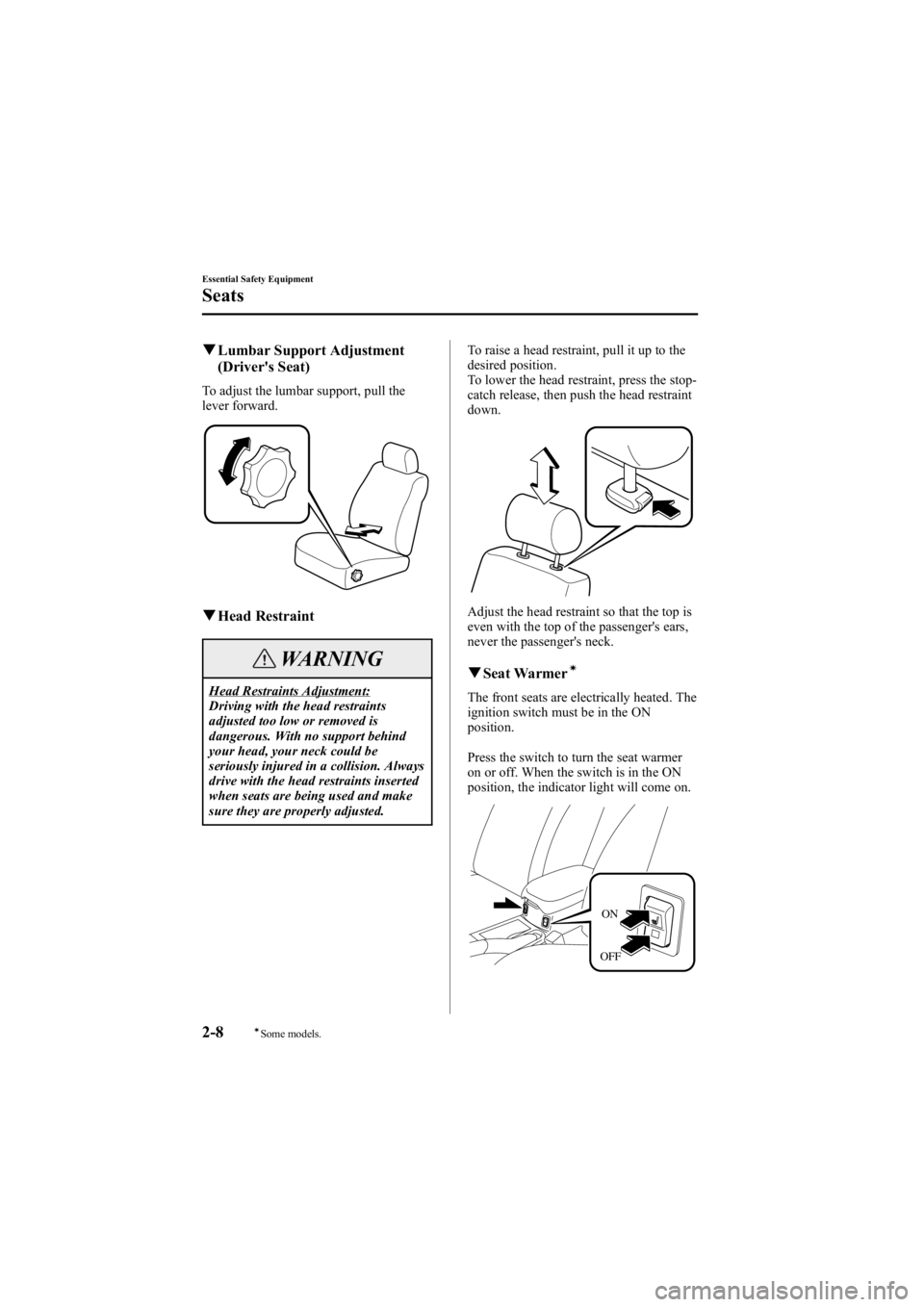

qLumbar Support Adjustment
(Driver's Seat)
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted. To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
q
Seat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
2-8
Essential Safety Equipment
íSome models.
Seats
Mazda6_8V40-EA-05L_Edition1 Page22
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (24,1)

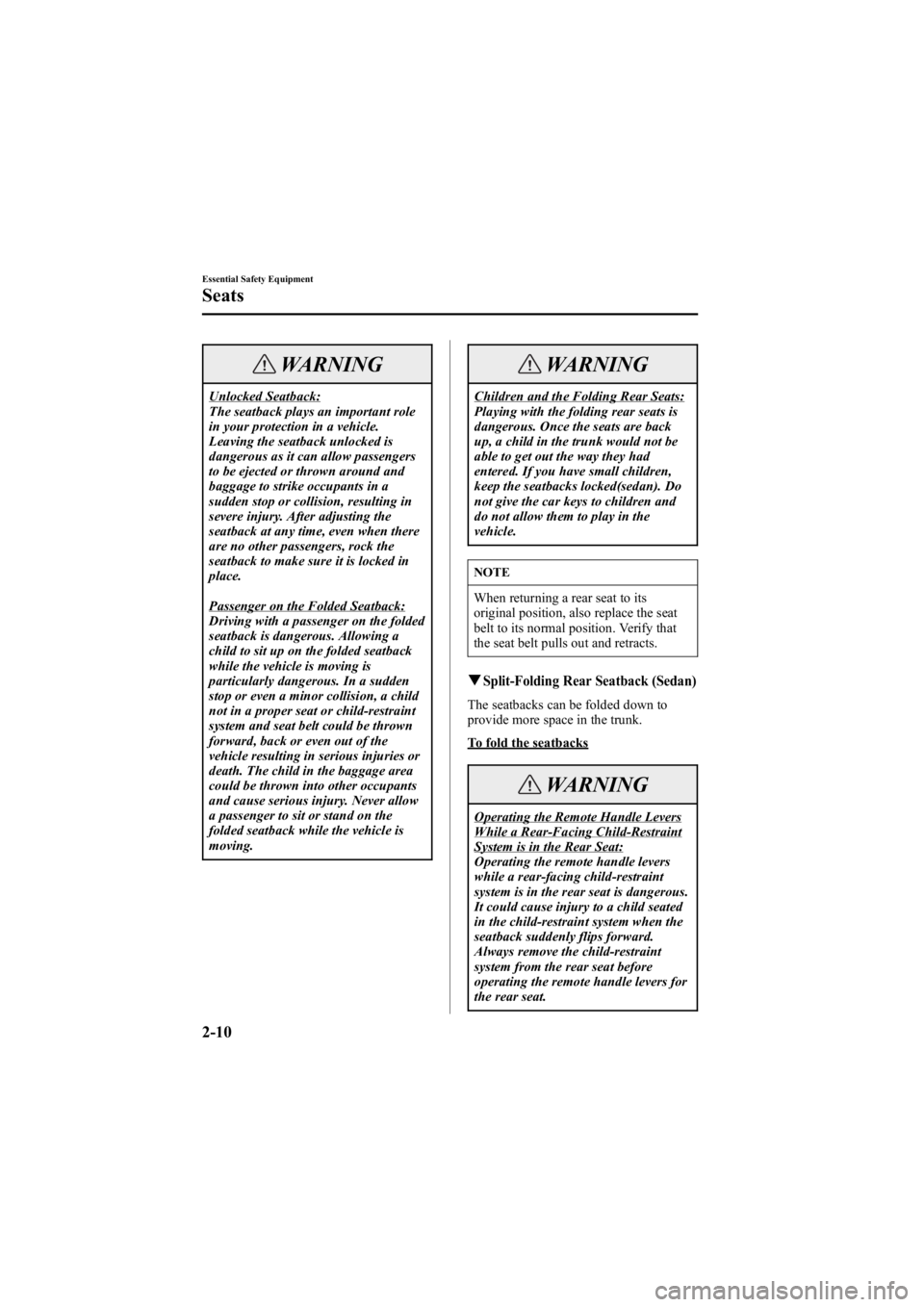

WARNING
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Passenger on the Folded Seatback:
Driving with a passenger on the folded
seatback is dangerous. Allowing a
child to sit up on the folded seatback
while the vehicle is moving is
particularly dangerous. In a sudden
stop or even a minor collision, a child
not in a proper seat or child-restraint
system and seat belt could be thrown
forward, back or even out of the
vehicle resulting in serious injuries or
death. The child in the baggage area
could be thrown into other occupants
and cause serious injury. Never allow
a passenger to sit or stand on the
folded seatback while the vehicle is
moving.
WARNING
Children and the Folding Rear Seats:
Playing with the folding rear seats is
dangerous. Once the seats are back
up, a child in the trunk would not be
able to get out the way they had
entered. If you have small children,
keep the seatbacks locked(sedan). Do
not give the car keys to children and
do not allow them to play in the
vehicle.
NOTE
When returning a rear seat to its
original position, also replace the seat
belt to its normal position. Verify that
the seat belt pulls out and retracts.
qSplit-Folding Rear Seatback (Sedan)
The seatbacks can be folded down to
provide more space in the trunk.
To fold the seatbacks
WARNING
Operating the Remote Handle LeversWhile a Rear-Facing Child-RestraintSystem is in the Rear Seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is dangerous.
It could cause injury to a child seated
in the child-restraint system when the
seatback suddenly flips forward.
Always remove the child-restraint
system from the rear seat before
operating the remote handle levers for
the rear seat.
2-10
Essential Safety Equipment
Seats
Mazda6_8V40-EA-05L_Edition1 Page24
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (26,1)

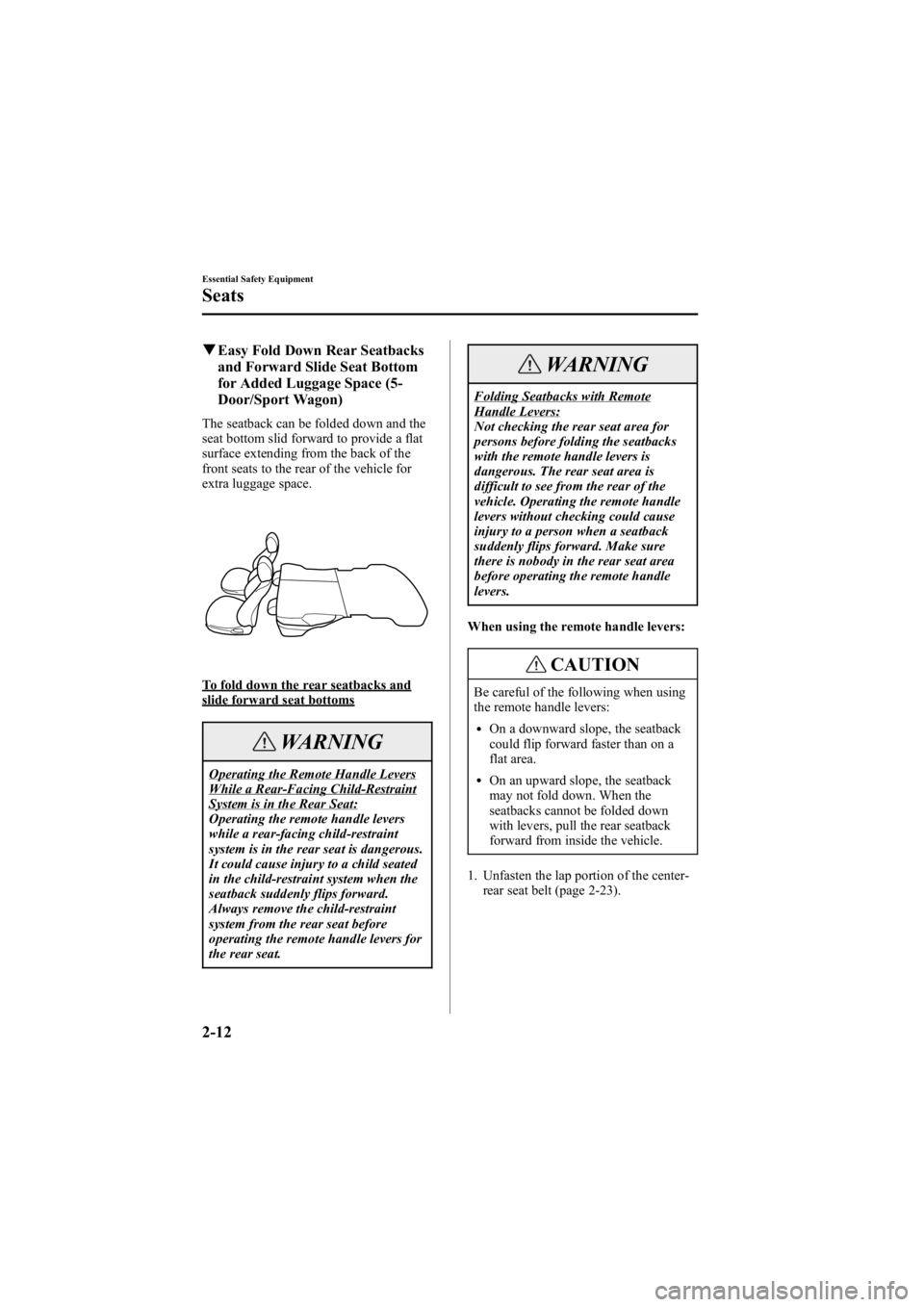

qEasy Fold Down Rear Seatbacks
and Forward Slide Seat Bottom
for Added Luggage Space (5-
Door/Sport Wagon)
The seatback can be folded down and the
seat bottom slid forward to provide a flat
surface extending from the back of the
front seats to the rear of the vehicle for
extra luggage space.
To fold down the rear seatbacks andslide forward seat bottoms
WARNING
Operating the Remote Handle LeversWhile a Rear-Facing Child-RestraintSystem is in the Rear Seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is dangerous.
It could cause injury to a child seated
in the child-restraint system when the
seatback suddenly flips forward.
Always remove the child-restraint
system from the rear seat before
operating the remote handle levers for
the rear seat.
WARNING
Folding Seatbacks with RemoteHandle Levers:
Not checking the rear seat area for
persons before folding the seatbacks
with the remote handle levers is
dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating the remote handle
levers without checking could cause
injury to a person when a seatback
suddenly flips forward. Make sure
there is nobody in the rear seat area
before operating the remote handle
levers.
When using the remote handle levers:
CAUTION
Be careful of the following when using
the remote handle levers:
lOn a downward slope, the seatback
could flip forward faster than on a
flat area.
lOn an upward slope, the seatback
may not fold down. When the
seatbacks cannot be folded down
with levers, pull the rear seatback
forward from inside the vehicle.
1. Unfasten the lap portion of the center- rear seat belt (page 2-23).
2-12
Essential Safety Equipment
Seats
Mazda6_8V40-EA-05L_Edition1 Page26
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (28,1)
WARNING
Seat Belts Caught Under Seatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
Always make sure the seat belts are
fully pulled out from under the
seatbacks.
Returning Rear Seatbacks to theUpright Position:
A rear seatback not fully returned and
locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob, the
seatback is not locked in the upright
position. When returning the seatback
to the upright position, make sure
there is no red indication.
Unlocked positionLocked position
q
Head Restraint (5-Door/Sport
Wagon)
WARNING
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
2-14
Essential Safety Equipment
Seats
Mazda6_8V40-EA-05L_Edition1 Page28
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (76,1)
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.
lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to “Front passenger
seat weight sensors ”(page 2-53).
WARNING
Damaged Air Bag/Seat BeltPretensioner System Components:
Expended or damaged air bag or seat
belt pretensioner units must be
replaced after any collision which
caused them to deploy or damage
them. Only a trained Authorized
Mazda Dealer can fully evaluate these
systems to see that they will work in
the next accident. Driving with an
expended or damaged air bag or
pretensioner units will provide you
reduced protection in the next accident
and you could be injured or killed.
Removing Interior Parts:
Removing any components such as the
front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag components.
The air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.
2-62
Essential Safety Equipment
SRS Air Bags
Mazda6_8V40-EA-05L_Edition1 Page76
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L
