Black plate (312,1)

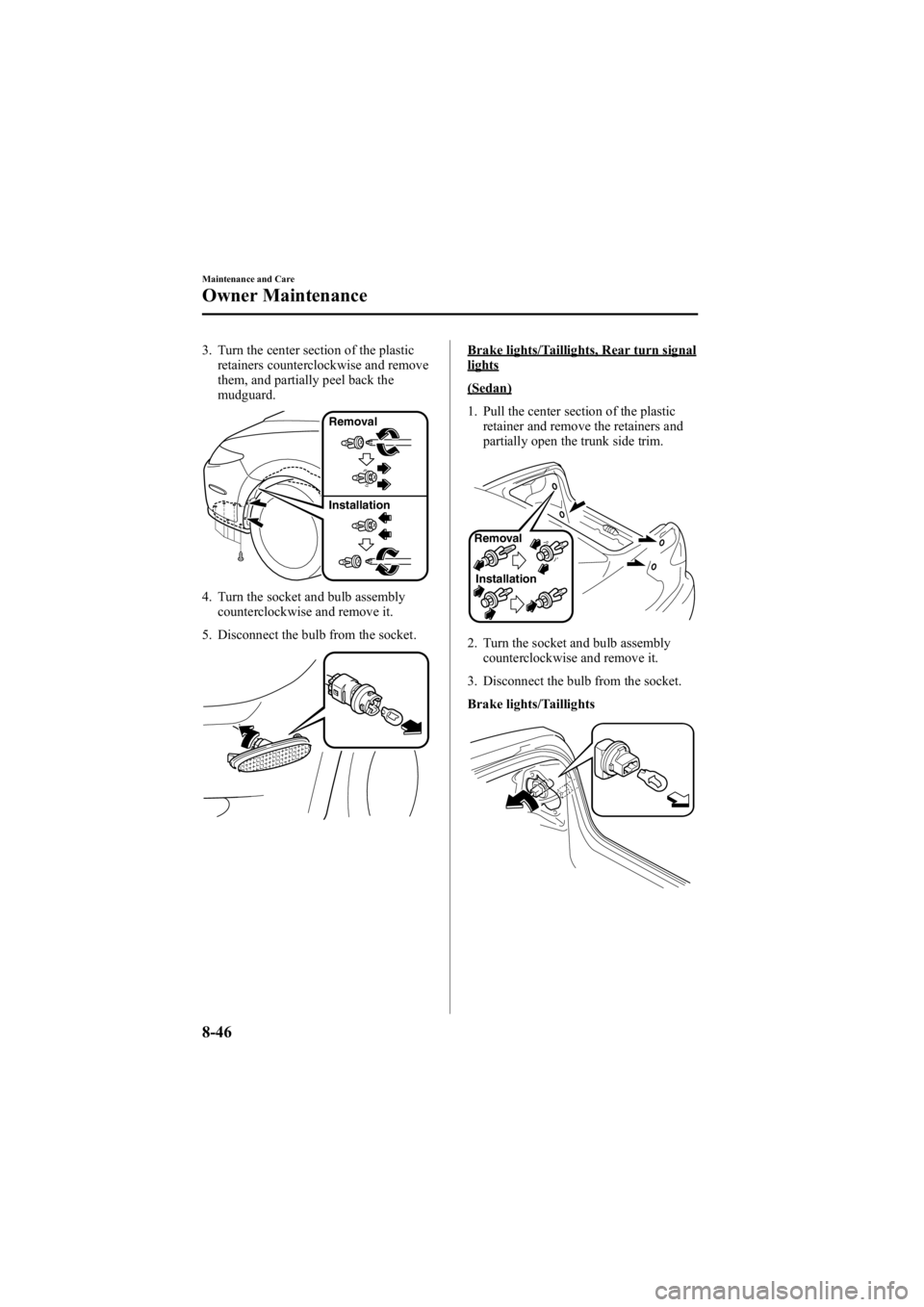

3. Turn the center section of the plasticretainers counterclockwise and remove
them, and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assemblycounterclockwise and remove it.
5. Disconnect the bulb from the socket.
Brake lights/Taillights, Rear turn signallights
(Sedan)
1. Pull the center section of the plastic retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Brake lights/Taillights
8-46
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page312
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (313,1)
Rear turn signal lights
4. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
(5-Door)
1. Turn the knob and remove the cover.
Left side Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Brake lights/Taillights
Rear turn signal lights
Maintenance and Care
Owner Maintenance
8-47
Mazda6_8V40-EA-05L_Edition1 Page313
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (314,1)
5. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
(Sport Wagon)
1. Turn the knob and remove the cover.
Left side Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it. 4. Disconnect the bulb from the socket.
Rear turn signal lights
Brake lights/Taillights
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Reverse lights, Taillights
(Sedan)
1. Pull the center section of the plasticretainer and remove the retainers, then
remove the trunk rear trim.
Installation
Removal
2. Turn the socket and bulb assembly
counterclockwise and remove it.
8-48
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page314
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (321,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 SPARE ――
2 SPARE ――
3 SPARE ――
4 M.DEF 7.5A Mirror defroster
í
5 ―― ―
6 INJ 15A Injector
7 ENG BAR 10A
*1Air flow sensor, EGR control valve
15A*2
8― *1――
ENG BB*25A Cooling fan
9 HEAD LR 15A Headlight-low beam (Right)
10 HEAD LL 15A Headlight-low beam (Left) 11 HEAD HL 10A Headlight-high beam (Left)
12 HEAD HR 10A Headlight-high beam (Right)
13 ETC 7.5A Accelerator position sensor
14 HAZARD 10A Turn signal lights
15 STOP 20A Brake/Horn
Maintenance and Care
Owner Maintenance
8-55íSome models.
Mazda6_8V40-EA-05L_Edition1 Page321
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (380,1)
qWeights
Specification ItemWeight
2.3-liter engine GVWR (Gross Vehicle Weight Rating)
1,940 kg (4,279 lbs)
GAWR (Gross Axle Weight Rating) Front
1,005 kg (2,216 lbs)
Rear 936 kg (2,064 lbs)
3.0-liter engine GVWR (Gross Vehicle Weight Rating)
2,052 kg (4,526 lbs)
GAWR (Gross Axle Weight Rating) Front
1,084 kg (2,390 lbs)
Rear 968 kg (2,136 lbs)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.6 oz)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECER SAE
Headlights High beam 55 H1
―
Low beam Halogen 55 H1
―
Xenon
fusion 35
D2S ―
Front turn signal lights 27―#2357A
Parking lights 5W5W ―
Fog lights
í55 H11 H11
Side-marker lights 5W5W ―
High-mount brake light Sedan
18.4W16W #921
5-Door/Sport Wagon 21W21W #7440
Rear turn signal lights Sedan/5-Door
21WY21W ―
Sport Wagon 21W21W #7440
Brake lights/Taillights 21/5W21/5W #7443
Taillights 5
*1W21/5W#7443
Reverse lights 18.4W16W #921
License plate lights 5W5W ―
*1 Use a 21/5W type bulb.
10-6íSome models.
Specifications
Mazda6_8V40-EA-05L_Edition1 Page380
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (386,1)
H
HeadlightsControl ....................................... 5-41
Flashing ...................................... 5-41
High-low beam .......................... 5-41
Leveling ..................................... 5-42
On reminder ............................... 5-41
HomeLink Wireless Control
System .............................................. 5-47
Hood Release .................................... 3-32
Horn .................................................. 5-46
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-47
Immobilizer System .......................... 3-36
Indicator Lights ................................. 5-30
Cruise Main ................................ 5-39
Cruise set .................................... 5-39
Headlight high-beam .................. 5-38
Security ...................................... 5-37
Shift position .............................. 5-38
TCS ............................................ 5-38
TCS OFF .................................... 5-39
Turn-signal/hazard warning ....... 5-39
Information Display .......................... 6-50 Ambient temperature display ..... 6-51
Audio display ............................. 6-52
Climate control display .............. 6-52
Clock .......................................... 6-51
Information display functions .... 6-50
Inside Trunk Release Lever ............... 3-22
Instrument Cluster ............................. 5-25
Interior Care ...................................... 8-63
Interior Lights ................................... 6-47
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-42
Liftgate .............................................. 3-14 Luggage compartment cover ...... 3-15
Luggage compartment net .......... 3-16
Light Bulbs
Replacement ............................... 8-43
Specifications ............................. 10-6
Lighting Control ............................... 5-41
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-49
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting ..... 5-9
Map Lights ........................................ 6-48
Mirrors
Outside mirrors .......................... 3-41
Rearview mirror ......................... 3-42
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-33
11-4
Index
Mazda6_8V40-EA-05L_Edition1 Page386
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (388,1)
S
Storage Compartments ...................... 6-54Cargo securing loops .................. 6-56
Cargo sub-compartment ............. 6-57
Center box .................................. 6-54
Center console ............................ 6-55
Glove box ................................... 6-55
Overhead console ....................... 6-54
Storage box ................................ 6-55
Storage pocket ............................ 6-54
Storage Pocket .................................. 6-54
Sunshade ........................................... 3-34
Sunvisors .......................................... 6-47
T
Tachometer ........................................ 5-27
Temporary Spare Tire ....................... 8-41
Theft-Deterrent System ..................... 3-39
Tire Information ................................ 9-22
Tires Flat tire ......................................... 7-3
Inflation pressure ........................ 8-39
Replacement ............................... 8-40
Rotation ...................................... 8-40
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-7
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-20
Tool ..................................................... 7-3
Towing Description ................................. 7-21
Emergency towing ..................... 7-21
Recreational towing ................... 7-22
T
Traction Control System (TCS) ........ 5-22
TCS indicator light ..................... 5-23
TCS OFF indicator light ............ 5-23
TCS OFF switch ........................ 5-23
Trip Meter ......................................... 5-26
Trunk Lid .......................................... 3-20 Inside trunk release lever ............ 3-22
Trunk Light ....................................... 3-21
Turn and Lane-Change Signals ......... 5-42
V
Vanity Mirrors ................................... 6-47
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-30 ABS ............................................ 5-32
Air bag system ........................... 5-35
Automatic transaxle ................... 5-37
Brake system .............................. 5-32
Charging system ......................... 5-33
Check engine .............................. 5-34
Door-ajar .................................... 5-37
Engine oil pressure ..................... 5-34
Front seat belt pretensioner
system ........................................ 5-35
Low fuel ..................................... 5-35
Low washer fluid level ............... 5-37
Seat belt ...................................... 5-35
Warranty ............................................ 9-12
Washer Fluid ..................................... 8-29
Weights ............................................. 10-6
Wheel Replacement .......................... 8-42
Windows Power windows .......................... 3-23
Windshield Washer ........................... 5-44
11-6
Index
Mazda6_8V40-EA-05L_Edition1 Page388
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L
