2006 MAZDA MODEL 6 SPORT WAGON fog light

Black plate (309,1)
Light Bulbs
Luggage compartment
light (Hatchback)
High-mount brake light
(Sedan)
Headlights
(High beam) Headlights
(Low beam)
Overhead light/
Map lights
Luggage compartment light
Sport Wagon
Taillights
Side-marker lights License plate lights Courtesy lights
Front turn signal lights Parking lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights
High-mount brake light
Fog lights
Sedan/5-Door
Taillights
Side-marker lights
License plate lights
Courtesy lights
Front turn signal lights Parking lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights Trunk light
Fog lights
High-mount brake light (Hatchback) Headlights
(High beam) (Low beam)
Headlights Map lights
Overhead light/
Maintenance and Care
Owner Maintenance
8-43
Mazda6_8V40-EA-05L_Edition1 Page309
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (310,1)
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.

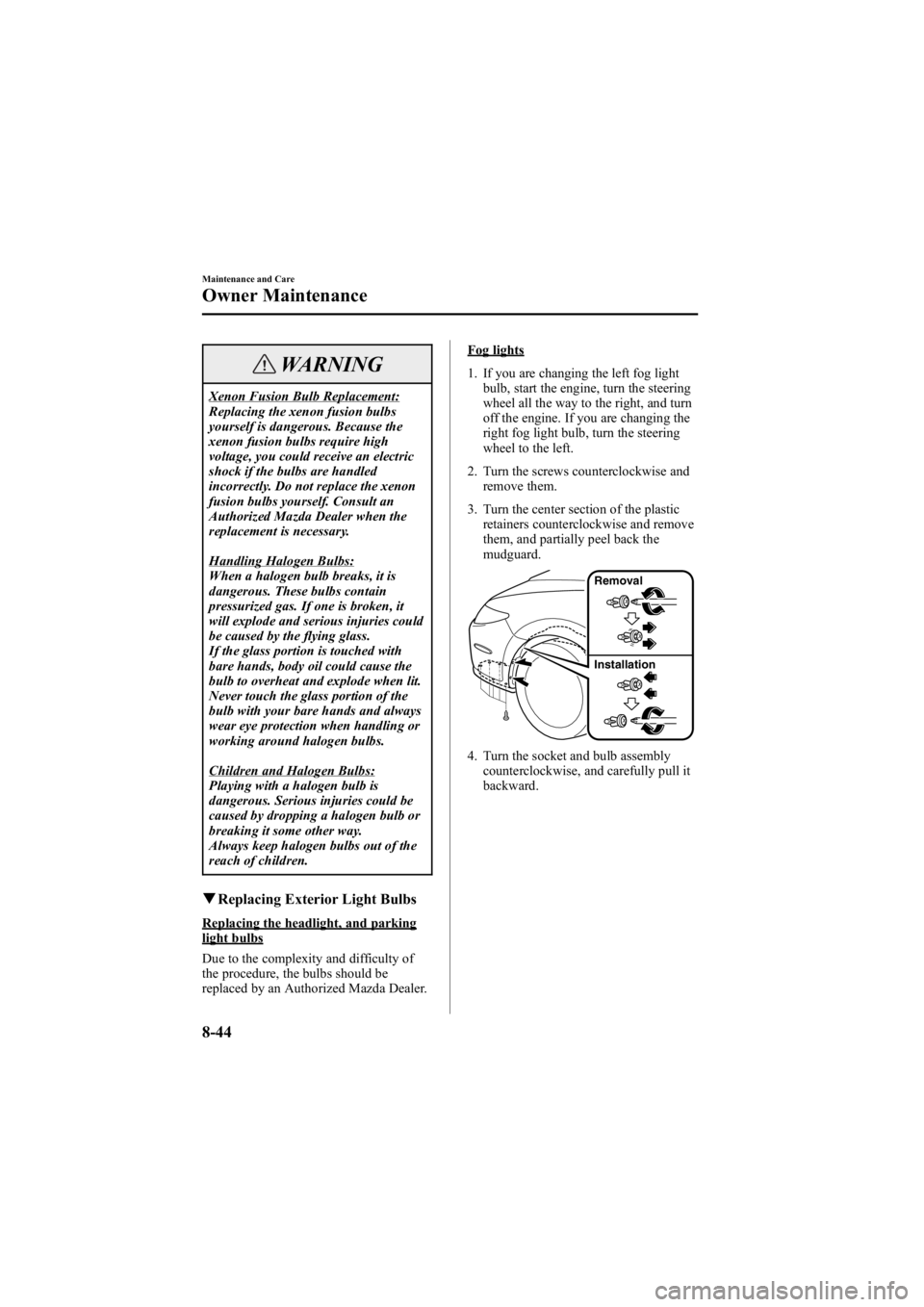

qReplacing Exterior Light Bulbs
Replacing the headlight, and parkinglight bulbs
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Fog lights
1. If you are changing the left fog light
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right fog light bulb, turn the steering
wheel to the left.
2. Turn the screws counterclockwise and remove them.
3. Turn the center section of the plastic retainers counterclockwise and remove
them, and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assemblycounterclockwise, and carefully pull it
backward.
8-44
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page310
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (322,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
16 TCM 15A
*1TCM
10A*2
17 ENG+B 7.5A PCM, TCM
18 FUEL PUMP 15A Fuel pump
19 IG KEY1 30A Engine control unit, Lighter
20 P.WIND 30A Power window
21 ―― ―
22 DRL 20A DRL
23 ―― ―
24 BLOWER 40A Blower motor
25 BTN 40A Overhead light, Power door lock
26 IG KEY2 40ARear wiper motor
í, Heater control unit, Windshield wiper and
washer
27 DEFOG 40A Rear window defroster
28 ABS 60A ABS
í
29 AD FAN*130A Cooling fan
FAN2*2
30 FA N*130A Cooling fan
FAN1*2
31 TAIL 10A Taillights, License plate lights, Parking lights
32 ILLUMI 10A Dashboard illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
í
36 OPENER7.5A Trunk opener motorí
37―― ―
38― *1――
IG1*215A CAT SSR
39 FOG 15A Fog lightsí
40 MAIN 120A For protection of all circuits
*1 2.3-liter engine
*2 3.0-liter engine
8-56
Maintenance and Care
íSome models.
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page322
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (380,1)
qWeights
Specification ItemWeight
2.3-liter engine GVWR (Gross Vehicle Weight Rating)
1,940 kg (4,279 lbs)
GAWR (Gross Axle Weight Rating) Front
1,005 kg (2,216 lbs)
Rear 936 kg (2,064 lbs)
3.0-liter engine GVWR (Gross Vehicle Weight Rating)
2,052 kg (4,526 lbs)
GAWR (Gross Axle Weight Rating) Front
1,084 kg (2,390 lbs)
Rear 968 kg (2,136 lbs)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.6 oz)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECER SAE
Headlights High beam 55 H1
―
Low beam Halogen 55 H1
―
Xenon
fusion 35
D2S ―
Front turn signal lights 27―#2357A
Parking lights 5W5W ―
Fog lights
í55 H11 H11
Side-marker lights 5W5W ―
High-mount brake light Sedan
18.4W16W #921
5-Door/Sport Wagon 21W21W #7440
Rear turn signal lights Sedan/5-Door
21WY21W ―
Sport Wagon 21W21W #7440
Brake lights/Taillights 21/5W21/5W #7443
Taillights 5
*1W21/5W#7443
Reverse lights 18.4W16W #921
License plate lights 5W5W ―
*1 Use a 21/5W type bulb.
10-6íSome models.
Specifications
Mazda6_8V40-EA-05L_Edition1 Page380
Monday, November 28 2005 6:11 PM
