NOTE
If an indicator light remains illuminated
(does not flash) or if it flashes
abnormally, one of the turn signal bulbs
may be burned out.
Beep Sounds
qSeat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
If the driver's seat belt is not fastened and
the vehicle is driven at a speed faster than
about 20 km/h (12 mph), a beep sound
will be heard again for a specified period
of time.
Refer to Seat Belt Warning Light/Beep on
page 5-35.
qIgnition Key Reminder
If the ignition switch is in the LOCK or
ACC position with the key inserted, a
continuous beep sound will be heard
when the driver's door is opened.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
5-40
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda6_8V40-EA-05L_Edition1 Page174
Monday, November 28 2005 6:10 PM
Form No.8V40-EA-05L

Black plate (176,1)
qHeadlight Levelingí
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The headlight leveling switch adjusts this
angle.
Select the proper setting from the following chart.
Front seat Rear
seat Load Switch
Position
Driver Passenger
× ――― 0
×× ――0
×× × ―1
×× ×× 2
× ―― ×3
×: Yes
― :No
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Turn and Lane-Change
Signals
q Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn OFF
Right lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change ―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
5-42
Driving Your Mazda
íSome models.
Switches and Controls
Mazda6_8V40-EA-05L_Edition1 Page176
Monday, November 28 2005 6:10 PM
Form No.8V40-EA-05L

Black plate (309,1)
Light Bulbs
Luggage compartment
light (Hatchback)
High-mount brake light
(Sedan)
Headlights
(High beam) Headlights
(Low beam)
Overhead light/
Map lights
Luggage compartment light
Sport Wagon
Taillights
Side-marker lights License plate lights Courtesy lights
Front turn signal lights Parking lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights
High-mount brake light
Fog lights
Sedan/5-Door
Taillights
Side-marker lights
License plate lights
Courtesy lights
Front turn signal lights Parking lights
Reverse lights
Rear turn signal lights
Brake lights/Taillights Trunk light
Fog lights
High-mount brake light (Hatchback) Headlights
(High beam) (Low beam)
Headlights Map lights
Overhead light/
Maintenance and Care
Owner Maintenance
8-43
Mazda6_8V40-EA-05L_Edition1 Page309
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (311,1)

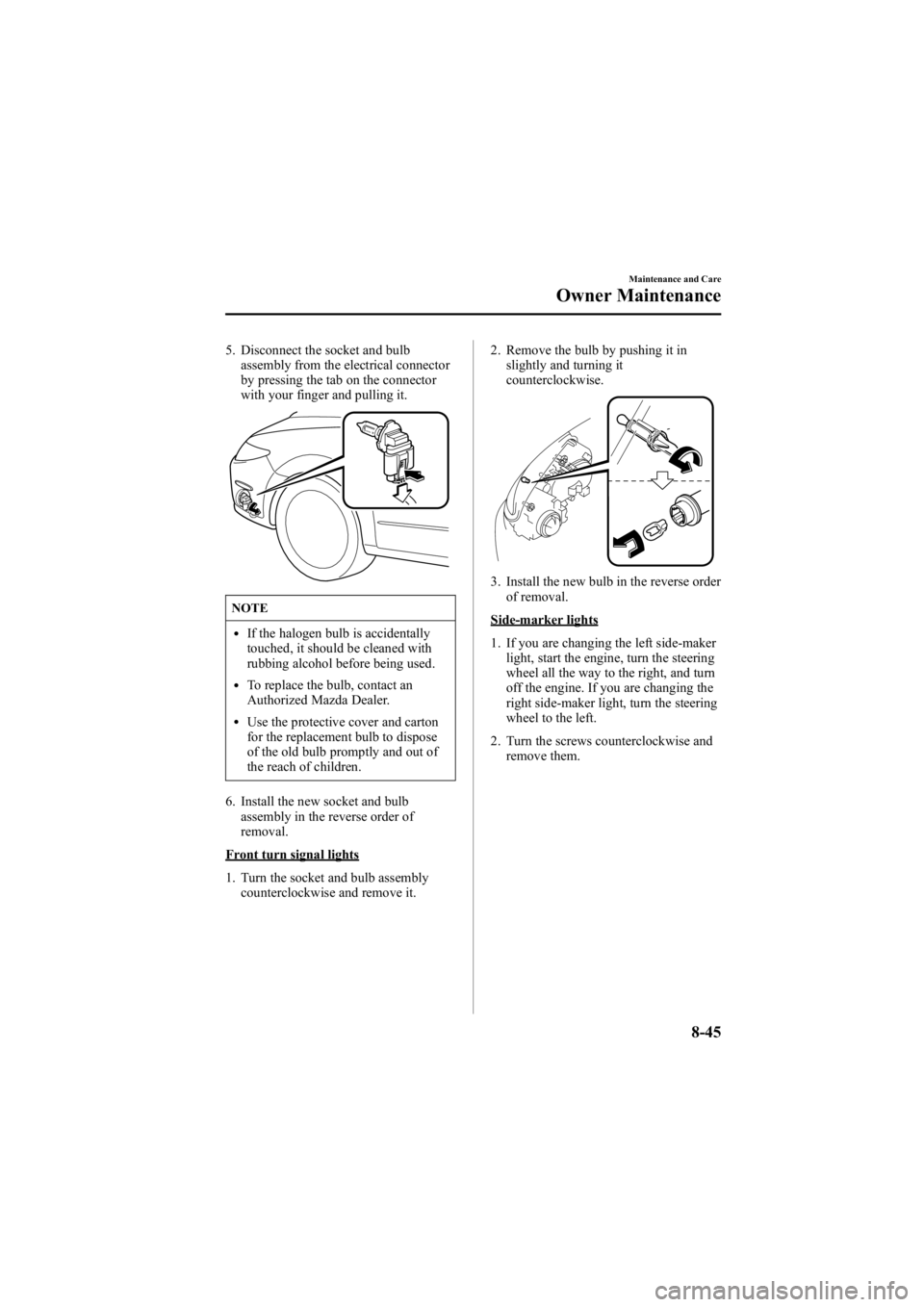

5. Disconnect the socket and bulbassembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
NOTE
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
6. Install the new socket and bulb assembly in the reverse order of
removal.
Front turn signal lights
1. Turn the socket and bulb assemblycounterclockwise and remove it. 2. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.
3. Install the new bulb in the reverse orderof removal.
Side-marker lights
1. If you are changing the left side-maker
light, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right side-maker light, turn the steering
wheel to the left.
2. Turn the screws counterclockwise and remove them.
Maintenance and Care
Owner Maintenance
8-45
Mazda6_8V40-EA-05L_Edition1 Page311
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (312,1)
3. Turn the center section of the plasticretainers counterclockwise and remove
them, and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assemblycounterclockwise and remove it.
5. Disconnect the bulb from the socket.
Brake lights/Taillights, Rear turn signallights
(Sedan)
1. Pull the center section of the plastic retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Brake lights/Taillights
8-46
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page312
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (313,1)
Rear turn signal lights
4. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
(5-Door)
1. Turn the knob and remove the cover.
Left side Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Brake lights/Taillights
Rear turn signal lights
Maintenance and Care
Owner Maintenance
8-47
Mazda6_8V40-EA-05L_Edition1 Page313
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (314,1)
5. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
(Sport Wagon)
1. Turn the knob and remove the cover.
Left side Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it. 4. Disconnect the bulb from the socket.
Rear turn signal lights
Brake lights/Taillights
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Reverse lights, Taillights
(Sedan)
1. Pull the center section of the plasticretainer and remove the retainers, then
remove the trunk rear trim.
Installation
Removal
2. Turn the socket and bulb assembly
counterclockwise and remove it.
8-48
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page314
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (380,1)
qWeights
Specification ItemWeight
2.3-liter engine GVWR (Gross Vehicle Weight Rating)
1,940 kg (4,279 lbs)
GAWR (Gross Axle Weight Rating) Front
1,005 kg (2,216 lbs)
Rear 936 kg (2,064 lbs)
3.0-liter engine GVWR (Gross Vehicle Weight Rating)
2,052 kg (4,526 lbs)
GAWR (Gross Axle Weight Rating) Front
1,084 kg (2,390 lbs)
Rear 968 kg (2,136 lbs)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.6 oz)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECER SAE
Headlights High beam 55 H1
―
Low beam Halogen 55 H1
―
Xenon
fusion 35
D2S ―
Front turn signal lights 27―#2357A
Parking lights 5W5W ―
Fog lights
í55 H11 H11
Side-marker lights 5W5W ―
High-mount brake light Sedan
18.4W16W #921
5-Door/Sport Wagon 21W21W #7440
Rear turn signal lights Sedan/5-Door
21WY21W ―
Sport Wagon 21W21W #7440
Brake lights/Taillights 21/5W21/5W #7443
Taillights 5
*1W21/5W#7443
Reverse lights 18.4W16W #921
License plate lights 5W5W ―
*1 Use a 21/5W type bulb.
