2006 MAZDA MODEL 5 display

36
Address Book
Address Book
Before Steps select
Destination &
Way Points
z
Previous
Destination
Deletion
All Previous
Destination Deletion
Preset
Destination
Storage
Preset Destination
Confirmation and
Modification
Preset
Destination
Deletion
All Preset
Destination Deletion
Displays Icons
at Memory
Points
Starts Route
calculation
MENUENTER
Open the
[ADDRESS
BOOK]Select
( page 28)
Select
Select
Select
Select
MAZDA3_Navi_EA.book Page 36 Monday, June 6, 2005 9:39 AM

37
Address Book
Select a destination to
be deleted.
:The order of the displayed
list can be changed. : Cancel the deletion.
: Cancel the deletion.
Select a preset number. Set a preset number using your preferred method
Select a preset number. Select the button corresponding to the item to be
modified
Select a preset number
to be deleted.
: Cancel the deletion.
: Cancel the deletion.
MAZDA3_Navi_EA.book Page 37 Monday, June 6, 2005 9:39 AM

38
Navigation Set Up
Navigation Set Up
●You can alter the map display conditions, the route guidance conditions and show the
system information.
■Stop your vehicle before the following operations. Do not change the settings and destination locations while driving. Minimize the time
spent viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and may
cause an accident.
Always stop the vehicle in a safe location and put the parking brake on before operating
the system.
Before Steps select
Warning
MENUENTERENTER
Open
[NAVIGATION SET UP] ( page 39)
( page 41)
( page 45)
( page 45)
( page 42)
( page 44)
MAZDA3_Navi_EA.book Page 38 Monday, June 6, 2005 9:39 AM

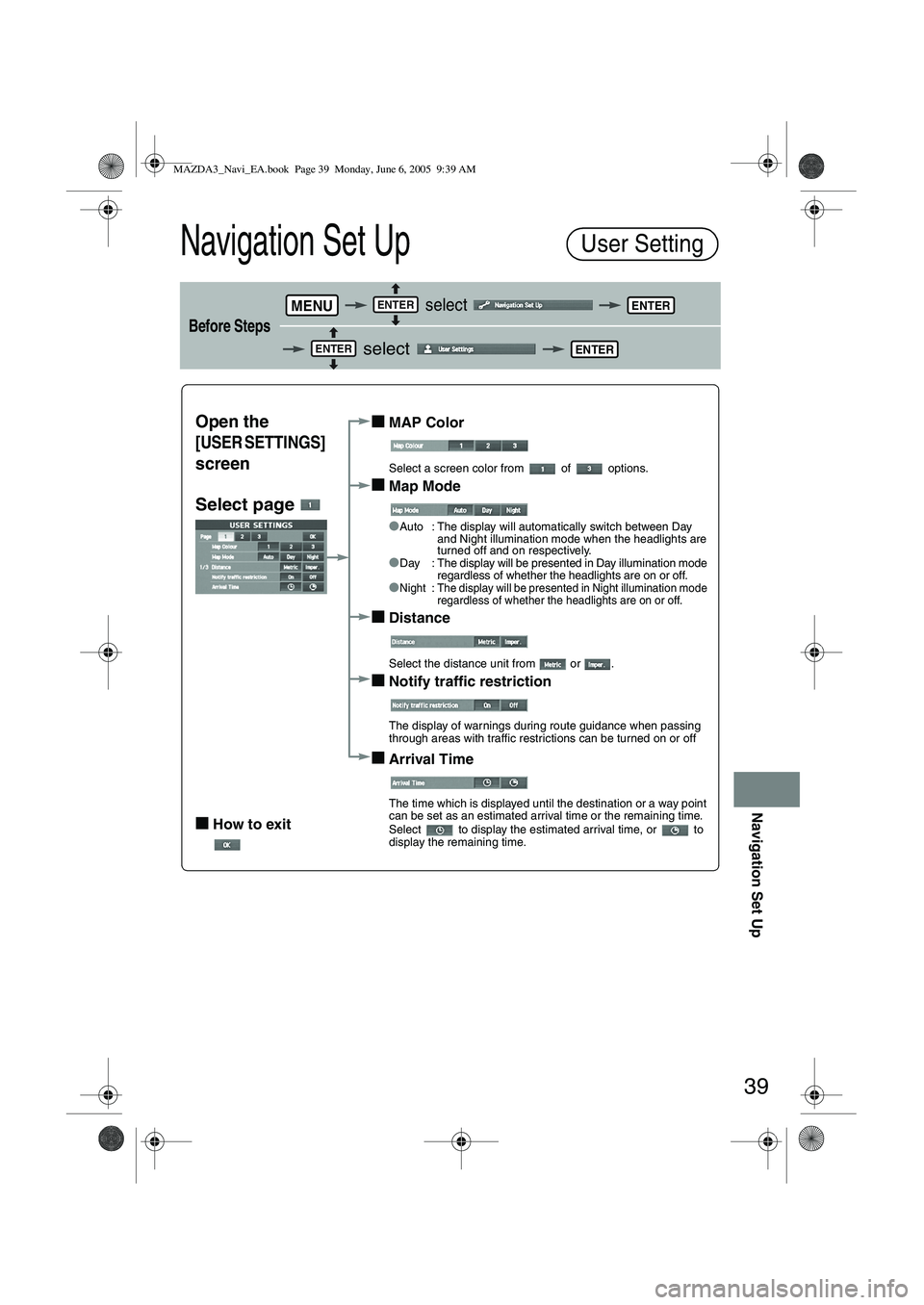

39
Navigation Set Up
Navigation Set Up
Before Steps
select
select
User Setting
MENUENTERENTER
ENTERENTER
Open the
[USER SETTINGS]
screen
Select page
■
How to exit
■MAP Color
Select a screen color from of options.
■Map Mode
●Auto : The display will automatically switch between Day and Night illumination mode when the headlights are
turned off and on respectively.
●Day : The display will be presented in Day illumination mode regardless of whether the headlights are on or off.
●Night : The display will be presented in Night illumination mode regardless of whether the headlights are on or off.
■Distance
Select the distance unit from or .
■Notify traffic restriction
The display of warnings during route guidance when passing
through areas with traffic restrictions can be turned on or off
■Arrival Time
The time which is displayed until the destination or a way point
can be set as an estimated arrival time or the remaining time.
Select to display the estimated arrival time, or to
display the remaining time.
MAZDA3_Navi_EA.book Page 39 Monday, June 6, 2005 9:39 AM

40
Navigation Set Up
Navigation Set Up
Before Steps
select
select
User Setting
MENUENTERENTER
ENTERENTER
Open the
[USER SETTINGS]
screen
Select page
Select page
■
How to exit
■Keyboard layout
The layout of input keys can be selected as or .
■Guidance Screen
Select whether Enlarged Junction diagram screen is displayed
automatically.
■freeway information
Allows selection of whether guidance screen is to be displayed
while driving on freeway.
■Clock
Allows selection of whether clock is to be displeyed.
■Beep
Allows selection of whether beep will sound.
MAZDA3_Navi_EA.book Page 40 Monday, June 6, 2005 9:39 AM

41
Navigation Set Up
Navigation Set Up
This function allows you set the categories on the area displayed when the (Point of interest)
menu is selected on the map. Quick POI enables you store up to six different kinds category
which you use most regularly.
1 select
2 select
Quick POI Selection
MENUENTERENTER
ENTERENTER
Open the [QUICK POI SELECTION] screen
Select the button for Quick POI storage.
Note
●
Select the category to be changed
: This button allows you to restore the factory setting.
Select a category.
Once selected, subcategories will be displayed. : Subcategories from all of the individual categories will be
displayed together.
Select the subcategories to be displayed on the
map.
Repeat the above steps to add further POI markers displayed on the menu.
MAZDA3_Navi_EA.book Page 41 Monday, June 6, 2005 9:39 AM

42
Navigation Set Up
Navigation Set Up
This function allows you to correct any error in the position or direction of your vehicle display.
Before Steps select
Adjusting Current Position and Direction select
Open the [Position calibration] screen
Move to the correct position and select .
Use
or to adjust the direction in which you are heading,
and select .
Distance
This function automatically corrects any error in the display of the current position that
might occur after tire replacement.
select
Distance is displayed
You will have to drive about 6 miles (10 km) before distance correction is complete.
Set Clo
The curr
a GPS s
s
Open t
Map V
e
The map
function.
s
Map and
Calibration
MENUENTER
ENTERENTER
ENTER
ENTERENTER
ENTER
ENTER
MAZDA3_Navi_EA.book Page 42 Monday, June 6, 2005 9:39 AM

43
Navigation Set Up
select
.
ou are heading,
ent position that
is complete.
Set Clock
The current time is set using this functi on. Since time notification is provided by
a GPS satellite, time-zone adjustment can be carried out automatically.
select
Open the [SET CLOCK] screen
Select if you would prefer 24-hour display; for 12-hour display.
Select to move the setting ahead by one hour,
and similarly, select to move it back by one
hour.
How to exit .
Map Version
The map and software version numbers can be confirmed by using this
function.
select
Map and software versions are now displayed.
ENTERENTERENTER
NTER
ENTERENTER
ENTERENTER
MAZDA3_Navi_EA.book Page 43 Monday, June 6, 2005 9:39 AM
