2006 MAZDA MODEL 5 dashboard

Black plate (208,1)
Audio Control Switch
Operation (Steering Wheel)
í
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
NOTE
Because the audio unit will be turned
off under the following conditions, the
switches will be inoperable.
lWhen the ignition switch is turned to
the LOCK position.
lWhen the power button on the audio
unit is pressed and the audio unit is
turned off.
lWhen a cassette tape/CD being
played is ejected. (For the In-dash
CD changer, when all CDs are
ejected.)
NOTE
Mazda has installed this system to
prevent distraction while driving the
vehicle and using audio controls on the
dashboard.
Always make safe driving your first
priority.
qAdjusting the Volume
To increase the volume, press the volume
button (
).
To decrease the volume, press the volume
button (
).
6-38
Interior Comfort
íSome models.
Audio System
Mazda3_8U55-EA-05G_Edition3 Page208
Tuesday, September 13 2005 10:43 AM
Form No.8U55-EA-05G

Black plate (312,1)
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
lOnly use a mild soap or neutral
detergent and always use a sponge or
soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean the
wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
lAvoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
lIf your aluminum wheels lose luster,
wax the wheels.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with a dampsoft cloth; then dry
and buff it with a drysoft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
8-64
Maintenance and Care
íSome models.
Appearance Care
Mazda3_8U55-EA-05G_Edition3 Page312
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (360,1)

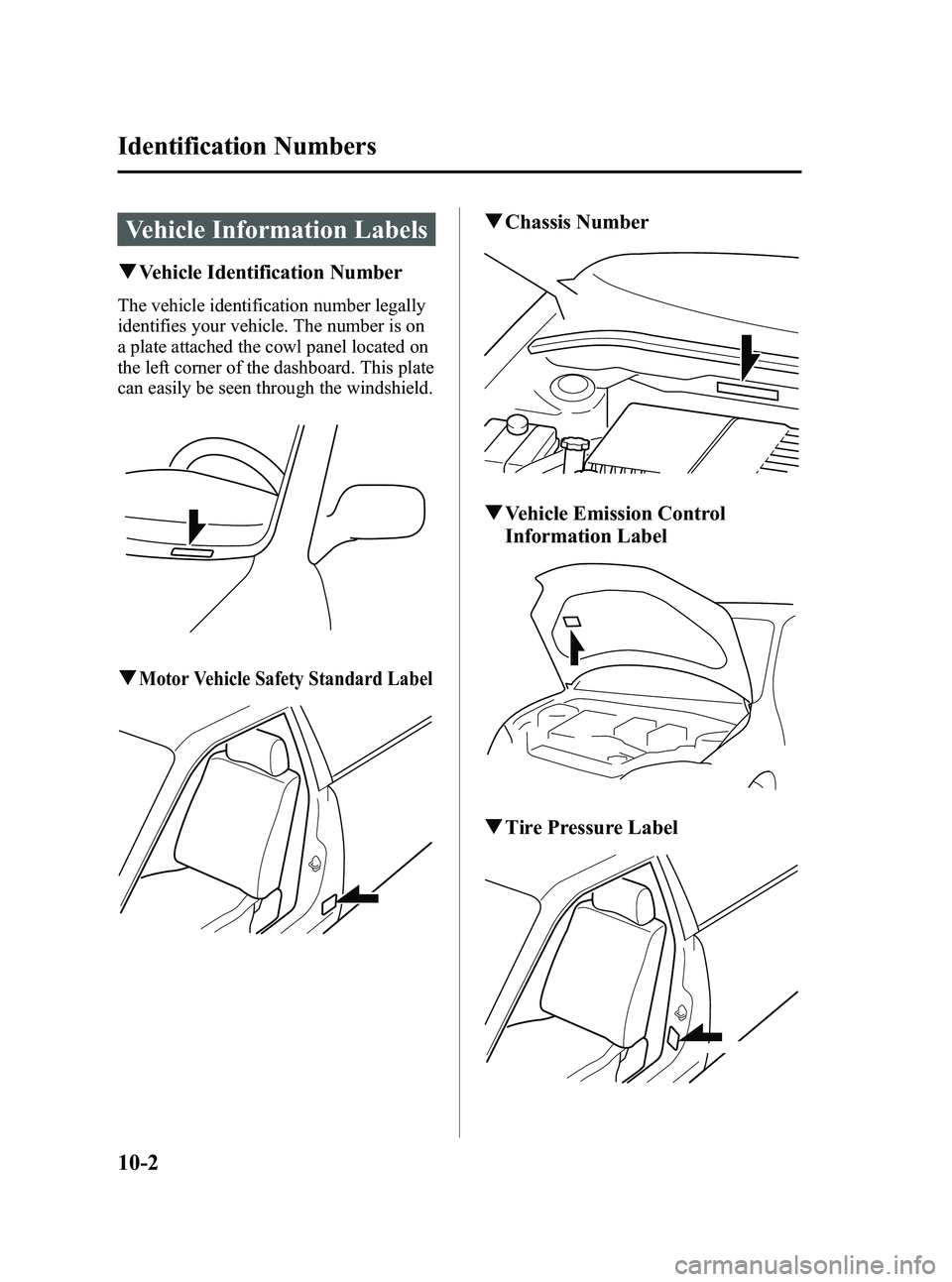

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
Mazda3_8U55-EA-05G_Edition3 Page360
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (369,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-32
Daytime Running Lights ................... 5-48
DefrosterRear window .............................. 5-54
Dimensions ....................................... 10-5
Door Locks ......................................... 3-6
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-17
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-14Flooded engine ........................... 7-14
Jump-starting .............................. 7-15
Push-starting .............................. 7-18
Emergency Towing ........................... 7-19
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-20
Oil .............................................. 8-18
Overheating ................................ 7-12
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-12
E
Engine Coolant Temperature
Gauge ................................................ 5-31
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-61
F
FlasherHazard warning .......................... 5-55
Headlights .................................. 5-46
Flat Tire ............................................... 7-3 Changing ...................................... 7-6
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-54
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49
Foot Brake .......................................... 5-4
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-18
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-52 Panel description ........................ 8-55
Replacement ............................... 8-52
G
Glove Box ......................................... 6-52
H
Hazard Warning Flasher .................... 5-55
Hazardous Driving .............................. 4-8
Index
11-3
Mazda3_8U55-EA-05G_Edition3 Page369
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G

53
As necessary
Maintenance
■Cleaning this productUse a dry, soft cloth to wipe it.
■Cautions for cleaningNever use solvents such as benzene and thinners, they could mar the surface of the unit.
■Map discIf you require the latest map disc, consult an Expert repairer, we recommend an Authorized
Mazda Repairer.
■How to hold the disc●Do not touch the underside of the disc.
● Do not scratch the disc.
● Do not bend the disc.
● When not in use, keep the disc in the case.
■Disc Cleaning●Use a dry, soft cloth to wipe from the center outward.
■Do not leave discs in the following places:●Direct sunlight
● Near car heaters
● In dirty, dusty and damp areas
● On seats and dashboards
Care of the Product
Handling and Care of Map Discs
Label side

MAZDA3_Navi_EA.book Page 53 Monday, June 6, 2005 9:39 AM
