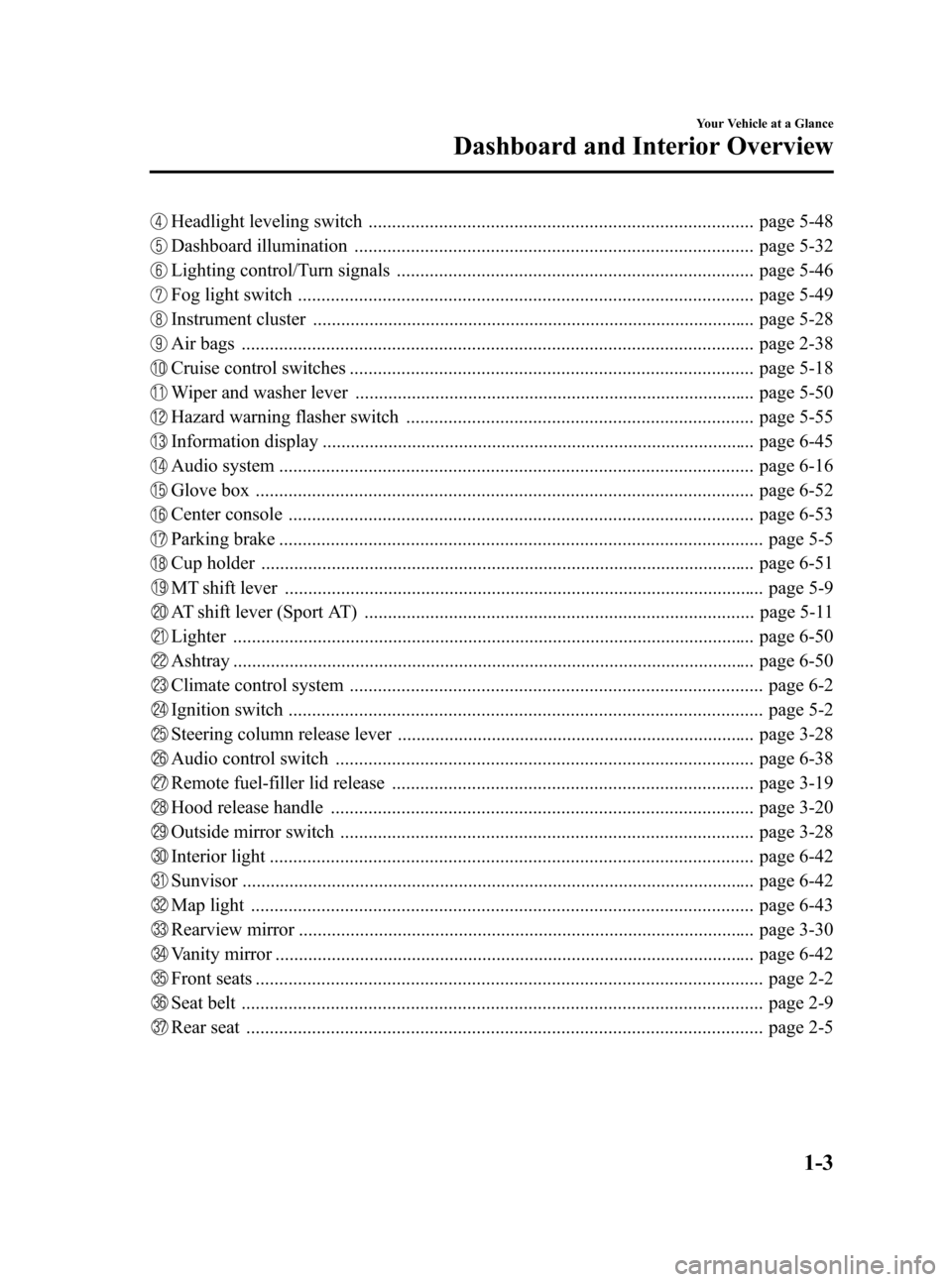

2006 MAZDA MODEL 3 HATCHBACK display

Black plate (9,1)
Headlight leveling switch .................................................................................. page 5-48
Dashboard illumination ..................................................................................... page 5-32
Lighting control/Turn signals ............................................................................ page 5-46
Fog light switch ................................................................................................. page 5-49
Instrument cluster .............................................................................................. page 5-28
Air bags ............................................................................................................. page 2-38
Cruise control switches ...................................................................................... page 5-18
Wiper and washer lever ..................................................................................... page 5-50
Hazard warning flasher switch .......................................................................... page 5-55
Information display ............................................................................................ page 6-45
Audio system ..................................................................................................... page 6-16
Glove box .......................................................................................................... page 6-52
Center console ................................................................................................... page 6-53
Parking brake ....................................................................................................... page 5-5
Cup holder ......................................................................................................... page 6-51
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-11
Lighter ............................................................................................................... page 6-50
Ashtray ............................................................................................................... page 6-50
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-28
Audio control switch ......................................................................................... page 6-38
Remote fuel-filler lid release ............................................................................. page 3-19
Hood release handle .......................................................................................... page 3-20
Outside mirror switch ........................................................................................ page 3-28
Interior light ....................................................................................................... page 6-42
Sunvisor ............................................................................................................. page 6-42
Map light ........................................................................................................... page 6-43
Rearview mirror ................................................................................................. page 3-30
Vanity mirror ...................................................................................................... page 6-42
Front seats ............................................................................................................ page 2-2
Seat belt ............................................................................................................... page 2-9
Rear seat .............................................................................................................. page 2-5
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
Mazda3_8U55-EA-05G_Edition2 Page9
Thursday, June 23 2005 2:52 PM
Form No.8U55-EA-05G

Black plate (143,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Selector
Trip meter
Odometer
Odometer
OdometerTrip meter A
Press the selector
Press the selector Trip meter B
Driving Your Mazda
Instrument Cluster and Indicators
5-29
Mazda3_8U55-EA-05G_Edition2 Page143
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

Black plate (144,1)
NOTE
l(Standard meter)
The odometer and trip meter can be
displayed as follows even when the
ignition switch is in the ACC or
LOCK position.
lDisplays for 10 minutes after the
ignition switch is turned to the
ACC or LOCK position from the
ON position.
lDisplays for 10 minutes after the
driver's door is opened.
l(Black-out meter)
When the ignition switch is in the
ACC or LOCK position, the
odometer or trip meters cannot be
displayed, however, pressing the
selector button can inadvertently
switch the trip meters or reset them
during an approximate ten-minute
period in the following cases:
lAfter the ignition switch is turned
to the ACC or LOCK position
from the ON position.
lAfter the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:
lThe power supply is interrupted
(blown fuse or the battery is
disconnected).
lThe vehicle is driven over 999.9
km (mile).
5-30
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8U55-EA-05G_Edition2 Page144
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (157,1)
Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
displays.
qCruise Main Indicator Lightí
This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.
qCruise Set Indicator Lightí
This light comes on when a cruising speed
is set.
qLight-On Indicator Light (Black-
out meter)
This indicator light comes on when the
exterior lights and dashboard illumination
are on.
qPower Steering Malfunction
Indicator Light
This indicator light illuminates when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
The light illuminates to indicate that the
power steering is inoperable. If the light
illuminates, turn off the engine and restart
it.
If the light does not illuminate after
restarting the engine, this indicates that
the power steering is restored and normal
steering is possible.
If the light remains illuminated, the power
steering is still inoperable. Consult an
Authorized Mazda Dealer.
NOTE
The power steering system is inoperable
when the power steering malfunction
indicator light illuminates. Steering is
possible, but requires more physical
effort.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-43íSome models. Mazda3_8U55-EA-05G_Edition2 Page157
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (171,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2
Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type ............................................................................. 6-6
Fully Automatic Type
í........................................................... 6-11
Audio System ............................................................................... 6-16
Antenna ................................................................................... 6-16
Operating Tips for Audio System ........................................... 6-16
Audio Set ................................................................................ 6-23
Audio Control Switch Operation (Steering Wheel)
í............. 6-38
Safety Certification ................................................................. 6-41
Interior Equipment ..................................................................... 6-42
Sunvisors ................................................................................. 6-42
Interior Lights ......................................................................... 6-42
Information Display ................................................................ 6-45
Lighter ..................................................................................... 6-50
Ashtray .................................................................................... 6-50
Cup Holder .............................................................................. 6-51
Bottle Holder ........................................................................... 6-52
Storage Compartments ............................................................ 6-52
6-1íSome models.
Mazda3_8U55-EA-05G_Edition2 Page171
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (175,1)

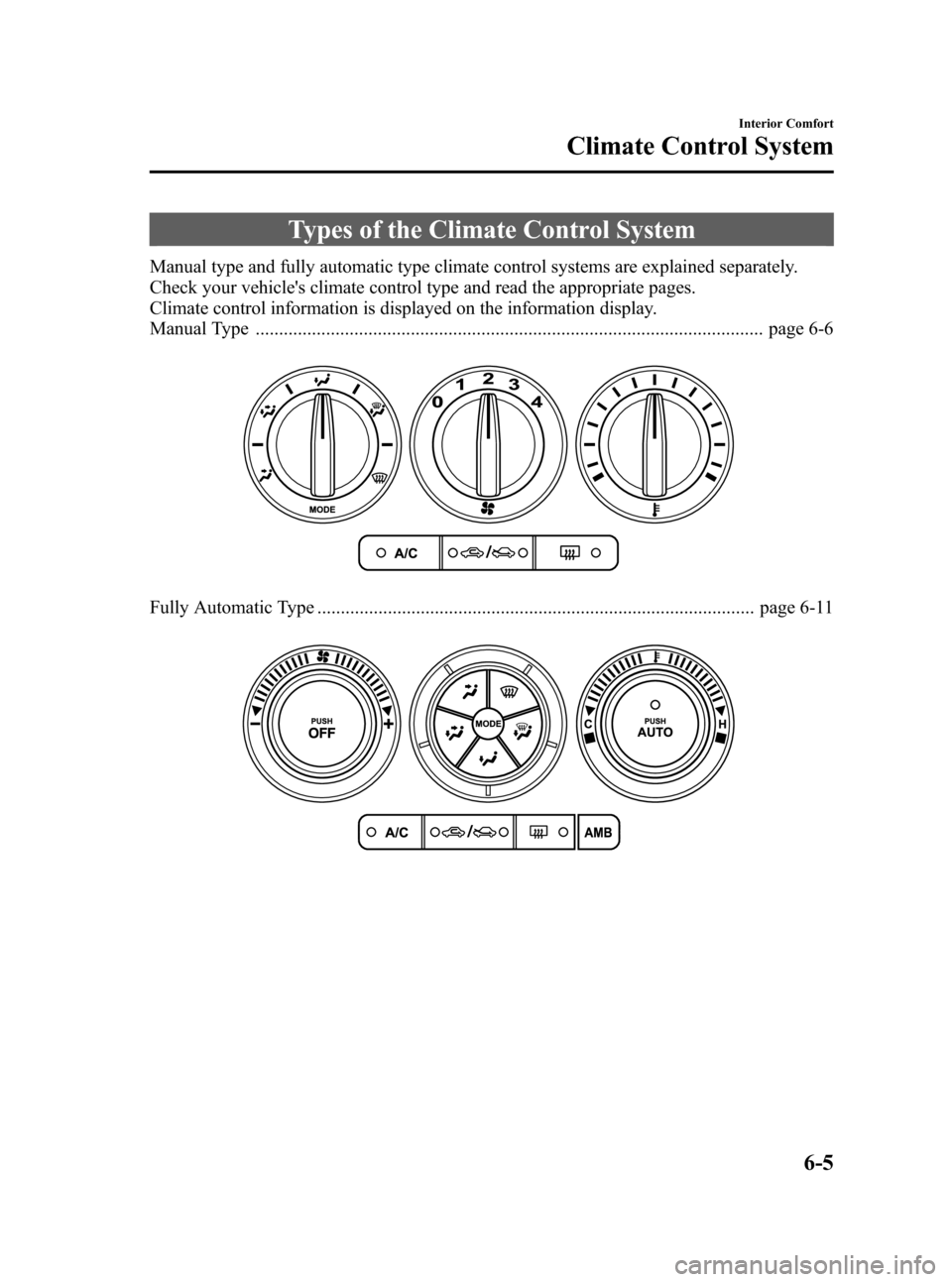

Types of the Climate Control System
Manual type and fully automatic type climate control systems are explained separately.
Check your vehicle's climate control type and read the appropriate pages.
Climate control information is displayed on the information display.
Manual Type ............................................................................................................ page 6-6
Fully Automatic Type ............................................................................................. page 6-11
Interior Comfort
Climate Control System
6-5
Mazda3_8U55-EA-05G_Edition2 Page175
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (181,1)
Fully Automatic Typeí
Climate control information is displayed on the information display.
Temperature control dial
Fan control dialMode selector switch
Air intake selector A/C Switch OFF switch
Auto switch
AMB (Ambient
Temperature) switch Windshield
defroster switch
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperature
lAmount of airflow
lSelection of airflow mode
lOutside/Recirculated air selection
lAir conditioner operation
lA/C or A/C ECO selection
Interior Comfort
Climate Control System
6-11íSome models. Mazda3_8U55-EA-05G_Edition2 Page181
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (182,1)
NOTE
AUTO switch indicator light
lWhen on, it indicates AUTO
operation, and the system will
function automatically.
lWhen off, indicates the operation of
other switches such as the mode
selector switch, fan control dial, A/C
switch and windshield defroster
switch. Other functions will continue
to operate automatically.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Hot Cold
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Slow Fast
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
With the airflow mode set to
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature will
flow through the central, left and right
vents.
6-12
Interior Comfort
Climate Control System
Mazda3_8U55-EA-05G_Edition2 Page182
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G
