REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.4L V8 engine 21.2 quarts
(20.0L)
Engine oil
(includes filter
change)
7
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)5.4L engine 7.0 quarts (6.6L)
Fuel tank N/A All 30 gallons
(113.6L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to between
MIN and MAX
lines on reservoir
Transfer case
fluidMotorcraft
MERCONAT F4x4 vehicles 2.0 quarts
(1.9L)
2
Transmission
fluid3Motorcraft
MERCONV
AT FAutomatic 4R75E 13.9 quarts
(13.2L)4
Front axle Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant4x4 vehicles 3.7 pints (2.0L)
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
235

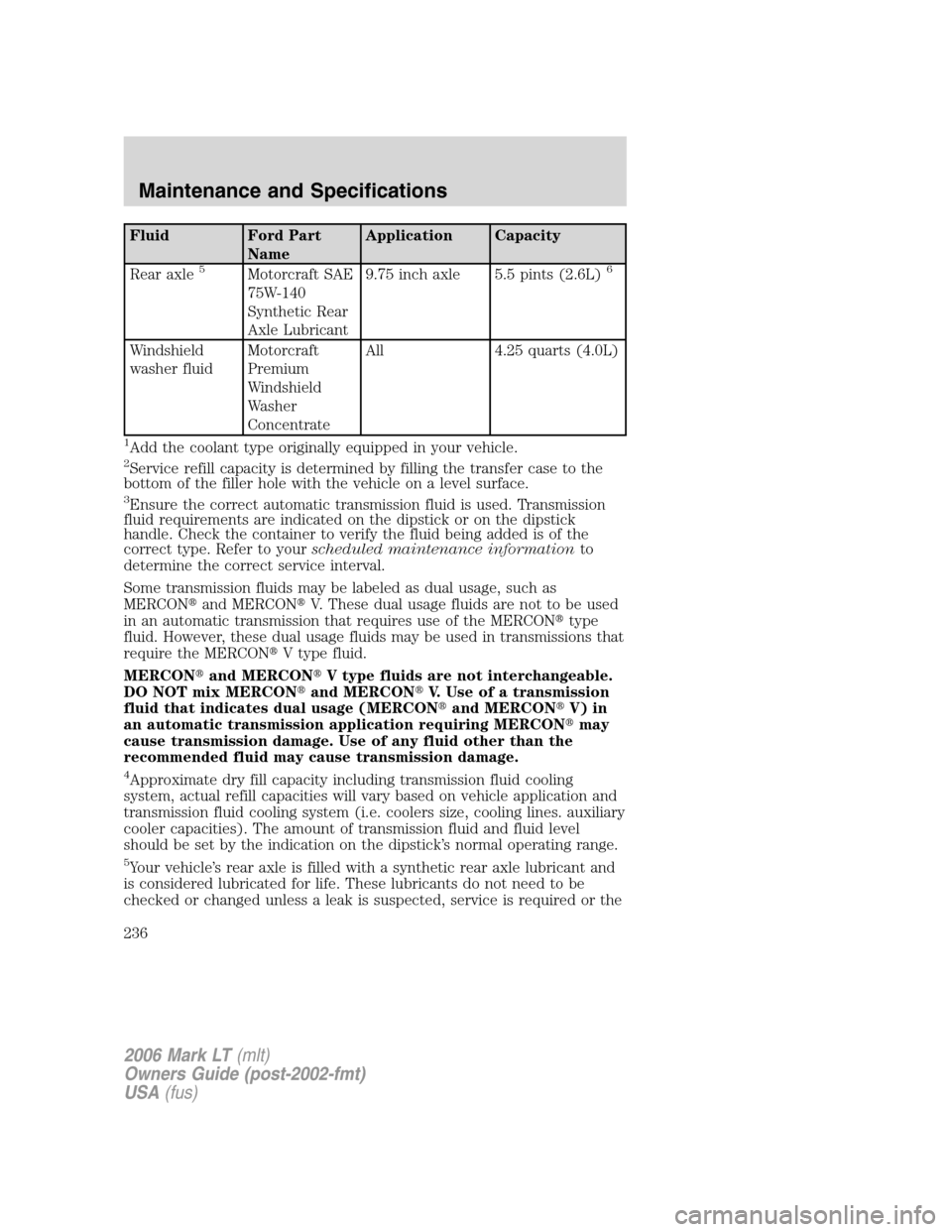

Fluid Ford Part
NameApplication Capacity
Rear axle
5Motorcraft SAE
75W-140
Synthetic Rear
Axle Lubricant9.75 inch axle 5.5 pints (2.6L)6
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.25 quarts (4.0L)
1Add the coolant type originally equipped in your vehicle.2Service refill capacity is determined by filling the transfer case to the
bottom of the filler hole with the vehicle on a level surface.
3Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to yourscheduled maintenance informationto
determine the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
4Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines. auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
