•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toLubricant specificationsin
this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle may reduce fuel economy at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
EPA window sticker
Every new vehicle should have the EPA window sticker. Contact your
authorized dealer if the window sticker is not supplied with your vehicle.
The EPA window sticker should be your guide for the fuel economy
comparisons with other vehicles.
It is important to note the box in the lower left corner of the window
sticker. These numbers represent the Range of MPG (L/100 km)
expected on the vehicle under optimum conditions. Your fuel economy
may vary depending upon the method of operation and conditions.
EMISSION CONTROL SYSTEM
Your vehicle is equipped with various emission control components and a
catalytic converter which will enable your vehicle to comply with
applicable exhaust emission standards. To make sure that the catalytic
converter and other emission control components continue to work
properly:
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
297

POWER STEERING FLUID
Refer to thescheduled maintenance informationfor the service
interval schedules. If adding fluid is necessary, use only MERCON
AT F.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in
small amounts, continuously
checking the level until it reaches
the range between the MIN and
MAX lines. Be sure to put the cap
back on the reservoir.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of your
brake system could be
compromised; seek service from
your authorized dealer immediately.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
300

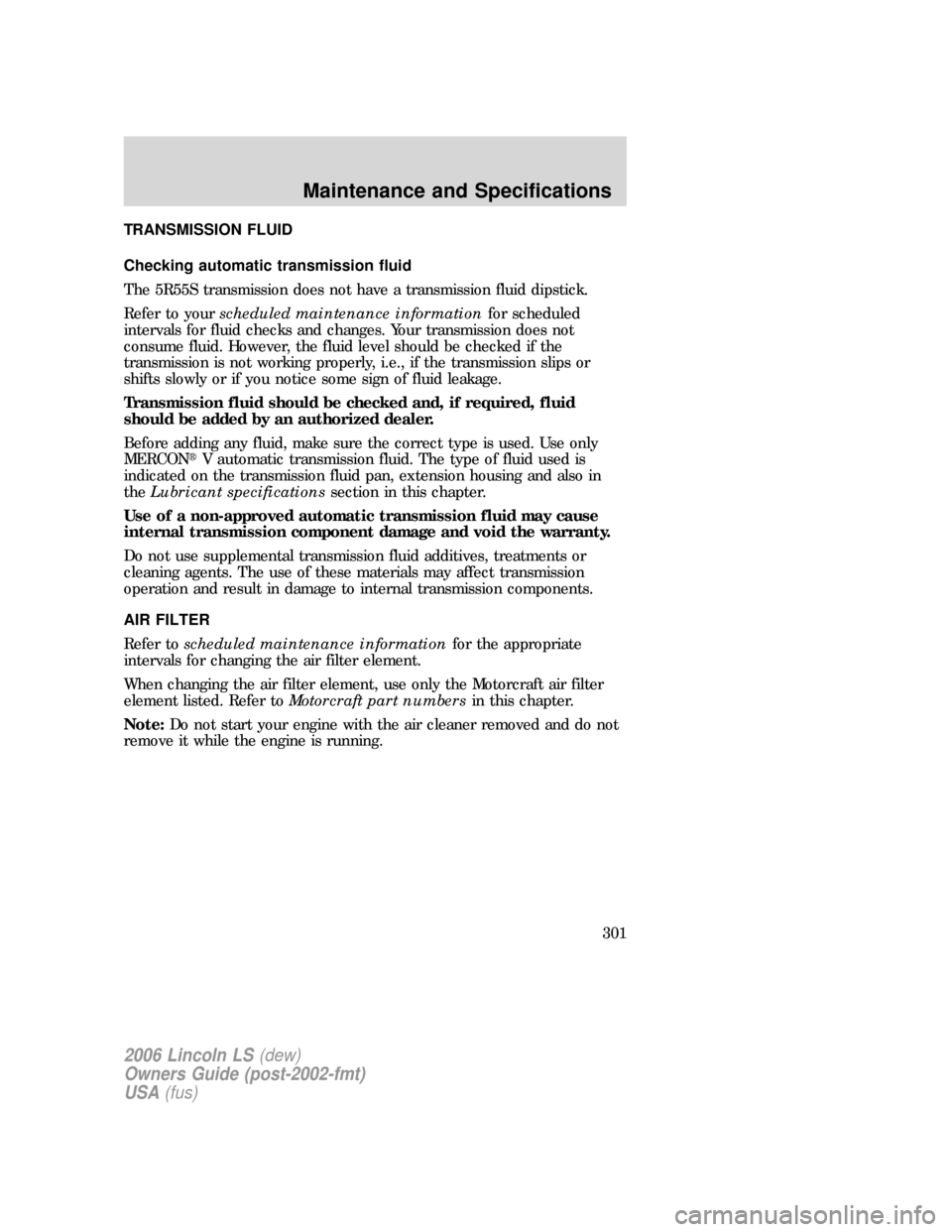

TRANSMISSION FLUID
Checking automatic transmission fluid
The 5R55S transmission does not have a transmission fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Transmission fluid should be checked and, if required, fluid
should be added by an authorized dealer.
Before adding any fluid, make sure the correct type is used. Use only
MERCON
V automatic transmission fluid. The type of fluid used is
indicated on the transmission fluid pan, extension housing and also in
theLubricant specificationssection in this chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage and void the warranty.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
301

Fluid Ford Part
NameApplication Capacity
Transmission
fluid
4Motorcraft
MERCON
V
AT FAutomatic
(5R55S)11.9 quarts
(11.2L)5
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll Fill to line on
reservoir
1Use only brake fluids certified to meet Ford specifications. Refer to
Lubricant Specificationsin this chapter. DOT 3 fluid is recommended.
However, if DOT 3 is not available, DOT 4 fluid can be used.
2Add the coolant type originally equipped in your vehicle.
3Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water. Fill 1/4
inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.
4Ensure the correct automatic transmission fluid is used. MERCON
and
MERCON
V are not interchangeable. DO NOT MIX MERCON
and
MERCON
V. Refer to thescheduled maintenance informationto
determine the correct service interval.
5Approximate dry capacity, includes cooler and tubes. Fluid level should
be checked by an authorized dealer.
6Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
305

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
310

A
Accessory delay ........................109
AdvanceTrac ..............................225
Air cleaner filter ...............301–303
Air conditioning ....................88, 90
Airbag supplemental restraint
system ........................175, 179, 182
and child safety seats ............177
description ..............175, 179, 182
disposal ....................................185
driver airbag ............177, 180, 183
indicator light .........179, 181, 185
operation .................177, 180, 183
passenger airbag .....177, 180, 183
side airbag .......................179, 182
Antifreeze
(see Engine coolant) ................284
Anti-lock brake system
(see Brakes) ......................222–223
Anti-theft system ......................153
arming the system ..................153
disarming a triggered
system .....................................154
Audio system (see Radio) ...16, 20
Automatic transmission
driving an automatic
overdrive .................................230
fluid, adding ............................301
fluid, checking ........................301
fluid, refill capacities ..............304
fluid, specification ..................307
Axle
lubricant
specifications ..................306–307
refill capacities ........................304
B
Battery .......................................282acid, treating emergencies .....282
jumping a disabled battery ....255
maintenance-free ....................282
replacement, specifications ...303
servicing ..................................282
BeltMinder .................................171
Brakes ........................................222
anti-lock ...........................222–223
anti-lock brake system (ABS)
warning light ...........................223
fluid, checking and adding ....300
fluid, refill capacities ..............304
fluid, specifications .........306–307
lubricant specifications ..306–307
parking ....................................223
shift interlock ..........................228
Bulbs ..........................................100
C
Calculating load ........................217
Capacities for refilling fluids ....304
Cargo net ...................................138
Cell phone use ..............................7
Changing a tire .........................249
Child safety restraints ..............186
child safety belts ....................186
Child safety seats ......................190
attaching with tether
straps .......................................194
in front seat ............................191
in rear seat ..............................191
Cleaning your vehicle
engine compartment ..............270
instrument panel ....................272
interior .....................................272
interior trim ............................272
plastic parts ............................271
washing ....................................269
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Index
314

waxing .....................................269
wheels ......................................270
wiper blades ............................271
Climate control (see Air
conditioning or Heating) ......88, 90
Clock adjust
6-CD in dash .............................18
AM/FM/Tape/CD .......................22
Compass, electronic ..................111
calibration ...............................112
set zone adjustment ...............112
Console ......................................106
overhead ..................................107
Controls
power seat ...............................156
steering column ......................117
Coolant
checking and adding ..............284
refill capacities ................288, 304
specifications ..................306–307
Cruise control
(see Speed control) ..................114
Customer Assistance ................237
Ford Extended Service
Plan ..........................................266
Getting assistance outside the
U.S. and Canada .....................267
Getting roadside assistance ...237
Getting the service you
need .........................................262
Ordering additional owner’s
literature .................................267
Utilizing the
Mediation/Arbitration
Program ...................................265
D
Daytime running lamps
(see Lamps) ................................97Defrost
rear window ..............................95
Dipstick
automatic transmission
fluid ..........................................301
engine oil .................................279
Doors
central unlocking ....................140
lubricant specifications ..........306
Driving under special
conditions ..................................234
through water .........................236
E
Emergencies, roadside
jump-starting ..........................255
Emergency Flashers .................239
Emission control system ..........297
Engine ................................307–308
cleaning ...................................270
coolant .....................................284
fail-safe cooling .......................289
idle speed control ...................282
lubrication
specifications ..................306–307
refill capacities ........................304
service points ..........................277
Engine block heater .................222
Engine oil ..................................279
checking and adding ..............279
dipstick ....................................279
filter, specifications ........281, 303
recommendations ...................281
refill capacities ........................304
specifications ..................306–307
Exhaust fumes ..........................221
F
Fail safe cooling ........................289
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Index
315
