2006 Lexus IS250 key

358
5-2. Steps to take in an emergency
If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using one of
the other keys or the key number stamped on your key number plate.

5
When trouble arises
359
5-2. Steps to take in an emergency
When the electronic key battery is discharged
Locking and unlocking the doors, unlocking the trunk and key linked functions
Doors
Remove the cover on the driver’s
door handle using the mechanical
key in order to perform the follow-
ing operations.
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon roof
(turn and hold)
Return the cover to the original
position after use.
Tr u n k
Turn the mechanical key clock-
wise to open.
If the electronic key battery is di scharged, the doors and trunk can be
opened by the mechanical key. The engine can be still started by following
the procedure.

360
5-2. Steps to take in an emergency
Starting the engineFor vehicles with an automatic tr ansmission: Put the shift lever in P
and apply the brakes.
For vehicles with a manual transmission: Depress the clutch
pedal.
Hold the electronic key close to
the engine switch (within 0.4 in.
[10 mm]). Make sure that the but-
ton side of the key is facing away
from the engine switch.
An alarm will sound to indicate that
the start function cannot detect the
key with the depleted battery if any
of the doors will be opened and
closed while this operation.
For vehicles with an automati c transmission: Press the engine
switch within 5 seconds [after the buzzer sounds], keeping the
brake pedal depressed.
For vehicles with a manual tra nsmission: Press the engine switch
within 5 seconds [after the buzzer sounds], keeping the clutch
pedal depressed.
In the event that the engine still cannot be started, contact your Lexus
dealer.
STEP1
STEP2
STEP3

5
When trouble arises
361
5-2. Steps to take in an emergency
■Replacing the key battery
As this procedure is the temporary measure, it is recommended that the electronic
battery be replaced immediately. (P. 2 9 3 )

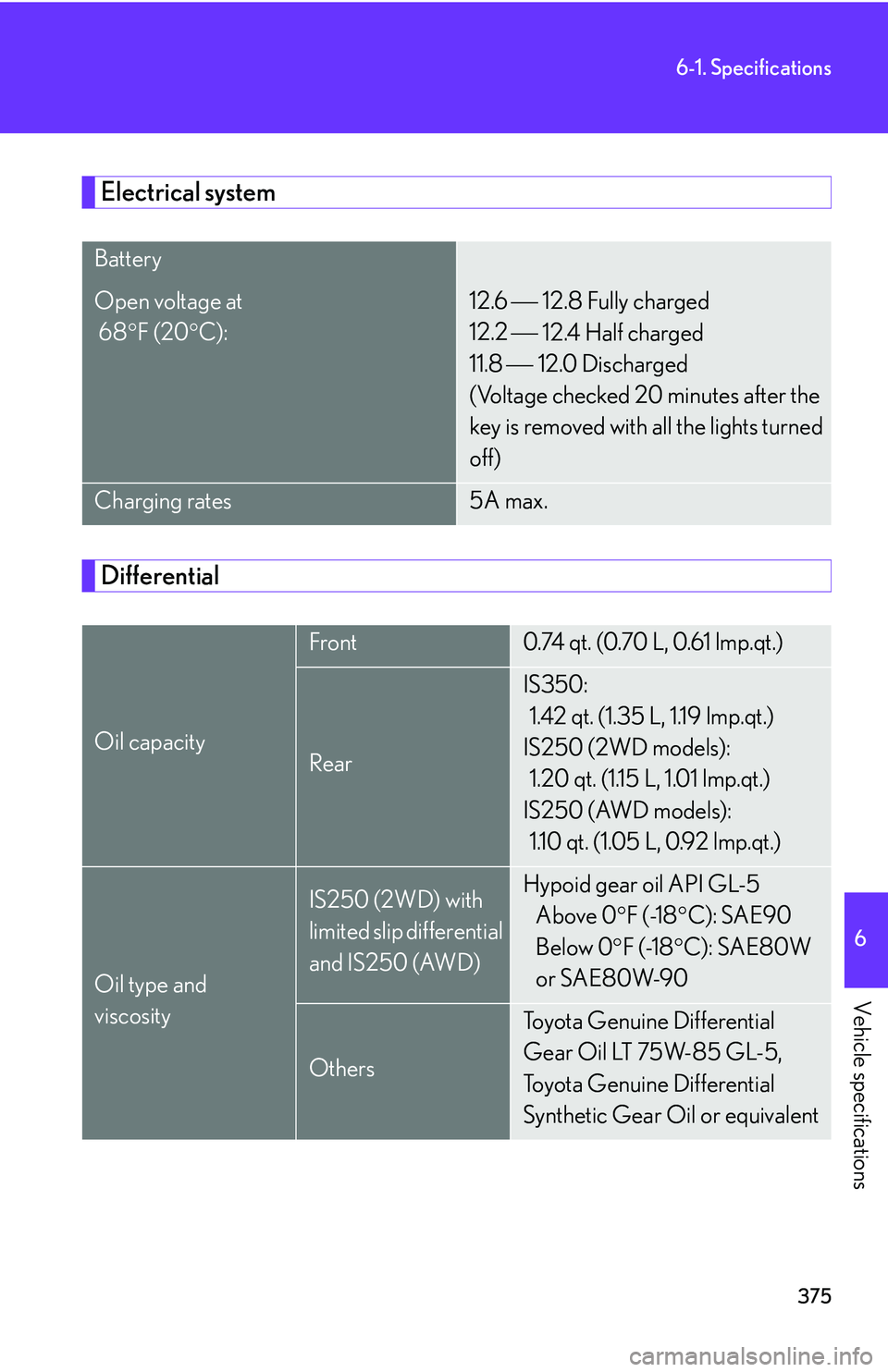

375
6-1. Specifications
6
Vehicle specifications
Electrical system
Differential
Battery
Open voltage at
68F (20 C):12.6 12.8 Fully charged
12.2 
12.4 Half charged
11.8 
12.0 Discharged
(Voltage checked 20 minutes after the
key is removed with all the lights turned
off)
Charging rates5A max.
Oil capacity
Front0.74 qt. (0.70 L, 0.61 lmp.qt.)
Rear
IS350:
1.42 qt. (1.35 L, 1.19 lmp.qt.)
IS250 (2WD models): 1.20 qt. (1.15 L, 1.01 lmp.qt.)
IS250 (AWD models): 1.10 qt. (1.05 L, 0.92 lmp.qt.)
Oil type and
viscosity
IS250 (2WD) with
limited slip differential
and IS250 (AWD)Hypoid gear oil API GL-5 Above 0 F (-18 C): SAE90
Below 0 F (-18 C): SAE80W
or SAE80W-90
Others
Toyota Genuine Differential
Gear Oil LT 75W-85 GL-5,
Toyota Genuine Differential
Synthetic Gear Oil or equivalent

396
6-2. Customization
ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol
(
P. 1 2 )
Trunk unlocking functionONOFF
Trunk unlocking operationPush and holdPush twice
One short push
Panic functionONOFF
Door lock
(
P. 1 5 )
Unlocking using a key
Driver's door
locked in one
step, all doors
locked in two
steps
All doors locked in one step.
Speed-detecting auto-
matic door lock function
(Manual transmissions)
ONOFF
Speed-detecting auto-
matic door lock function
(Automatic transmissions)
OFFON
Opening driver's door
unlocks all doors (Manual
transmissions)
ONOFF
Opening driver's door
unlocks all doors (Auto-
matic transmissions)
OFFON
Shifting gears to P
unlocks all doors.ONOFF
Shifting gears to position
other than P locks all
doors.
ONOFF

397
6-2. Customization
6
Vehicle specifications
ItemFunctionDefault settingCustomizedsetting
Pow e r w i n -
dows
(
P. 4 1 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationONOFF
Moon roof
(
P. 4 4 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationONOFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Automatic
light control
system
(
P. 1 1 3 )
Light sensor sensitivityLevel 3Levels 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds

405
Alphabetical index
CD player................................................... 181
Chains ......................................................... 153
Child restraint system (CRS)Booster seats, definition.................... 68
Booster seats, installation .................. 72
Convertible seats, definition ........... 68
Convertible seats, installation ......... 72
Infant seats, definition ......................... 68
Infant seats, installation........................ 72
Installing CRS with lower anchorages ...........................................75
Installing CRS with seatbelts ........... 72
Installing CRS with top straps .........76
Child safety Airbag precautions ............................. 63
Battery precautions .............. 273, 364
Child restraint system ........................ 68
Child-protectors..................................... 16
How your child should wear the seatbelt ............................................33
Installing child restraints .......................71
Moon roof .................................................46
Power window lock switch ............... 41
Power window precautions.............43
Removed electronic key battery precautions ....................................... 294
Seat belt comfort guide....................... 31
Seat belt extender precautions ..... 35
Seat belt precautions...........................34
Seat heater precautions ........221, 223
Trunk ..............................................................21
Child-protectors ....................................... 16
Cigarette lighter ..................................... 218 Cleaning
Exterior.................................................... 244
Interior ..................................................... 246
Seat belts ................................................ 247
Clock .......................................................... 213
Coat hooks ..............................................228
Compass ..................................................238
Condenser .............................................. 270
Console box ...........................................206
Cooling system Engine overheating.......................... 365
Cornering assist sensors .................... 133
Cruise control Cruise control......................................... 121
Dynamic radar cruise control........124
Cup holder ............................................. 208
Curtain shield airbags............................ 57
Customizable features .......................395
Daytime running light system ............. 114
Defogger Rear window ......................................... 170
Side mirror.............................................. 170
Dimension................................................ 370
Dinghy towing ............................... 157, 158
Display Dynamic radar cruise control........124
Satellite switch mode .........................214
Trip information ..................................... 110
Warning message .............................334
Do-it-yourself maintenance .............255
Door courtesy lights Door courtesy lights .......................... 201
Wattage ................................................. 383
Door pockets..........................................209
