■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30APo w e r s e a t
2DOOR DL15A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 AStop lights
5TI & TE20AElectric tilt and telescopic steering
column
6RAD NO.310AAudio
7GAUGE7. 5 AMeter
8IGN10A
SRS airbag system, Lexus link system,
cruise control, steering lock system,
fuel system
9ACC7. 5 A
Lexus link system, clock, air condition-
ing system, audio, display, outside rear
view mirrors, smart access system
with push-button start
10CIG15ACigarette lighter
11PWR OUTLET15APo w e r o u t l e t
12RR DOOR RH20APo w e r w i n d o w s

307
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
13FR DOOR RH20APower windows, outside rear view
mirrors
14AM215ASmart access system with push-button
start
15RH-IG7. 5 A
Seat belts, park assist system, auto-
matic transmission, seat heater and
ventilator
16FR S/HTR RH15ASeat heaters and ventilators
17ECU-IG RH10A
Power seats, smart access system with
push-button start, AWD system, out-
side rear view mirrors, VDIM, VSC,
air conditioning system, pre-collision
safety belt, electric tilt and telescopic
steering, power windows, navigation
system
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 3 1 0 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

308
4-3. Do-it-yourself maintenance
CAUTION
■To prevent system breakdowns and vehicle fire
●Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.

399
6
Vehicle specifications

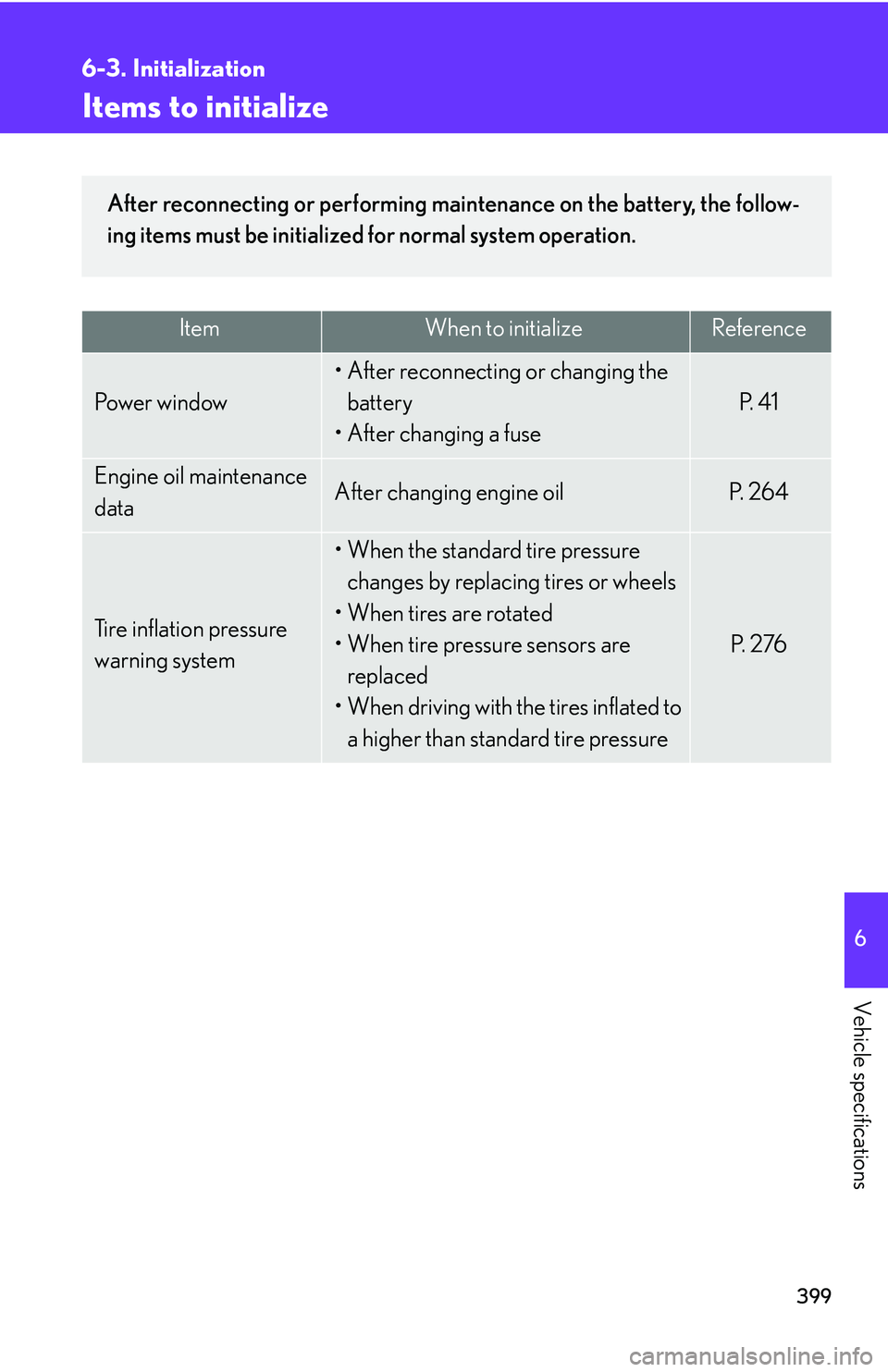

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Pow e r w i n d ow
• After reconnecting or changing the battery
• After changing a fuse
P. 4 1
Engine oil maintenance
dataAfter changing engine oilP. 2 6 4
Tire inflation pressure
warning system
• When the standard tire pressure changes by replacing tires or wheels
• When tires are rotated
• When tire pressure sensors are
replaced
• When driving with the tires inflated to a higher than standard tire pressure
P. 2 76
After reconnecting or performing main tenance on the battery, the follow-
ing items must be initialized for normal system operation.
