2006 Lexus IS250 light

Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
2
Driving Comfort
Topic 5
Opening and Closing
Topic 6
What to do if ...
Customizing Your LexusResponding to warning/indicator lights
and other problems that may arise.
A list of features that can be customized.
Rain and Night Driving
Topic 4
●Headlights P. 2 7
●Fog LightsP. 2 8
●Windshield Wipers and
Wa s h e r s P. 2 8
●Headlight Cleaner P. 2 9
●Rear Window and Outside Rear
View Mirror Defoggers P. 2 9
●Instrument Panel Light ControlP. 2 9
●Interior LightsP. 3 8
●Rear Sunshade P. 3 8
●CompassP. 3 8
●Extended Trunk P. 3 9
●Luggage MatP. 3 9
●Door LocksP. 4 1
●Po w e r Wi n d o w s P. 4 2
●Moon RoofP. 4 2
●Fuel Tank Cap P. 4 3
●HoodP. 4 3
●Tr u n kP. 4 4
●Audio System P. 3 1
●Air Conditioning System P. 3 4
●AshtraysP. 3 5
●Seat Heaters/Seat Heaters
and Ventilators P. 3 5
●Console BoxesP. 3 6
●Glove BoxP. 3 7
●Cup Holders P. 3 7
Depending on specifications, the vehi cle shown in the illustration may
differ from your vehicle in terms of color and equipment.

3
OverviewInstrument Panel
Shift paddle switches P.18
Headlight switch Turn signal lever Fog light switch P.27
P.22
P.28
Headlight cleaner switch P.29
Rear sunshade switch P.38
Inside door lock button P.41
Trunk opener P.44
Driving and seat position
memory switches
P.13
Door lock switches P.41
Power window switches P.42
Window lock switch P.42
Outside rear view
mirror switches
P.14
Fuel filler door opener P.43
Hood lock release lever P.43
Parking brake pedal
(automatic transmission)
P.19
Satellite switches P.21
Tilt and telescopic steering lock release lever
 P.15Tilt and telesc opic steering
control switch
 P.15
Multi-information
display
P.20

Topic 1
Entering and Exiting
9
Theft Deterrent System
Engine immobilizer system
The engine immobilizer system prevents the
engine from being started in the event that an
attempt is made to start the vehicle using an
unregistered key.
The security indicator light flashes to indicate that
the system is set.
Alarm
The alarm detects forcible entry and attracts
attention to the vehicle by sounding the horn and
flashing the exterior lights in the event that an
attempt is made to forcibly open the doors, trunk
or hood that have been locked.
When all the doors are locked, the security indi-
cator light comes on to indicate that the alarm is
in its preparation state. The indicator light begins
to flash after approximately 30 seconds to indi-
cate that the system is armed.
Steering lock
The steering wheel locks when the engine switch
is in OFF mode.
The theft deterrent system includes the followi ng features to help protect your vehicle from
theft.
To stop the alarm, start the engine or unlock the doors or trunk using the electronic key or
the wireless remote control. (The alarm will stop after several seconds.)

Topic 2
Before Driving
15
Anti-glare Inside Rear View Mirror
To turn AUTO mode ON/OFF, press the AUTO
button.
The indicator comes on when AUTO mode is
turned ON.
Steering Wheel
■Manually adjustable type
To adjust the steering wheel, press the lever down
and move the steering wheel to the desired posi-
tion. Lock the steering wheel in place by pulling
the lever up.
■Power-adjustable type
Up
Down
Away from the driver
Toward the driver
The anti-glare mirror uses a sensor to detect light from vehicles behind and automatically
reduces glare.
1
2
3
4
The power-adjustable type steering wheel retracts automatically when the engine switch is
turned OFF to allow for easy exit and entry. The steering wheel returns automatically to its
previously set position when the engine switch is switched to ACC or IG-ON mode.

Topic 3
When Driving
17
Starting
■Starting the engine
Automatic transmission
Make sure the parking brake is engaged and the
shift lever is in P.
Depress the brake pedal.The engine switch indicator light turns
green.
Press the engine switch.
Manual transmission
Make sure the parking brake is engaged and the
shift lever is in N.
Depress the clutch pedal.The engine switch indicator light turns
green.
Press the engine switch.
■ Stopping the engine
Engage the parking brake and shift the shift lever to P (for automatic transmissions) or N
(for manual transmissions).
Press the engine switch.
■ Changing power modes
To change power modes without turning on the engine, press the engine switch without
depressing the brake pedal (for automatic tran smissions) or the clutch pedal (for manual
transmissions). The modes can be changed in the following order:
With the electronic key on your person, the engine can be started by simply pressing the
engine switch, while depressing the brake pedal or clutch pedal.
(The mechanical key cannot be used to start the engine.)
ACC mode IG-ON mode
(Indicator light: amber)
OFF mode
(Indicator light: off)

Topic 3
When Driving
19
Manual Transmission
To operate the shift lever, the clutch pedal must be
fully depressed.
To shift into R, the ring on the shift lever must be
pulled up.
Parking Brake
■Automatic transmission
To set the parking brake : firmly depress the park-
ing brake pedal.
To release the parking brake : depress the park-
ing brake pedal again.
■ Manual transmission
To set the parking brake : pull the parking
brake lever firmly upward.
To release the parking brake : press and hold
the lock release button and lift the lever slightly
before lowering it as far as it will go.1
2

Topic 3
When Driving
21
Satellite Switches
The satellite switches can be used to change the
settings of the following items.
● Lexus parking assist-sensor (if equipped)
● Tire inflation pressure warning system initial-
ization
● ID code selection for tire inflation pressure
warning sysem
● AFS (Adaptive Front-lighting System)
(if equipped)
● Speed indicator
● Tacho indicator
■Changing the ON/OFF settings
To cycle through the functions, press either the
left or right selector switch.
To change the settings, press the ON/OFF
button.
The satellite switches can be used to change the settings of various functions. Settings
are shown on the multi-information display.
For detailed information of changing the settings, see the Owner’s Manual.

Topic 3
When Driving
22
Entering and Exiting
Before DrivingBefore Driving
When DrivingWhen Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus

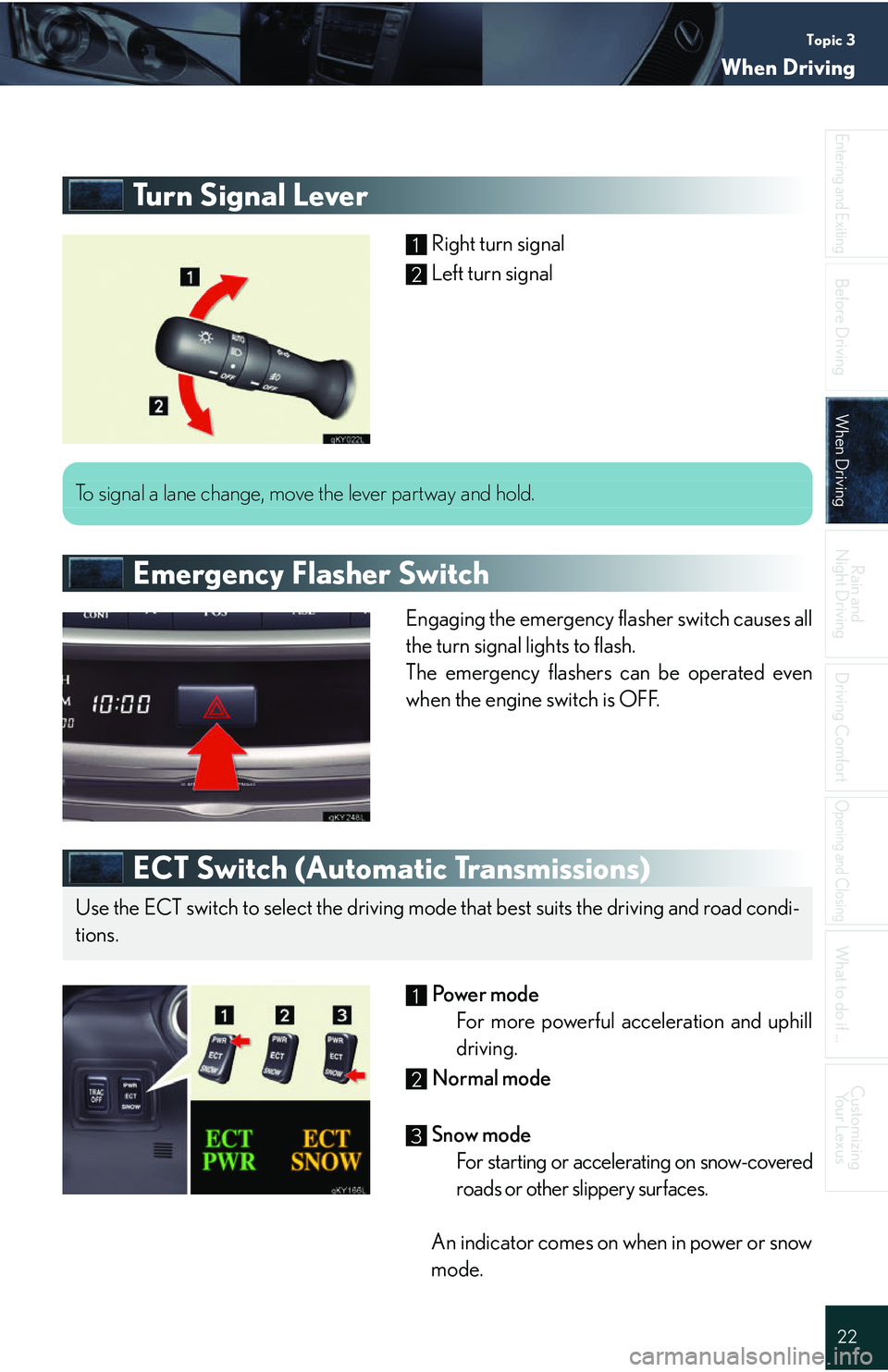

Turn Signal Lever
Right turn signal
Left turn signal
Emergency Flasher Switch
Engaging the emergency flasher switch causes all
the turn signal lights to flash.
The emergency flashers can be operated even
when the engine switch is OFF.
ECT Switch (Automatic Transmissions)
Power mode
For more powerful acceleration and uphill
driving.
Normal mode
Snow mode For starting or accelerating on snow-covered
roads or other slippery surfaces.
An indicator comes on when in power or snow
mode.
1
2
To signal a lane change, move the lever partway and hold.
Use the ECT switch to select the driving mode that best suits the driving and road condi-
tions.
1
2
3
