IN CASE OF AN EMERGENCY
435
When connecting the jack handle extensions, use a
Phillips−head screwdriver or jack handle to tighten the
bolts on the joints as shown in the illustration. When
connecting the jack handle with extension, tighten the
bolt on the joint securely. Make sure the hollow meets
the bolt on every joint when you tighten the bolts.
NOTICE
Tighten all the joints securely. Otherwise, the
extension may come off and it may damage the
paint or vehicle body.
40PY 053
1Lower2Raise3Cloth

IN CASE OF AN EMERGENCY
437

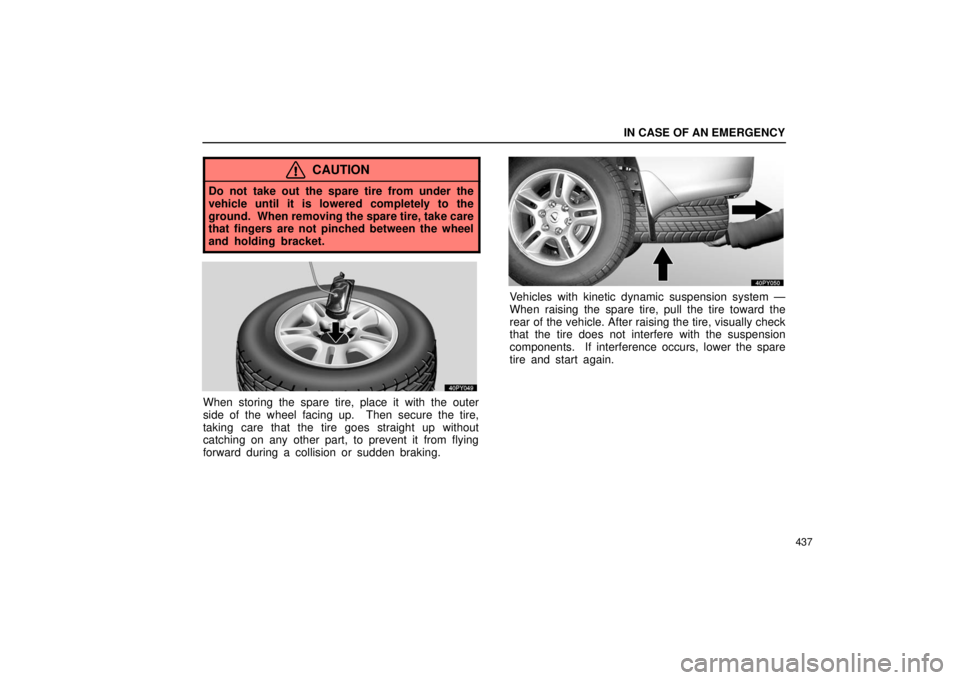

CAUTION
Do not take out the spare tire from under the
vehicle until it is lowered completely to the
ground. When removing the spare tire, take care
that fingers are not pinched between the wheel
and holding bracket.
When storing the spare tire, place it with the outer
side of the wheel facing up. Then secure the tire,
taking care that the tire goes straight up without
catching on any other part, to prevent it from flying
forward during a collision or sudden braking.
Vehicles with kinetic dynamic suspension system —
When raising the spare tire, pull the tire toward the
rear of the vehicle. After raising the tire, visually check
that the tire does not interfere with the suspension
components. If interference occurs, lower the spare
tire and start again.

IN CASE OF AN EMERGENCY
438
NOTICE
Tighten the spare tire clamp bolt to hold the
spare wheel carrier by the hook securely.
 Vehicles with kinetic dynamic suspension
system — Make sure that the spare tire does
not interfere with the suspension components
when the spare tire is stowed. If interference
occurs, the suspension system will be
damaged.
2. Block the wheel diagonally opposite the flat tire
to keep the vehicle from rolling when it is jacked
up.
When blocking the wheel, place a wheel block in front
of one of the front wheels or behind one of the rear
wheels.

IN CASE OF AN EMERGENCY
441
Rear
5. Position the jack at the jack points as shown.
Front — Under the frame side rail
Rear — Under the rear axle housing
NOTICE
Make sure to place the jack as shown in
illustrations. Otherwise, your vehicle may be
damaged.
Make sure the jack is positioned on a level and solid
surface.
1Jack handle end
2Jack handle extension with bolt
3Jack handle extension without bolt
4Jack handle
Put a jack handle, jack handle extensions and jack
handle end together as shown in the illustration.
CAUTION
Make sure they are securely fixed with the
screws.

IN CASE OF AN EMERGENCY
442
When connecting a jack handle extension with a jack
handle end, use a Phillips−head screwdriver or jack
handle to tighten the bolts on the joints as shown in
the illustration. When connecting the jack handle with
extension, tighten the bolt on the jack handle securely.
Make sure the hollow meets the bolt on any joint when
you tighten the bolts.
NOTICE
Tighten all the joints securely. Otherwise, the
extension may come off and it may damage the
paint or vehicle body.
6. After making sure no one is in the vehicle, raise
it high enough so that the spare tire can be
installed.
Allow for the fact that you need more ground
clearance when putting on the spare tire than when
removing the flat tire.
To raise the vehicle, insert the jack handle extension
into the jack (it is a loose fit) and turn it clockwise
with the handle, making sure the handle remains firmly
fitted onto the jack handle extension. As the jack
touches the vehicle and begins to lift, double −check
that it is properly positioned.

IN CASE OF AN EMERGENCY
444
8. Reinstall all the wheel nuts finger tight.
Reinstall the wheel nuts and tighten them as much
as you can by hand. Press the tire back and see
if you can tighten them more.
CAUTION
Never use oil or grease on the bolts or nuts.
Doing so may lead to overtightening the nuts
and damaging the bolts. The nuts may loose and
the wheels may fall off, which could cause a
serious accident. If there is oil or grease on any
bolt or nut, clean it.
9. Lower the vehicle completely and tighten the
wheel nuts.
To lower the vehicle, turn the jack handle extension
counterclockwise with the handle, making sure the
handle remains firmly fitted onto the jack handle
extension.
Use only the wheel nut wrench to tighten the nuts.
Do not use other tools or any additional leverage other
than your hands, such as a hammer, pipe or your foot.
Make sure the wrench is securely engaged over the
nut.
Tighten each nut a little at a time in the order shown.
Repeat the process until all the nuts are tight.

IN CASE OF AN EMERGENCY
446
11. After changing the wheel, check the air
pressure of the replaced tire. Stow all the tools,
jack and flat tire securely.
If the pressure of the replaced tire is low, drive slowly
to the nearest service station and fill to the correct
pressure.
Do not forget to reinstall the tire valve cap as dirt and
moisture could get into the valve core and possible
cause air leakage. If the cap is missing, put a new
one on as soon as possible.
This is the same procedure for changing or rotating
your tires.
CAUTION
Before driving, make sure all the tools, jack and
flat tire are securely in place in their storage
location to reduce the possibility of personal
injury during a collision or sudden braking.
IF YOUR VEHICLE BECOMESSTUCK
If your vehicle becomes stuck in snow, mud, sand, etc.,
then you may attempt to rock the vehicle free by moving
it forward and backward.
In this situation, lock the center differential and turn off the
vehicle stability control system. (For details, see
“Fourwheel drive system” on page 356.)
CAUTION
Do not attempt to rock the vehicle free by moving it
forward and backward if people or objects are anywhere
near the vehicle. During the rocking operation the
vehicle may suddenly move forward or backward as it
becomes unstuck, causing injury or damage to nearby
people or objects.

IN CASE OF AN EMERGENCY
451
(c) Towing with a sling type truck
NOTICE
Do not tow with a sling type truck, either from the front
or rear. This may cause body damage.
(d) Emergency towing
If towing is necessary, we recommend you to have it done
by your Lexus dealer or a commercial tow truck service.
If towing service is not available in an emergency, your
vehicle may be temporarily towed by a cable or chain
secured to the emergency towing eyelet. Use extreme
caution when towing the vehicle.
NOTICE
 Only use specified towing eyelet; otherwise your
vehicle may be damaged.
 Never tow a vehicle from the rear with four wheels on
the ground. This may cause serious damage to the
transmission.
