GAUGES, METERS AND SERVICE REMINDER INDICATORS
58
(g) Open Door Warning Light
This light remains on until all the side doors and back door are
completely closed.
(h) Unengaged “Park” Warning Light
This light warns that the transmission “Park” mechanism is not
engaged. If the four −wheel drive control is in the “N” position
while the selector lever is in the “P” position, the transmission
will disengage and the wheels will not lock.
CAUTION
To restore the park function, shift the fourwheel drive
control lever out of “N”, or the vehicle can move.
(i) Automatic Transmission Fluid Temperature Warning Light
This light warns that the automatic transmission fluid
temperature is too high.
If this light comes on while you are driving, slow down and pull
off the road. Stop the vehicle at a safe place and put the
selector lever in “P” and leave the engine idling until the light
goes off. If the light goes off, you can start the vehicle again.
If the light does not go off, call a Lexus dealer or qualified repair
shop for assistance.
NOTICE
Continued driving with the warning light on may
damage the automatic transmission.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
59
(j) “VSC TRAC” Warning Light
This light warns that there is a problem somewhere in the
following.
Vehicle stability control system
 Active traction control system
 Downhill assist control system
 Hill −start assist control
The light will come on when the ignition key turned to “ON”, and
will go off after a few seconds.
It is not a malfunction that the warning light may stay on for 60
seconds after the ignition key is turned to the “ON” position.
Depressing the brake pedal repeatedly may turn on the lights.
It is normal if they go out after a few seconds.
If the light comes on while driving, the above mentioned
systems do not work. However, as conventional braking
operates when applied, there is no problem to continue your
driving.
In the following cases, contact your Lexus dealer:
 The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving.
When the brake fluid level is too low, the above −mentioned
systems will not operate and the warning light come on.
(k) “KDSS” Warning Light (vehicles with kinetic dynamic suspension system)
This light warns that there is a problem somewhere in the
kinetic dynamic suspension system.
The light will come on when the ignition key is turned to the
“ON” position and will go off after a few seconds.
If the light comes on while driving, bring your vehicle to your
Lexus dealer as soon as possible and have it checked.
(l) Charging System Warning Light
This warning light comes on when the ignition switch is turned
to the “ON” position, and goes off when the engine is started.
When there are problems in the charging system while the
engine is running, the warning light comes on.
NOTICE
When the charging system warning light comes on
while the engine is running, malfunctions such as the
engine drive belt being broken may have occurred. If
the warning light comes on, immediately stop the
vehicle in a safe place and contact your Lexus dealer.

EXTERIOR EQUIPMENT
109
3. After adjusting, be sure to tighten the cross rails by
turning knobs clockwise.
CAUTION
Make sure the cross rails are fixed securely by pushing
forward and rearward them. Failure to do so may cause
an unexpected accident or severe injury in the event of
emergency braking or a collision.
Follow the manufacturer’s instructions and precautions when
installing the attachments or their equivalent.
CAUTION
When you load cargo on the roof luggage carrier,
observe the following:
 Place the cargo so that its weight is distributed
evenly between the front and rear axles.
 If loading long or wide cargo, never exceed the
vehicle overall length or width. (See “Specifications”
on page 564 for information on your vehicle overall
length and width.)
 Before driving, make sure the cargo is securely
fastened on the roof luggage carrier.
 Loading cargo on the roof luggage carrier will make
the center of the vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns, sudden braking
or abrupt maneuvers, otherwise it may result in loss
of control or vehicle rollover due to failure to operate
this vehicle correctly.
 If driving for a long distance, on rough roads, or at
high speeds, stop the vehicle now and then during
the trip to make sure the cargo remains in its place.
 Do not exceed 58 kg (130 lb.) cargo weight on the roof
luggage carrier.
NOTICE
When loading the luggages, be careful not to scratch
the surface of the moon roof.

OCCUPANT RESTRAINT SYSTEMS
199
Conditions for memorized position activation

Ignition key “ON” and selector lever in “P” position.
All parts of the memorized positions can be activated.
 Key not in ignition switch and within 30 seconds of opening
driver’s door.
The memorized position can be activated, except for the tilt
and telescopic steering.
If any driving position memory switch is pushed while one of the
memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (“1” or “2”)\
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle’s battery is disconnected, the computer’s
memory will be erased and the memorized positions will have
to be set again.
CAUTION
 Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch.

AUDIO
242

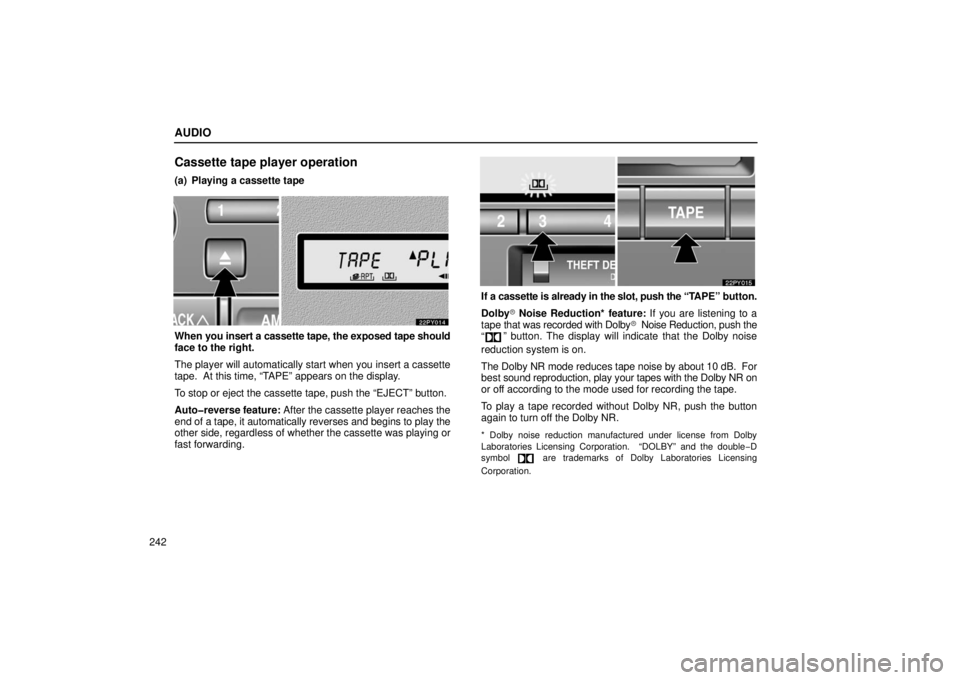

Cassette tape player operation
(a) Playing a cassette tape
When you insert a cassette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, “TAPE” appears on the display.
To stop or eject the cassette tape, push the “EJECT” button.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.
If a cassette is already in the slot, push the “TAPE” button.
Dolby Noise Reduction* feature: If you are listening to a
tape that was recorded with Dolby  Noise Reduction, push the
“
” button. The display will indicate that the Dolby noise
reduction system is on.
The Dolby NR mode reduces tape noise by about 10 dB. For
best sound reproduction, play your tapes with the Dolby NR on
or off according to the mode used for recording the tape.
To play a tape recorded without Dolby NR, push the button
again to turn off the Dolby NR.
* Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation. “DOLBY” and the double −D
symbol
are trademarks of Dolby Laboratories Licensing
Corporation.

AUDIO
264
Cassette tape player operation
(a) Playing a cassette tape
Push the “ON/SOURCE” button to choose tape mode.
The player will automatically start. At this time, “TAPE”
appears on the display.
You can play a cassette tape when a cassette tape is loaded
in the front audio system.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.(b) Manual program selection
“Program” button: Push the “” or “” (DISC/CH/PROG)
button to select the other side of a cassette tape. The display
indicates which side is currently selected. (“
” indicates the
top side, “” indicates the bottom side.)
“Rewind” button: Push and hold the “
” (TUNE/TRACK)
button until “REW” appears on the display.
To stop rewinding, push the same button.
“Fast forward” button: Push and hold the “
”
(TUNE/TRACK) button until “FF” will appears on the display.
To stop fast forwarding, push the same button.

AUDIO
297
DVD video/DVD audio player operation
NOTE: The playback condition of some DVD discs may be
determined by a DVD software producer . This DVD player
plays a disc as the software producer intended. So, some
functions may not work properly. Be sure to read the
instruction manual for the DVD disc separately provided.
For the detailed information about DVD video discs, see
“DVD video disc information” on page 326.
Precautions for DVD video discs
When recording on a DVD video, DVD audio, video CD or
audio tracks may not record in some cases while the menu is
displayed. As audio will not play in this case, verify that the
video tracks are playing and then activate playback.
When playback of a disc is completed:
 If an audio CD is playing, the first track starts.
 If a DVD video, DVD audio or video CD is playing, playback
will stop or the menu screen will be displayed.
The title/chapter number and playback time display may not
appear while playing back certain DVD video discs.CAUTION
Conversational speech on some DVDs is recorded at a
low volume to emphasize the impact of sound effects.
If you adjust the volume assuming that the
conversations represent the maximum volume level
available for the DVD, you may be startled by louder
sound effects or when you change to a different audio
source. Loud sounds may have a significant impact on
the human body or pose a driving hazard. Keep this in
mind when you adjust the volume.

STARTING AND DRIVING
348
HOW TO START THE ENGINE
Cranking hold function
Once you turn the ignition key to “START” position and release
it, the cranking hold function continues to crank the engine in
“ON” position until it starts.
The function stops cranking the engine after about 25 seconds
maximum if the engine has not started yet. When you crank
the engine again, wait a few seconds and restart it.
If you hold the key in “START” position, the function will keep
cranking for about 30 seconds maximum.
Before cranking
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and accessories.
3. Put the selector lever in “P”. If you need to restart the engine
while the vehicle is moving, put the selector lever in “N”. A
starter safety device will prevent the starter from operating if
the selector lever is in any drive position.
4. Depress the brake pedal and hold it to the floor until driving
off.
Starting the engine
Before starting the engine, be sure to follow the instructions in
“Before cranking”.
Normal starting procedure
The multiport fuel injection system/sequential multiport fuel
injection system in your engine automatically controls the
proper air −fuel mixture for starting. You can start a cold or hot
engine as follows:
With your foot off the accelerator pedal, turn the ignition key to
“START” position, then release it.
Engine should be warmed up by driving, not in idle. For
warming up, drive with smoothly turning engine until engine
coolant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct procedure given in normal
starting.
If the engine will not start...
See “If your vehicle will not start” on page 426.
NOTICE
 Do not race a cold engine.
 If the engine becomes difficult to start or stalls
frequently, have the engine checked immediately.
