2006 Lexus GX470 tow

IN CASE OF AN EMERGENCY
451

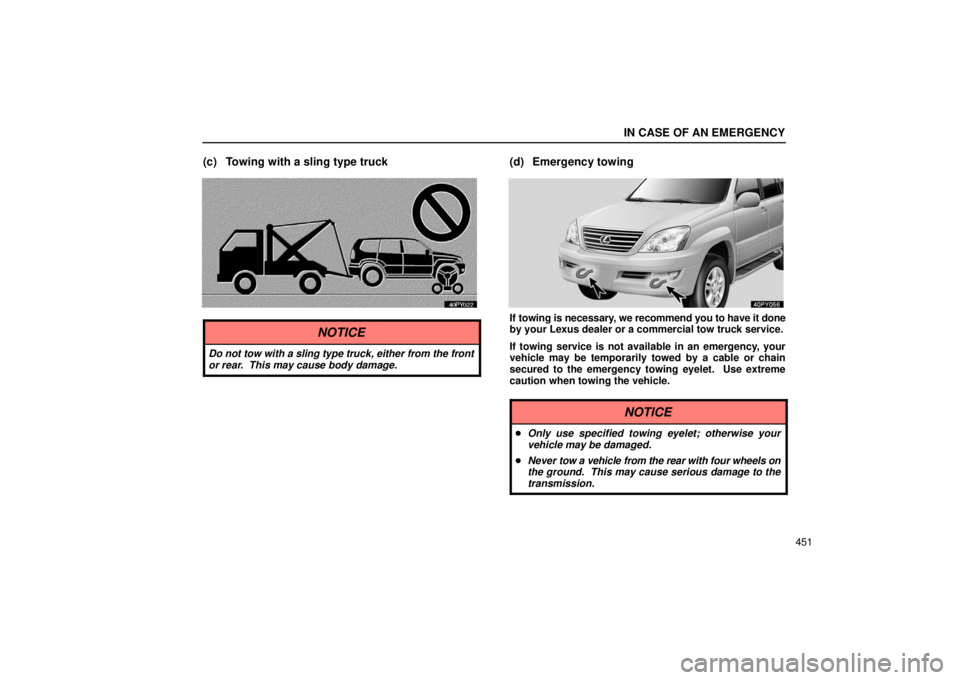

(c) Towing with a sling type truck
NOTICE
Do not tow with a sling type truck, either from the front
or rear. This may cause body damage.
(d) Emergency towing
If towing is necessary, we recommend you to have it done
by your Lexus dealer or a commercial tow truck service.
If towing service is not available in an emergency, your
vehicle may be temporarily towed by a cable or chain
secured to the emergency towing eyelet. Use extreme
caution when towing the vehicle.
NOTICE
 Only use specified towing eyelet; otherwise your
vehicle may be damaged.
 Never tow a vehicle from the rear with four wheels on
the ground. This may cause serious damage to the
transmission.

IN CASE OF AN EMERGENCY
452A driver must be in the vehicle to steer it and operate the
brakes.
Towing in this manner may be done only on hard
−surfaced
roads for a short distance and at low speeds. Also, the wheels,
axles, drive train, steering and brakes must all be in good
condition.
CAUTION
Use extreme caution when towing the vehicle. Avoid
sudden starts or erratic driving maneuvers which would
place excessive stress on the emergency towing eyelet
and towing cable or chain. The eyelet and towing cable
or chain may break and cause serious injury or damage.
NOTICE
Use only a cable or chain specifically intended for use
in towing vehicles. Securely fasten the cable or chain
to the towing eyelet provided.
Before towing, check that the center differential is unlocked.
(The indicator light must be off with the ignition on.) Release
the parking brake and put the transmission in “N”. The ignition
key must be in “ACC” (engine off) or “ON” (engine running).
CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work so steering and
braking will be much harder than usual.
Emergency towing hook precautions:
 Before emergency towing, check that the eyelet is not
broken or damaged and that the installation bolts are not
loose.
 Fasten the towing cable or chain securely to the hook.
 Do not jerk the eyelet. Apply steady and even force.
 To avoid damaging the eyelet, do not pull from the side or at
a vertical angle. Always pull straight ahead.

IN CASE OF AN EMERGENCY
453
CAUTION
If the emergency towing eyelet is used to get out when
your vehicle becomes stuck in the mud, sand or other
condition from which the vehicle cannot be driven out
under its own power, make sure to observe the
precautions mentioned below. Otherwise, excessive
stress will be put on the eyelet and the towing cable or
chain may break, causing serious injury or damage.
If the towing vehicle can hardly move, do not forcibly
continue the towing. Contact your Lexus dealer or a
commercial tow truck service for assistance.
 Tow the vehicle as straight ahead as possible.
 Keep away from the vehicle during towing.
Tips for towing a stuck vehicle:
The following methods are effective to use when your
vehicle is stuck in the mud, sand or other condition from
which the vehicle cannot be driven out under its own
power. Use extreme caution when towing the vehicle. In
addition, keep away from the vehicles and towing cable or
chain when towing.
 Remove the sand and soil in the front and the back of the
tires.
 Place stones or wood under the tires.
IF YOU CANNOT SHIFT AUTOMATIC
TRANSMISSION SELECTOR LEVER
If you cannot shift the selector lever out of “P” position to
other positions even tho ugh the brake pedal is depressed,
use the shift lock override button as follows:
1Turn the ignition key to “LOCK”. Make sure the parking
brake is applied.
2Pry up the cover with a flathead screwdriver or equivalent.

INTRODUCTION
498
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
do−it−yourself maintenance. Remember all Lexus parts are
designed in metric sizes, so your tools must be metric.
Checking the engine oil level
Parts (if level is low):
“Toyota Genuine Motor Oil” or equivalent
See page 513 for details about engine oil selection.
Tools:
 Rag or paper towel
 Funnel (only for adding oil)
Checking the engine coolant level
Parts (if level is low):
“Toyota Super Long Life Coolant” or similar high quality
ethylene glycol based non −silicate, non− amine, non−nitrite,
and non −borate coolant with long −life hybrid organic acid
technology (Coolant with long −life hybrid organic acid
technology is a combination of low phosphates and organic
acids.)
“Toyota Super Long Life Coolant” is a mixture of 50% coolant
and 50% deionized water (for the U.S.A.) or 55% coolant
and 45% deionized water (for Canada). This coolant
provides protection down to about −35C (− 31F).
Tools:
 Funnel (only for adding coolant)

INTRODUCTION
499
Checking brake fluid
Parts (if level is low):
FMVSS No. 116 DOT 3 or SAE J1703 brake fluid
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)
Checking power steering fluid
Parts (if level is low):
Automatic transmission fluid DEXRON
II or III
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)
Checking battery condition
Tools:
Warm water
 Baking soda
 Grease
 Conventional wrench (for terminal clamp bolts)
Checking and replacing the blade type fuses
Parts (if replacement is necessary):
Fuse with same amperage rating as original
Checking the cartridge type fuses
Parts (if replacement is necessary):
Genuine Lexus fuse or equivalent with same amperage
rating as original
Adding washer fluid
Parts:
Water
 Washer fluid containing antifreeze (for winter use)
Tools:
 Funnel

ELECTRICAL COMPONENTS
547
Driver’s side instrument panel
No.FUSEAMPERECIRCUIT
1SPARE10Spare fuse
2ALT140
Charging system and all
components in “AM1”,
“HEATER”, “CDS FAN”, “FR
FOG”, “DEFOG”, “AIR SUS”,
“AC INV”, “SEAT HEATER”,
“OBD”, “STOP”, “J/B”, “RR AC”,
“MIR HEATER”, “BATT CHG”,
“TOWING BRK” and “TOWING”
fuses
3SPARE15Spare fuse
4HEATER50Air conditioning system
5AIR
SUS50Rear height control air
suspension
6AM150
All components in “ACC”, “CIG”,
“IG1”, “FR WIP −WSH”, “RR
WIP”, “RR WSH”, “DIFF”,
“ECU− IG”, “TEMS” and “STA”
fuses
7TOWING
BRK30Trailer brake controller
8J/B50
All components in “P FR P/W”,
“P RR P/W”, “D RR P/W”, “D
P/SEAT”, “P P/SEAT”, “TAIL”,
“PANEL” and “POWER OR
TI&TE” fuses
9BATTCHG30Trailer sub battery
10TOWING40Trailer lights

ELECTRICAL COMPONENTS
549
No.FUSEAMPERECIRCUIT
29ECUB10
Multiplex communication
system, vehicle stability control
system, wireless remote
control system, inside rear
view mirror, air conditioning
system, electronic modulated
suspension, driving position
memory system, power
windows, moon roof, rear view
monitor system
30ECUBNO.210Theft deterrent system
31ABS
MTR40
Anti −lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
32AM230Starting system, all components
in “IGN”, “SRS”, “GAUGE” and
“ST2” fuses
33ABS
SOL30
Anti −lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
No.FUSEAMPERECIRCUIT
34ALTS7.5Charging system
35MAYDAY7.5Lexus Link System
36HORN10Horns
37A/F
HEATER15A/F sensor
38TRNHAZ15Turn signal lights
39ETCS10Electronic throttle control system
40EFI20Multiport fuel injection
system/sequential multiport fuel
injection system
41D FR P/W20Power window
42DR/LCK25Power door lock
43TOWING30Towing converter
44RADIO NO.230Audio system, navigation
system
45A/PUMP50Multiport fuel injection
system/sequential multiport fuel
injection system
46IGN10
Multiport fuel injection
system/sequential multiport fuel
injection system, vehicle
stability control system

BODY
564
SPECIFICATIONS
— DIMENSIONS AND WEIGHTSOverall length
4780 mm (188.2 in.)
Overall width1880 mm (74.0 in.)
Overall height*11855 mm (73.0 in.)*2
1895 mm (74.6 in.)*3
Wheelbase2790 mm (109.8 in.)
Tread — Front — Rear1585 mm (62.4 in.)
1585 mm (62.4 in.)
Vehicle capacity weight
(occupants + luggage)
With third seats
Without third seats
544 kg (1200 lb.)
454 kg (1000 lb.)
Towing capacity2948 kg (6500 lb.)
*1: Unladen vehicle
*2: Without roof luggage carrier
*3: With roof luggage carrier
