EXTERIOR VIEW
Page
1Rear window defogger38
. . . . . . . . . . .
2Back door 25
. . . . . . . . . . . . . . . . . . . . . .
3Fuel filler door 101
. . . . . . . . . . . . . . . . .
4Moon roof 103
. . . . . . . . . . . . . . . . . . . . .
5Windshield wiper and
washer 33, 558 . . . . . . . . . . . . . . . . . . . .
6Outside rear view mirror 203 . . . . . . . .
7Side door 20
. . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 523
. . . . . . . . . . . . . . . . .
9Headlights 30, 559
. . . . . . . . . . . . . . . . .
10Hood 100
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.

BPY006
BPY004
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
HEADLIGHT SWITCH
Automatic light control Headlights also turn on.
High beam
Headlight flasher
Right or left turn
Lane change (right or left)
TURN SIGNAL SWITCH
QUICK REFERENCE
4
4. HEADLIGHT AND TURN SIGNAL SWITCH

KEYS AND DOORS
26
Back door stopper
1Lock2Unlock
For your safety, lock the back door with the door stopper
when you fully open the back door.
When closing the back door, check that the back door stopper
is unlocked.
CAUTION
 When keeping the back door open, use only the lock
lever of the back door stopper without touching the
other parts.
 To avoid serious personal inju ry, make sure not to get
your hands caught in the back door stay when
closing the back door.
THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors or hood is forcibly
unlocked or the battery terminal is disconnected and then
reconnected while the vehicle is locked.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and turn signal lights.
Further more when the center interior light switch and personal
light switch are in the “DOOR” position, the center interior light
and personal lights turn on.

SWITCHES
30
HEADLIGHT SWITCH
1U.S.A.2Canada
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (“AUTO”): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings. *
NOTE:
* The sensitivity of the automatic light control sensor can be
changed.
Ask your Lexus dealer for details. Vehicles sold in U.S.A.: When the headlights are on, the
headlight indicator lights up in the instrument cluster.
Vehicles sold in Canada:
When the tail lights are on, the tail
light indicator lights up in the instrument cluster.
With the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control dial
is turned fully up.
However, the brightness of the instrument cluster will not be
reduced in daytime even when the headlight switch is turned
to first or second clickstop.

SWITCHES
31
The automatic light control sensor is on top of the driver’s side
instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any side door is opened and closed with the
ignition key turned to the “ACC” or “LOCK” position.* If you
want to turn off the lights immediately, push the “LOCK” button
on the wireless remote control key twice. The lights also can
be turned off immediately by pushing the “LOCK” button on the
wireless remote control key with all the doors locked.
NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details. If any of the side door is kept opened, the lights automatically
turn off after 30 minutes.
When the headlight switch is on with all the doors locked,
pushing
the “LOCK” button on the wireless remote control key
turns off the headlights.
If you are going to park for over one week, make sure the
headlight switch is off.
Daytime Running Light System
The daytime running light system make your front turn signal
lights turn on when the parking brake is released with the
engine sta rted and the headlights are turned off. They will not
go off until the ignition switch is turned off.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.

SWITCHES
33
FOG LIGHT SWITCH
To turn on the fog lights, turn the switch to the “ON”
position. The fog lights come on only when the headlights
are on low beam.
WINDSHIELD WIPER AND WASHERSWITCH
Variable intermittent windshield wipers
1Interval adjuster
2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the “ON” position.
There are 3 settings:
“INT” position: Variable intermittent operation
“LO” position: Low speed operation
“HI” position: High speed operation

STEERING WHEEL AND MIRRORS
206

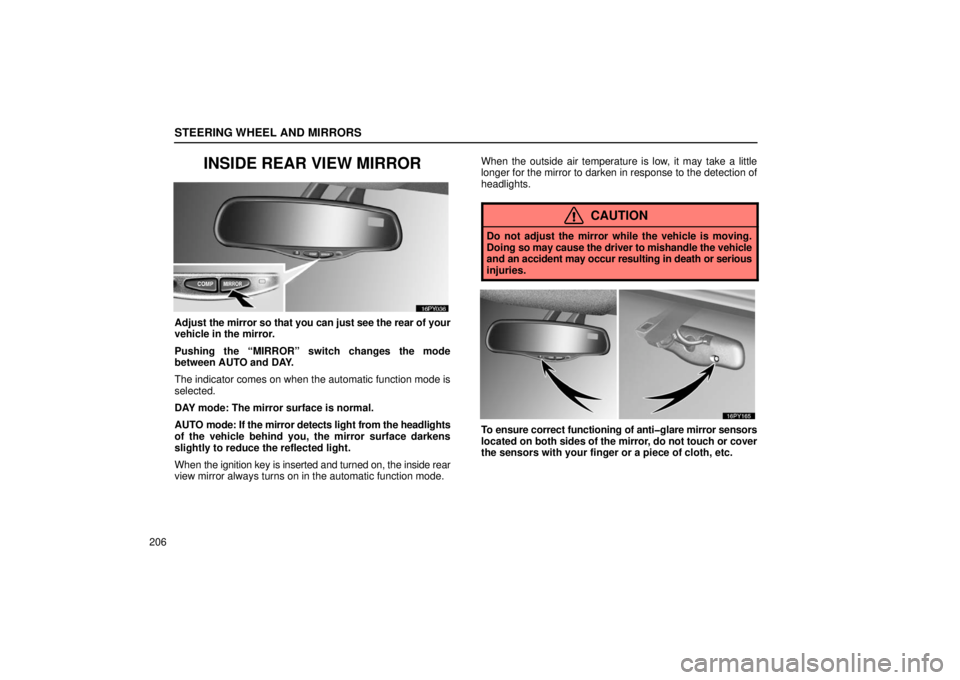

INSIDE REAR VIEW MIRROR
Adjust the mirror so that you can just see the rear of your
vehicle in the mirror.
Pushing the “MIRROR” switch changes the mode
between AUTO and DAY.
The indicator comes on when the automatic function mode is
selected.
DAY mode: The mirror surface is normal.
AUTO mode: If the mirror detects light from the headlights
of the vehicle behind you, the mirror surface darkens
slightly to reduce the reflected light.
When the ignition key is inserted and turned on, the inside rear
view mirror always turns on in the automatic function mode. When the outside air temperature is low, it may take a little
longer for the mirror to darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the
driver to mishandle the vehicle
and an accident may occur resulting in death or serious
injuries.
To ensure correct functioning of antiglare mirror sensors
located on both sides of the mirror, do not touch or cover
the sensors with your finger or a piece of cloth, etc.

STARTING AND DRIVING
361

The area covered by the camera is limited. Objects
which are close to either corner of the bumper or under
the bumper cannot be seen on the screen.
 The area displayed on the screen may vary according
to vehicle orientation or road conditions.
If the above screen appears on the display, the back door is
open. When backing up the vehicle, make sure the back door
is securely closed. THE REAR VIEW MONITOR SYSTEM CAMERA
The rear view monitor system camera is located on the back
door as shown in the illustration. The camera uses a special
lens. The distance of the image that appears on the screen
differs from the actual distance.
In the following cases, it may become difficult to
see the images
on the screen, even when the system is functioning.
 In the dark (for example, at night)
 When the temperature near the lens is extremely high or low
 When water droplets are adhering to the camera, or when
humidity is high (for example, when it rains)
 When foreign matter (for example, snow or mud) adheres
to the camera lens
 When the sun or the beam of headlights is shining directly
into the camera lens
