STARTING AND DRIVING
451
Precollision seat belts (Front seat belts only)
When the precollision sensor detects an object or
vehicle with which your vehicle might collide and
determines that a collision may be unavoidable, the seat
belts are quickly drawn back by the retractors to enhance
the effects of the seat belt pretensioners. The
precollision seat belts also work as well when hard
braking.
The pre −collision seat belts will operate in the following
conditions:
 When the approaching speed in regard to the object or the
vehicle exceeds about 30 km/h (18 mph).
 When the front seat occupants wear the seat belts.
In the following conditions, the seat belts are quickly drawn
back by the retractors regardless of the possibility of the
collision:
 When the vehicle is spinning or cannot take a turn properly
at more than about 15 km/h (10 mph).
Precollision brake assist system
When the precollision sensor detects an object or
vehicle with which your vehicle might collide, and
determines that a collision may be unavoidable,
depressing the brake pedal provides more powerful
braking according to the amount of pedal depression.
The pre−collision brake assist system will operate when the
following all conditions are met.
 When the vehicle speed is about 30 km/h (18 mph) or over.
 When the brake pedal is depressed.
 When the approaching speed in regard to the object or the
vehicle exceeds about 30 km/h (18 mph).
If the brake pedal is kept depressed before the sensor’s
determination of unavoidable collision, the pre −collision brake
assist system will operate soon after the sensor’s
determination.

STARTING AND DRIVING
452
Adaptive variable suspension control (GS430
only)
When the precollision sensor detects an object or
vehicle with which your vehicle may collide, and
determines that a collision may be unavoidable, the
adaptive variable suspension adjusts the damping effect
on the shock absorbers and regulates the vehicle not to
pitch forward so much.
The adaptive variable suspension will operate when the
following all conditions are met.
When the vehicle speed is about 5 km/h (3 mph) or over.
 When the approaching speed in regard to the object or the
vehicle exceeds about 30 km/h (18 mph).
Precollision system failure warning
G31079
Precollision system warning light
The light warns that there is a problem somewhere in the
precollision system.
The light comes on when the engine switch is selected in
“IG−ON” mode. If the system works properly, the light goes off
after a few seconds.
If the light does not come on when the engine switch is selected
in “IG−ON” mode, have your vehicle checked by your Lexus
dealer.
If the system has a problem, the pre− collision system warning
light comes on or blinks. At this time, the master warning light
comes on, a warning tone sounds, and either of the following
messages appears on the multi−information display.
 PCS DISABLED NOW
 CHECK PCS

STARTING AND DRIVING
453
G13030
The precollision system warning light blinks, and the
above message appears in the following conditions:
The millimeter wave radar sensor or the grille cover is
dirty.
Clean the grille or sensor with a soft cloth to remove the dirt.
 The precollision seat belts are activated repeatedly for
a short time.
The system turns of f temporarily for overheating protection.
The above conditions do not indicate a malfunction. If the
problem is removed, the warning lights and message go out
and the system returns to normal.
G13031
If the pre−collision system warning light remains on, and the above message appears, the pre −collision system may not
operate. Contact your Lexus dealer as soon as possible to
service the vehicle.
Precaution for precollision system
It should be noted that the pre −collision sensor may detect the
following as the objects with which your vehicle might collide,
and the pre −collision system may operate, even though there
is no possibility of collision.
 When traveling through a curve, there is an object on the
edge of the road.
 When traveling through a curve, another vehicle is passing
from the opposite direction.
 When traveling across a narrow iron bridge.
 When there is a metallic object on the road.
 When there is a steel plate on the road at a construction site.
 When there is a bump on the road.
 When waiting to turn to the left in an intersection, and
another vehicle is passing from the opposite direction.
 If your vehicle approaches another vehicle ahead very
quickly.

STARTING AND DRIVING
454

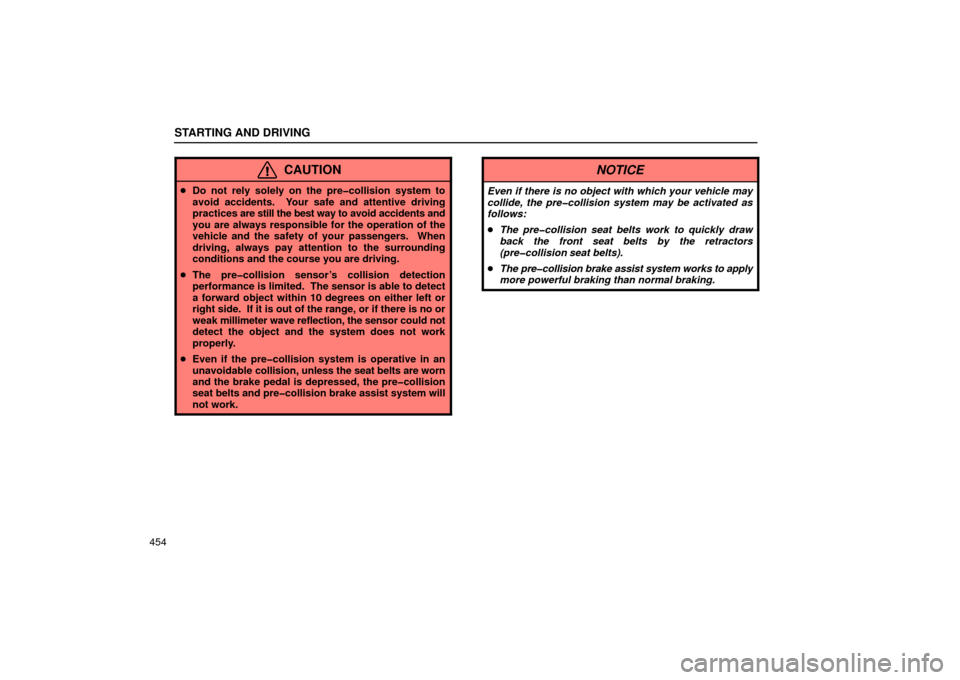

CAUTION
Do not rely solely on the precollision system to
avoid accidents. Your safe and attentive driving
practices are still the best way to avoid accidents and
you are always responsible for the operation of the
vehicle and the safety of your passengers. When
driving, always pay attention to the surrounding
conditions and the course you are driving.
 The precollision sensor’s collision detection
performance is limited. The sensor is able to detect
a forward object within 10 degrees on either left or
right side. If it is out of the range, or if there is no or
weak millimeter wave reflection, the sensor could not
detect the object and the system does not work
properly.
 Even if the precollision system is operative in an
unavoidable collision, unless the seat belts are worn
and the brake pedal is depressed, the precollision
seat belts and precollision brake assist system will
not work.
NOTICE
Even if there is no object with which your vehicle may
collide, the precollision system may be activated as
follows:
 The precollision seat belts work to quickly draw
back the front seat belts by the retractors
(precollision seat belts).
 The precollision brake assist system works to apply
more powerful braking than normal braking.

IN CASE OF AN EMERGENCY
477
Use the jack only for lifting your vehicle during
wheel changing.
 Do not raise the vehicle with someone in the
vehicle.
 When raising the vehicle, do not put an object
on or under the jack.
 Raise the vehicle only high enough to remove
and change the tire.
NOTICE
Do not use liquid sealants for a flat tire as tire
pressure sensors will be damaged.
 Do not continue driving with a deflated tire.
Driving even a short distance can damage a tire
beyond repair.
 When the tires must be repaired and replaced,
have them repaired and replaced by your Lexus
dealer or an authorized tire dealer. The tire
pressure warning valves and transmitters will
be affected by the installation or removal of
tires.
 When the tires must be replaced, replace the
grommets for tire pressure warning vales and
transmitters as well.
Compact spare tire
G40025
The compact spare tire is designed for temporary
emergency use only.
The compact spare tire is identified by the distinctive
wording “TEMPORARY USE ONLY” molded into the
side wall of the tire.
To keep the compact spare tire noticeable, do not hide
the wheel by a wheel cover or such.
The compact spare tire saves space in your luggage
compartment, and its lighter weight helps to improve fuel
economy and permits easier installation in case of a flat
tire.

ELECTRICAL COMPONENTS
577
No.FUSEAMPERECIRCUIT
18 FR DOORRH20
Front right door control system
(Power door lock system,
Power rear view mirror control
system, Door courtesy light,
Outside rear view mirror heater,
Power window), Multiplex
communication system
19 RR DOOR RH20Rear right door control system
(Power door lock system, Door
courtesy light, Power window)
20 RR DOOR LH20Rear left door control system
(Power door lock system, Door
courtesy light, Power window)
21 FR DOORLH20
Front left door control system
(Power door lock system,
Power rear view mirror control
system, Door courtesy light,
Outside rear view mirror heater,
Power window)
22 RAD NO.310Audio system
23 HLP LVL7.5Adaptive front lighting system
(AFS), Automatic headlight
leveling control system
No.FUSEAMPERECIRCUIT
24 LHIG10
Charging system, Headlight
cleaners, Exhaust gas sensor,
Rear window defogger, Electric
cooling fans, Rear left door
control system, Front left door
control system, Emergency
flashers, Automatic
transmission, Seat belt
pretensioners, Intuitive parking
assist
25 FR WIP30Windshield wipers and washer
26 PANEL7.5
Steering switch illumination,
Audio system, Glove box light,
Automatic transmission selector
lever illumination, Console box
light, Adaptive variable
suspension switch illumination,
Cigarette lighter illumination, Air
conditioning system, Traction
control off switch illumination,
Driving pattern selector switch,
Seat heater or Heated and
ventilated seat switches,
Register ILL RH, Register ILL
LH, Register ILL CTR
27 FUEL
OPEN10Fuel filler door opener, Trunk lid
opener

ELECTRICAL COMPONENTS
578
No.FUSEAMPERECIRCUIT
28 ECUIG LH10
Vehicle stability control system,
Electronic control brake system,
Yaw rate and G sensor,
Steering sensor, Cruise control
system, Dynamic radar cruise
control system, Electronic
power steering system, Variable
gear ratio steering system,
Rear view monitor system,
Four−wheel drive system, Front
controller, Moon roof, Rain
sensor
29 FR S/HTR
LH15Seat heater, Heated and
ventilated seats
30 FR P/SEAT LH30Power seat system
31 A/C7.5Air conditioning system
32 TV7.5Audio system, Air conditioning
system, Rear view monitor
system
33 TRK OPN10Trunk lid opener
34 LHB10Theft deterrent system
35 S/ROOF25Moon roof
36 ECUB10
Variable gear ratio steering
system, Electronic power
steering system, Driver’s seat
switch module
37 ABS
MAIN310Electronic control brake system
No.FUSEAMPERECIRCUIT
38 TURNHAZ15Turn signal lights, Emergency
flashers
39 IG2 MAIN20“IG2”, “GAUGE” and “IGN”
40 RAD NO.230Audio system
41 D/C CUT20“DOME “ and “MPX− B”
42 RAD NO.130Audio system
43 MPXB10
Multiplex communication
system, Front controller, Door
control system (Power door
lock system, Door courtesy
lights, Power windows, Power
rear view mirror control system,
Outside rear view mirror
heaters), Power seat system,
Steering sensors, Electronic
control brake system, Power tilt
and telescopic steering system,
Gauges and meters,
Combination switch
44 DOME10
Foot lights, Vanity lights,
Gauges and meters, Steering
spot light, Steering switch
illumination, Rear personal
lights, Automatic transmission
selector lever spot light, Front
personal lights
45 ABS
MAIN210Electronic control brake system
46 ABS
MOTOR30Anti− lock brake system
