Scheduled Maintenance Log
57
S
CHEDULED
M
AINTENANCE
L
OG
❏Replace engine oil and oil filter
1
❏Clean air conditioner filter (IS 250)
❏Inspect engine air filter
2
❏Inspect nuts and bolts on chassis
2
❏Re-torque axle shaft flange bolts (all models except ES)
❏Rotate tires (all models except IS with different size front and rear tires)
❏Visually inspect brake pads and rotors
❏Road-test vehicle
❏Inspect the following:____Axle shaft boots
____Ball joints and dust covers
____Body
____Brake lines and hoses
____Exhaust pipes and mountings
____Front differential oil (AWD GS 300,
AWD IS 250)

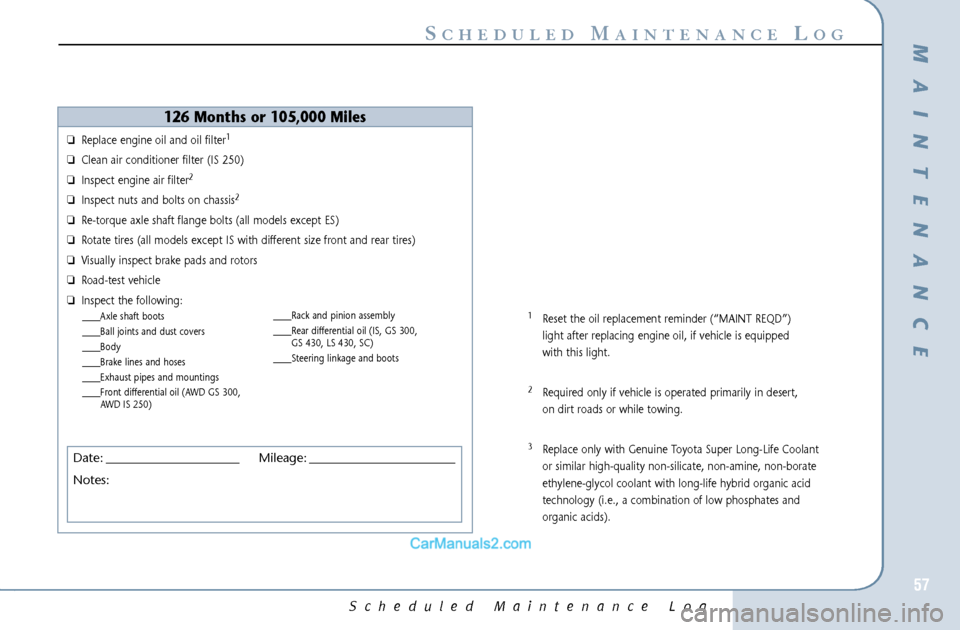

126 Months or 105,000 Miles
1Reset the oil replacement reminder (“MAINT REQD”)
light after replacing engine oil, if vehicle is equipped
with this light.2Required only if vehicle is operated primarily in desert,
on dirt roads or while towing.3Replace only with Genuine Toyota Super Long-Life Coolant
or similar high-quality non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life hybrid organic acid
technology (i.e., a combination of low phosphates and
organic acids).
____Rack and pinion assembly
____Rear differential oil (IS, GS 300,
____GS 430, LS 430, SC)
____Steering linkage and boots
Date: _____________________ Mileage: _______________________
Notes: MAINTENANCE

Scheduled Maintenance Log
58
S
CHEDULED
M
AINTENANCE
L
OG
132 Months or 110,000 Miles
❏Replace engine oil and oil filter
1
❏Measure thickness of front brake pads and rotors (GS 430, IS)
❏Replace air conditioner filter (GS 300, GS 430, IS 350, LS 430, SC)
❏Re-torque axle shaft flange bolts (all models except ES)
2
❏Rotate tires (all models except IS with different size front and rear tires)
❏Visually inspect brake pads and rotors
❏Road-test vehicle
❏Inspect the following:
2
____Axle shaft boots ____Nuts and bolts on chassis
____Ball joints and dust covers ____Steering linkage and boots
____Engine air filter
138 Months or 115,000 Miles
❏Replace engine oil and oil filter
1
❏Inspect engine coolant
3
❏Re-torque axle shaft flange bolts (all models except ES)
2
❏Rotate tires (all models except IS with different size front and rear tires)
❏Visually inspect brake pads and rotors
❏Road-test vehicle
❏Inspect the following:
2
____Axle shaft boots ____Nuts and bolts on chassis
____Ball joints and dust covers ____Steering linkage and boots
____Engine air filter
Date: _____________________ Mileage: _______________________
Notes:
Date: _____________________ Mileage: _______________________
Notes: MAINTENANCE

Scheduled Maintenance Log
59
S
CHEDULED
M
AINTENANCE
L
OG
❏Replace engine oil and oil filter
1
❏Measure brake pad thickness and rotor runout
❏Measure thickness of brake rotors (GS 430, IS)
❏Replace brake fluid
❏Replace engine air filter
❏Replace spark plugs
6
❏Replace transmission fluid (ES 330, LS 430)
4
❏Re-torque axle shaft flange bolts (all models except ES)
❏Rotate tires (all models except IS with different size front and rear tires)
❏Road-test vehicle
❏Inspect the following:____Axle shaft boots
____Ball joints and dust covers
____Body____
____Brake lines and hoses____
____Drive belts
____Engine valve clearance (ES, GS 430, LS, SC)
____Exhaust pipes and mountings
____Front differential oil (AWD GS 300,
AWD IS 250)
144 Months or 120,000 Miles
1Reset the oil replacement reminder (“MAINT REQD”)
light after replacing engine oil, if vehicle is equipped
with this light.2Required only if vehicle is operated primarily in desert,
on dirt roads or while towing.3Replace only with Genuine Toyota Super Long-Life Coolant
or similar high-quality non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life hybrid organic acid
technology (i.e., a combination of low phosphates and
organic acids).4Required only if vehicle is operated primarily while towing.5If equipped with limited-slip differential.6Required under the terms of the Emission Control
Warranty. ❏Inspect nuts and bolts on chassis
2
❏Replace air conditioner filter
❏Replace differential oil (ES 330
4,
IS
5)
____Fuel lines and connections, fuel
tank band and fuel tank vapor
vent system hoses
____Fuel tank cap gasket
____Manual transmission oil (IS 250)
____Rack and pinion assembly
____Rear differential oil (IS, GS, LS, SC)
____Steering linkage and boots
____Transmission fluid (ES 330, SC)
Date: _____________________ Mileage: _______________________
Notes: MAINTENANCE

Scheduled Maintenance Log
60
S
CHEDULED
M
AINTENANCE
L
OG
150 Months or 125,000 Miles
❏Replace engine oil and oil filter
1
❏Re-torque axle shaft flange bolts (all models except ES)
2
❏Rotate tires (all models except IS with different size front and rear tires)
❏Visually inspect brake pads and rotors
❏Road-test vehicle
❏Inspect the following:
2
____Axle shaft boots ____Nuts and bolts on chassis
____Ball joints and dust covers ____Steering linkage and boots
____Engine air filter
156 Months or 130,000 Miles
❏Replace engine oil and oil filter
1
❏Inspect engine coolant
3
❏Measure thickness of front brake pads and rotors (GS 430, IS)
❏Replace air conditioner filter (GS 300, GS 430, IS 350, LS 430, SC)
❏Re-torque axle shaft flange bolts (all models except ES)
2
❏Rotate tires (all models except IS with different size front and rear tires)
❏Visually inspect brake pads and rotors
❏Road-test vehicle
❏Inspect the following:
2
____Axle shaft boots ____Nuts and bolts on chassis
____Ball joints and dust covers ____Steering linkage and boots
____Engine air filter
Date: _____________________ Mileage: _______________________
Notes:
Date: _____________________ Mileage: _______________________
Notes: MAINTENANCE

Scheduled Maintenance Log
61
S
CHEDULED
M
AINTENANCE
L
OG
❏Replace engine oil and oil filter
1
❏Clean air conditioner filter (IS 250)
❏Inspect engine air filter
2
❏Inspect nuts and bolts on chassis
2
❏Re-torque axle shaft flange bolts (all models except ES)
❏Rotate tires (all models except IS with different size front and rear tires)
❏Visually inspect brake pads and rotors
❏Road-test vehicle
❏Inspect the following:____Axle shaft boots
____Ball joints and dust covers
____Body
____Brake lines and hoses
____Drive belts
____Exhaust pipes and mountings
162 Months or 135,000 Miles
1Reset the oil replacement reminder (“MAINT REQD”)
light after replacing engine oil, if vehicle is equipped
with this light.2Required only if vehicle is operated primarily in desert,
on dirt roads or while towing.3Replace only with Genuine Toyota Super Long-Life Coolant
or similar high-quality non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life hybrid organic acid
technology (i.e., a combination of low phosphates and
organic acids).
____Front differential oil (AWD GS 300,
AWD IS 250)
____Rack and pinion assembly
____Rear differential oil (IS, GS 300,
____GS 430, LS 430, SC)
____Steering linkage and boots
Date: _____________________ Mileage: _______________________
Notes: MAINTENANCE

Scheduled Maintenance Log
62
S
CHEDULED
M
AINTENANCE
L
OG
168 Months or 140,000 Miles
❏Replace engine oil and oil filter
1
❏Measure thickness of front brake pads and rotors (GS 430, IS)
❏Replace air conditioner filter (GS 300, GS 430, IS 350, LS 430, SC)
❏Re-torque axle shaft flange bolts (all models except ES)
2
❏Rotate tires (all models except IS with different size front and rear tires)
❏Visually inspect brake pads and rotors
❏Road-test vehicle
❏Inspect the following:
2
____Axle shaft boots ____Nuts and bolts on chassis
____Ball joints and dust covers ____Steering linkage and boots
____Engine air filter
174 Months or 145,000 Miles
❏Replace engine oil and oil filter
1
❏Inspect engine coolant
3
❏Re-torque axle shaft flange bolts (all models except ES)
2
❏Rotate tires (all models except IS with different size front and rear tires)
❏Visually inspect brake pads and rotors
❏Road-test vehicle
❏Inspect the following:
2
____Axle shaft boots ____Nuts and bolts on chassis
____Ball joints and dust covers ____Steering linkage and boots
____Engine air filter
Date: _____________________ Mileage: _______________________
Notes:
Date: _____________________ Mileage: _______________________
Notes: MAINTENANCE

Scheduled Maintenance Log
63
❏Replace engine oil and oil filter
1
❏Inspect nuts and bolts on chassis
2
❏Measure brake pad thickness and rotor runout
❏Measure thickness of brake rotors (GS, 430, IS)
❏Replace air conditioner filter
❏Replace brake fluid
❏Replace engine air filter
❏Replace engine coolant
3
❏Re-torque axle shaft flange bolts (all models except ES)
❏Rotate tires (all models except IS with different size front and rear tires)
❏Road-test vehicle
❏Inspect the following:____Axle shaft boots
____Ball joints and dust covers
____Body____
____Brake lines and hoses____
____Drive belts
____Exhaust pipes and mountings
____Front differential oil (AWD GS 300,
AWD IS 250)
180 Months or 150,000 Miles
1Reset the oil replacement reminder (“MAINT REQD”)
light after replacing engine oil, if vehicle is equipped
with this light.2Required only if vehicle is operated primarily in desert,
on dirt roads or while towing.3Replace only with Genuine Toyota Super Long-Life Coolant
or similar high-quality non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life hybrid organic acid
technology (i.e., a combination of low phosphates and
organic acids).
S
CHEDULED
M
AINTENANCE
L
OG
____Fuel lines and connections, fuel
tank band and fuel tank vapor
vent system hoses
____Fuel tank cap gasket
____Manual transmission oil (IS 250)
____Rack and pinion assembly
____Rear differential oil (IS, GS, LS, SC)
____Steering linkage and boots
____Transmission fluid (ES 330, SC)
Date: _____________________ Mileage: _______________________
Notes: MAINTENANCE

Scheduled Maintenance Log
E
XPLANATION OF
M
AINTENANCE
ITEMS
65
Brake FluidReplace using fluid type specified in your Owner’s
Manual. A qualified technician should perform this
operation.Brake Lines and HosesVisually inspect for proper installation. Check for
chafing, cracks, deterioration and signs of leakage.
Replace any deteriorated or damaged parts. A quali-
fied technician should perform these operations.Brake Linings/Drums and Brake Pads/RotorsCheck the parking brake linings (shoes) and drums
for scoring, burning, fluid leakage, broken parts and
excessive wear. Check brake pads and rotors for exces-
sive wear; check brake rotors for runout. Check brake
calipers for fluid leakage. A qualified technician
should perform these inspections.Charcoal CanisterCheck for internal damage and clogging. If necessary,
clean with compressed air or replace. A qualified tech-
nician should perform these operations.
Dif ferential OilCheck for correct oil level and inspect each differential
component for signs of leakage. If you discover any
leakage, have it repaired by a qualified technician
immediately. Refer to your Owner’s Manualfor fluid
specifications.Drive BeltsInspect for cracks, excessive wear and oiliness. Check
the belt tension and adjust if necessary. Replace the
belts if they are damaged.Engine Air FilterCheck for damage, excessive wear and oiliness.
Replace if necessary.Engine CoolantDrain and flush the cooling system and refill with
Genuine Toyota Super Long-Life Coolant or similar
high-quality non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life hybrid organic
acid technology (i.e., a combination of low phosphates MAINTENANCE
