2006 Lexus ES330 windshield wipers

Variable intermittent
operation
Washer on High speed operation Low speed operationAutomatic operation
Washer on High speed operation Low speed operation
Rainsensing windshield wipers
QUICK REFERENCE
5
6. WINDSHIELD WIPER
AND WASHER SWITCH
Variable
intermittent windshield wipers

SWITCHES
xxxix

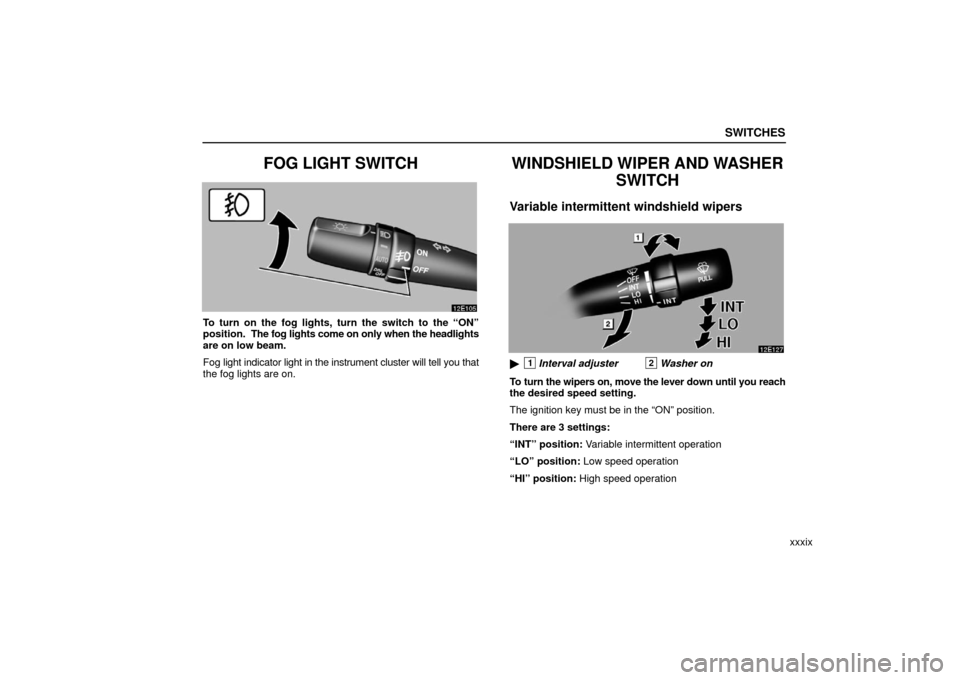

FOG LIGHT SWITCH
To turn on the fog lights, turn the switch to the “ON”
position. The fog lights come on only when the headlights
are on low beam.
Fog light indicator light in the instrument cluster will tell you that
the fog lights are on.
WINDSHIELD WIPER AND WASHERSWITCH
Variable intermittent windshield wipers
1Interval adjuster2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the “ON” position.
There are 3 settings:
“INT” position: Variable intermittent operation
“LO” position: Low speed operation
“HI” position: High speed operation

SWITCHES
xlTwist the interval adjuster upward to increase the wiping
time
interval between sweeps, and downward to decrease
it.
The wiper lever must be in the “INT” position.
To make the washer squirt, pull the lever toward you and
release it.
Also, the wipers will automatically operate a couple of times
after the washer squirts even with the lever in the “OFF”
position.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page cdvi.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.

SWITCHES
xli
Rainsensing windshield wipers
1Automatic control adjuster
2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition switch must be in the “ON” position.
There are 3 settings:
“AUTO” position: Automatic operation
“LO” position: Low speed operation
“HI” position: High speed operation
Automatic operation
The wiper speed is determined by the amount of raindrops
and sunlight detected by the automatic wiper control
sensor. You may adjust the automatic wiper control sensitivity by
twisting the automatic control adjuster in the “”
direction, which requires more raindrop volume to start
the wiper, or in the “+” direction, which requires less
raindrop volume to start the wiper.
The sensor is on the inside of the windshield as shown above.
Even if the wiper lever is in the
“AUTO” position, the system will
switch to intermittent operations in the following conditions:
 When the windshield gets extremely cold (at less than
–10 C [14 F])
 When the system malfunctions
However, when the windshield gets extremely hot (at more
than 90 C [194F]), the wipers do not operate even if the wiper
lever is in the “AUTO” position.

SWITCHES
xliiWhen
the ignition switch is turned off with the wiper lever in the
“AUTO” position, and then the ignition switch is turned on
again, the automatic operation may not work even if raindrops
are on the windshield.
In this case, move the lever to another position and return it to
the “AUTO” position again.
CAUTION
Be careful not to get your fingers caught between the
wipers and windshield.
When the wiper lever is in the “AUTO” position with the
ignition switch on, the wipers could operate
automatically in the following cases:
 If you touch the upper center of the windshield
adjacent to the sensor.
 If you wipe the upper center of the windshield
(adjacent to which the sensor is located) with a towel.
 If the windshield vibrates.
 If you touch the sensor.
NOTICE
Do not apply detergent to or wet the automatic wiper
control sensor when cleaning the inside of the
windshield.
To make the washer squirt, pull the lever toward you and
release it.
Also, the wipers will automatically operate a couple of times
after the washer squirts even with the lever in the “OFF”
position.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page cdvi.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.

SWITCHES
xliii
Shifting the windshield wiper position
1Rest position2Retracted position
The wiper blades retract under the hood when the wipers are
turned off.
In the following cases, the wipers should be shifted from the
retracted position (position 2) to the rest position (position 1)
above the hood level.
 When cleaning the windshield
 When inspecting or replacing the wipers
 When the retraction may be obstructed by snow, etc., at the
bottom of the windshield
Other than the above cases, keep the wipers in the retracted
position.
 * More than 10 cm (3.9 in.)
SHIFTING TO THE REST POSITION
Hold the connection of the wiper arm and wiper blade and
pull it upward for more than 10 cm (3.9 in.) along the
windshield glass with the force of about 98 N (10 kgf, 22
lbf).
NOTICE
To prevent the wiper blades from being deformed, be
sure to hold the connection of the wiper arm and wiper
blade securely.

ELECTRICAL COMPONENTS
cccxcvii
No.FUSEAMPERECIRCUIT
32ECUB10
Multiplex communication
system (power door lock
system, security system,
auto−door locking system,
automatic light control system,
headlight delay off system, tail
light auto cut system,
illuminated entry system,
daytime running light system,
wireless remote control
system) air conditioning
system, electronic modulated
suspension, driving position
memory system, front
passenger seat position
memory system
33DOME7.5
Ignition switch light, interior
light, personal lights, foot
lights, door courtesy lights,
trunk light, vanity lights, garage
door opener, clock, outside
temperature gauge,
multi− information display
No.FUSEAMPERECIRCUIT
34CIG15Cigarette lighter
35ECU
ACC5
Power rear view mirrors, clock,
multi− information display,
driving position memory
system, front passenger seat
position memory system
36RAD NO.210Audio system, navigation
system
37POWER
POINT15Power outlet
38RAD NO.120Audio system, navigation
system
39GAUGE110
Gauges and meters, clock,
outside temperature gauge,
multi −information display, shift
lock system
40ECUIG10
SRS airbag system, power
windows, anti− lock brake
system, electronic modulated
suspension, driving position
memory system, front
passenger seat position
memory system
41WIPER25Windshield wipers
42HTR10Air conditioning system
