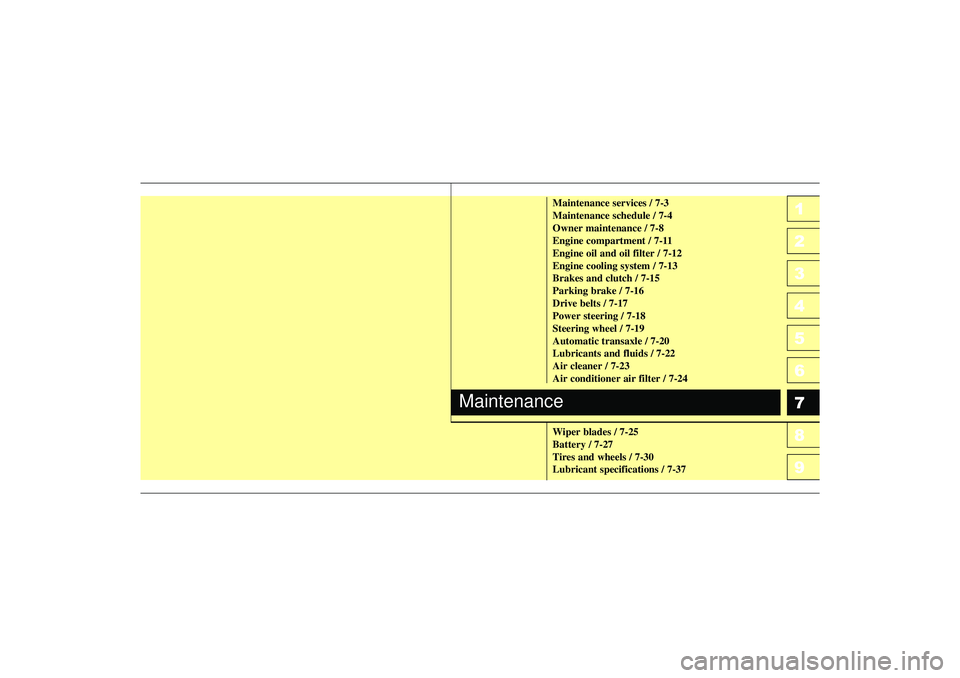

Maintenance services / 7-3
Maintenance schedule / 7-4
Owner maintenance / 7-8
Engine compartment / 7-11
Engine oil and oil filter / 7-12
Engine cooling system / 7-13
Brakes and clutch / 7-15
Parking brake / 7-16
Drive belts / 7-17
Power steering / 7-18
Steering wheel / 7-19
Automatic transaxle / 7-20
Lubricants and fluids / 7-22
Air cleaner / 7-23
Air conditioner air filter / 7-24
Wiper blades / 7-25
Battery / 7-27
Tires and wheels / 7-30
Lubricant specifications / 7-37
Maintenance
LD CAN (ENG) 7.qxd 7/29/05 10:23 AM Page 1

Maintenance47
1
2
3
4
5
6
7
8
9
MAINTENANCE SCHEDULE
Kilometers or time in months, whichever comes first
× 1,000 km 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128
# Months 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64
Engine oil & engine oil filter (1) R R R R R R RRRRRRR RRR
Drive belts (tension) I I I I
Cooling system hoses & connections I I I I I
Engine coolant (1) I I I I I R IIIIIRI III
Fuel filter RR
Fuel tank cap, lines, EVAP canister and hoses
II
Fuel tank air filter I R I R I
Air cleaner element (2) I I I I I R IIIIIRI III
Ignition wires I I
Spark plugs R
Idle speed I I I I I
Valve clearance (if equipped) I
Engine timing belt R
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
Engine control system
LD CAN (ENG) 7.qxd 7/29/05 10:23 AM Page 4

Maintenance12
7
1
2
3
4
5
6
7
8
9
ENGINE OIL AND OIL FILTERChecking the engine oil level 1. Be sure the vehicle is on level
ground.
2. Start the engine and allow it to reach normal operating tempera-
ture.
3. Turn the engine off and wait for a few minutes (about 5 minutes) for
the oil to return to the oil pan.
4. Pull the dipstick out, wipe it clean, and re-insert it fully.
5. Pull the dipstick out again and check the level. The level should
be between F and L. If it is near or at L, add enough oil to
bring the level to F.
Do not overfill.
Use only the specified engine oil.
(Refer to “Recommended Lubricants”
later in this section.)
Changing the engine oil and
filterChange engine oil and filter accord-
ing to the Scheduled Maintenance at
the beginning of this section.
1LDN5003
1LDN5004
LD CAN (ENG) 7.qxd 7/29/05 10:23 AM Page 12

723
Maintenance
1
2
3
4
5
6
7
8
9
AIR CLEANER Element cleaningThis element may be air cleaned or
replaced, depending on its condition.
Unless it is very dirty, merely shake it
to remove foreign particles. Each
time this filter is inspected, wipe the
inside of the air cleaner housing and
cover with a damp cloth. If the vehi-
cle is operated in extremely dusty or
sandy areas, clean or replace this
element more often than at the usual
recommended intervals.
1LDA5010
CAUTION
 Do not drive with the air clean-er removed; this will result in
excessive engine wear.
 Driving without an air cleaner encourages backfiring, which
could cause a fire in the
engine compartment.
LD CAN (ENG) 7.qxd 7/29/05 10:23 AM Page 23

Maintenance24
7
1
2
3
4
5
6
7
8
9
AIR CONDITIONER AIR FILTER (IF EQUIPPED)The air conditioner air filter installed
behind the glove box filters the dust
or other pollutants that come into the
vehicle from the outside through the
heating and air conditioning system.
If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may
decrease, resulting in moisture accu-
mulation on the inside of the wind-
shield even when the outside (fresh)
are position is selected. If this hap-
pens, have the air conditioner air fil-
ter replaced by an Authorized Kia
Dealer. The air filter should be replaced
every 15,000 km. If the vehicle is
operated in the severely air-polluted
cities or on dusty rough roads for a
long periods, it should be inspected
more frequently and replaced earlier.
When you try to replace the air filter
by owner maintenance, replace it
performing the following procedure,
and in this case, be careful to avoid
damaging other components.
1LDA5047
Outside air
Recirculatedair
Air conditioner
air filter Blower
Evaporator
coreHeater core
LD CAN (ENG) 7.qxd 7/29/05 10:23 AM Page 24

Index29
1
2
3
4
5
6
7
8
9
Air cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23
Air conditioner air filter . . . . . . . . . . . . . . . . . . . . . . . 7-24
Airbag - supplemental restraint system . . . . . . . . . . . 3-56
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10\
5
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
27
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Brakes and clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47\
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Drive belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Electrical circuit protection . . . . . . . . . . . . . . . . . . . . . 6-7
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Emission control system . . . . . . . . . . . . . . . . . . . . . . . 5-3
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
Engine cooling system . . . . . . . . . . . . . . . . . . . . . . . . 7-13Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . . . . 7-12
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-84
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
31
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 4-48
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 3-83
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . 1-2
If you have a flat tire . . . . . . . . . . . . . . . . . . . . . . . . . 6-19
Ignition switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-96
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-91
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 3-2ABCDE
GFHI
