Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Driver’s Air Bag
2. Light control / Turn signals
3. Instrument cluster
4. Wiper/Washer
5. Ignition switch
6. Traction control system (if equipped)
7. Hazard
8. Climate control system
9. Shift lever
10. Passenger’s airbag
11. Glove box
12. Audio controls (if equipped)
13. Auto cruise controls (if equipped)
1LDC0003A
LD CAN (ENG) 2.qxd 7/29/05 10:14 AM Page 5

Knowing your vehicle23
1
2
3
4
5
6
7
8
9
The key code number is stamped on
the plate attached to the key set.
Should you lose your keys, this num-
ber will enable an authorized Kia
Dealer to duplicate the keys easily.
Remove the plate and store it in a
safe place. Also, record the code
number and keep it in a safe and
handy place, but not in the vehicle.
Key operations➀Master key
Used to start the engine, lock and unlock the doors, lock and unlock
the glove box (if equipped), and
open the trunk (if equipped).
➁ Transmitter
Used to lock and unlock the doors
and trunk (if equipped).
KEYS
1LDA2001A
1LDA2001
WARNING
- Ignition key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition. Children copy
adults and they could place the
key in the ignition. The ignition
key would enable children to
operate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or even
death. Never leave the keys in
your vehicle with unsupervised
children.
➀➁
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:27 AM Page 2

361
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Front passenger’s airbagFront passenger’s airbag is stored in
the instrument panel on the glove
box.
Since you cannot anticipate which
airbags will deploy or from what
direction, never put any objects or
ornaments on the instrument panel. Occupant classification system
The occupant classification system
detects the presence of a passenger
in the front passenger's seat and will
turn off the front passenger's airbag
under certain conditions.
The occupant classification system is
designed to detect the presence of a
properly-seated occupant and deter-
mine if the front passenger's airbag
should be enabled (may inflate) or
not.
Only the front passenger front airbag
and front passenger side airbag are
controlled by the Occupant
Classification System.
WARNING
 You must always sit as far
back from the steering wheel
airbag as possible (chest at
least 10 inches (250 mm) away
from the steering wheel), while
still maintaining a comfortable
seating position for good
vehicle control, in order to
reduce the risk of injury or
death in a collision.
 Never place objects over the airbag storage compartments
or between the airbags and
yourself. Due to the speed and
force of the airbag inflation,
such objects could hit your
body at high speed and cause
severe bodily injury and even
death.
 Do not put stickers or orna- ments on the steering wheel
cover. These may interfere
with the deployment of the
airbag.
1LDA2049HLZ208
1LDN2166
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 61

Knowing your vehicle94
3
1
2
3
4
5
6
7
8
9
Glove boxTo open the glove box, then pull the
handle (
➀) and the glove box will
automatically open (
➁). Close the
glove box after use.
✽ ✽ NOTICESince key is not fully inserted into
the glove box key set, do not apply
excessive force. Doing so may dam-
age the parts.
1LDA2156
CAUTION
To reduce the risk of injury in
case of an accident or sudden
stop, always keep the glove box
door closed while driving.
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 94

Maintenance24
7
1
2
3
4
5
6
7
8
9

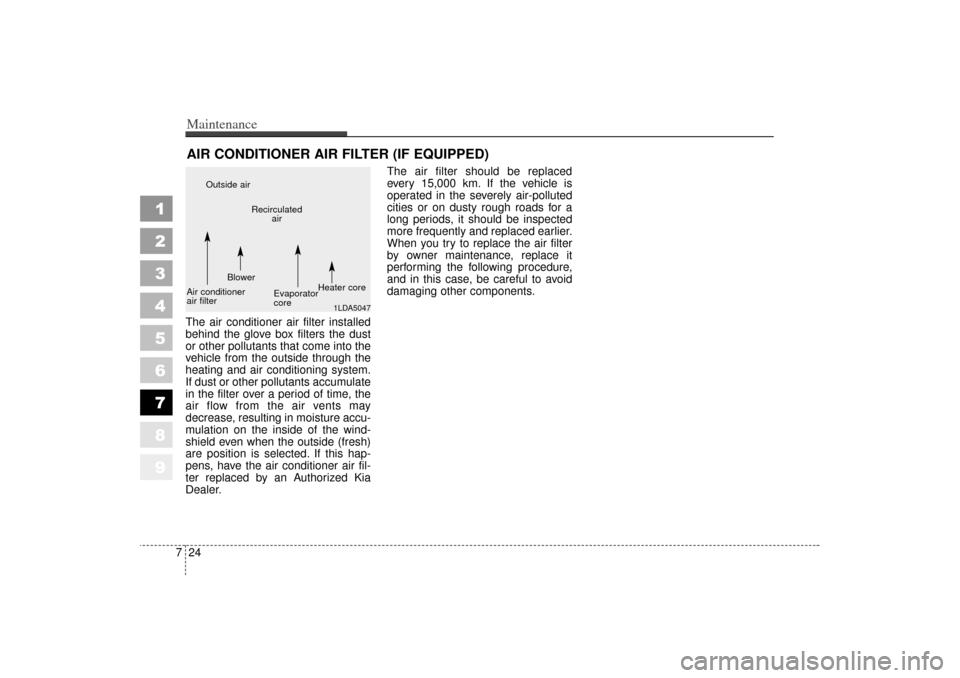

AIR CONDITIONER AIR FILTER (IF EQUIPPED)The air conditioner air filter installed
behind the glove box filters the dust
or other pollutants that come into the
vehicle from the outside through the
heating and air conditioning system.
If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may
decrease, resulting in moisture accu-
mulation on the inside of the wind-
shield even when the outside (fresh)
are position is selected. If this hap-
pens, have the air conditioner air fil-
ter replaced by an Authorized Kia
Dealer. The air filter should be replaced
every 15,000 km. If the vehicle is
operated in the severely air-polluted
cities or on dusty rough roads for a
long periods, it should be inspected
more frequently and replaced earlier.
When you try to replace the air filter
by owner maintenance, replace it
performing the following procedure,
and in this case, be careful to avoid
damaging other components.
1LDA5047
Outside air
Recirculatedair
Air conditioner
air filter Blower
Evaporator
coreHeater core
LD CAN (ENG) 7.qxd 7/29/05 10:23 AM Page 24

Specifications48
1
2
3
4
5
6
7
8
9
Light bulbsCapacities
LubricantVolume Classification
Engine oil
*1
4.0 l
API Service SJ, SL or above,
(4.2 qt.)
ILSAC GF-3 or above
Manual transaxle fluid
2.15
l API SERVICE GL-4
(
2.27 qt.)
SAE 75W-85 (fill for-life)
Automatic transaxle
7.8 l DIAMOND ATF SP-III,
fluid (8.2 qt.) SK ATF SP-III
Power steering 0.8
l
PSF-III
(0.8 qt.)
Coolant 8.14
l
Ethylene glycol base for
(8.6 qt.)
aluminum radiator
Brake fluid 0.7~0.8
l
FMVSS116 DOT-3
(0.7~0.8 qt.)
or DOT-4
Fuel 55
l Unleaded gasoline with
(14.5 gal) AKI 87 or higher
*¹Refer to the recommended SAE viscosity numbers on the page 7-38.
Light Bulb 4 Door 5 Door
Headlights (Low/High) 55/60 55/60
Front turn signal lights 2828
Position lights 88
Front fog lights (if equipped) 27 27
Stop and tail lights 28/8 28/8
Rear turn signal lights 2727
Back-up lights 1717
High mounted stop light 27 or LED LED
License plate lights 55
Front map lamp 1010
Center dome lamp 1010
Door courtesy lamps 55
Trunk room lamp 55
Glove box lamp 55
Wattage
