Ignition switch and anti-theft
steering column lock
Ignition switch position
LOCK
The steering wheel locks to protect
against theft. The ignition key can be
removed only in the LOCK position.
When turning the ignition switch to
the LOCK position, push the key
inward at the ACC position and turn
the key toward the LOCK position. ACC (Accessory)
The steering wheel is unlocked and
electrical accessories are operative. ON
The warning lights can be checked
before the engine is started. This is
the normal running position after the
engine is started.
Do not leave the ignition switch ON if
the engine is not running to preventbattery discharge.
START
Turn the ignition key to the START
position to start the engine. The
engine will crank until you release
the key; then it returns to the ON
position. The brake warning lamp
can be checked in this position.
If difficulty is experienced in turning the ignition key to the START posi-tion, turn the steering wheel rightand left to release the tension and then turn the key.
IGNITION SWITCH
1XTA3017

421
1 23456789
Driving your vehicle

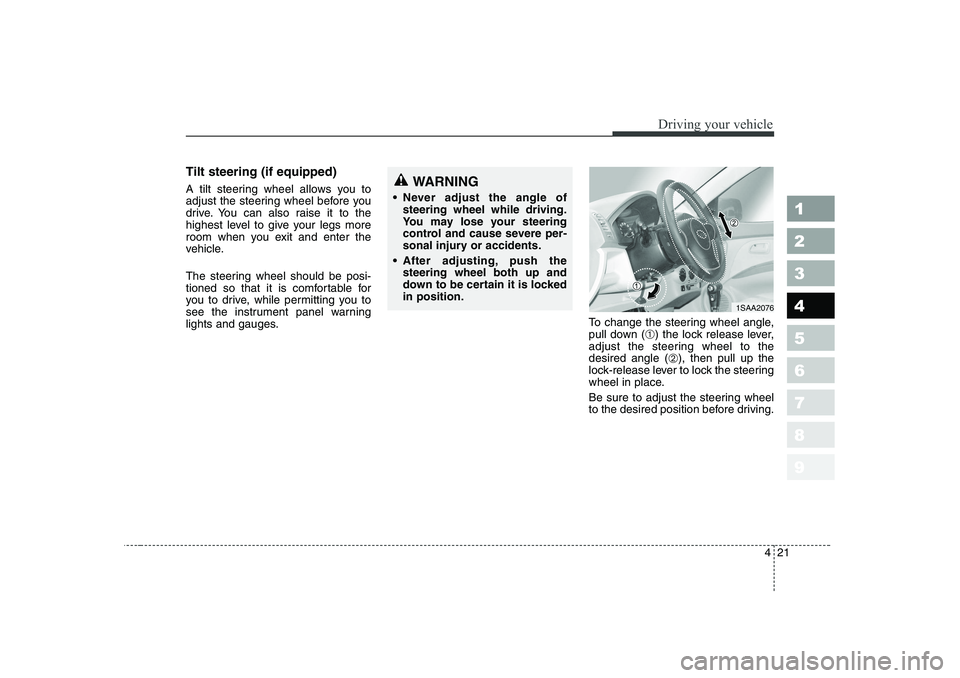

Tilt steering (if equipped)
A tilt steering wheel allows you to
adjust the steering wheel before you
drive. You can also raise it to the
highest level to give your legs more
room when you exit and enter the
vehicle.
The steering wheel should be posi-
tioned so that it is comfortable for
you to drive, while permitting you to
see the instrument panel warning
lights and gauges.To change the steering wheel angle,
pull down (
➀) the lock release lever,
adjust the steering wheel to thedesired angle ( ➁), then pull up the
lock-release lever to lock the steering
wheel in place.
Be sure to adjust the steering wheel
to the desired position before driving.WARNING
 Never adjust the angle of steering wheel while driving.
You may lose your steering
control and cause severe per-
sonal injury or accidents.
 After adjusting, push thesteering wheel both up and
down to be certain it is lockedin position.
1SAA2076

423
1 23456789
Driving your vehicle
INSTRUMENT CLUSTER
1. Tachometer (if equipped)
2. Turn signal indicators
3. Speedometer4. Engine temperature indicator
5. Warning and indicator lights
6. Odometer / Tripmeter7. Tripmeter mode/reset button
8. Fuel gauge
5SAA2090/5SAB2090/5SAC2090/5SAD2090
■■Gasoline (Type A)
■
■ Gasoline (Type B) ■
■
Gasoline (Type C)
■
■ Gasoline (Type D)
➀
➁➁
➂
➃
➄➅
➇
➆
➀
➁➁
➂
➃
➄➅
➇
➆
➁➁
➂➃
➄➄➄➄➄
➅
➇
➆
➁➁
➂➃
➄➄➄➄➄
➅
➇
➆

Driving your vehicle
24
4
1 23456789
1. Tachometer (if equipped)
2. Turn signal indicators
3. Speedometer 4. Engine temperature indicator
5. Warning and indicator lights
6. Odometer / Tripmeter7. Tripmeter mode/reset button
8. Fuel gauge
5SAA2090A/5SAB2090A/5SAC2090C/5SAD2090A
■■ Diesel (Type A)
■
■ Diesel (Type B) ■
■
Diesel (Type C)
■
■ Diesel (Type D)
➀
➁➁
➂
➃
➄➅
➇
➆
➀
➁➁
➂
➃
➄➅
➇
➆
➁➁
➂➃
➄➄
➅
➇
➆
➁➁
➂➃
➄➄➄➄➄
➄➄➄
➅
➇
➆

Driving your vehicle
26
4
1 23456789
Warning lights / audible indi-
cators
Checking operation
All warning lights are checked by
turning the ignition switch ON (do not
start the engine). Any light that does
not illuminate should be checked by
an Authorized Kia Dealer.
After starting the engine, check to
make sure that all warning lights are
off. If any are still on, this indicates a
situation that needs attention. When
releasing the parking brake, the
brake system warning light should go
off. The fuel warning light will stay on
if the fuel level is low. Engine temperature indicator
These indicators shows the tempera- ture of the engine coolant when the
ignition switch is ON. Red indicator illuminates if the tem-
perature of the engine coolant is
above 117±3
°C (240±5.5 °F).
Blue indicator Illuminates if the tem-
perature of the engine coolant is
below 60±3 °C (140±5.5 °F).
Do not continue driving with an over-
heated engine. If your vehicle over-
heats, refer to “Overheating ”in the
Index.
✽✽
NOTICE
If the red engine temperature indi-
cator illuminates, it indicates over-heating that may damage theengine.
WARNINGS AND INDICATORS
Blue Red

427
1 23456789
Driving your vehicle
Anti-lock brake sys- tem (ABS) warninglight (if equipped)
This light illuminates if the key is
turned to ON and goes off in approx-imately 3 seconds if the system is
operating normally.
If the light stays on, you may have a
problem with your ABS system.
Contact an authorized Kia dealer as
soon as possible.Electronic brake force
distribution (EBD)system warning light (if equipped)
If two warning lights illumi- nate at the same time
while driving, your vehicle
has a problem with ABS and EBDsystem.
In this case, your ABS system and
regular brake system may not work
normally. Have the vehicle checked
by an Authorized Kia Dealer as soon
as possible.
ABSABSWARNING
If the both ABS and Brake warn-
ing lights are ON and stay ON,
your vehicle ’s brake system will
not work normally. So you may
experience an unexpected and
dangerous situation during sud-
den braking. In this case, avoidhigh speed driving and abrupt
braking. Have your vehicle
checked by Authorized Kia
Dealer as soon as possible.

Driving your vehicle
30
4
1 23456789
O/D OFF Indicator (if equipped) This indicator comes on when the
O/D system is deactivated.
Low fuel level warning
This warning light indicates the fuel
tank is nearly empty. The warning
light will come on when the fuel level
has dropped to about 6 liters. Refuel
as soon as possible.
Immobilizer indicator (if equipped) This light illuminates when the immo-
bilizer key is inserted and turned to
the ON position to start the engine.
If this light turns off or blinks when
the ignition switch is in the ON posi-
tion before starting the engine, have
the system checked by an authorized
Kia Dealer. Rear hatch warning (if equipped)
This warning light activates when the
rear hatch is not closed securely. Door ajar warning
This warning light illuminates when a door is not closed securely with the
ignition in any position.
Headlight high beam indicator This indicator illuminates when the headlights are on and in the high
beam position or when the turn sig-
nal lever is pulled into the Flash-to-
Pass position.
Air bag warning (if equipped)
This warning light will blink or illumi-
nate for approximately 6 seconds
each time you turn the ignition switchto the ON position. If this indicator does not go out, or if
it illuminates while the vehicle is
being driven, see an Authorized Kia
Dealer for immediate service.O/D
OFF
AIR
BAG

Driving your vehicle
42
4
1 23456789
The hazard warning flasher causes
the rear tail lights and front turn sig-
nal lights to flash on and off, which
serves as a warning to other drivers
to exercise caution when approach-
ing or passing your vehicle.
To activate the flasher, depress the
hazard warning flasher switch. This
switch operates in any ignition switchposition.
To turn the flashers off, depress the
switch again. HAZARD WARNING FLASHER
1SAA2100
