2006 KIA Optima warning

1-2HOW TO USE THIS MANUALWe want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can
assist you in many ways. We strongly
urge you to review the entire manual.
However, in order to prevent death or
injuries, at the very least, you must
review the WARNING and CAUTION
sections spread throughout the manual,
which are easily recognized by their
special markings indicated below.
Illustrations complement the words in
this manual to help explain the best
way to enjoy your vehicle. By reading
your manual, you can find out about
features, important safety information,
and driving under various road
conditions.The layout of the manual is provided in
the Table of Contents.
Index: A good place to start is the
index; it has an alphabetical listing of
all information in your manual.
Sections: This manual has eight
sections plus an index. Each begins
with a brief list of contents so you can
tell at a glance if that section has the
information you want.
You’ll find various WARNINGs,
CAUTIONs, and NOTICEs in this
manual. These WARNINGs, CAUTIONs
and NOTICEs were prepared to enhance
your personal safety and continued
satisfaction with your Kia vehicle. You
should carefully read and follow ALL
procedures and recommendations
provided in these WARNINGs,
CAUTIONs and NOTICEs.
INTRODUCTION
WARNING
A WARNING indicates a
situation in which serious
bodily injury or death could
result if the warning is
ignored.
CAUTION
A CAUTION indicates a situation
in which personal injury, perhaps
severe, could result if the caution
is ignored.✻
NOTICE
A NOTICE indicates a situation in
which damage to your vehicle
could result if the notice is
ignored.
MS-CNA-Eng 1.QXD 7/25/2005 5:14 PM Page 2

KEYSThe key number is stamped into the plate
attached to the key set. If you should lose
your keys, this number will enable an
Authorized Kia Dealer to duplicate the
keys easily. Remove the plate and store it
in a safe place. Also, record the number
and keep it in a safe and handy place, but
not in the vehicle.Your vehicle has two master keys and a
sub key. The master key will open all
locks on your vehicle.
The sub key will only function in the
ignition and the door locks.Leaving your sub key with a parking
attendant will ensure that your vehicle’s
trunk, trunk lid release, glove box
compartment and rear trunk access may
not be unlocked in your absence.
3-3
50063
MMSA3070
➡ ➡
WARNING - Ignition Key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition. Children copy
adults and they could place the
key in the ignition. The ignition
key would enable children to
operate power windows or
other controls, or even make
the vehicle move which could
result in serious bodily injury or
even death. Never leave the
keys in your vehicle with
unsupervised children.
CAUTION
Use only Kia original parts for the
ignition key in your vehicle. If an
aftermarket key is used, the
ignition switch may not return to
ON after START. If this happens,
the starter will continue to operate
causing damage to the starter
motor and possible fire due to
excessive current in the wiring.
MS-CNA-Eng 3.QXD 7/25/2005 5:17 PM Page 3

KEYLESS ENTRY SYSTEM
(IF EQUIPPED)You can also lock or unlock the door and
open the trunk from the outside with the
transmitter.
KNOWING YOUR VEHICLE
3-4
MMSA3067
• To lock the door, depress
this button. (Hazard
warning light is turned on
and turned off for about 1
second.)• If you depress the
corresponding button
once, only the driver’s
door will unlock. If you
depress the corresponding
button twice, all four doors
and rear hatch will unlock.
• To open the trunk, depress
this button.• If you depress the panic
button ( ) on the
transmitter, the horn will
sounds and hazard lamp
will flash.✻
NOTICE
• The transmitter will not work
under the following conditions :
- Ignition key is in the ignition
key hole.
- The battery of transmitter is
discharged.
• The operational distance(5m) is
exceeded.
• The transmitter may not operate
when the weather is very cold or
when there are other vehicles or
objects around the vehicle.
When the transmitter does not
work correctly, open and close
the door with the ignition key.
• If you have a problem with the
transmitter, contact an
Authorized Kia Dealer.
• Always use the transmitter to
lock/unlock the doors. When the
system is armed the alarm will
sound if you unlock the driver or
passengers door with the
ignition key. If at any time you
have the ignition key in the on
position for more than 30
seconds the system will
deactivate if previously armed.
MS-CNA-Eng 3.QXD 7/25/2005 5:17 PM Page 4

BATTERY REPLACEMENTThe transmitter uses a 3-Volt, lithium-
type battery. The battery will normally
last for several years. If it ever needs
replacement, use the following
procedure:
1. Using a screwdriver, loosen the
screw on the back of the transmitter
and pry the back off with a thin tool.
2. Remove the battery from the back.
3. Insert a new battery, making sure the
“Plus(+)” side faces up, and
reassemble the transmitter.
THEFT - ALARM SYSTEM
(IF EQUIPPED)ARMED STAGEThe system is armed as described
below.• After all vehicle doors such as the
engine hood, trunk and passenger
doors are closed, when the
transmitter “Lock” button is pressed,
the doors are locked and the vehicle’s
hazard warning light blinks once. (At
this time, the alarm does not sound.)
3-5
MMSA3068
HMR.082
CAUTION
Using an incorrect battery can
cause the transmitter to
malfunction. Make sure the
replacement battery has the same
specification as the battery it
replaces.
MS-CNA-Eng 3.QXD 7/25/2005 5:17 PM Page 5

This device complies with Industry
Canada Standard RSS-210.Operation
is subject to the following two
conditions:
1. This device may not cause
interference, and
2. This device must accept any
interference, including interference
that may cause undesired operation of
the device.
LIMP HOME (OVERRIDE)
PROCEDUREWhen you turn the ignition key to the
ON position, if the IMMO indicator
remains on continuously after blinking 6
times, your transponder equipped in the
ignition key is out of order. You cannot
start the engine without the lime home
procedure. To start the engine, you have
to input your password by using the
ignition switch.
The following procedure is how to input
your password of “2345” as an example.
1. Turn the ignition key to the ON
position. The IMMO indicator ( )
will blink 6 times and remain on
indicating the beginning of the limp
home procedure.
2. Turn the ignition key to the ACC
position.
3. To enter the first digit (in this example
“2”), turn the ignition key to the ON
and ACC position twice. Perform the
same procedure for the next digits
between 3 seconds and 10 seconds
(for example, for “3”, turn the ignition
ON and ACC 3 times).4. If all of the digits have been input
successfully, you have to start the
engine within 10 seconds. If you
attempt to start the engine after 10
seconds, the engine will not start and
you will have to input your password
again.
After performing the limp home
procedure, you have to see an authorized
Kia dealer immediately to inspect and
repair your ignition key or immobilizer
system.
KNOWING YOUR VEHICLE
3-8
CAUTION
If you cannot start your engine in
spite of limp home procedure, have
your vehicle towed by an
authorized Kia dealer for
inspection and necessary repairs.
WARNING
Changes or modifications not
expressly approved by the
party responsible for
compliance could void the
user's authority to operate the
equipment.
MS-CNA-Eng 3.QXD 7/25/2005 5:17 PM Page 8

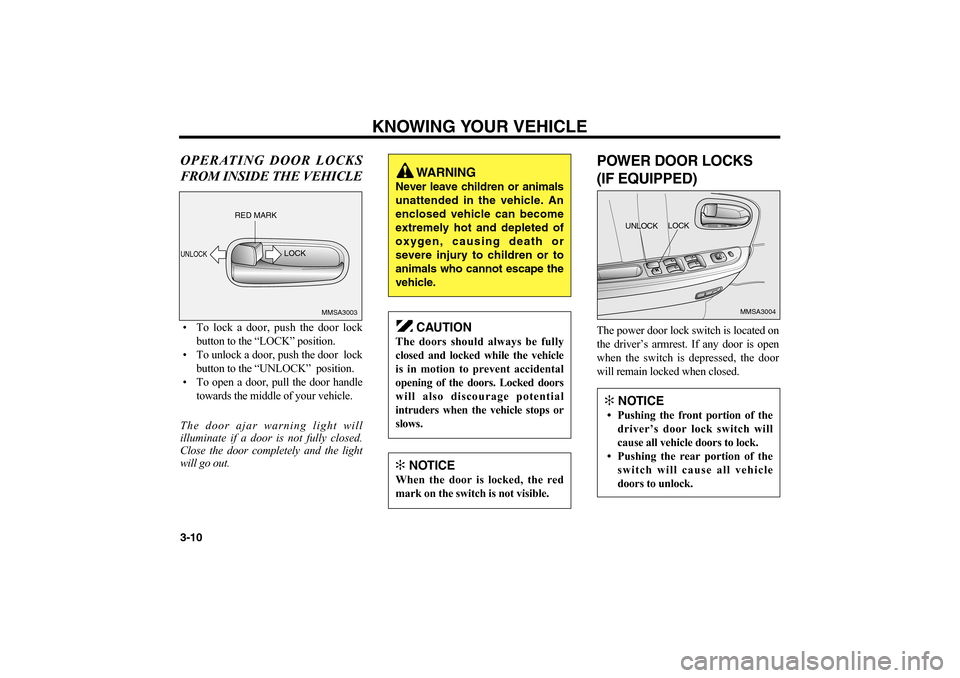

OPERATING DOOR LOCKS
FROM INSIDE THE VEHICLE• To lock a door, push the door lock
button to the “LOCK” position.
• To unlock a door, push the door lock
button to the “UNLOCK” position.
• To open a door, pull the door handle
towards the middle of your vehicle.
The door ajar warning light will
illuminate if a door is not fully closed.
Close the door completely and the light
will go out.
POWER DOOR LOCKS
(IF EQUIPPED)The power door lock switch is located on
the driver’s armrest. If any door is open
when the switch is depressed, the door
will remain locked when closed.
KNOWING YOUR VEHICLE
3-10
MMSA3004
UNLOCKLOCK
MMSA3003
UNLOCK
RED MARK
LOCK
WARNING
Never leave children or animals
unattended in the vehicle. An
enclosed vehicle can become
extremely hot and depleted of
oxygen, causing death or
severe injury to children or to
animals who cannot escape the
vehicle.
CAUTION
The doors should always be fully
closed and locked while the vehicle
is in motion to prevent accidental
opening of the doors. Locked doors
will also discourage potential
intruders when the vehicle stops or
slows.✻
NOTICE
When the door is locked, the red
mark on the switch is not visible.
✻
NOTICE• Pushing the front portion of the
driver’s door lock switch will
cause all vehicle doors to lock.
• Pushing the rear portion of the
switch will cause all vehicle
doors to unlock.
MS-CNA-Eng 3.QXD 7/25/2005 5:17 PM Page 10

3-11
REAR DOOR CHILD
SAFETY LOCKThe child safety lock is provided to help
prevent children from accidentally
opening the rear doors from inside the
vehicle.
• To lock a rear door so that it cannot
be opened from the inside, push the
child safety lock located on the rear
edge of the door to the “LOCKED”
position before closing the door.
• To open a rear door while the child
safety lock is engaged, push the door
lock button to the “UNLOCK”
position (red mark is visible) then
pull the outside door handle.
WINDOWSPOWER WINDOWS The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls the door’s window.
However, the driver has a power window
lock switch which can cancel the
operation of the three passenger window
switches.✻
NOTICE
To prevent the power window fuse
from malfunctioning and the power
window system from being
damaged, do not open or close
more than two windows at the
same time.
WARNING - Rear Door
Locks
If children accidentally open the
rear doors while the vehicle is
in motion, they could fall out
and be seriously or fatally
injured. To prevent children
from opening the rear doors
from the inside, the rear door
safety locks should be used
whenever children are in the
vehicle.
MMSA3005
LOCKFREE
MS-CNA-Eng 3.QXD 7/25/2005 5:17 PM Page 11

POWER WINDOW LOCK
SWITCH FEATUREThe driver can disable the power window
switches on all passenger doors by
depressing the power window lock switch
located on the driver’s door to ON. When
the power window lock switch is ON, the
driver’s master control can not operate the
passenger door power windows either.
PASSENGER DOOR POWER
WINDOW CONTROLSTo open a window, press the front portion
of the switch down. To close a window,
pull the front portion of the switch up.
3-13
MMSA3006
WARNING - Power
Windows
 Keep the power window lock
switch on the driver’s door in
the ON (depressed) position
except when someone is
operating a passenger door
window. Serious injury can
result from unintentional
window opera-tion, especially
to children.
 Always double check to make
sure all arms, hands, and other
obstructions are safely out of
the way before closing a
window.✻
NOTICE
If you experience buffeting and
pulsation (wind shock) with either
side window open, you should open
the opposite window slightly to
reduce the condition.
WARNING - Passengers
Do not allow children to play
with the power windows. They
may seriously injure
themselves or others.
MMSA3004
Power window lock switch
MS-CNA-Eng 3.QXD 7/25/2005 5:17 PM Page 13
