2006 KIA AMANTI driver seat adjustment

Knowing your vehicle18
3
1
2
3
4
5
6
7
8
910
Driver’s seat
➀
Seat adjustment, forward / back-
ward/height (see page 3- 20)
➁
Seatback recliner (see page 3- 22)
➂
Seat heater switch (see page 3- 22)
➃
Lumbar support (see page 3- 23)
➄
Driver position memory system
(see page 3- 24)


Headrest adjustment (headrest
can not be adjusted by a switch)(see page 3- 24)
Front passenger seat
\b
Seat adjustment, forward / back-
ward (see page 3- 25)
➆
Seatback recliner (see page 3- 26)
➇
Seat heater switch (see page 3- 27)


Headrest adjustment (headrest
can not be adjusted by a switch)(see page 3- 28)
Rear seat
\f
Seat heater switch (left) (see page 3- 31)
➉
Seat heater switch (right)(see page 3- 31)


Headrest adjustment (see page 3- 32)
SEAT
ESP
5GHN2025

319
1
2
3
4
5
6
7
8
910
Knowing your vehicle

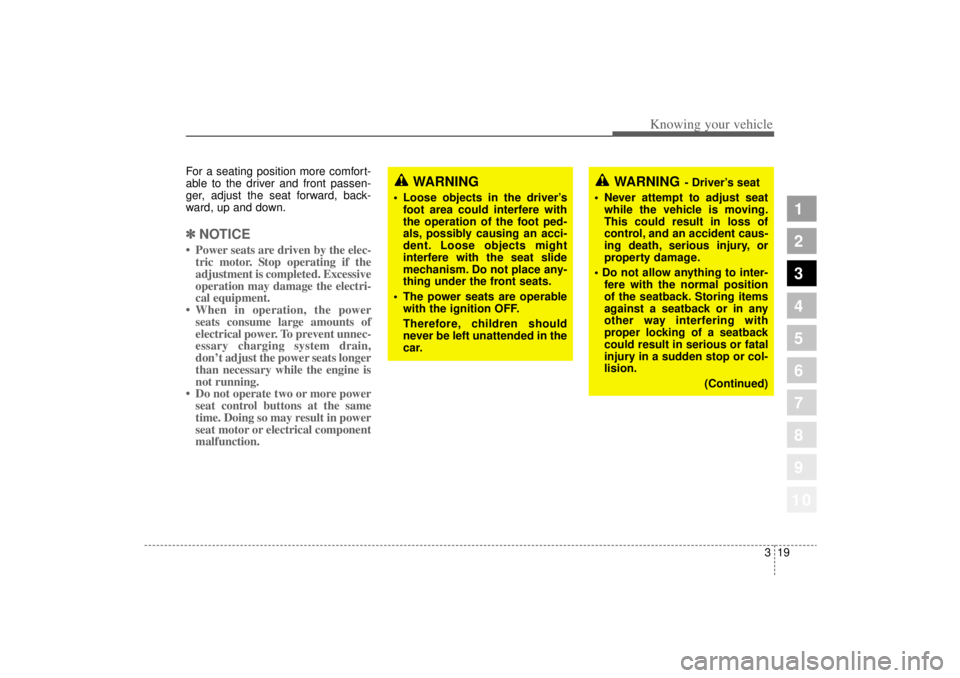

WARNING
- Driver’s seat
 Never attempt to adjust seat
while the vehicle is moving.
This could result in loss of
control, and an accident caus-
ing death, serious injury, or
property damage.
 Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in serious or fatal
injury in a sudden stop or col-
lision.
(Continued)
For a seating position more comfort-
able to the driver and front passen-
ger, adjust the seat forward, back-
ward, up and down.✽ ✽NOTICE• Power seats are driven by the elec-
tric motor. Stop operating if the
adjustment is completed. Excessive
operation may damage the electri-
cal equipment.
• When in operation, the power seats consume large amounts of
electrical power. To prevent unnec-
essary charging system drain,
don’t adjust the power seats longer
than necessary while the engine is
not running.
• Do not operate two or more power seat control buttons at the same
time. Doing so may result in power
seat motor or electrical component
malfunction.
WARNING
 Loose objects in the driver ’s
foot area could interfere with
the operation of the foot ped-
als, possibly causing an acci-
dent. Loose objects might
interfere with the seat slide
mechanism. Do not place any-
thing under the front seats.
 The power seats are operable
with the ignition OFF.
Therefore, children should
never be left unattended in the
car.

Knowing your vehicle20
3
1
2
3
4
5
6
7
8
910

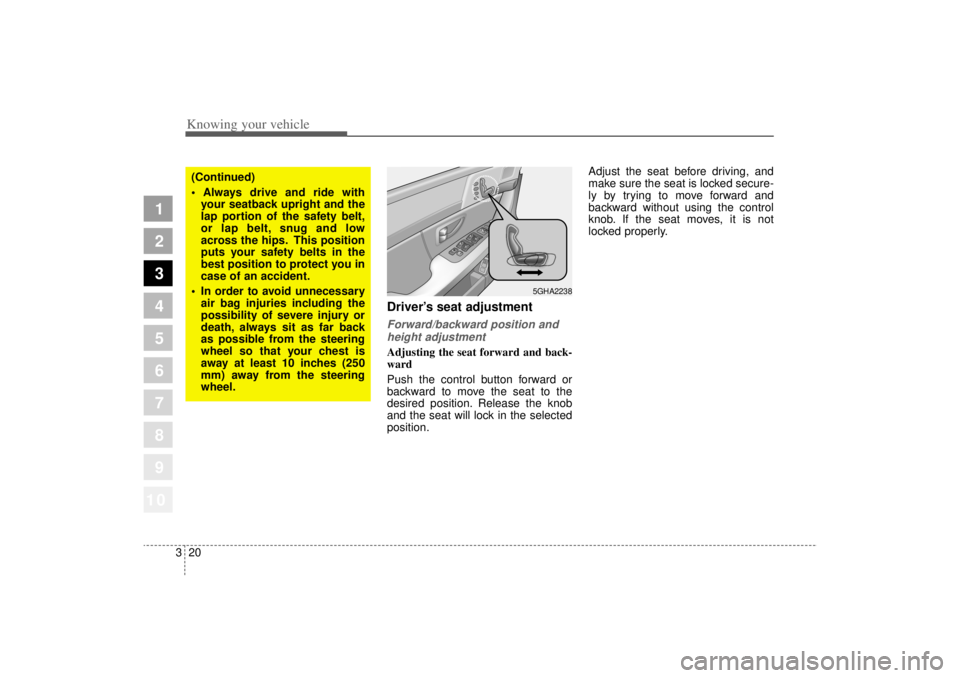

Driver’ s seat adjustmentForward/backward position and
height adjustmentAdjusting the seat forward and back-
ward
Push the control button forward or
backward to move the seat to the
desired position. Release the knob
and the seat will lock in the selected
position. Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and
backward without using the control
knob. If the seat moves, it is not
locked properly.
(Continued)
 Always drive and ride with
your seatback upright and the
lap portion of the safety belt,
or lap belt, snug and low
across the hips. This position
puts your safety belts in the
best position to protect you in
case of an accident.
 In order to avoid unnecessary
air bag injuries including the
possibility of severe injury or
death, always sit as far back
as possible from the steering
wheel so that your chest is
away at least 10 inches (250
mm) away from the steering
wheel.
5GHA2238

Knowing your vehicle24
3
1
2
3
4
5
6
7
8
910
Driver position memory system
(if equipped)A driver position memory system is
provided to store and recall the seat
and outside mirror positions with a
simple button operation. By saving
the desired positions into the system
memory, different drivers can reposi-
tion the seat and outside mirror
based upon their driving preference.
See page 3-34 for detail information.
Headrest adjustmentAdjusting forward and backward
The headrest may be adjusted for-
ward to three different positions by
pulling the headrest forward. To
adjust the headrest backward, pull it
fully forward to the farthest position
and release it. Adjust the headrest so
that it properly supports the head
and neck. Adjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the
desired position (
➀). To lower the
headrest, push and hold the release
button (
➁) on the headrest support
and lower the headrest to the desired
position (➂). For best protection,
adjust the headrest so its center is as
high as your ears. Also adjust the
headrest so its distance from the
head is as wide as your fist.
5GHA2243
1GHA2245
1GHA2246

325
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Removal
To remove the headrest, raise it as
far as it can go then press the
release lever (
➀) while pulling
upward (
➁).
Adjusting the front passenger
seatForward/backward position
adjustmentPush the control knob forward or
backward to move the seat to the
desired position. Release the knob
and the seat will lock in the selected
position.
Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and
backward without using the control
knob. If the seat moves, it is not
locked properly.
1GHA2247
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-
tioned.
Do not adjust the driver ’s head-
rest while driving.
5GHA2248

Knowing your vehicle28
3
1
2
3
4
5
6
7
8
910
Headrest adjustmentAdjusting forward and backward
The headrest may be adjusted for-
ward to three different positions by
pulling the headrest forward. To
adjust the headrest backward, pull it
fully forward to the farthest position
and release it. Adjust the headrest so
that it properly supports the head
and neck. Adjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the
desired position (
➀). To lower the
headrest, push and hold the release
button (
➁) on the headrest support
and lower the headrest to the desired
position (➂). For best protection,
adjust the headrest so its center is as
high as your ears. Also adjust the
headrest so its distance from the
head is as wide as your fist.
1GHA2245
WARNING
Passengers should use extreme
caution when using seat warm-
ers due to the possibility of
excess heating or burns. In par-
ticular, the following types of
passengers should exercise
extreme care:
1. Infants, children, elderly or handicapped persons, or hos-
pital outpatients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills,
cold tablets, etc.)
1GHA2246

335
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Recalling positions from memory1. Shift the transaxle lever into Pwhile the ignition switch is ON.
2. To recall the position in memory, press the desired memory button
(1 or 2) the system will beep once,
then seat and outside rearview
mirror will automatically adjust to
the stored positions.
Adjusting one of the control knobs for
the seat or outside rearview mirror
while the system is recalling the
stored positions will cause the move-
ment for that component to stop and
move in the direction that the control
knob is moved. Other components
will continue position recalling.
To stop the position recall at any
point in the recall process, press the
STOP button once. Seat and outside
rearview mirror position recalling will
stop.
Storing and recalling with
transmitterStoring with the transmitterTurn the ignition switch to LOCK from
ON and lock all the doors using the
transmitter. The seat and outside
rearview mirror positions will be
stored in the system memory.
Driver’ s position recalling with
transmitterUnlock the door with the transmitter,
positions stored in the system mem-
ory will be recalled automatically.
If using two transmitters, recalling
times may vary because stored posi-
tions in each transmitter may be dif-
ferent.
Example) If doors are locked with
transmitter A and unlocked with
transmitter B, the positions memo-
rized when unlocked with transmitter
B will be recalled and may take
slightly longer than if unlocked with
transmitter A.
CAUTION
Use caution when recalling adjustment memory while sit-ting in the vehicle. Press theSTOP button immediately if theseat moves too far in any direc-tion.

10 5
Index
Hazard Warning Flasher . . . . . . . . . . . . . . . . . . . 4-53,6-2
Hazardous Driving conditions . . . . . . . . . . . . . . . . . . . 5-7
HeadlightHigh Beam Indicator . . . . . . . . . . . . . . . . . . . . . . . 4-40
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Headrest adjustment Driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . 3-28
Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32
HLA (Hydraulic Lash Adjustment) Noise . . . . . . . . . 5-12
Homelink® Wireless Control System . . . . . . . . . . . . 5-23
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 3-88
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 4-20
How To Use This Manual . . . . . . . . . . . . . . . . . . . . . . 1-2
If You Have a Flat Tire . . . . . . . . . . . . . . . . . . . . . . 6-20
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 And Anti-Theft Steering Column Lock . . . . . . . . . . 4-2
Illumination, Instrument Panel . . . . . . . . . . . . . . . . . 4-35
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Indicators, Warnings and . . . . . . . . . . . . . . . . . . . . . . 4-36
Infants and Small Children, Restraint of . . . . . . . . . . 3-48
Inflation Pressures (Tire) . . . . . . . . . . . . . . . . . . . . . . 7-37
Inspections, Necessary . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Installation of a mobile two-way radio system . . . . . . 9-4 Instrument
Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32, 4-33
Panel Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
Panel Illumination . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Panel Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
7-57
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-102
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . 7-57
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-97
Trim, Cleaning the Upholstery and . . . . . . . . . . . . 7-57
Window Glass, Cleaning the . . . . . . . . . . . . . . . . . 7-57
Intermittent Wipers, Variable . . . . . . . . . . . . . . . . . . . 4-50
Jacking Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Keyless Entry, remote . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Key Reminder Warning Chime . . . . . . . . . . . . . . . . . 4-43
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 3-2
Knowing Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 3-1
1
2
3
4
5
6
7
8
910
HI
JK
