Maintenance46
7
1
2
3
4
5
6
7
8
910
7. Install a new headlight bulb and
snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
8. Connect the headlight bulb socket- connector.
9. Install the headlight bulb cover by turning it clockwise.
Headlight (HID type), position
and front fog light, turn signal
light and side mark light bulb
replacementIf the light bulb is not operating, have
the vehicle checked by an authorized
Kia Dealer.
* HID : High Intensity Discharge
WARNING
- HID Headlight
low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an
Authorized Kia Dealer.
85
1
2
3
4
5
6
7
8
910

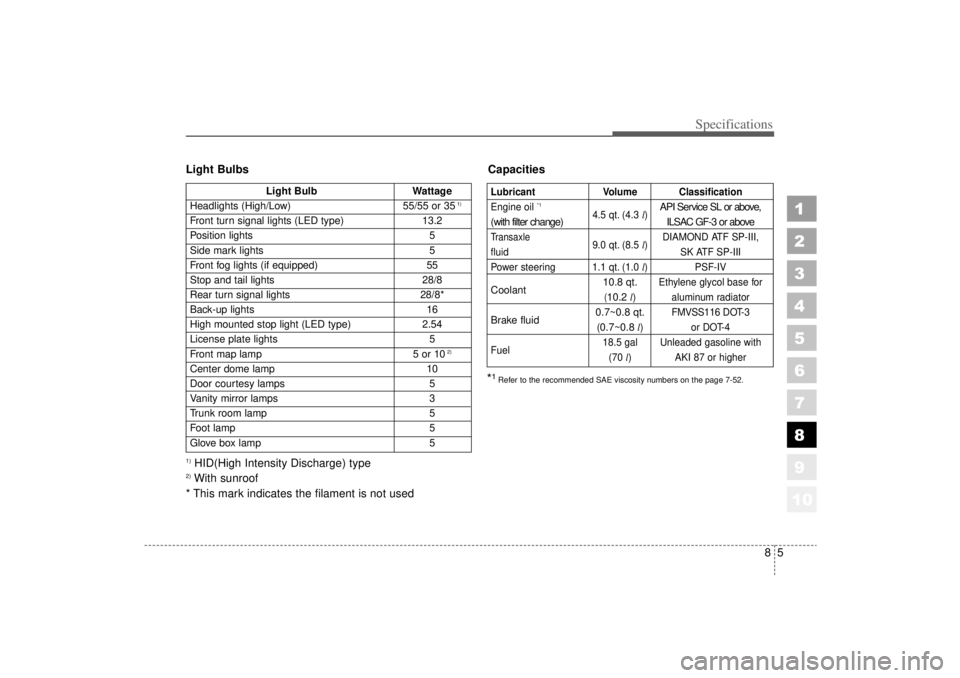

Specifications
Light Bulbs1)HID(High Intensity Discharge) type2)With sunroof
* This mark indicates the filament is not used Capacities
Light Bulb
Wattage
Headlights (High/Low) 55/55 or 35
1)
Front turn signal lights (LED type) 13.2
Position lights 5
Side mark lights 5
Front fog lights (if equipped) 55
Stop and tail lights 28/8
Rear turn signal lights 28/8*
Back-up lights 16
High mounted stop light (LED type) 2.54
License plate lights 5
Front map lamp 5 or 10
2)
Center dome lamp 10
Door courtesy lamps 5
Vanity mirror lamps 3
Trunk room lamp 5
Foot lamp 5
Glove box lamp 5
LubricantVolume Classification
Engine oil
*1
4.5 qt. (4.3 l)
API Service SL or above,
(with filter change) ILSAC GF-3 or above
Transaxle
9.0 qt. (8.5 l)DIAMOND ATF SP-III,
fluid SK ATF SP-III
Power steering 1.1 qt. (1.0 l) PSF-IV
Coolant 10.8 qt.
Ethylene glycol base for
(10.2
l) aluminum radiator
Brake fluid0.7~0.8 qt.
FMVSS116 DOT-3
(
0.7~0.8
l) or DOT-4
Fuel 18.5 gal Unleaded gasoline with
(70 l) AKI 87 or higher
*¹Refer to the recommended SAE viscosity numbers on the page 7-52.
