1CONTROLS AND EQUIPMENT
36
!WARNING:
o When the SRS is activated, there may be a loud noise and fine dust will be released throughout the vehicle. These conditions are nor-mal and are not hazardous. How- ever, the fine dust generated dur- ing airbag deployment may causeskin irritation. Be sure to wash your hands and face thoroughly with lukewarm water and a mildsoap after an accident in which the airbags were deployed.
o The SRS can function only when the ignition key is in the "ON" position. If the SRS SRI does notcome on, or continuously remains on, after flashing for about 6 sec- onds when the ignition key isturned to the "ON" position, or after the engine is started, or comes on whilst driving, the SRS is notworking properly. If this occurs, have your vehicle immediately in- spected by your Hyundaiauthorised repairer.!
Passenger's Airbag
B240B05L
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these ar- eas, wash them with water immedi- ately. o Before you replace a fuse or dis-
connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignition key. Never remove or replace theair bag related fuse(s) when the ignition key is in the "ON" posi- tion. Failure to heed this warningwill cause the SRS SRI to illumi- nate.

1CONTROLS AND EQUIPMENT
54
B340C02FC-EAT Lighting Switch The vehicle sidelights and headlights are operated by rotating the end of the turn signal switch barrel. To operate the parking lights, rotating the switch to thefirst detent with ignition switch at the"OFF" position will cause the lights toilluminate. To operate the headlights,the turn signal switch barrel should be rotated to the second detent. The head- lights will only operate when the ignitionswitch is at the "ON" position. If theignition switch is turned to the "OFF" position, only the parking lights will function. NOTE: The ignition must be in the "ON" position to turn on the headlights.MULTI-FUNCTION SWITCH
SB220A1-E Turn Signal Operation To signal an intention to turn right, the switch lever should be pressed down.To signal an intention to turn left, the switch lever should be pushed upwards. In both instances, the turn signal lightson one side of the car will flash and the warning light located in the instrument cluster will flash in sympathy. Uponcompletion of the manoeuvre, the lever will, under normal circumstances, re-
turn to the "OFF" position. However, ifthe manoeuvre involved only a small movement of the steering wheel, the signal may need to be cancelled manu-ally. If either turn signal indicator flashes more rapidly than normal or refuses to flash at all, a malfunction of the turnsignal system may exist. SB220B1-E Lane Change Signal To indicate an intention to change lanes, moving the lever slightly towards the direction of the relevant turn signal will cause the turn signal lights to flash.When the lever is released, it will return to the "OFF" position.
B340B01FC-DB340C01FC-D

1CONTROLS AND EQUIPMENT
66
CAUTION:
Do not leave the switch in this posi- tion for an extended period time when the vehicle is not running.
o OFF In the "OFF" position, the light stays off at all times even though a door is open.
!
!
SPECTACLE CASE
B491A02FC-EAT (Not all models)
The spectacle case is located on the front overhead console. Push the end of the cover to open the spectacle case.
HXDOM241
WARNING:
Do not open the spectacle case whilst the vehicle is moving. The rear viewmirror of the vehicle can be blocked by an open spectacle case.
MULTI BOX
B500B02E-GAT
The multi box may be opened by pulling it out by its grip. It is used for storing small commodi-ties. If the multi box is removed, the fuse box for the lights and other electrical acces-sories will be exposed.
HFC2058-D

3 IN CASE OF EMERGENCY
2IF THE ENGINE WILL NOT START
SD020B1-E If the Engine Cannot be Cranked
1. If the vehicle is fitted with manualtransaxle, ensure that the clutch pedal is depressed whilst cranking the engine. If the vehicle is fitted with automatic transaxle, ensure that the transaxle
selector is at the "P" or "N" position.
2. Check the battery terminals and con-
nections to ensure that these areclean and also tight.
3. If the ignition warning lights dim when
the engine is cranked and the batteryterminals have been checked, a dis- charged battery is indicated.
4. Do not attempt to push or tow start
the vehicle, refer to "Jump Starting"for information regarding engine start- ing when the battery is discharged. D010C02A-EAT If Engine Turns Over Normally but Does Not Start
D010B01FC 1. Check fuel level.
2. With the key in the "OFF" position,check all connectors at ignition coilsand spark plugs(For Petrol Engine)or check all connectors at glow plug and glow plug relay(For Diesel En- gine). Reconnect any that may bedisconnected or loose.
3. Check fuel line in the engine com-
partment.
4. If engine still refuses to start, call a Hyundai authorised repairer or seekother qualified assistance. SSA3020C
!
SD020A1-E Seek assistance from the nearest Hyundai authorised repairer with regardto the method of ignition and fuel sys- tem diagnosis.
CAUTION:
If the engine refuses to start, noattempt should be made to push or tow start the vehicle. Vehicles withautomatic transaxle or fuel injection will not be able to be started in this manner since no drive is transmittedthrough the automatic transaxle whilst the engine is not running, and in the case of fuel injected deriva-tives, the fuel pump will not operate under tow start conditions. In addi- tion, if the vehicle is equipped withan exhaust catalyst, damage to the catalyst may result if the vehicle is tow started.

Engine Compartment .................................................... 6-2
Daily Operating Checks ............................................... 6-5
Engine Oil ..................................................................... 6-5
Engine Oil and Filter Replacement .............................. 6-9 Engine Coolant Checking and Replacing................... 6-12
Spark Plugs ................................ ................................. 6-14
Air Cleaner Element Replacement .............................. 6-16
Checking the Transaxle Oil (Manual) ......................... 6-19
Checking the Transaxle Fluid (Automatic) .................6-20
Brake System Checking ............................................. 6-22
Checking the Clutch Fluid ........................................... 6-24
Air Conditioning System Maintenance ........................ 6-25
Changing the Pollen Filter (In Front of Blower Unit) ... 6-26
Checking Drive Belts .................................................. 6-28
Checking and Replacing Fuses ..................................6-29
Battery Mai ntenance ................................................... 6-30
Eclectric Cooling Fans ................................................ 6-31
Power Steering Fluid Level ......................................... 6-32
Headlight Aiming Adjustment ...................................... 6-34
Replacing Light Bulbs ................................................. 6-36
Bulb Wattage ............................................................... 6-38
Fuse Panel D escription ............................................... 6-39
OWNER MAINTENANCE
6
6

6
OWNER MAINTENANCE
29
!

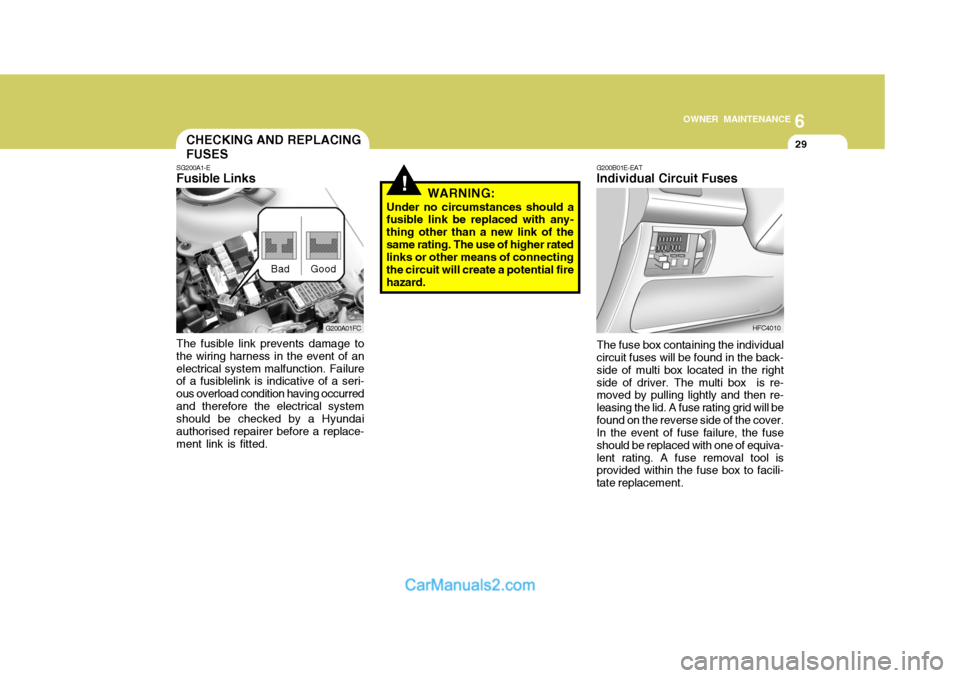

CHECKING AND REPLACING FUSES
SG200A1-E
Fusible Links
The fusible link prevents damage to the wiring harness in the event of anelectrical system malfunction. Failure of a fusiblelink is indicative of a seri- ous overload condition having occurredand therefore the electrical system should be checked by a Hyundai authorised repairer before a replace-ment link is fitted. G200B01E-EAT Individual Circuit Fuses The fuse box containing the individual circuit fuses will be found in the back- side of multi box located in the rightside of driver. The multi box is re- moved by pulling lightly and then re- leasing the lid. A fuse rating grid will befound on the reverse side of the cover. In the event of fuse failure, the fuse should be replaced with one of equiva-lent rating. A fuse removal tool is provided within the fuse box to facili- tate replacement.
WARNING:
Under no circumstances should a
fusible link be replaced with any-thing other than a new link of thesame rating. The use of higher rated links or other means of connecting the circuit will create a potential firehazard.
Good
Bad
G200A01FC
HFC4010

6 OWNER MAINTENANCE
30
!
BATTERY MAINTENANCE
SG210A1-E
WARNING:
Motor vehicle batteries contain
sulphuric acid which is corrosive and poisonous. Hydrogen gas is emitted from the battery which isexplosive when combined with oxy- gen. The following precautions must be strictly observed to avoid per-sonal injury or damage to the ve- hicle. D010B01FC
In the event of a replacement fusefailing shortly after installation a mal- function within the circuit protected by that fuse is indicated. The circuit should be checked by a Hyundai authorisedrepairer at the first available opportunity.
G200B01FCG200B03Y
Good
Burned out
!WARNING:
The use of replacement fuses hav- ing a higher rating than specified or other means of connecting the cir-cuit will create a potential fire hazard. NOTE: See page 6-39 for the fuse pannel
descriptions.

6
OWNER MAINTENANCE
39FUSE PANEL DESCRIPTION
G200C03FC-EAT
Engine Compartment (Petrol Engine)
G200C03FC
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
PROTECTED COMPONENTS Generator (A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse Generator, Engine control relay, ECM Radiator fan relay Start relay, Ignition switch Blower relay Power window relay Condenser fan relay #1 ABS control module, ABS bleeding connector, ESP ABS control module, ABS bleeding connector, ESP Fuel pump relay Injector, lgnition coil MAP sensor, Oxygen sensor, CP sensor, Knock sensor, Throttle position sensor Audio, Room lamp, Overhead console lamp, lnstrument cluster DRL control module Horn relay A/C relay Front fog lamp relay ECM, TCM Tail lamp relay Left rear combi lamp, Left position lamp, Left License lamp Right rear combi lamp, Right position lamp, Right License lamp Left head lamp Right head lamp, (H/LP IND) Fuse
FUSE RATING
120A40A30A 20A 40A 40A 30A 20A 40A 40A 10A 15A 10A 10A 15A 10A 10A 15A 10A 20A 10A 10A 15A 15A
DESCRIPTION
ALT
B+
ECURAD IGN
BLR
P/WINCOND ABSABS
F/PUMP
INJ
SNSR
ROOM LP DRL
HORN
A/CON
FR FOG ECU
LP
TAIL LH
TAIL RH H/LP LH
H/LP RH
