Remote Keyless Entry System
Operation
You can lock and unlock the vehicle’s doors and disarm
or arm the theft-deterrent system from about 3 feet
(1 m) up to 30 feet (9 m) away using the remote keyless
entry transmitter. SeeContent Theft-Deterrent on
page 2-12for additional information.
UNLOCK:Press this
button to unlock the driver’s
door and turn on the
interior lamps. The parking
lamps may also ash,
and the horn may chirp,
when this button is pressed.
Press the unlock button again within three seconds and
all of the doors will unlock.LOCK:Press this button to lock all the doors. The
parking lamps may also ash and the horn may chirp
when this button is pressed.
If a door is open or ajar when the lock button is pressed,
the doors will lock, but the theft-deterrent system will
not arm until the open door is closed.
You can program different feedback modes through the
Driver Information Center (DIC). To program the
feedback modes, see “Remote Keyless Entry Feedback”
underDIC Controls and Displays on page 3-41.
L(Panic):Press this button to make the horn sound
and the headlamps and taillamps ash for up to
30 seconds. To turn them off, do one of these
three things: wait for 30 seconds; press the panic
button again; or start the vehicle.
2-5

Visor Vanity Mirror
Your vehicle has a vanity mirror located on the
passenger’s visor.
Illuminated Visor Vanity Mirror
Your vehicle may have an illuminated vanity mirror on
both visors. Lift the cover on the mirror and the lights will
automatically come on.

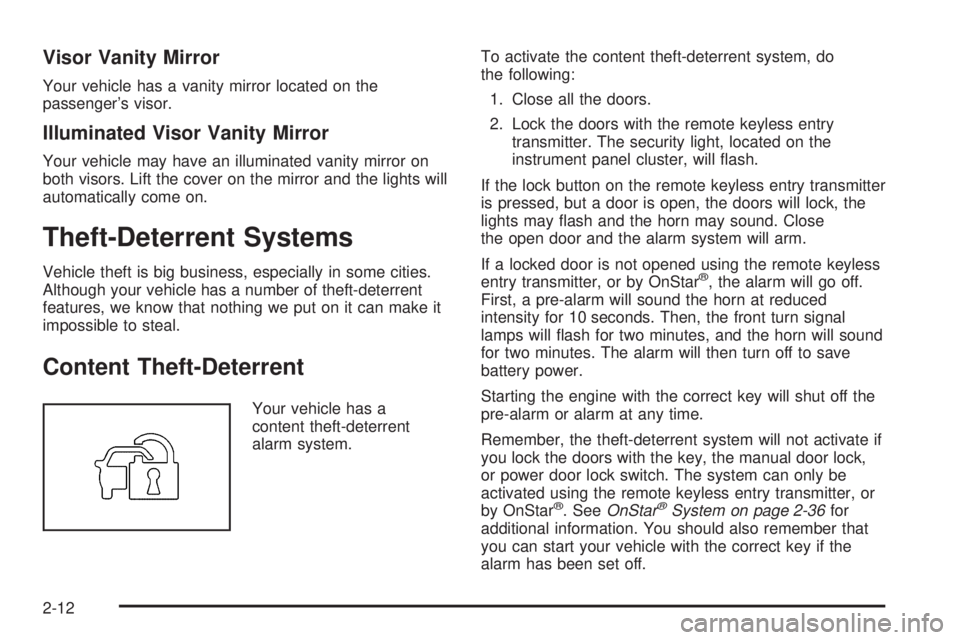

Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Content Theft-Deterrent
Your vehicle has a
content theft-deterrent
alarm system.To activate the content theft-deterrent system, do
the following:
1. Close all the doors.
2. Lock the doors with the remote keyless entry
transmitter. The security light, located on the
instrument panel cluster, will ash.
If the lock button on the remote keyless entry transmitter
is pressed, but a door is open, the doors will lock, the
lights may ash and the horn may sound. Close
the open door and the alarm system will arm.
If a locked door is not opened using the remote keyless
entry transmitter, or by OnStar
®, the alarm will go off.
First, a pre-alarm will sound the horn at reduced
intensity for 10 seconds. Then, the front turn signal
lamps will ash for two minutes, and the horn will sound
for two minutes. The alarm will then turn off to save
battery power.
Starting the engine with the correct key will shut off the
pre-alarm or alarm at any time.
Remember, the theft-deterrent system will not activate if
you lock the doors with the key, the manual door lock,
or power door lock switch. The system can only be
activated using the remote keyless entry transmitter, or
by OnStar
®. SeeOnStar®System on page 2-36for
additional information. You should also remember that
you can start your vehicle with the correct key if the
alarm has been set off.
2-12

Here is how to avoid setting off the alarm by accident:
If you do not want to arm the theft-deterrent
system, the vehicle should be locked with the
manual door lock lever, the power door lock switch,
or the key, after the doors are closed.
If the content theft-deterrent system is armed,
unlock the doors by pressing the unlock button
on the remote keyless entry transmitter or by
OnStar
®. Unlocking a door any other way will
activate the alarm.
If you set off the alarm by accident, you can turn it off
by pressing unlock on the remote keyless entry
transmitter, starting the vehicle with the correct key, or
by having OnStar
®unlock the doors. The alarm will
not stop if you try to unlock a door any other way.
Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, activate the system
by locking the doors with the remote keyless
entry transmitter.
2. Unlock the door with the manual door lock and
open the door. This should set off the pre-alarm.
Wait 10 seconds for the full alarm to activate.
3. To turn the alarm off, press the unlock button
on the remote keyless entry transmitter or start
the engine.
If the alarm does not sound when it should but the lights
ash, check to see if the horn works. The horn fuse
may be blown. To replace the fuse, seeFuses
and Circuit Breakers on page 5-96.
If the alarm does not sound or the front turn signal
lamps do not ash, see your dealer for service.
2-13

3. Simultaneously press and hold both the desired
Universal Home Remote button and the hand-held
transmitter button. Do not release the buttons
until Step 4 has been completed.
Some entry gates and garage door openers may
require you to substitute Step 3 with the procedure
noted in “Gate Operator and Canadian
Programming” later in this section.
4. The indicator light will ash slowly at rst and then
rapidly after Universal Home Remote successfully
receives the frequency signal from the hand-held
transmitter. Release both buttons.
5. Press and hold the newly-trained Universal Home
Remote button and observe the indicator light.
If the indicator light stays on constantly,
programming is complete and your device should
activate when the Universal Home Remote button is
pressed and released.
To program the remaining two Universal Home
Remote buttons, begin with Step 2 under
“Programming Universal Home Remote.” Do not
repeat Step 1 as this will erase all of the
programmed channels.
If the indicator light blinks rapidly for two seconds
and then turns to a constant light, continue with
Steps 6 through 8 following to complete the
programming of a rolling-code equipped device,
most commonly, a garage door opener.6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be found where
the hanging antenna wire is attached to the
motor-head unit.
7. Firmly press and release the “Learn” or “Smart”
button. The name and color of the button may
vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold the
programmed Universal Home Remote button for
two seconds, then release. Repeat the
press/hold/release sequence a second time, and
depending on the brand of the garage door opener,
or other rolling code device, repeat this sequence
a third time to complete the programming.
The Universal Home Remote should now activate
your rolling-code equipped device.
To program the remaining two Universal Home Remote
buttons, begin with Step 2 of “Programming Universal
Home Remote.” You do not want to repeat Step 1,
as this will erase all previous programming from
the Universal Home Remote buttons.
2-40

A. Windshield Washer Fluid. See “Adding Washer
Fluid” underWindshield Washer Fluid on page 5-35.
B. Engine Coolant Recovery Tank. SeeEngine
Coolant on page 5-24.
C. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-18.
D. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-34.
E. Automatic Transmission Fluid Dipstick (If Equipped).
See “Checking the Fluid Level” underAutomatic
Transmission Fluid on page 5-19.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-13.
G. Radiator Pressure Cap. SeeCooling System on
page 5-29.
H. Remote Negative (−) Terminal (GND). SeeJump
Starting on page 5-40.
I. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-13.
J. Remote Positive (+) Terminal. SeeJump Starting
on page 5-40.
K. Brake Fluid Reservoir. See “Brake Fluid” under
Brakes on page 5-36.
L. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 5-97.
M. Battery. SeeBattery on page 5-39.
N. Hydraulic Clutch Fluid Reservoir (If Equipped).
SeeHydraulic Clutch on page 5-23.Engine Oil
Checking Engine Oil
It is a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 5-12for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull out the dipstick and clean it with a paper towel
or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
5-13

4. Open the hoods and locate the positive (+) and
negative (−) terminal locations on the other
vehicle. Your vehicle has a remote positive (+)
and a remote negative (−) jump starting terminal.
SeeEngine Compartment Overview on page 5-12
for more information on the terminal locations.
{CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing
this, and some have been blinded. Use a
ashlight if you need more light.
Be sure the batteries have enough water.
You do not need to add water to the ACDelco
®
battery (or batteries) installed in your new
vehicle. But if a battery has ller caps, be sure
the right amount of uid is there. If it is low,
add water to take care of that rst. If you do
not, explosive gas could be present.
Battery uid contains acid that can burn you.
Do not get it on you. If you accidentally get it
in your eyes or on your skin, ush the place
with water and get medical help immediately.
{CAUTION:
Fans or other moving engine parts can injure
you badly. Keep your hands away from moving
parts once the engine is running.
5. Check that the jumper cables do not have loose or
missing insulation. If they do, you could get a
shock. The vehicles could be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+) will go to
positive (+) or to a remote positive (+) terminal if
the vehicle has one. Negative (−) will go to a heavy,
unpainted metal engine part or to a remote
negative (−) terminal if the vehicle has one.
Do not connect positive (+) to negative (−)oryou
will get a short that would damage the battery
and maybe other parts too. And do not connect the
negative (−) cable to the negative (−) terminal on
the dead battery because this can cause sparks.
5-41
