2006 HONDA INSIGHT engine coolant

Ì
ÌÌ
129
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 15
2430
4845
7260
9675
120 90
144 135
216150
240
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 7,500 miles (12,000 km) or every 1 year, whichever comes first Every 7,500 miles (12,000 km)
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy
Every 3 years (independent of mileage)
Every 120,000 miles (192,000 km) or every 6 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
See information on maintenance and emissions warranty, last column, page . 105
168
120
192
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 159 )
Replace engine oil filter
Check front and rear brake wear
Check parking brake adjustment
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace manual transmission fluid
Replace automatic transmission (CVT) fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
: 128
Maintenance Schedule for Normal Conditions

Ì
Î
ÌÌ
Î
130
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 15
2430
4845
72 75
120 135
216
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first Every 7,500 miles (12,000 km)
Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions) Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisyEvery 60,000 miles (96,000 km) or every 3 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)60
96
90
144 120
192
See information on maintenance and emissions warranty, last column, page .
See dust and pollen filter on page for replacement information under special driving conditions. 105
168
150
240
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Rotate tires (follow pattern on page 159 )
Check front and rear brake wear
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks, and latches
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace manual transmission fluid
Replace automatic transmission (CVT) fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
:
: 128
152
Maintenance Schedule for Severe Conditions

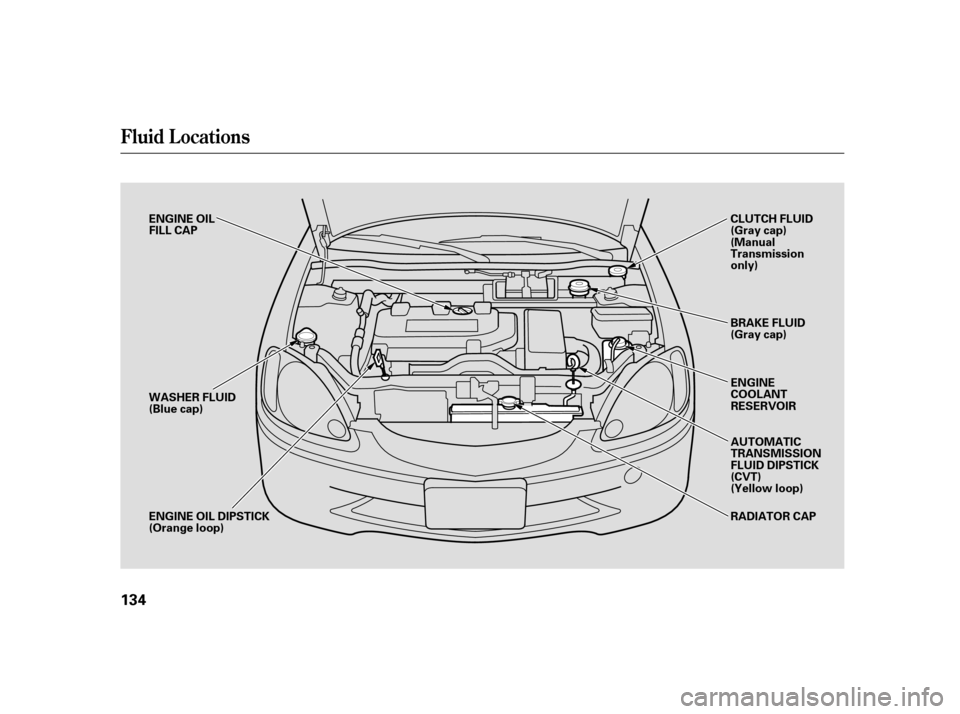

Fluid Locations
134
ENGINE OIL
FILL CAP
WASHER FLUID
(Blue cap)
ENGINE OIL DIPSTICK
(Orange loop)BRAKE FLUID
(Gray cap)
ENGINE
COOLANT
RESERVOIR
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(CVT)
(Yellow loop)
RADIATOR CAP CLUTCH FLUID
(Gray cap)
(Manual
Transmission
only)

If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to between the
MIN and MAX lines. Inspect the
cooling system f or leaks. Always use Honda Long-Lif e
Antif reeze/Coolant Type 2. This
coolant is pre-mixed with 50 %
antif reeze and 50 % water. Never add
straight antif reeze or plain water.
If Honda antif reeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended f or aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible.
CONT INUED
Engine Coolant
A dding Engine Coolant
Maint enance
139
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.

When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.Put the radiator cap back on, and
tighten it fully.
Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
Pourthecoolantslowlyandcarefully
so you do not spill any. Clean up any
spilled coolant immediately; it could
damage components in the engine
compartment.
2. 3.4.
5.
1.
Engine Coolant
140
RADIATOR CAP RESERVE TANK

Open the hood.
To change the headlight bulb on
the driver’s side, remove the
engine coolant reservoir tank by
pulling it out of its holder.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area, readjustment may be
required. Adjustments should be
perf ormed by your dealer or other
qualif ied mechanic.
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its steel base and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
1.
Lights
Replacing a Headlight Bulb
Headlight A iming
146
HOLDER
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.

CONT INUED
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Install the new bulb into the
socket.
Unclip the end of the hold-down
wire f rom its slot. Pivot it out of
the way, and remove the bulb.
Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Make sure it is right side up; it is
marked ‘‘TOP’’.
Push the electrical connector onto
the tabs of the new bulb. Make
sure it locks in place.
Turn on the headlights to test the
new bulb.
(Driver’s side)
Reinstall the engine coolant
reserve tank.
Remove the electrical connector
f rom the bulb by squeezing the
connector on both sides to unlock
the tab. Pull the connector straight
off.
Remove the rubber weather seal
by pulling on the tab. 4.
5.
6.
7.
8.
1.
2.
3.
2.
3.
Lights
Replacing a Front Parking Light
Bulb
Maint enance
147
BULB
CONNECTOR WEATHER SEAL
HOLD-DOWN WIRE

CONT INUED
The reading on your vehicle’s
temperature gauge should stay in
the midrange. If it climbs to the red
mark, you should determine the
reason (hot day, driving up a steep
hill, etc.).
If your vehicle overheats, you should
take immediate action. The only
indicationmaybethetemperature
gauge reading reaching the red
mark. Or you may see steam or
spray coming f rom under the hood.If you see steam and/or spray
coming f rom under the hood, turn
of f the engine. Wait until you see
no more signs of steam or spray,
then open the hood.If you do not see steam or spray,
leave the engine running, and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge reading comes down to the
midpoint, then continue driving.
Saf ely pull to the side of the road.
Put the transmission in neutral or
Park, and set the parking brake.
Turn of f all the accessories, and
turn on the hazard warning lights. If the temperature gauge stays at
the red mark, turn of f the engine.
Look f or any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you f ind a leak, it
must be repaired bef ore you
continue driving (see
on page ).
1.
2. 3.
4.
5.
183
If theEngineOverheats
Emergency
Towing
T aking Care of t he Unexpect ed
177
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature gauge
reading at the red mark can cause
serious damage to your engine.
