2006 HONDA ELEMENT set clock

´
Õ Ü
If it takes several pushes on the
button to lock or unlock the doors
and the hatch, replace the battery as
soon as possible.
Battery type: CR2025 To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up, and reinstall the cushion ring.
Align the mark on the cover
with the mark on the
transmitter. Set the cover in place
andturnitclockwise.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Remote Transmitter
Replacing the Transmitter
Battery
68
ROUND
COVER
CUSHION
RING
BATTERY

The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. (If you have an optional
audio system, ref er to the operating
instructions that came with it.) The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it................
Vents, Heating, and A/C .90
.......................
Air Flow Controls .91
...................................
Ventilation .92
........................
Using the Heater .92
.............................
Using the A/C .92
.............
Dehumidif y the Interior .93
................
To Def og and Def rost .93
To Remove Exterior Frost
......
or Ice From the Windows .93
............
Playing the AM/FM Radio .94
..............
AM/FM Radio Reception .98
Playing the XM
...........................
Satellite Radio .100
................................
Playing a Disc .106
..................
Protecting Your Discs .113
.......
Disc Player Error Messages .114
...
Disc Changer Error Messages .115
.................
Radio Thef t Protection .116
..........................
Setting the Clock .117
................
Remote Audio Controls .119
...............................
Cruise Control .120
Features
Features
89

If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.You can use the R button to quickly
set the time to the nearest hour.
Press the R button while pressing
the CLOCK button. If the displayed
time is before the half hour, pressing
Rsetstheclockbacktotheprevious
hour. If the displayed time is af ter
the half hour, pressing R sets the
clock f orward to the beginning of the
next hour.
For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
To set the hour, press the H button
while pressing the CLOCK (SCAN/
RPT) button until the hour advances
to the desired time. Change the
minute by pressing the M button
while pressing the CLOCK (SCAN/
RPT) button until the minute
advances to the desired time.
Press and hold the CLOCK button
until the numbers f lash and you hear
abeep.Changethehourbypressing
the H button until the numbers
advance to the desired time. Change
the minute by pressing the M button
until the numbers advance to the
desired time.
CONT INUED
On U.S. EX models
U.S. LX and Canadian Base models

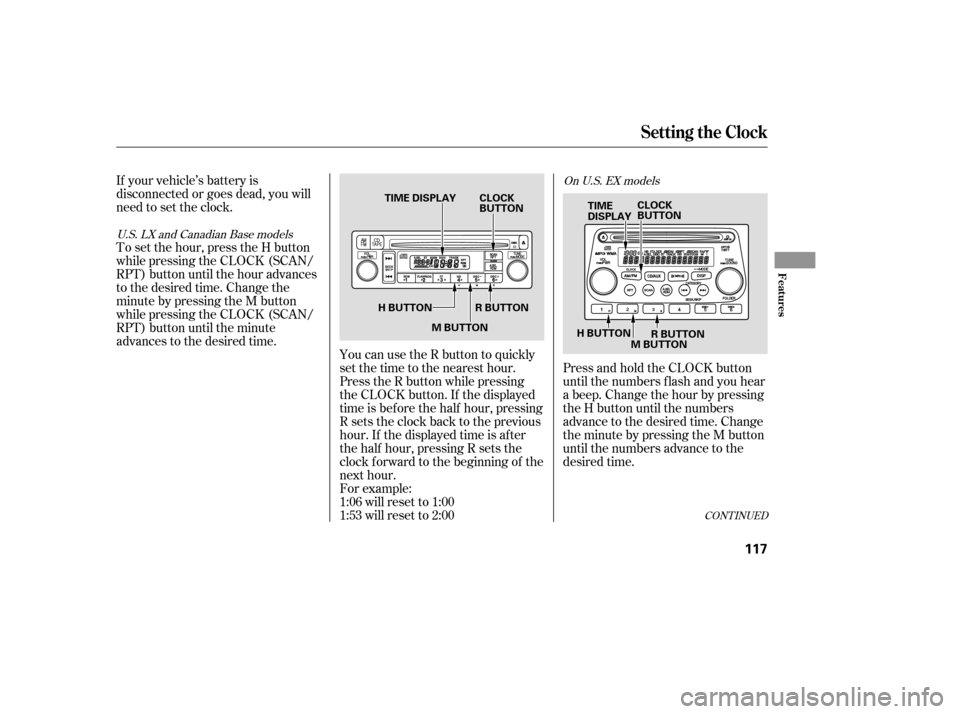

Setting the Clock
Features
117
CLOCK
BUTTON
H BUTTON R BUTTON TIME DISPLAY
M BUTTON CLOCK
BUTTON
H BUTTON R BUTTON
M BUTTON
TIME
DISPLAY

You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, press the R
(RESET) button to set the clock
back to the previous hour. If the
displayed time is af ter the half hour,
pressing R sets the clock f orward to
the beginning of the next hour.For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
When you are f inished, press the
CLOCK button again.
On Canadian Y package
Setting the Clock
118
H BUTTON
R BUTTON
M BUTTON
TIME
DISPLAY
CLOCK BUTTON

Look f or any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you f ind a leak, it
must be repaired bef ore you
continue driving (seeon page ).
If you don’t f ind an obvious leak,
check the coolant level in the
radiator reserve tank (see page ). Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. Af ter the
pressure releases, push down on
the cap, and turn it until it comes
off. Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the
temperature gauge or lower
bef ore checking the radiator. Start the engine, and set the
temperature control dial to
maximum heat. Add coolant to the
radiator up to the base of the f iller
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and ref illed with
the proper mixture as soon as you
can.
9.
8.
7. 6. 5.
11. 10.
217
217
128 Emergency
Towing
Emergency
Towing
If theEngineOverheats
208
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.

Î
ÎÎ Î
Î
............................
Capacities Chart .222
.............
Carbon Monoxide Hazard .47
.............................
Carrying Cargo .132
..............
CAUTION, Explanation of .ii
.........................................
CD Care .113
...................................
CD Changer .112
.......................
CD Error Message .114
.......
CD Changer Error Message . 115
.......................................
CD Player .106
.................................
Ceiling Pocket .86
........................
Certif ication Label .220
............................................
Chains .192
....................
Changing a Flat Tire .197
.................................
Changing Oil .171
........................................
How to .171
......................................
When to .165
...
Charging System Indicator . 54,209
............
Checklist, Bef ore Driving . 139
.....................................
Child Saf ety .30
Child Seats ......
LATCH Anchorage System . 39
...........................
Lower Anchors .39
..........
Tether Anchorage Points . 43
............
Cleaning the Body Panels . 178..............................................
Clock .117
.........................
Clock, Setting the .117
...................................
Clutch Fluid .177
........................
CO in the Exhaust .227
............
Cold Weather, Starting in . 140
..............................
Compact Spare .196
...............
Consumer Inf ormation . 234
.............
Controls, Instruments and . 51
Coolant ........................................
Adding .173
....................................
Checking .128
.........................
Proper Solution .173
...................
Temperature Gauge . 59
Crankcase Emissions Control ........................................
System .227
................
Cruise Control Indicator . 56
............
Cruise Control Operation . 120
.............
Customer Service Of f ice . 234
................
DANGER, Explanation of . ii
...................................
Dashboard .4, 52
Daytime Running Lights ...................................
Indicator .56
.................................
Dead Battery .205 .........
Def ects, Reporting Saf ety . 236
..........................
Def og and Def rost .93
................
Def ogger, Rear Window . 63
................
Def rosting the Windows . 93
....................................
Dimensions .222
...............
Dimming the Headlights . 62
Dipstick ..........
Automatic Transmission . 175
..................................
Engine Oil .128
..........................
Directional Signals .62
........
Disc Brake Wear Indicators . 149
.....................
Disposal of Used Oil .172
Doors ..............
Locking and Unlocking . 70
......................
Power Door Locks .70
........
DOT Tire Quality Grading . 224
Downshif ting, Manual .............................
Transmission .141
...........
Driver and Passenger Safety . 7
...........................................
Driving .137
....................................
Economy .129
........................
Driving Guidelines .138
..................
Dust and Pollen Filter . 185
Index
D
C
II

ÎÎ
.........
Protecting Adults and Teens .12
...
Additional Safety Precautions .19
.....
Advice f or Pregnant Women .18
........................
Protecting Children .30
Protecting Inf ants and Small .......................................
Children .35
...........
Protecting Larger Children .44
.....................
Using Booster Seat .45
...................
Radiator Overheating .207
...............
Radio/CD Sound System .94
...........................
Readiness Codes .230
.......................................
Rear Doors .70
..
Rear Lights, Bulb Replacement .182
............................
Rear Seat Access .75
..........................
Rear Seat, Folding .77
............................
Rear View Mirror .82
.................
Rear Window Def ogger .63
.
Rear Window Wiper and Washer .61
...............
Reclining the Seat-Backs .73
.......
Recommended Shif t Speeds .142
.............................
Reminder Lights .53
...............
Removing the Rear Seats .79
.......................
Remote Transmitter .67Replacement Inf ormation
..............
Dust and Pollen Filter .185
................
Engine Oil and Filter .171
..........................................
Fuses .212
................................
Light Bulbs .179
....................................
Schedule .165
...........................................
Tires .187
.............................
Wiper Blades .186
Replacing Seat Belts Af ter a ............................................
Crash .21
Reserve Tank, Engine ...............................
Coolant .128,173
...............................
Restraint, Child .30
..................
Reverse Gear Position .144
......................................
Roof Rack .134
................................
Rotation, Tire .190
................................
Saf ety Belts .10,20
.........
Safety Defects, Reporting .236
.................................
Saf ety Features .9
.........................................
Airbags .11
.....................................
Seat Belts .10
.............
Saf ety Labels, Location of .48
...............................
Saf ety Messages . ii................................
Satellite Radio .100
...................................
Seat Belts .10,20
...............
Additional Information .20
Automatic Seat Belt
...............................
Tensioners .21
................
Lap/Shoulder Belt .15,20
................................
Maintenance .21
.....................
Reminder Light .20,54
...................
System Components .20
...............
Use During Pregnancy .18
...
Wearing a Lap/Shoulder Belt .15
........................
Seats, Adjusting the .73
...............................
Serial Number .220
...........................
Service Intervals .165
...........................
Service Manual .237
...........
Service Station Procedure .126
..........................
Setting the Clock .117
.....
Shif t Lever Position Indicator .143
........................
Shif t Lock Release .146
....................................
Side Airbags .26
................................
Of f Indicator .28
Side Marker Lights, Bulb ..............................
Replacement .181
...............................
Signaling Turns .62
............................................
Skylight .83
.....................................
Snow Tires .191
Index
R
S
VI
