2006 HONDA CIVIC display

µµ µ

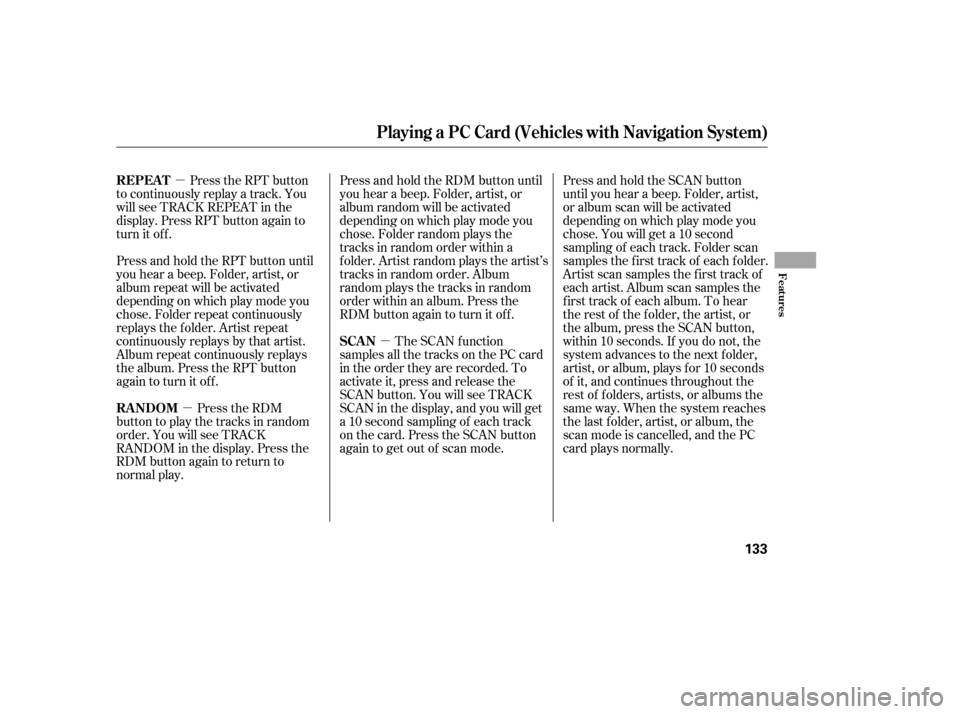

Press the RPT button
to continuously replay a track. You
will see TRACK REPEAT in the
display. Press RPT button again to
turn it off.
Press and hold the RPT button until
you hear a beep. Folder, artist, or
album repeat will be activated
depending on which play mode you
chose. Folder repeat continuously
replays the f older. Artist repeat
continuously replays by that artist.
Album repeat continuously replays
the album. Press the RPT button
again to turn it off.
Press the RDM
button to play the tracks in random
order. You will see TRACK
RANDOM in the display. Press the
RDM button again to return to
normal play. Press and hold the RDM button until
you hear a beep. Folder, artist, or
album random will be activated
depending on which play mode you
chose. Folder random plays the
tracks in random order within a
f older. Artist random plays the artist’s
tracks in random order. Album
random plays the tracks in random
order within an album. Press the
RDM button again to turn it off.
The SCAN f unction
samples all the tracks on the PC card
in the order they are recorded. To
activate it, press and release the
SCAN button. You will see TRACK
SCAN in the display, and you will get
a10secondsamplingof eachtrack
on the card. Press the SCAN button
again to get out of scan mode. Press and hold the SCAN button
until you hear a beep. Folder, artist,
or album scan will be activated
depending on which play mode you
chose. You will get a 10 second
sampling of each track. Folder scan
samples the f irst track of each f older.
Artist scan samples the f irst track of
each artist. Album scan samples the
f irst track of each album. To hear
the rest of the f older, the artist, or
the album, press the SCAN button,
within 10 seconds. If you do not, the
system advances to the next folder,
artist, or album, plays f or 10 seconds
of it, and continues throughout the
rest of f olders, artists, or albums the
same way. When the system reaches
the last f older, artist, or album, the
scan mode is cancelled, and the PC
card plays normally.
Playing a PC Card (Vehicles with Navigation System)
REPEAT
RANDOM
SCAN
Features
133
——y

y
(#y
y

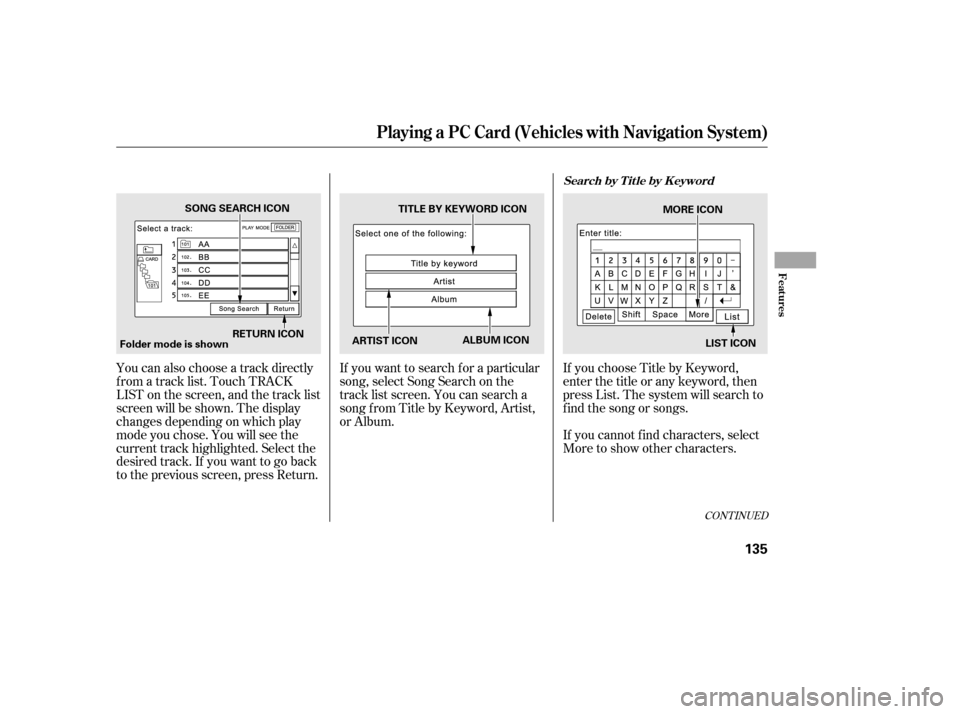

You can also choose a track directly
f rom a track list. Touch TRACK
LIST on the screen, and the track list
screen will be shown. The display
changes depending on which play
mode you chose. You will see the
current track highlighted. Select the
desired track. If you want to go back
to the previous screen, press Return.If you want to search f or a particular
song, select Song Search on the
track list screen. You can search a
songfromTitlebyKeyword,Artist,
or Album.
If you choose Title by Keyword,
enter the title or any keyword, then
press List. The system will search to
f ind the song or songs.
If youcannotfindcharacters,select
More to show other characters.
CONT INUED
Playing a PC Card (Vehicles with Navigation System)
Search by T it le by K eyword
Features
135
Folder mode is shownSONG SEARCH ICON
RETURN ICON ARTIST ICONALBUM ICON
TITLE BY KEYWORD ICON
MORE ICON
LIST ICON
——y
y
(#y
y

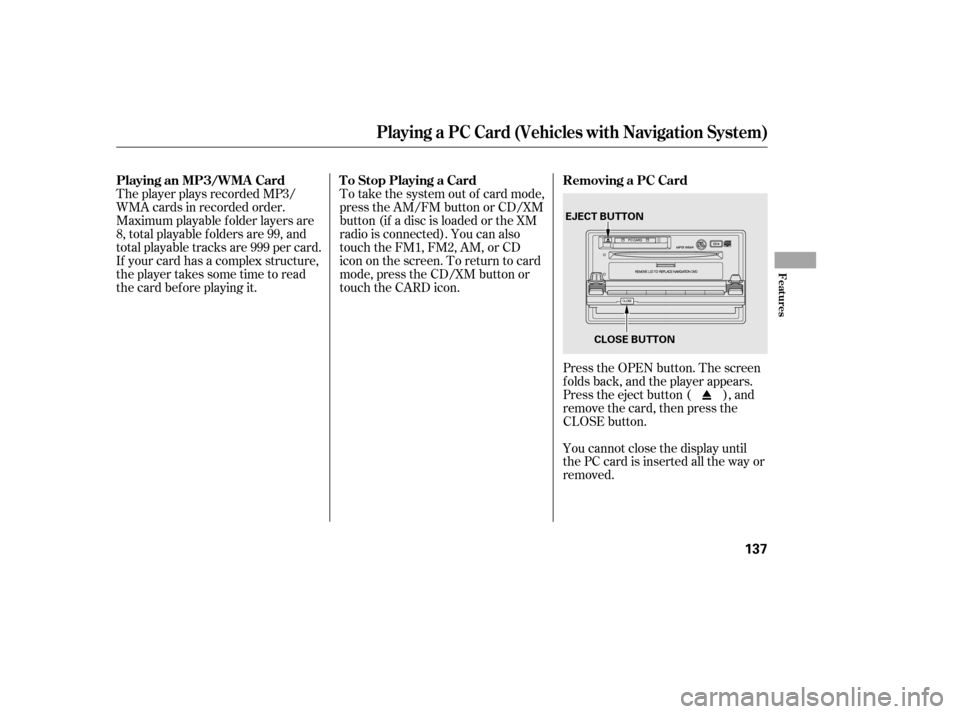

The player plays recorded MP3/
WMA cards in recorded order.
Maximum playable f older layers are
8, total playable f olders are 99, and
total playable tracks are 999 per card.
If your card has a complex structure,
theplayertakessometimetoread
the card bef ore playing it.Press the OPEN button. The screen
folds back, and the player appears.
Press the eject button ( ), and
remove the card, then press the
CLOSE button.
You cannot close the display until
the PC card is inserted all the way or
removed.
To take the system out of card mode,
press the AM/FM button or CD/XM
button (if a disc is loaded or the XM
radio is connected). You can also
touch the FM1, FM2, AM, or CD
icon on the screen. To return to card
mode, press the CD/XM button or
touch the CARD icon.
Playing a PC Card (Vehicles with Navigation System)
Playing an MP3/WMA Card
Removing a PC Card
To Stop Playing a Card
Features
137
EJECT BUTTON
CLOSE BUTTON
——y

y
(#y
y

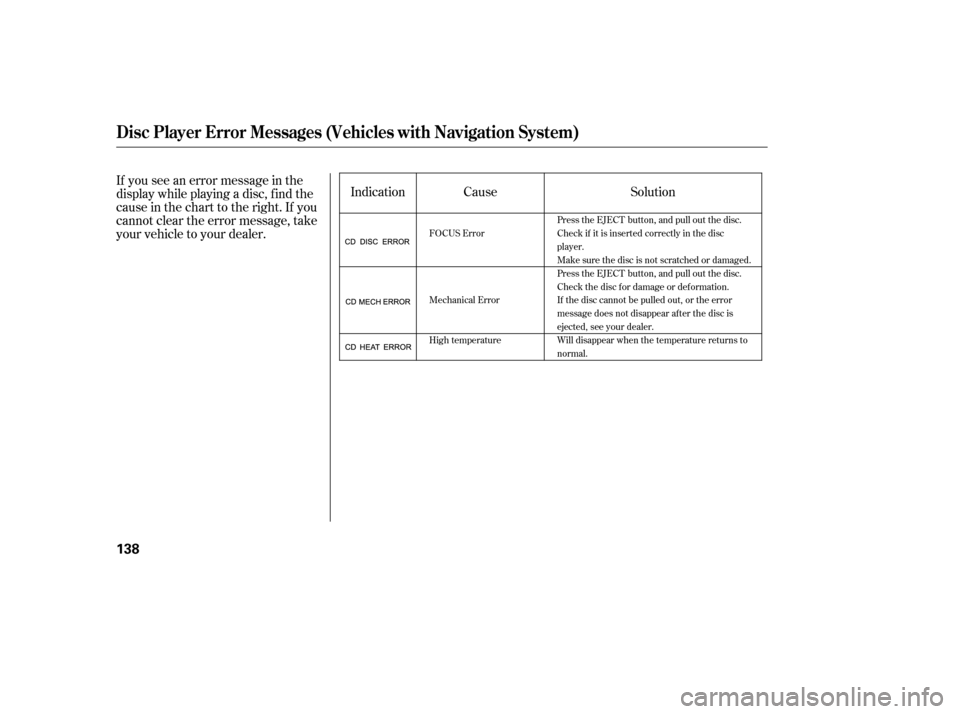

Cause
Indication Solution
If you see an error message in the
display while playing a disc, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.
FOCUS Error
Mechanical Error
High temperature Press the EJECT button, and pull out the disc.
Check if it is inserted correctly in the discplayer.
Make sure the disc is not scratched or damaged.
Press the EJECT button, and pull out the disc.
Check the disc for damage or deformation.
If the disc cannot be pulled out, or the error
message does not disappear after the disc is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
Disc Player Error Messages (Vehicles wit h Navigat ion System)
138
——y
y
(#y

y

The radio can receive the complete
AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kilohertz
FM band: 87.7 to 107.9 megahertzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
CONT INUED
Radio Frequencies Radio Reception
Radio Reception
Features
139
——y
y
(#y
y

ÛÝ´
µ ´µ
´ µ ´µ

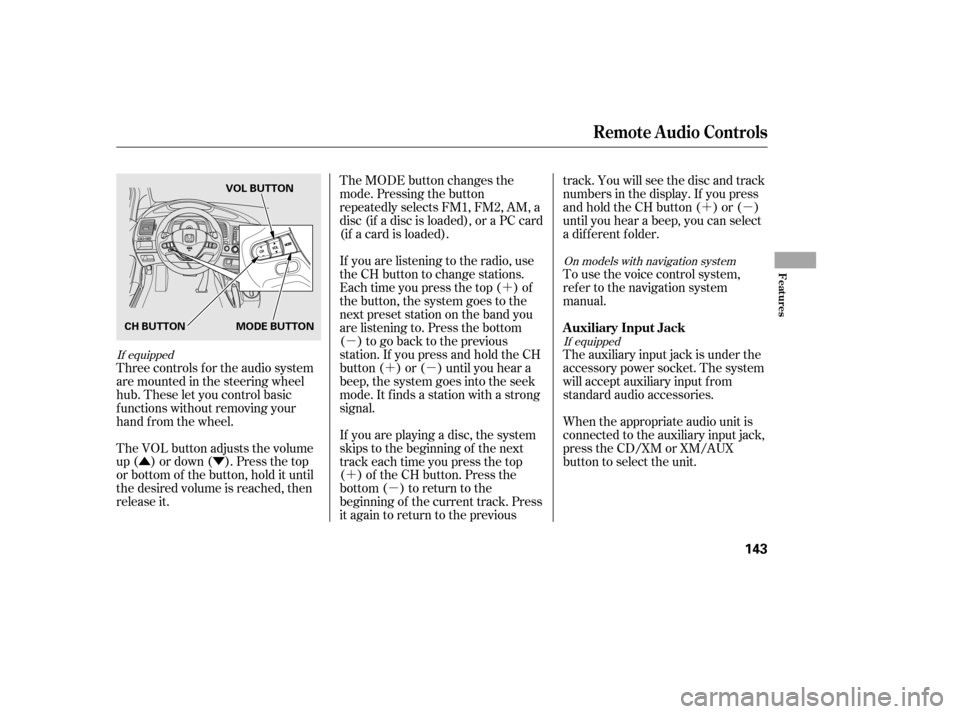

Three controls f or the audio system
are mounted in the steering wheel
hub. These let you control basic
f unctions without removing your
hand f rom the wheel.
The VOL button adjusts the volume
up ( ) or down ( ). Press the top
or bottom of the button, hold it until
the desired volume is reached, then
release it. The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM, a
disc (if a disc is loaded), or a PC card
(if a card is loaded).
If you are listening to the radio, use
the CH button to change stations.
Each time you press the top ( ) of
the button, the system goes to the
next preset station on the band you
are listening to. Press the bottom
( ) to go back to the previous
station.If youpressandholdtheCH
button ( ) or ( ) until you hear a
beep, the system goes into the seek
mode. It finds a station with a strong
signal.
If you are playing a disc, the system
skips to the beginning of the next
track each time you press the top
( ) of the CH button. Press the
bottom ( ) to return to the
beginning of the current track. Press
it again to return to the previoustrack. You will see the disc and track
numbers in the display. If you press
andholdtheCHbutton( )or( )
until you hear a beep, you can select
a different folder.
Tousethevoicecontrolsystem,
refer to the navigation system
manual.
The auxiliary input jack is under the
accessory power socket. The system
will accept auxiliary input f rom
standard audio accessories.
When the appropriate audio unit is
connected to the auxiliary input jack,
press the CD/XM or XM/AUX
button to select the unit.
If equipped
On models with navigation system
If equipped
Remote Audio Controls
Auxiliary Input Jack
Features
143
CH BUTTON VOL BUTTON
MODE BUTTON
——y

y
(#y
y

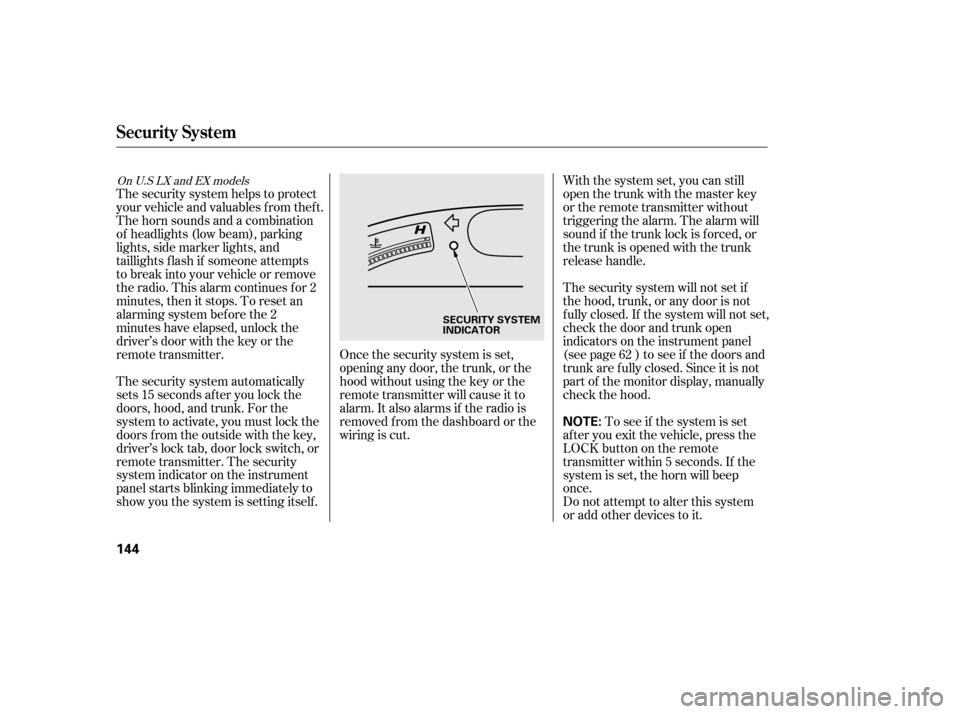

Once the security system is set,
opening any door, the trunk, or the
hood without using the key or the
remote transmitter will cause it to
alarm. It also alarms if the radio is
removed f rom the dashboard or the
wiring is cut.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights (low beam), parking
lights, side marker lights, and
taillights f lash if someone attempts
to break into your vehicle or remove
the radio. This alarm continues f or 2
minutes, then it stops. To reset an
alarming system bef ore the 2
minutes have elapsed, unlock the
driver’s door with the key or the
remote transmitter.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and trunk. For the
system to activate, you must lock the
doors f rom the outside with the key,
driver’s lock tab, door lock switch, or
remote transmitter. The security
system indicator on the instrument
panel starts blinking immediately to
show you the system is setting itself . With the system set, you can still
open the trunk with the master key
or the remote transmitter without
triggering the alarm. The alarm will
sound if the trunk lock is f orced, or
the trunk is opened with the trunk
release handle.
The security system will not set if
the hood, trunk, or any door is not
f ully closed. If the system will not set,
check the door and trunk open
indicators on the instrument panel
(see page ) to see if the doors and
trunk are f ully closed. Since it is not
part of the monitor display, manually
check the hood.
Do not attempt to alter this system
or add other devices to it.
To see if the system is set
af ter you exit the vehicle, press the
LOCK button on the remote
transmitter within 5 seconds. If the
system is set, the horn will beep
once. 62
On U.S LX and EX models
Security System
144
NOTE:
SECURITY SYSTEM
INDICATOR
——y

y
(#y
y

If the hood latch handle moves
stif f ly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
Put your f ingers under the f ront
edge of the hood near the center.
Slide your hand to the lef t until
you f eel the hood latch handle.
Push this handle up to release it.
Lif t up the hood.
Push the f uel f ill door closed until
it latches.
Screw the fuel fill cap back on
until it clicks at least once. If you
do not properly tighten the cap,
the malf unction indicator lamp
maycomeon(seepage ).You
will also see a ‘‘CHECK FUEL
CAP’’ message on the inf ormation
display.
Park the vehicle, and set the
parking brake. Pull the hood
release handle under the lower lef t
corner of the dashboard. The
hood will pop up slightly.Holding the grip (the rod can be
hot if the engine has been
running), pull the support rod out
of its clip. Insert the end into the
designated hole in the hood.
2.
1.
3.
5. 6.
230
Service Station Procedures
Opening and Closing the Hood
152
HOOD
RELEASE
HANDLE
LATCH
——y
y
(#y
y
