Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set f irmly or
your vehicle may roll if it is on an
incline.
If your vehicle has an automatic
transmission, set the parking brake
bef ore you put the transmission in
Park. This keeps the vehicle f rom
moving and putting pressure on the
parking mechanism in the
transmission.Make sure the moonroof (if
equipped) and the windows are
closed.
Lockthedoorswiththekeyorthe
remote transmitter.
Place any packages, valuables, etc.,
in the trunk or take them with you.
Turn of f the lights. If the vehicle is f acing uphill, turn
the f ront wheels away f rom the
curb. If you have a manual
transmission, put it in f irst gear.
If the vehicle is f acing downhill,
turn the front wheels toward the
curb. If you have a manual
transmission, put it in reverse gear.
Make sure the parking brake is
f ully released bef ore driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Never park over dry leaves, tall
grass, or other f lammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
Check the indicator on the
instrument panel to verif y that the
security system is set.
On U.S. LX and EX models
Parking T ips
Parking
170
Never install a sunshade between the
upper and lower meters on the
instrument panel. If you do, you could
cause heat damage to the upper meter
on a very hot day.
——y
y
(#y
y

µ

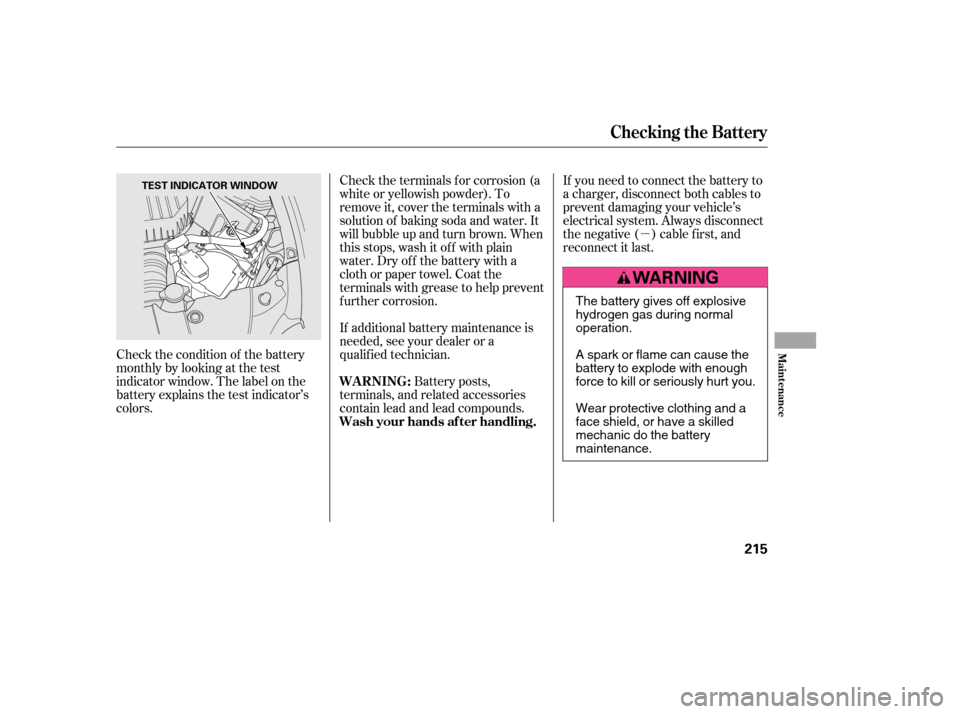

Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors. If additional battery maintenance is
needed, see your dealer or a
qualif ied technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
Check the terminals f or corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it of f with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
f urther corrosion.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
WARNING:
Wash your hands af ter handling.
Checking the Battery
Maint enance
215
TEST INDICATOR WINDOW
The battery gives off explosive
hydrogen gas during normaloperation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the batterymaintenance.
——y
y
(#y
y

Fill the f uel tank.
Change the engine oil and f ilter.Block the rear wheels.
If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
If you need to park your vehicle f or
an extended period (more than 1
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors. Leave one window open slightly (if
the vehicle is being stored
indoors).Cover the vehicle with a
‘‘breathable’’ cover, one made
f rom a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
Disconnect the battery. If possible, periodically run the
engine until it reaches f ull
operating temperature (the
cooling f an cycles twice).
Pref erably, do this once a month.
Leave the parking brake off. Put
the transmission in reverse
(manual) or Park (automatic).
Vehicle Storage
216
——y

y
(#y
y

Let the vehicle sit f or a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn of f the
engine. There is a mechanical
problem that needs to be repaired
bef ore you can continue driving
(see on page). Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
This indicator should never
come on when the engine is
running. If it starts f lashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible, and you should
take immediate action. If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Saf ely pull of f the road, and shut
of f the engine. Turn on the hazard
warning lights.
1. 2. 3. 4. 153
191
237
L ow Oil Pressure Indicator
Emergency T owingCharging System Indicator
L ow Oil Pressure Indicator, Charging System Indicator
T aking Care of t he Unexpect ed
229
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.
——y
y
(#yy

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied mechanic.
If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
If the driver’s power window f use is
removed, the AUTO f unction of the
driver’s window will be disabled. To
reset the AUTO f unction, see page
.
Look f or a blown wire inside the
f use. If it is blown, replace it with
oneof thesparefusesof thesame
rating or lower. The spare f uses
are provided back of the under-
hood f use cover. 6.
5. 94
On LX and EX models
Fuses
234
BLOWN
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
——
y
y
(#yy

µ µ µ µ µÎ
Î
CONT INUED
No. Amps.
No. Amps. Circuits Protected Circuits Protected
4 5 67 8 9
1011121314151617181920212223 50 A
40 A
20 A
20 A
30 A
30 A
40 A
10 A
15 A
15 A
7.5 A 15 A
15 A
7.5 A 15 A
7.5 A 10 A
1 23 100 A
70 A
80 A
50 A
30 A
30 A Main FuseEPS
Option Main
Ignition Switch Main
ABS
ABS Headlight Main
Power Window Main
Not Used
Sub Fan Motor
Main Fan Motor (M/T)
Main Fan Motor (A/T)
Rear Defogger
Blower
Hazard
FI Sub
Stop and Horn
Not Used
Not Used
IGPS Oil Level
Not Used
Not Used
IG Coil
FI Main
MG Clutch
DBW
Interior Light
Back Up
If equipped
:
Fuse Locations
T aking Care of t he Unexpect ed
235
UNDER-HOOD FUSE BOX
——
y
y
(#yy

ÎÎ
Î Î
Î
µ µµ µ µ µ µ
Î
No.
No.No.
Amps. Circuits Protected
Circuits Protected
Amps. Circuits Protected
Amps.
:
1 2345678 9
10111213141516 17181920212223242526272829303132333435363738
7.5 A
7.5 A
10 A
10 A
10 A
7.5 A
7.5 A 10 A ODS
MET ER
SRS
Right Headlight High
Left Headlight High
Small (Interior)
Small (Exterior)
Right Headlight Low
Power Window
Fuel Pump
Alternator
ABS Unit
Heated Seat
Not Used
Not Used
Not Used
7.5 A
15 A
10 A
7.5 A
(15 A) Left Headlight Low
Headlight High Main
Small (Main)
Not Used
Headlight Low Main
(HAC)
STS
Moonroof
Door Lock
Driver’s Power Window
Not Used
Rear ACC Socket
ACC
Passenger’s Power Window
Not Used
Right Rear Power Window
Left Rear Power Window
Not Used
ACC Radio
HAC
Daytime Running Light
Wiper
10 A
20 A
15 A
20 A
(7.5 A)
(7.5 A) (20 A) 20 A
20 A
(15 A) 15 A
20 A
20 A
20 A
7.5 A 10 A
7.5 A
30 A
If equipped
Fuse Locations
236
INTERIOR FUSE BOX
——
y


y
(#yy

Î
Bulb Replacement..........................
Back-up Lights . 203
..............................
Brake Lights . 203
........
Front Side Marker Lights . 202
.........
Front Turn Signal Lights . 202
.........................
Headlights . 200, 201
.........
High-mount Brake Light . 205
..........................
Parking Lights . 202
.........
Rear Side Marker Lights . 203
..........
Rear Turn Signal Lights . 203
............................
Specif ications . 243
..............................
Bulbs, Halogen . 200
.........................................
Card, PC . 129
............................
Capacities Chart . 242
.............
Carbon Monoxide Hazard . 53
.............................
Carrying Cargo . 157
..............
CAUTION, Explanation of . ii
..............................
CD Player . 112, 125
....................................
Ceiling Light . 98
........................
Certif ication Label . 240
............................................
Chains . 214
....................
Changing a Flat Tire . 219 Changing Oil
........................................
How to . 192
......................................
When to . 181
...
Charging System Indicator . 64, 229
..............
Check Fuel Cap Indicator . 67
............
Checklist, Bef ore Driving . 162
.....................................
Child Saf ety . 35
Child Seats
.............
LATCH Anchor System . 44
...........................
Lower Anchors . 44
................
Tether Anchor Points . 47
..................
Childproof Door Locks . 79
.........................
Clock, Setting the . 119
...................................
Clutch Fluid . 198
........................
CO in the Exhaust . 247
............
Cold Weather, Starting in . 163
..............................
Compact Spare . 218
.................
Console Compartment . 100
.................
Consumer Inf ormation . 252
.............
Controls, Instruments and . 57
Coolant
........................................
Adding . 194
....................................
Checking . 154
.........................
Proper Solution . 194
...................
Temperature Gauge . 66 Crankcase Emissions Control
........................................
System . 247
............
Cruise Control Operation . 145
....
Customer Service Inf ormation . 252
................
DANGER, Explanation of . ii
...................................
Dashboard . 4, 58
................
Daytime Running Lights . 72
.........
Def ects, Reporting Saf ety . 254
........................
Def og and Def rost . 105
................
Def ogger, Rear Window . 73
..............
Def rosting the Windows . 105
....................................
Dimensions . 242
...............
Dimming the Headlights . 71
Dipstick
..........
Automatic Transmission . 196
..................................
Engine Oil . 153
..........................
Directional Signals . 71
Disc Brake Pad Wear
...................................
Indicators . 171
............................
Disc Player . 112, 125
..................
Display Change Button . 65
.....................
Disposal of Used Oil . 193
Index
C D
II
——y

y
(#y
y
