2006 HONDA CIVIC HYBRID clock

Open the trunk.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise. Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender, and pull the inner
f ender cover back. Remove the bulb f rom the socket
by pushing the bulb in and turning
it counterclockwise until it unlocks.
Remove the screw from the center
of each f astener on the side of the
trunk lining. Pull the lining back.
Determine which of the f our bulbs
is burned out: stop/taillight, back-
up light, turn signal, or side
marker.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Reinstall the inner f ender cover.
Then reinstall the holding clips,
andlocktheminplacebypushing
on their centers.
1.
4.
5.
6.
7.
8.
3. 2. 2. Replacing Rear Bulbs
(In Fenders)
Lights
200
FASTENERFASTENER
——
y

y
(#yy

Open the trunk.
Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks. Put the f asteners into the holes on
the side of the trunk lining.
Reinstall the screws. Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal. Testthelightstomakesurethe
new bulb is working.
Remove the screw from the center
of each f astener on the trunk lid
trim. Pull the trim back.
1.
2.
4.
5. 6.
7.
8.
3.
CONT INUED

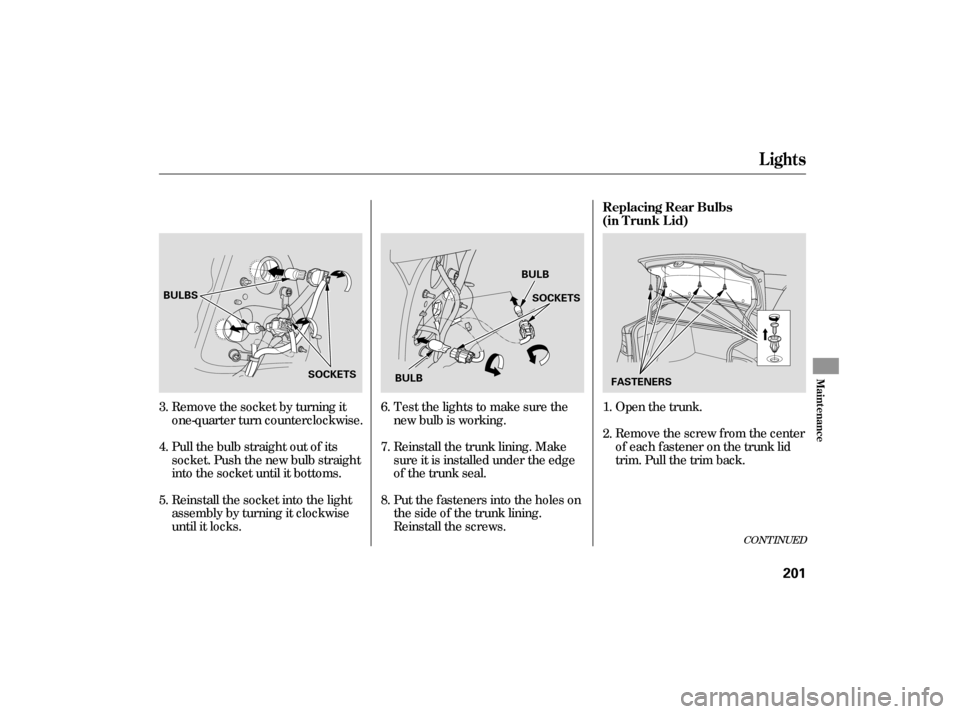

Replacing Rear Bulbs
(in T runk L id)
Lights
Maint enance
201
BULBS
SOCKETS SOCKETS
BULB
BULB FASTENERS
——
y

y
(#yy

Remove the socket by turning it
one-quarter turn counterclockwise.Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Insert the socket back into the
light assembly. Turn it clockwise
to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Push the trunk lid trim back into
position.
Put the f asteners into the holes on
the trunk lid trim. Reinstall the
screws.
Beforeusinganautomaticcarwash,
remove the radio antenna so it does
not get damaged. Remove the
antenna by unscrewing it. When you
reinstall the antenna, tighten it
securely.
Bef ore entering or parking in areas
with low ceiling height, remove the
antenna.
4.
5.
6.
7.
8.
3. Roof A ntenna
Lights, Roof Antenna
202
BULB
SOCKET
——
y
y
(#yy

Loosen each wheel nut 1/2 turn
with the wheel nut wrench.Place the jack under the jacking
point. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Remove the center cap from the
wheel with the extension.
6. 7. 8.
Changing a Flat Tire
218
JACKING POINTS
WHEEL NUT WRENCH
——
y

y
(#y
y

If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If
you do not find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark. Using
gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off. Put
the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see on page ).
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the reading
reaches the middle of the
temperature gauge or lower
bef ore checking the radiator. Start the engine, and set the
temperature control dial to
maximum. Add coolant to the
radiator up to the base of the f iller
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and ref illed with
the proper mixture as soon as you
can.
8.
9.
7. 6.
10.
11.237
Emergency
Towing
If theEngineOverheats
226
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
——y

y
(#yy

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualif ied mechanic.When the audio system is disabled,
the clock setting in the audio system
will be canceled. You will need to
reset the clock according to the
instructions in the audio system
sectiononthisowner’smanual.
6.
Fuses
234
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
——y
y
(#yy

Î
Bulb Replacement..........................
Back-up Lights .201
.....................
Brake Lights .200, 201
........
Front Side Marker Lights .199
...........
Front Turn Signal Light .199
.................................
Headlights .197
..........................
Parking Lights .199
.........
Rear Side Marker Lights .200
..........
Rear Turn Signal Lights .200
............................
Specif ications .243
..............................
Bulbs, Halogen .197 ................
DANGER, Explanation of .ii
...................................
Dashboard .3, 56
................
Daytime Running Lights .73
.........
Def ects, Reporting Saf ety .254
........................
Def og and Def rost .103
................
Def ogger, Rear Window .75
..............
Def rosting the Windows .103
....................................
Dimensions .242
...............
Dimming the Headlights .73
Dipstick
..........
Automatic Transmission .195
..................................
Engine Oil .154
..........................
Directional Signals .73
Disc Brake Pad Wear
...................................
Indicators .173
.....................................
Disc Player .112
..................
Display Change Button .64
.....................
Disposal of Used Oil .192
Doors
.
Auto Door Locking/Unlocking .81
.....................
Auto Door Locking .81
.................
Auto Door Unlocking .83
..............
Locking and Unlocking .80
......................
Power Door Locks .80
.........................................
Card, PC .129
............................
Capacities Chart .242
.............
Carbon Monoxide Hazard . 52
.............................
Carrying Cargo .158
..............
CAUTION, Explanation of . ii
.......................................
CD Player .112
....................................
Ceiling Light .97
........................
Certif ication Label .240
............................................
Chains .211
....................
Changing a Flat Tire .217
Changing Oil ........................................
How to .190 ......................................
When to .179
...
Charging System Indicator . 62,228
..............
Check Fuel Cap Indicator . 68
............
Checklist, Bef ore Driving . 164
.....................................
Child Saf ety .34
Child Seats .............
LATCH Anchor System . 43
.............................
Lower Anchor .43
............................
Tether Anchor .46
..................
Childproof Door Locks . 81
.........................
Clock, Setting the .119
........................
CO in the Exhaust .247
............
Cold Weather, Starting in . 165
..............................
Compact Spare .216
.................
Consumer Inf ormation . 252
.............
Controls, Instruments and . 55
Coolant ........................................
Adding .192
....................................
Checking .154
.........................
Proper Solution .192
...................
Temperature Gauge . 67
Crankcase Emissions Control ........................................
System .247
............
Cruise Control Operation . 145
....
Customer Service Inf ormation . 252
Index
C D
II
——y
y
(#y
y

ÎÎ
...........
Protecting Larger Children .48
..................................
Saf ety Belts .8, 18
.........
Safety Defects, Reporting . 254
.................................
Saf ety Features .7
...........................................
Airbags .9
.......................................
Seat Belts .8
.............
Saf ety Labels, Location of . 53
...............................
Saf ety Messages .ii
.....................................
Seat Belts .8, 18
...............
Additional Information . 18
Automatic Seat Belt ...............................
Tensioners .19
................
Lap/Shoulder Belt . 14, 18
........................
Maintenance .20, 203
Reminder Light and ................................
Beeper .18, 59
...................
System Components . 18
...............
Use During Pregnancy . 16Wearing a Lap/Shoulder
.....................................
Belt .14, 18
........................
Seats, Adjusting the .89
............................
Security System .144
...............................
Serial Number .240
...........................
Service Intervals .185
...........................
Service Manual .255
.........
Service Station Procedures . 151
..........................
Setting the Clock .119
...
Shif t Lever Position Indicators . 166
........................
Shif t Lock Release .169
................................
Side Airbags .9 ,28
..........................
Of f Indicator .30, 59
......................
Side Curtain Airbags .29
Side Marker Lights, Bulb ..............................
Replacement .199
...............................
Signaling Turns .73
.....................................
Snow Tires .211
................................
Sound System .106
Spare Tire ......................................
Inf lating .216
............................
Specif ications .243
....................
Specif ications Charts . 242
................................
Speed Control .145
Speed-Sensitive Volume .......
Compensation (SVC) . 111, 124
...................
Radiator Overheating . 225
............
Radio/CD/Sound System . 106
Radio/CD/PC Card Sound ........................................
System .121
...................
Readiness Codes . 229, 250
Rear Lights, Bulb ......................
Replacement .200, 201
............................
Rear View Mirror .93
.................
Rear Window Def ogger . 75
................
Reclining the Seat-backs . 89
.............................
Reminder Lights .61
.......................
Remote Transmitter .87
Replacement Inf ormation ..............
Dust and Pollen Filter . 204
................
Engine Oil and Filter . 190
..........................................
Fuses .232
................................
Light Bulbs .197
................
Maintenance Minder . 179
...........................................
Tires .207
.............................
Wiper Blades .205
Replacing Seat Belts Af ter a ............................................
Crash .20 Reserve Tank, Engine
...............................
Coolant .153, 192
...............................
Restraint, Child .34
..................
Reverse Gear Position . 168
.................................
Potation, Tire .210
Index
R
S
VI
