2006 HONDA ACCORD navigation system

ÛÝAir conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
ON button. The indicator in the
button comes on when a f an speed
is selected.
Make sure the temperature
control dial or button is set to
maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed. Press the A/C button, the Manual
Operation A/C screen will appear.
Select the ON icon on the display.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
Press the A/C button, the manual
operation of A/C screen will
appear.
Select the desired mode and f an
speed icons on the display.
Adjustforwarmthwiththe
temperature buttons ( or ). To cool the interior with MAX A/C:
Set the f an to the desired speed.
Select the MAX A/C mode.
The system automatically turns on
the A/C, selects and
switches to Recirculation mode.
Make sure the temperature
control dial is all the way to the left.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming through the
system.
Select .
When you select , the system
automatically switches to the fresh
air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. 1. 2. 3. 4. 5.
1.2. 3. 1.2. 3.
1. 2. 3. 1.2. 3.
65
If the interior is very warm,
Except EX-L and EX-V6 with Navigation
System Except EX-L and EX-V6 with Navigation SystemEX-L and EX-V6 with Navigation System
EX-L and EX-V6 with Navigation System Except EX-L and EX-V6
Using the Heater Using the A /C
Vents, Heating, and A/C
Features
107
——yy
(y

y

Û
Ý
Without Navigation System:
With Navigation System:
For Vehicles with Navigation System
EX-L and EX-V6Set the
desired temperature by turning
the Temperature Control dial. You
will see AUTO in the system’s
display.
Press the AUTO button.
Set the
desired temperature by pressing
the to raise the temperature or to lower the temperature. The
selected temperature will show in
the upper display.
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
In the AUTO mode, the vehicle’s
interior temperature is
independently regulated f or the
driver and passenger. If the driver’s
side of the vehicle is getting too
much sun, the system will adjust to a
lower temperature.
Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator does not come on if
it was previously off.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
1. 2. 3.
Vents, Heating, and A/C
Automatic Climate Control
T o Remove Exterior Frost or Ice
From the Windows
Features
109
——yy
(y

y

µµ µ
Turning the f an speed control dial all
the way to the left shuts the system
of f .
When the Climate Control System is
turned OFF, the temperature in the
upper display will also turn of f . To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
Keep the system of f f or short
periods only.
If you press OFF, the climate control
system shuts of f .
Press the OFF button. However, a
lack of airf low can cause the
windowstofogup.Youshouldkeep
the fan on at all times so stale air and
moisture do not build up in the
interior and cause fogging.
You can manually select various
functions of the automatic climate
controlsystemwhenitisinAUTO.
All other f eatures remain
automatically controlled.
Making any manual selection causes
thewordAUTOinthedisplaytogo
out.
If you press the A/C button next to
the display, the manual selections
will show in the display. Making any
manual selection causes the
indicator in the AUTO button to turn
off.
The system automatically selects the
proper mix of conditioned and/or
heated air to raise or lower the
interior temperature to the
temperature you selected.
If you set the temperature to its
lowest limit, (Lo) or its highest limit,
(Hi) the system runs at f ull cooling
or heating only. It does not regulate
the interior temperature.
In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
When
the indicator in the Dual button is on,
the driver’s side and passenger’s side
temperature can be controlled
independently (see page ). 111With Navigation System
Dual Temperature Control EX-L and EX-V6 without Navigation
System
Except EX and EX-V6
EX-L and EX-V6 with Navigation System
Vents, Heating, and A/C
To Turn Everything Of f
Manual Operation
110
——yy
(y

y

Without Navigation SystemWith Navigation System
EX-L and EX-V6
Your vehicle has two temperature
control dials, one f or the driver, and
one f or the f ront passenger.
Your vehicle has four temperature
control buttons, two f or the driver,
and two f or the passenger.
Thedriver’ssideandthepassenger’s
side can be controlled independently
by adjusting these dials or buttons
when the green indicator in the
DUAL button is lit.
Push AUTO or . The selected
temperatures appear in the upper
display. For vehicles with navigation
system, when the indicator in the
DUALbuttonisoff,youcanadjust
both sides to the same temperature
by adjusting the driver’s side
temperature control dial or buttons.
CONT INUED

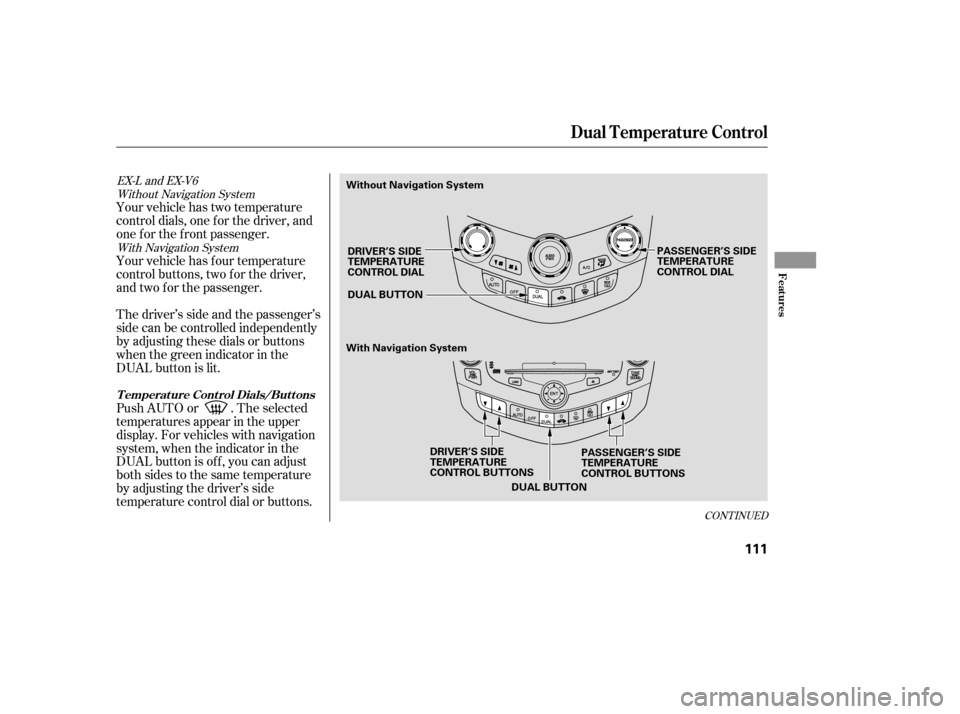

Dual Temperature Control
T emperat ure Cont rol Dials/But t ons
Features
111
DUAL BUTTON
Without Navigation System
DUAL BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
With Navigation System
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
——yy
(y

y

Playing the Radio
114
SOUND BUTTON
SEEK BAR TUNE BAR
SEEK BAR SOUND BUTTON
AM/FM
BUTTON
A.SEL
BUTTON
PWR/VOL KNOB
STEREO INDICATOR
SCAN BUTTON AM/FM BUTTON
A.SEL
BUTTON
TUNE BAR
PRESET BARS SCAN BUTTON
PWR/VOL KNOB
STEREO INDICATOR PRESET BARS
EX-L and EX-V6 without Navigation System
U.S. VP, LX, SE, EX and LX-V6
Canadian DX-G, SE and SE-V6
——yy
(y

y

Playing the Radio
Features
115
SEEK BAR
SCAN
BUTTON
PWR/VOL KNOB UPPER
DISPLAY
PRESETICONS
AUDIO
DISPLAY
BUTTON
TUNE/SOUNDKNOB
STEREO INDICATOR
AM/FM
BUTTON
AUDIO
SELECTICON SOUND ICON
SCANICON
EX-L and EX-V6 with Navigation System
——yy
(y

y

µ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN, AUTO
SELECT, and the preset bars or
icons.
Use the TUNE bar or
knob to tune the radio to a desired
f requency. Press the side of the
bar or turn the knob to the right to
tune to a higher f requency, and the side or turn the knob to the left
to tune to a lower f requency.
The SEEK f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
bar, then release it.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob or the AM/FM
button. Adjust the volume by turning
the PWR/VOL knob.
Pushing the AUDIO DISPLAY
button will also turn on the system.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
XM Satellite Radio inf ormation is
available on page .
The climate control system f or your
vehicle can also be operated using
the voice control system. See the
Navi section in your Quick Start
Guide f or an overview of this system,
and the Navigation System manual
f or complete details.
135
For Vehicles with Navigation System
Only on models equipped with
Navigation System
Playing the Radio
To Select a Station
TUNE SEEK
To Play the Radio
Voice Control System
116
——y
y
(y

y

µ
µ
µ Pick the preset number (1 6)
you want for that station. Press
the left or right side of the bar or
iconandholdituntilyouheara
beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Each preset bar or icon
can store one f requency on AM, and
two f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
baroricon.
Push the AUDIO DISPLAY button
to view the preset icons.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station f or about f ive seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it for five seconds. When it
plays a station you want to listen to,
press the SCAN button again. 1. 2.3. 4.
For Vehicles with Navigation System
Playing the Radio
Preset
SCAN
Features
117
——yy
