2006 GMC SIERRA automatic transmission fluid

Parking Brake and Automatic
Transmission Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move.
Park on a fairly steep hill, with the vehicle facing downhill.
Keeping your foot on the regular brake, set the parking
brake.
To check the parking brake’s holding ability: With the
engine running and transmission in NEUTRAL (N),
slowly remove foot pressure from the regular brake
pedal. Do this until the vehicle is held by the parking
brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK (P). Then
release the parking brake followed by the regular
brake.
Contact your GM Goodwrench
®dealer if service is
required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
Recommended Fluids and
Lubricants (Gasoline Engine)
This maintenance section applies to vehicles with a
gasoline engine. If your vehicle has a diesel engine, see
the maintenance schedule section in the DURAMAX
®
Diesel Engine Supplement.
Fluids and lubricants identied below by name, part
number, or specication may be obtained from
your dealer.
6-14

Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. GM Goodwrench
®
oil meets all the requirements for
your vehicle. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil (Gasoline
Engine) on page 5-20.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
coolant. SeeEngine Coolant on
page 5-35.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherGM Optikleen
®Washer Solvent.
Hydraulic
Clutch System
(5–Speed
Trans.)Hydraulic Clutch Fluid (GM Part
No. U.S. 12345347, in Canada
10953517) or equivalent DOT-3
brake uid.
Hydraulic
Clutch System
(6–Speed
Trans.)Hydraulic Clutch Fluid. Use only GM
Part No. U.S. 88958860, in Canada
88901244, Super DOT-4 brake uid.
Usage Fluid/Lubricant
Power Steering
SystemGM Power Steering Fluid (GM Part
No. U.S. 89021184, in Canada
89021186).
Manual
Transmission
(5–Speed with
Low Gear,
RPO MW3)GM Goodwrench
®Synthetic Manual
Transmission Fluid (GM Part
No. U.S. 12346190, in Canada
10953477) or equivalent SAE
75W-85 GL-4 gear oil.
Manual
Transmission
(5–Speed
without
Low Gear,
RPO MG5)Synchromesh Transmission Fluid
(GM Part No. U.S. 12345349, in
Canada 10953465).
Manual
Transmission
(6–Speed)Synthetic Transmission Fluid
approved to Allison Transmission
®
specication TES-295 (GM Part
No. U.S. 12378515, in Canada
88900701).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
6-15

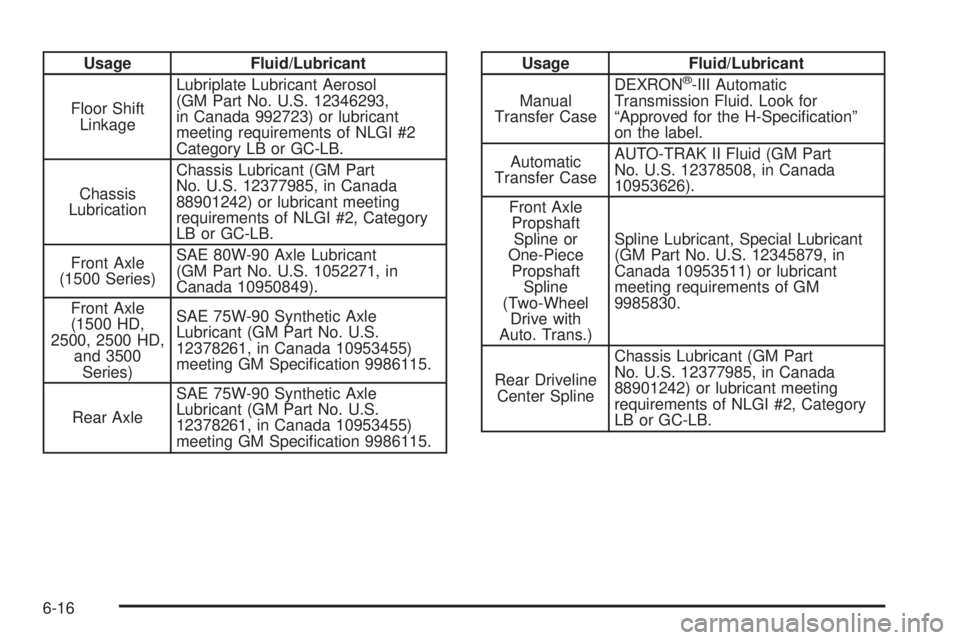

Usage Fluid/Lubricant
Floor Shift
LinkageLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2
Category LB or GC-LB.
Chassis
LubricationChassis Lubricant (GM Part
No. U.S. 12377985, in Canada
88901242) or lubricant meeting
requirements of NLGI #2, Category
LB or GC-LB.
Front Axle
(1500 Series)SAE 80W-90 Axle Lubricant
(GM Part No. U.S. 1052271, in
Canada 10950849).
Front Axle
(1500 HD,
2500, 2500 HD,
and 3500
Series)SAE 75W-90 Synthetic Axle
Lubricant (GM Part No. U.S.
12378261, in Canada 10953455)
meeting GM Specication 9986115.
Rear AxleSAE 75W-90 Synthetic Axle
Lubricant (GM Part No. U.S.
12378261, in Canada 10953455)
meeting GM Specication 9986115.Usage Fluid/Lubricant
Manual
Transfer CaseDEXRON®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Automatic
Transfer CaseAUTO-TRAK II Fluid (GM Part
No. U.S. 12378508, in Canada
10953626).
Front Axle
Propshaft
Spline or
One-Piece
Propshaft
Spline
(Two-Wheel
Drive with
Auto. Trans.)Spline Lubricant, Special Lubricant
(GM Part No. U.S. 12345879, in
Canada 10953511) or lubricant
meeting requirements of GM
9985830.
Rear Driveline
Center SplineChassis Lubricant (GM Part
No. U.S. 12377985, in Canada
88901242) or lubricant meeting
requirements of NLGI #2, Category
LB or GC-LB.
6-16

Audio System(s) (cont.)
Radio with Cassette and CD.........................3-85
Radio with CD............................................3-75
Radio with Six-Disc CD..............................3-100
Rear Seat Audio (RSA)...............................3-127
Setting the Time for Radios with
Radio Data Systems (RDS).......................3-71
Setting the Time for Radios without
Radio Data Systems (RDS).......................3-71
Theft-Deterrent Feature...............................3-129
Understanding Radio Reception...................3-130
XM™ Satellite Radio Antenna System...........3-133
Automatic Headlamp System............................3-15
Automatic Transmission
Fluid..................................................5-28, 5-30
Operation...................................................2-26
Auxiliary Roof Mounted Lamp Switch.................3-18
B
Battery..........................................................5-51
Battery Warning Light......................................3-40
Before Leaving on a Long Trip.........................4-38
Brake
Anti-Lock Brake System (ABS)........................ 4-6
Emergencies................................................ 4-8
Parking......................................................2-52
System Warning Light..................................3-41
Brakes..........................................................5-47
Braking........................................................... 4-5Braking in Emergencies..................................... 4-8
Break-In, New Vehicle.....................................2-21
Bulb Replacement...........................................5-63
Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp............................................5-67
Front Turn Signal, Sidemarker and Daytime
Running Lamps........................................5-64
Halogen Bulbs............................................5-63
Headlamps.................................................5-63
Pickup Box Identication and Fender
Marker Lamps.........................................5-68
Replacement Bulbs......................................5-70
Roof Marker Lamps.....................................5-66
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps........................................5-68
Buying New Tires...........................................5-84
C
California Fuel.................................................. 5-7
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications..........................5-133
Carbon Monoxide...................2-14, 2-57, 4-42, 4-67
Care of
Safety Belts..............................................5-116
Your Cassette Tape Player..........................3-131
Your CD and DVD Player...........................3-132
Your CDs and DVDs..................................3-132
Cargo Lamp...................................................3-19
2

E
Electrical System
Add-On Equipment.....................................5-123
Center Instrument Panel Fuse Block.............5-126
Fuses and Circuit Breakers.........................5-123
Instrument Panel Fuse Block.......................5-124
Power Windows and Other Power Options....5-123
Underhood Fuse Block...............................5-127
Windshield Wiper Fuses.............................5-123
Engine
Air Cleaner/Filter.........................................5-25
Battery.......................................................5-51
Check and Service Engine Soon Light............3-46
Coolant......................................................5-35
Coolant Heater............................................2-25
Coolant Temperature Gage...........................3-43
Drive Belt Routing.......................................6-19
Engine Compartment Overview......................5-14
Exhaust.....................................................2-57
Fan Noise..................................................5-45
Oil .............................................................5-20
Oil Life System...........................................5-23
Overheated Protection Operating Mode...........5-39
Overheating................................................5-37
Starting......................................................2-23Entry Lighting.................................................3-19
Event Data Recorders (EDR)............................. 7-9
Exit Lighting...................................................3-19
Extender, Safety Belt.......................................1-30
F
Filter
Engine Air Cleaner......................................5-25
Finish Damage.............................................5-120
Fixed Mast Antenna.......................................3-132
Flash-to-Pass................................................... 3-9
Flat Tire........................................................5-90
Flat Tire, Changing.........................................5-91
Flat Tire, Storing...........................................5-108
Fluid
Automatic Transmission........................5-28, 5-30
Manual Transmission....................................5-33
Power Steering...........................................5-45
Windshield Washer......................................5-46
Fog Lamps....................................................3-17
Four-Wheel Drive....................................2-38, 5-59
Four-Wheel-Drive Light....................................3-50
Front Axle......................................................5-60
Front Reading Lamps......................................3-19
Front Storage Area.........................................2-79
5

Light (cont.)
Tow/Haul Mode...........................................3-50
Traction Off................................................3-43
Up-Shift.....................................................3-41
Lighting
Entry.........................................................3-19
Exit...........................................................3-19
Loading Your Vehicle.......................................4-48
Locking Rear Axle...........................................4-11
Lockout Protection..........................................2-13
Locks
Delayed Locking..........................................2-10
Door........................................................... 2-8
Lockout Protection.......................................2-13
Power Door.................................................. 2-9
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-13
Loss of Control...............................................4-15
Low Fuel Warning Light...................................3-51
Lumbar
Power Controls............................................. 1-4
M
Maintenance Schedule
Additional Required Services........................... 6-7
At Each Fuel Fill.........................................6-11
At Least Once a Month................................6-12
At Least Once a Year..................................6-12Maintenance Schedule (cont.)
At the First 100, 1,000 and 6,000 Miles
(160, 1 600 and 10 000km).......................6-11
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-9
Maintenance Record....................................6-20
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-18
Owner Checks and Services.........................6-11
Recommended Fluids and Lubricants.............6-14
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-3
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-46
Manual Seats................................................... 1-3
Manual Selectable Ride...................................4-10
Manual Transmission
Fluid..........................................................5-33
Operation...................................................2-34
Manual Windows............................................2-16
Memory Seat.................................................2-83
Message
DIC Warnings and Messages........................3-55
Mirrors
Automatic Dimming Rearview with Compass....2-63
Automatic Dimming Rearview with Compass
and Temperature Display...........................2-65
Automatic Dimming Rearview with OnStar
®
and Compass..........................................2-59
8

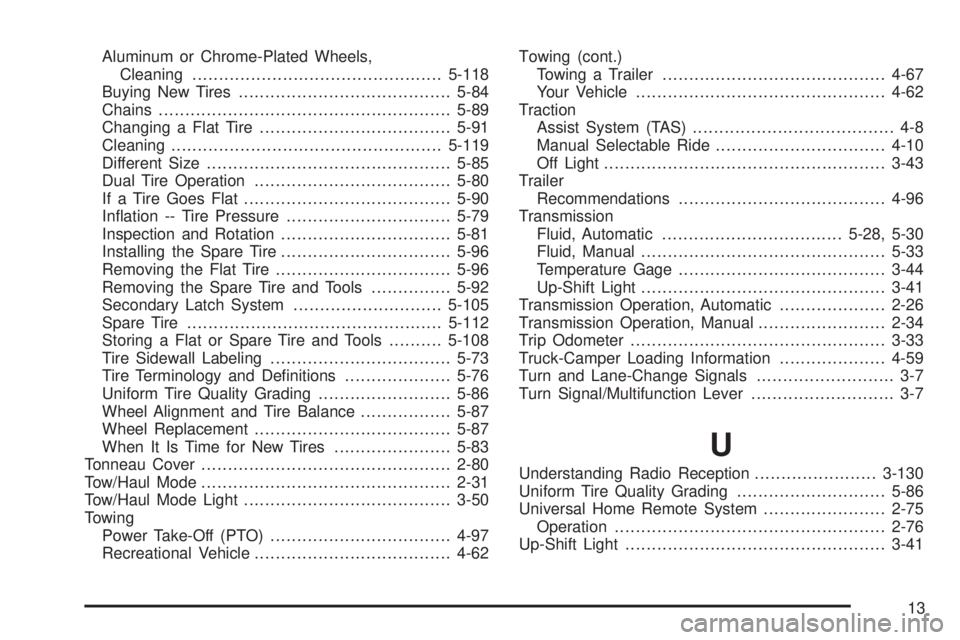

Aluminum or Chrome-Plated Wheels,
Cleaning...............................................5-118
Buying New Tires........................................5-84
Chains.......................................................5-89
Changing a Flat Tire....................................5-91
Cleaning...................................................5-119
Different Size..............................................5-85
Dual Tire Operation.....................................5-80
If a Tire Goes Flat.......................................5-90
Ination -- Tire Pressure...............................5-79
Inspection and Rotation................................5-81
Installing the Spare Tire................................5-96
Removing the Flat Tire.................................5-96
Removing the Spare Tire and Tools...............5-92
Secondary Latch System............................5-105
Spare Tire................................................5-112
Storing a Flat or Spare Tire and Tools..........5-108
Tire Sidewall Labeling..................................5-73
Tire Terminology and Denitions....................5-76
Uniform Tire Quality Grading.........................5-86
Wheel Alignment and Tire Balance.................5-87
Wheel Replacement.....................................5-87
When It Is Time for New Tires......................5-83
Tonneau Cover...............................................2-80
Tow/Haul Mode...............................................2-31
Tow/Haul Mode Light.......................................3-50
Towing
Power Take-Off (PTO)..................................4-97
Recreational Vehicle.....................................4-62Towing (cont.)
Towing a Trailer..........................................4-67
Your Vehicle...............................................4-62
Traction
Assist System (TAS)...................................... 4-8
Manual Selectable Ride................................4-10
Off Light.....................................................3-43
Trailer
Recommendations.......................................4-96
Transmission
Fluid, Automatic..................................5-28, 5-30
Fluid, Manual..............................................5-33
Temperature Gage.......................................3-44
Up-Shift Light..............................................3-41
Transmission Operation, Automatic....................2-26
Transmission Operation, Manual........................2-34
Trip Odometer................................................3-33
Truck-Camper Loading Information....................4-59
Turn and Lane-Change Signals.......................... 3-7
Turn Signal/Multifunction Lever........................... 3-7
U
Understanding Radio Reception.......................3-130
Uniform Tire Quality Grading............................5-86
Universal Home Remote System.......................2-75
Operation...................................................2-76
Up-Shift Light.................................................3-41
13
