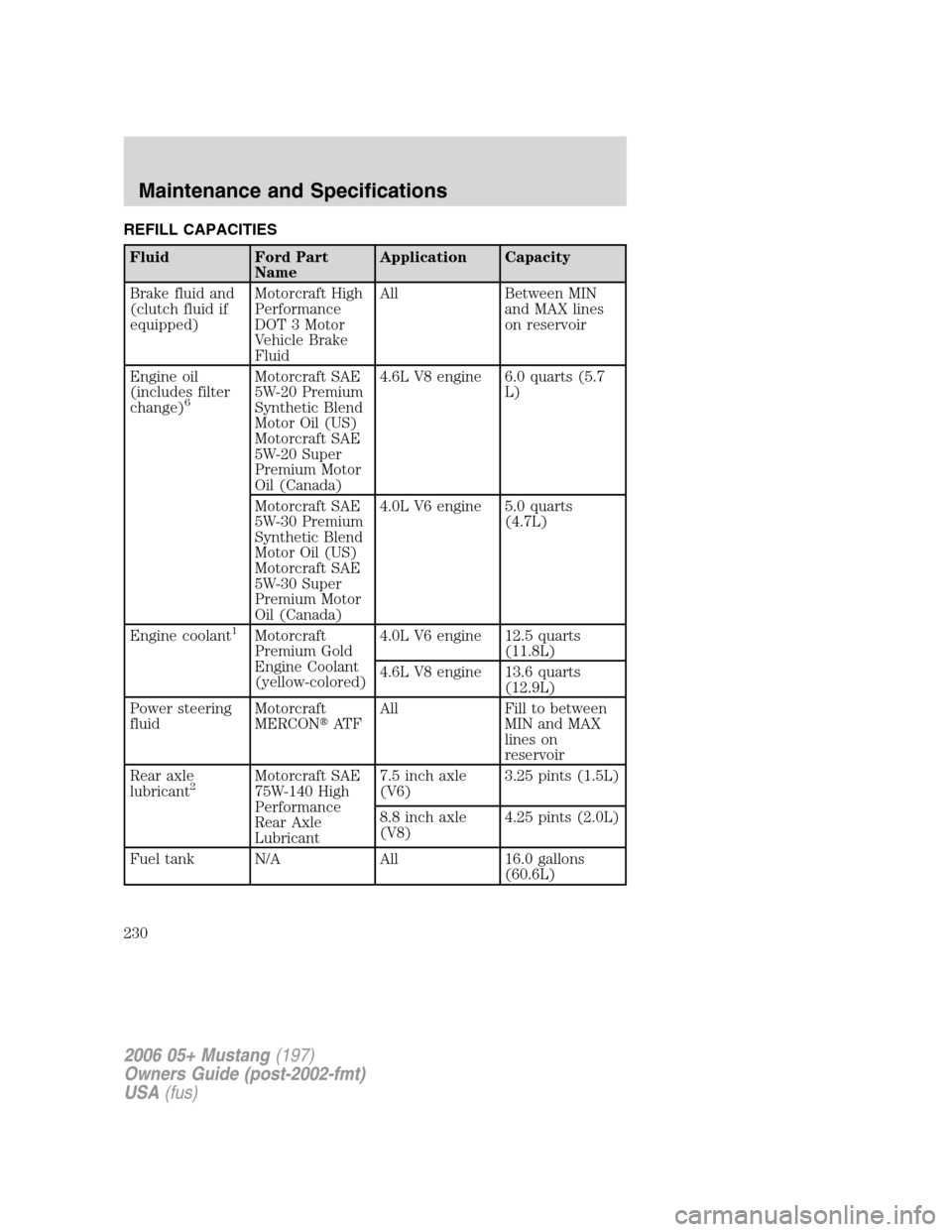

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid and
(clutch fluid if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Between MIN
and MAX lines
on reservoir
Engine oil
(includes filter
change)
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)4.6L V8 engine 6.0 quarts (5.7
L)
Motorcraft SAE
5W-30 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-30 Super
Premium Motor
Oil (Canada)4.0L V6 engine 5.0 quarts
(4.7L)
Engine coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.0L V6 engine 12.5 quarts
(11.8L)
4.6L V8 engine 13.6 quarts
(12.9L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to between
MIN and MAX
lines on
reservoir
Rear axle
lubricant
2Motorcraft SAE
75W-140 High
Performance
Rear Axle
Lubricant7.5 inch axle
(V6)3.25 pints (1.5L)
8.8 inch axle
(V8)4.25 pints (2.0L)
Fuel tank N/A All 16.0 gallons
(60.6L)
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
230

Fluid Ford Part
NameApplication Capacity
Automatic
Transmission
fluid
3
Motorcraft
MERCONV
AT FAll 11.9 quarts
(11.2L)4
Manual
Transmission
fluid
3
Motorcraft
MERCONAT F4.0L V6 engine 2.75 quarts
(2.6L)5
4.6L V8 engine 3.2 quarts
(3.0L)5
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.0 quarts
(3.8L)
1Add the coolant type originally equipped in your vehicle.
2Rear axle lubricants do not need to be checked or changed unless a
leak is suspected, service is required or the axle assembly has been
submerged in water. The axle lubricant should be changed any time the
rear axle has been submerged in water. Fill 1/4 inch to 9/16 inch (6 mm
to 14 mm) below bottom of fill hole. Add 4 oz. (118 ml) of Additive
Friction Modifier XL–3 or equivalent meeting Ford specification
EST-M2C118–A for complete refill of Traction-Lok axles.
3Ensure the correct automatic transmission fluid is used. MERCONand
MERCONV are not interchangeable. DO NOT mix MERCONand
MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval.
4Approximate dry capacity, includes cooler and tubes. Fluid level should
be checked by an authorized dealer.
5Service refill capacity is covered underchecking and adding manual
transmission fluidin this chapter.
6Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C929-A (4.0L) or WSS-M2C930-A (4.6L) and the API
Certification mark.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
231

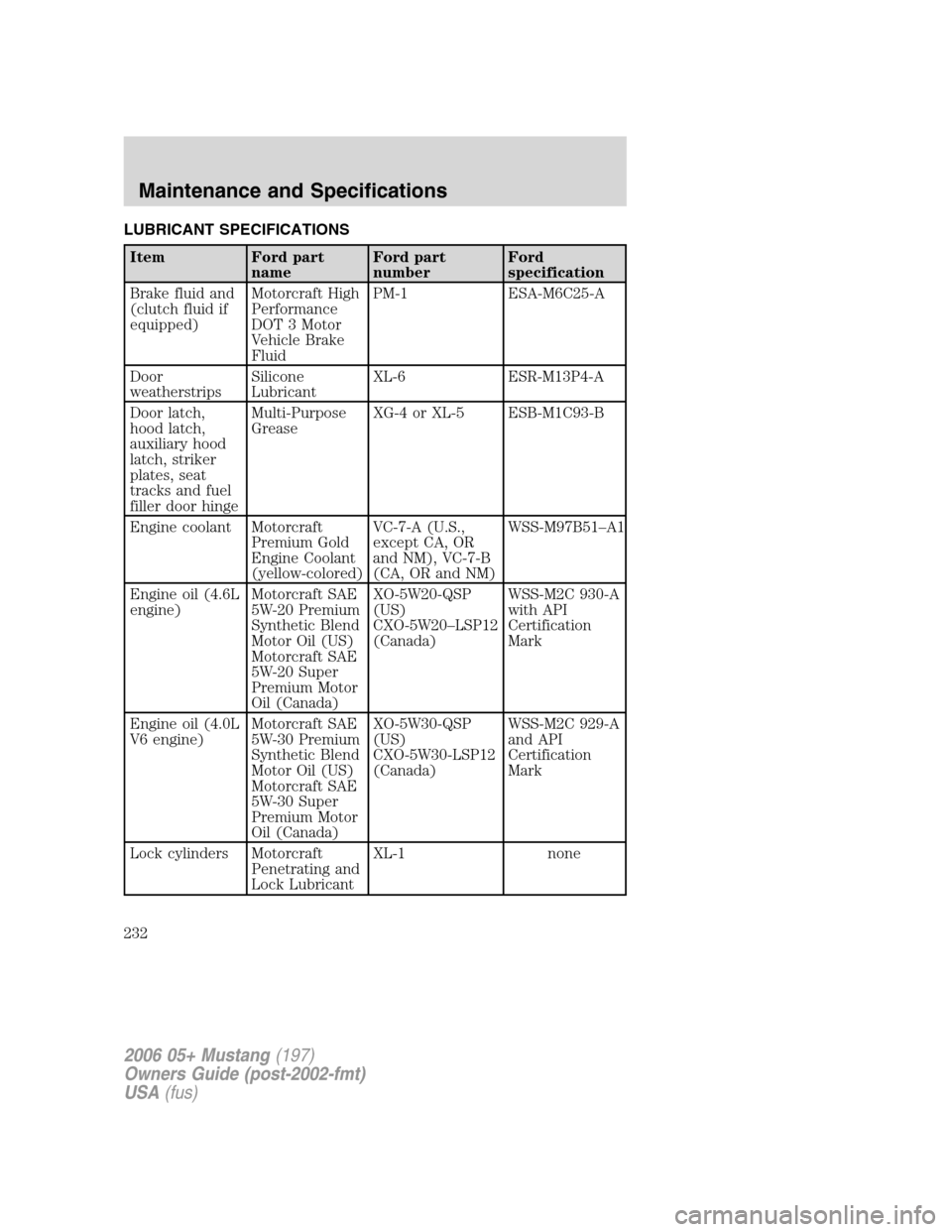

LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid and
(clutch fluid if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
Door
weatherstripsSilicone
LubricantXL-6 ESR-M13P4-A
Door latch,
hood latch,
auxiliary hood
latch, striker
plates, seat
tracks and fuel
filler door hingeMulti-Purpose
GreaseXG-4 or XL-5 ESB-M1C93-B
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA, OR
and NM), VC-7-B
(CA, OR and NM)WSS-M97B51–A1
Engine oil (4.6L
engine)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C 930-A
with API
Certification
Mark
Engine oil (4.0L
V6 engine)Motorcraft SAE
5W-30 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-30 Super
Premium Motor
Oil (Canada)XO-5W30-QSP
(US)
CXO-5W30-LSP12
(Canada)WSS-M2C 929-A
and API
Certification
Mark
Lock cylinders Motorcraft
Penetrating and
Lock LubricantXL-1 none
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
232

A
Accessory delay ..........................45
Air cleaner filter .......................228
Airbag supplemental restraint
system ..................................97, 105
and child safety seats ..............99
description ........................97, 105
disposal ....................................107
driver airbag ......................99, 106
indicator light .........................107
operation ...........................99, 106
passenger airbag ...............99, 106
side airbag ...............................105
Antifreeze (see Engine
coolant) .....................................208
Anti-lock brake system
(see Brakes) ......................150–151
Anti-theft system ........................74
Audio system (see Radio) ...19, 22
Automatic transmission ............154
driving an automatic
overdrive .................................156
fluid, adding ............................226
fluid, checking ........................226
fluid, refill capacities ..............230
fluid, specification ..................234
Auxiliary power point .................43
Axle
lubricant specifications ..232, 234
refill capacities ........................230
traction lok ..............................154
B
Battery .......................................206
acid, treating emergencies .....206
jumping a disabled battery ....176
maintenance-free ....................206replacement, specifications ...228
servicing ..................................206
BeltMinder ...................................92
Brakes ........................................150
anti-lock ...........................150–151
anti-lock brake system (ABS)
warning light ...........................151
fluid, checking and adding ....225
fluid, refill capacities ..............230
fluid, specifications .........232, 234
lubricant specifications ..232, 234
parking ....................................151
shift interlock ..........................154
Break-in period .............................5
Bulbs ............................................36
C
Capacities for refilling fluids ....230
Cell phone use ..............................7
Changing a tire .........................171
Child safety restraints ..............108
child safety belts ....................108
Child safety seats ......................112
attaching with tether straps ..116
in front seat ............................113
in rear seat ..............................113
Cleaning your vehicle
engine compartment ..............190
instrument panel ....................193
interior .....................................193
plastic parts ............................192
washing ....................................189
waxing .....................................189
wheels ......................................190
wiper blades ............................192
Clock adjust
6-CD in dash .............................24
AM/FM/CD .................................20
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Index
241

Clutch
fluid ..........................................225
operation while driving ..........159
recommended shift speeds ....160
Console ........................................44
Controls
power seat .................................78
Convertible ..................................49
cleaning ...................................192
installation of the boot .............51
lowering the convertible top ...49
raising the convertible top ......52
Coolant
checking and adding ..............208
refill capacities ................212, 230
specifications ..................232, 234
Cruise control
(see Speed control) ....................47
Customer Assistance ................162
Ford Extended Service
Plan ..........................................186
Getting assistance outside the
U.S. and Canada .....................186
Getting roadside assistance ...162
Getting the service you
need .........................................182
Ordering additional owner’s
literature .................................187
Utilizing the
Mediation/Arbitration
Program ...................................185
D
Daytime running lamps
(see Lamps) ................................33
Dipstick
automatic transmission
fluid ..........................................226
engine oil .................................201Doors
lubricant specifications ..........232
Driving under special
conditions ..................................158
through water .........................161
E
Electronic message center .........54
Emergencies, roadside
jump-starting ..........................176
Emission control system ..........222
Engine ........................................234
cleaning ...................................190
coolant .....................................208
fail-safe cooling .......................213
idle speed control ...................206
lubrication
specifications ..................232, 234
refill capacities ........................230
service points ..................198–199
Engine block heater .................150
Engine oil ..................................201
checking and adding ..............201
dipstick ....................................201
filter, specifications ........204, 228
recommendations ...................204
refill capacities ........................230
specifications ..................232, 234
Exhaust fumes ..........................149
F
Fail safe cooling ........................213
Floor mats ...................................62
Fluid capacities .........................230
Foglamps .....................................34
Fuel ............................................214
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Index
242
