Downloaded from www.Manualslib.com manuals search engine Introduction..................5
About this handbook........................5
Symbols glossary..............................5
Parts and accessories......................5
Quick start....................7
Child safety.................18
Child seats........................................18
Child seat positioning......................19
Booster cushions.............................21
Child safety locks............................24
Occupant
protection................25
Principle of operation.....................25
Seat belt reminder..........................29
Fastening the seat belts................29
Seat belt height adjustment..........30
Using seat belts duringpregnancy.....................................31
Airbag warning lamp.......................31
Keys and remote
controls...................32
General information on radiofrequencies..................................32
Programming the remotecontrol...........................................32
Changing the remote controlbattery...........................................33
Locks..........................35
Locking and unlocking...................35
Global opening and closing...........40
Engine immobiliser.....41
Principle of operation......................41
Coded keys......................................41
Arming the engine immobiliser.....43
Disarming the engineimmobiliser...................................43
Alarm..........................44
Arming the alarm.............................44
Disarming the alarm........................44
Steering wheel...........46
Adjusting the steering wheel.........46
Horn..................................................46
Audio control...................................46
Voice control....................................47
Wipers and
washers...................48
Windscreen wipers.........................48
Windscreen washers.....................49
Rear window wiper andwashers........................................50
Adjusting the windscreen washerjets..................................................51
Headlamp washers.........................51
Checking the wiper blades............51
Changing the wiper blades...........52
Lighting.......................53
Lighting control................................53
Front fog lamps...............................54
Rear fog lamps................................54
Adjusting the headlamps...............55
Headlamp levelling..........................55
1
Table of Contents

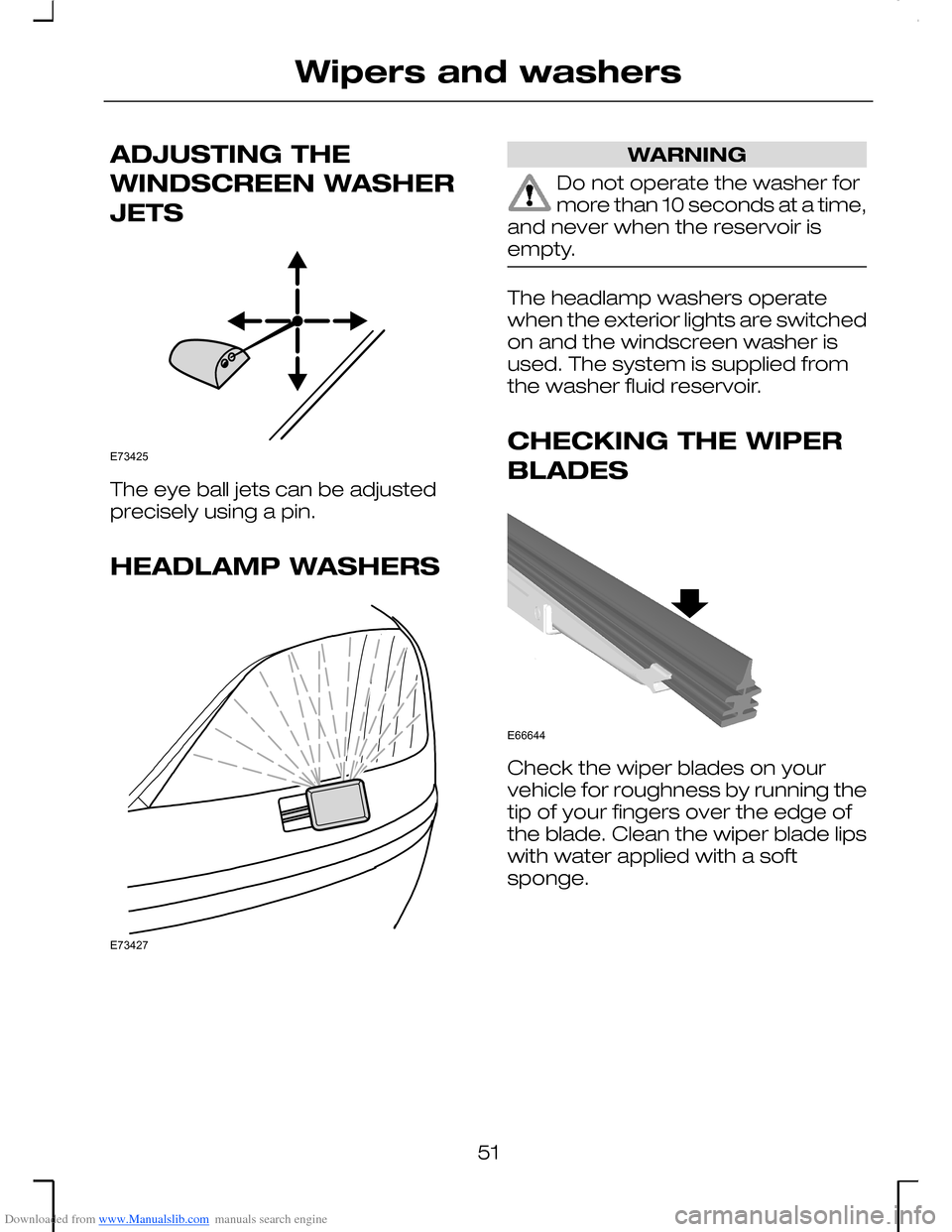

Downloaded from www.Manualslib.com manuals search engine ADJUSTING THE
WINDSCREEN WASHER
JETS
The eye ball jets can be adjustedprecisely using a pin.
HEADLAMP WASHERS
WARNING
Do not operate the washer formore than 10 seconds at a time,and never when the reservoir isempty.
The headlamp washers operatewhen the exterior lights are switchedon and the windscreen washer isused. The system is supplied fromthe washer fluid reservoir.
CHECKING THE WIPER
BLADES
Check the wiper blades on yourvehicle for roughness by running thetip of your fingers over the edge ofthe blade. Clean the wiper blade lipswith water applied with a softsponge.
51
Wipers and washersE73425 E73427 E66644

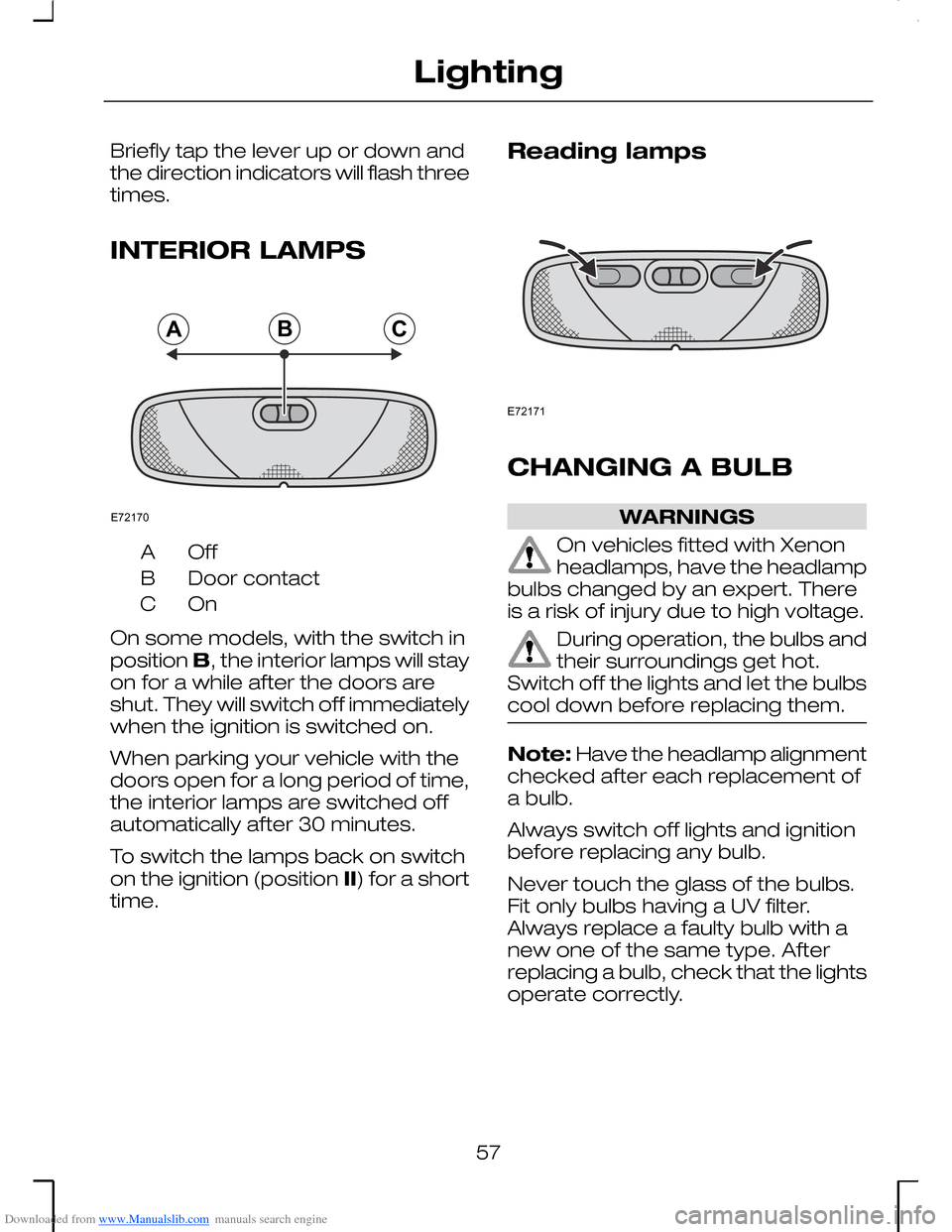

Downloaded from www.Manualslib.com manuals search engine Briefly tap the lever up or down andthe direction indicators will flash threetimes.
INTERIOR LAMPS
OffA
Door contactB
OnC
On some models, with the switch inposition B, the interior lamps will stayon for a while after the doors areshut. They will switch off immediatelywhen the ignition is switched on.
When parking your vehicle with thedoors open for a long period of time,the interior lamps are switched offautomatically after 30 minutes.
To switch the lamps back on switchon the ignition (position II) for a shorttime.
Reading lamps
CHANGING A BULB
WARNINGS
On vehicles fitted with Xenonheadlamps, have the headlampbulbs changed by an expert. Thereis a risk of injury due to high voltage.
During operation, the bulbs andtheir surroundings get hot.Switch off the lights and let the bulbscool down before replacing them.
Note: Have the headlamp alignmentchecked after each replacement ofa bulb.
Always switch off lights and ignitionbefore replacing any bulb.
Never touch the glass of the bulbs.Fit only bulbs having a UV filter.Always replace a faulty bulb with anew one of the same type. Afterreplacing a bulb, check that the lightsoperate correctly.
57
LightingABCE72170 E72171

Downloaded from www.Manualslib.com manuals search engine From inside the luggagecompartment, release the rotary clipsof the rear light assembly cover.
Remove the cover.
Press the two red tabs towardseacht other and separate theassembly from the light housing.
Remove the wiring connector.
Direction indicator 21 wattA
Brake/tail lamp 21/4 wattB
Tail lamp 5 wattC
Reversing lamp H1 halogenbulbD
Tail lamp 5 wattE
Rear fog lamp 21 wattF
Turn the bulb anticlockwise underslight pressure, and remove it.
Replace the bulb.
Install in the reverse order. Afterinstallation, check that the lightsoperate correctly.
Rear lamps (Estate)
Open the tailgate.
From inside the luggagecompartment, remove the top rearlight assembly cover. The bottomcover is fastened with clips. Removethe cover.
Unscrew the two wing nuts from thelight assembly. Make sure the wingnuts do not fall into the opening.
Gently pull out the light assembly.
62
LightingE72548 E72549 E72550

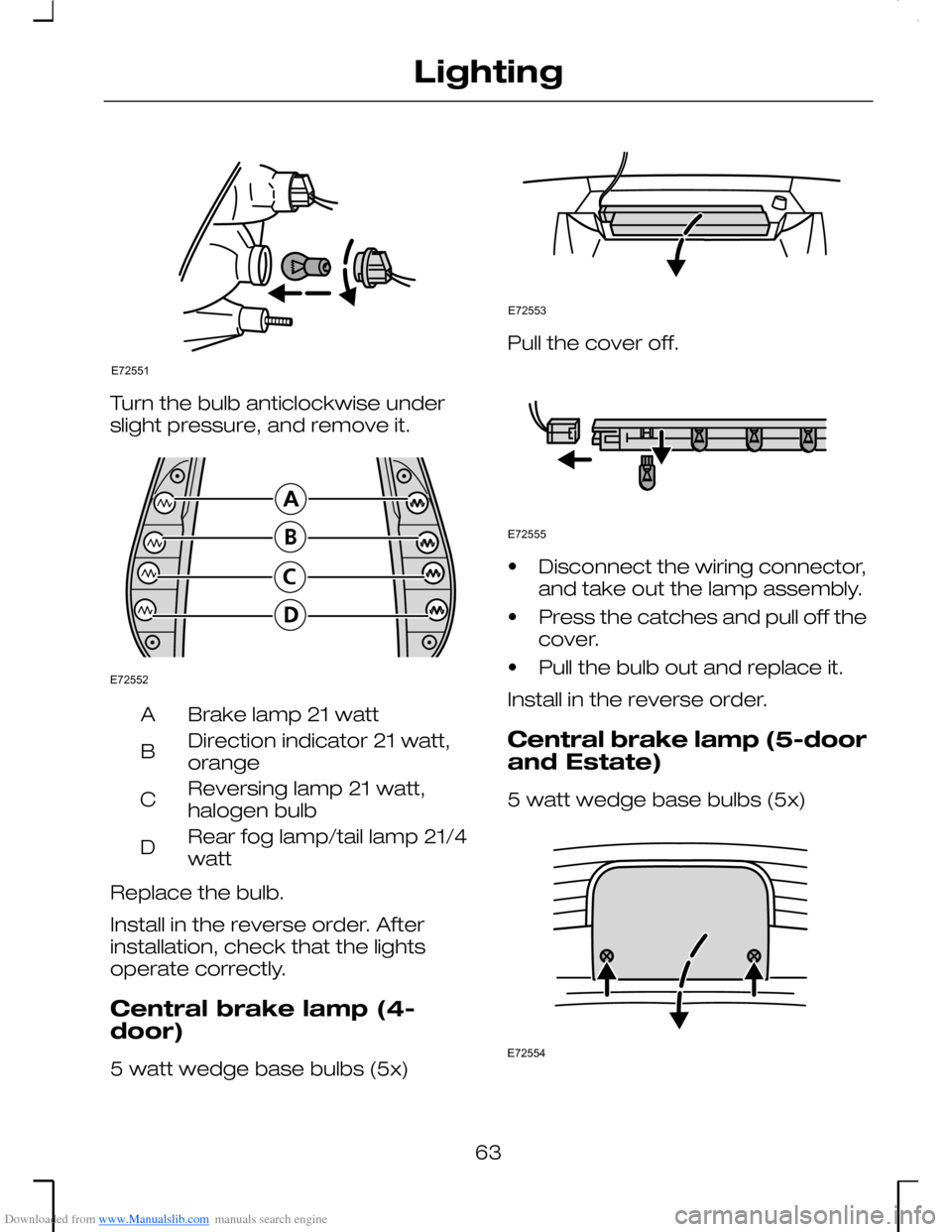

Downloaded from www.Manualslib.com manuals search engine Turn the bulb anticlockwise underslight pressure, and remove it.
Brake lamp 21 wattA
Direction indicator 21 watt,orangeB
Reversing lamp 21 watt,halogen bulbC
Rear fog lamp/tail lamp 21/4wattD
Replace the bulb.
Install in the reverse order. Afterinstallation, check that the lightsoperate correctly.
Central brake lamp (4-door)
5 watt wedge base bulbs (5x)
Pull the cover off.
•Disconnect the wiring connector,and take out the lamp assembly.
•Press the catches and pull off thecover.
•Pull the bulb out and replace it.
Install in the reverse order.
Central brake lamp (5-doorand Estate)
5 watt wedge base bulbs (5x)
63
LightingE72551 E72552 E72553 E72555 E72554

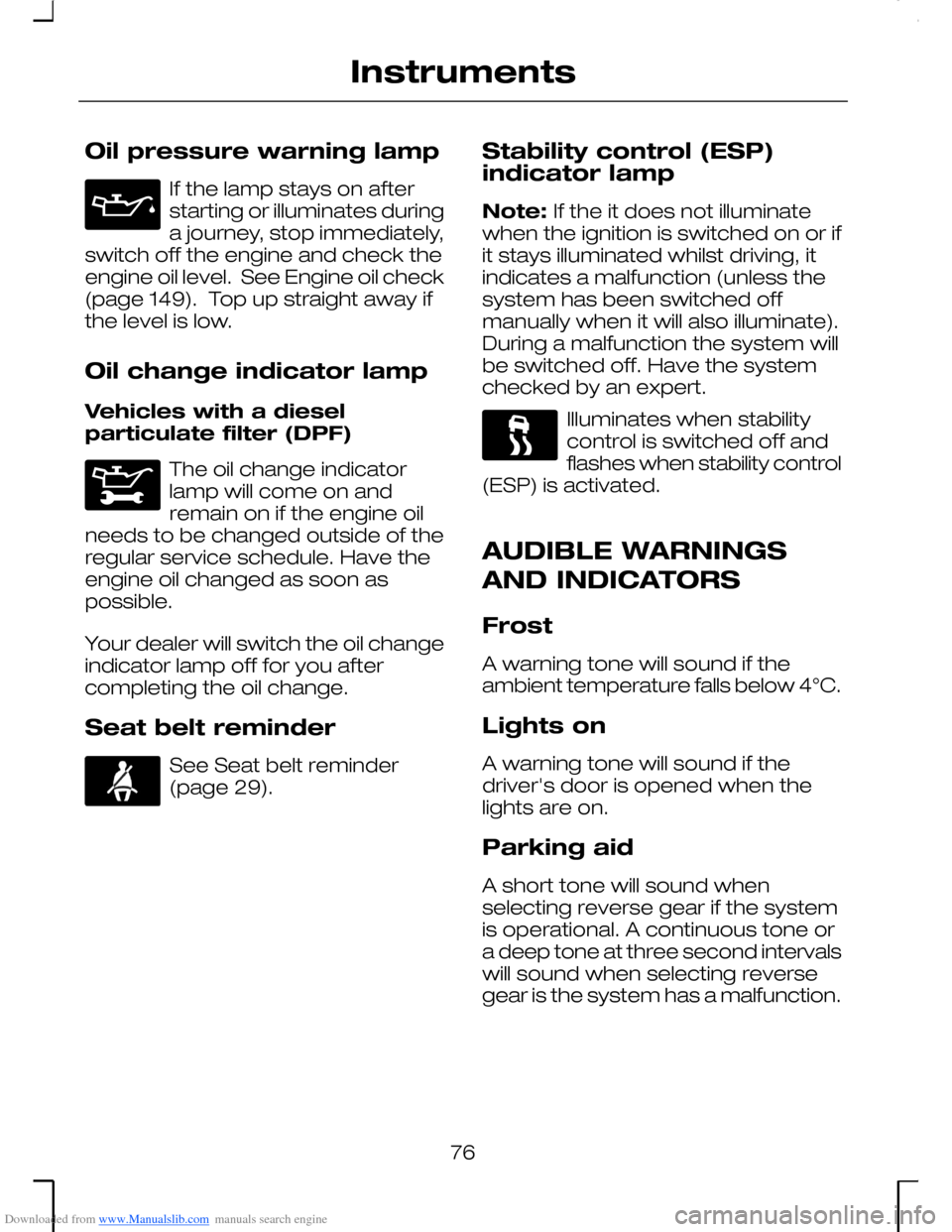

Downloaded from www.Manualslib.com manuals search engine Oil pressure warning lamp
If the lamp stays on afterstarting or illuminates duringa journey, stop immediately,switch off the engine and check theengine oil level. See Engine oil check(page 149). Top up straight away ifthe level is low.
Oil change indicator lamp
Vehicles with a dieselparticulate filter (DPF)
The oil change indicatorlamp will come on andremain on if the engine oilneeds to be changed outside of theregular service schedule. Have theengine oil changed as soon aspossible.
Your dealer will switch the oil changeindicator lamp off for you aftercompleting the oil change.
Seat belt reminder
See Seat belt reminder(page 29).
Stability control (ESP)indicator lamp
Note: If the it does not illuminatewhen the ignition is switched on or ifit stays illuminated whilst driving, itindicates a malfunction (unless thesystem has been switched offmanually when it will also illuminate).During a malfunction the system willbe switched off. Have the systemchecked by an expert.
Illuminates when stabilitycontrol is switched off andflashes when stability control(ESP) is activated.
AUDIBLE WARNINGS
AND INDICATORS
Frost
A warning tone will sound if theambient temperature falls below 4°C.
Lights on
A warning tone will sound if thedriver's door is opened when thelights are on.
Parking aid
A short tone will sound whenselecting reverse gear if the systemis operational. A continuous tone ora deep tone at three second intervalswill sound when selecting reversegear is the system has a malfunction.
76
Instruments

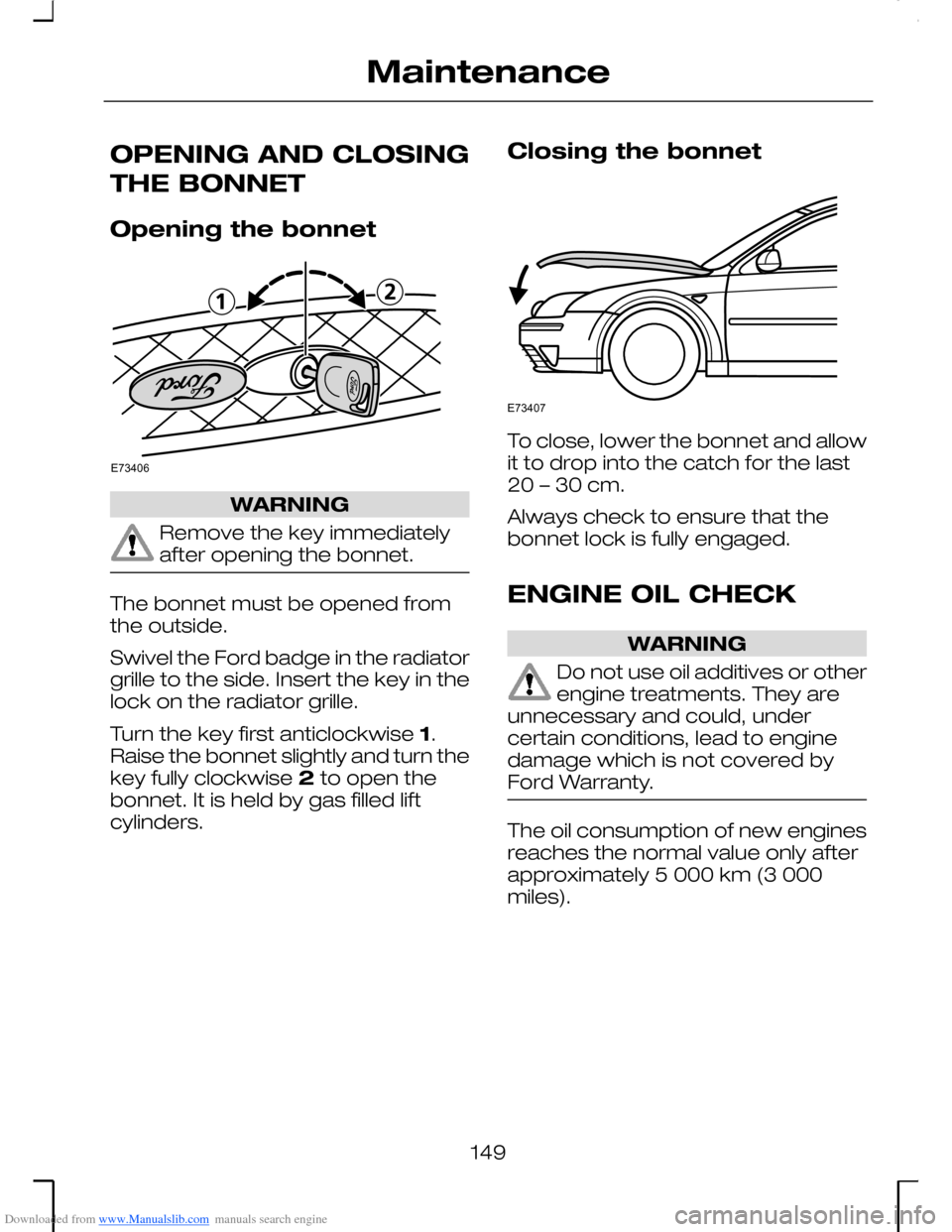

Downloaded from www.Manualslib.com manuals search engine OPENING AND CLOSING
THE BONNET
Opening the bonnet
WARNING
Remove the key immediatelyafter opening the bonnet.
The bonnet must be opened fromthe outside.
Swivel the Ford badge in the radiatorgrille to the side. Insert the key in thelock on the radiator grille.
Turn the key first anticlockwise 1.Raise the bonnet slightly and turn thekey fully clockwise 2 to open thebonnet. It is held by gas filled liftcylinders.
Closing the bonnet
To close, lower the bonnet and allowit to drop into the catch for the last20 – 30 cm.
Always check to ensure that thebonnet lock is fully engaged.
ENGINE OIL CHECK
WARNING
Do not use oil additives or otherengine treatments. They areunnecessary and could, undercertain conditions, lead to enginedamage which is not covered byFord Warranty.
The oil consumption of new enginesreaches the normal value only afterapproximately 5 000 km (3 000miles).
149
MaintenanceE73406 E73407

Downloaded from www.Manualslib.com manuals search engine A
About this handbook........................5Adjusting the headlamps...............55Vehicles with Xenon headlamps.......55
Adjusting the steering wheel.........46Adjusting the windscreen washerjets....................................................51Air vents.............................................81Airbag warning lamp.......................31Alarm.................................................44Approach lamps..............................66Arming the alarm.............................44Alarm......................................................44Automatic arming delay.....................44Interior sensors....................................44
Arming the engine immobiliser.....43Ashtray..............................................98Front ashtray........................................98Rear ashtray.........................................98
Audible warnings andindicators........................................76Frost.......................................................76Lights on................................................76Overspeed............................................77Parking aid............................................76Seat belt reminder...............................77
Audio control...................................46Mode......................................................47Seek.......................................................47Volume..................................................46
Automatic climate control.............84Blower and air distribution..................85Setting the temperature.....................84Switching the air conditioning on andoff.......................................................85Switching the automatic climatecontrol on and off............................85
Automatic transmission fluidcheck............................................152
Automatic transmission................110Drive modes (5-speedtransmission)...................................116Driving with an automatictransmission.....................................114Emergency park position releaselever...................................................116Gear selection.....................................110
Auxiliary heater................................87Auxiliary power sockets.................99Estate....................................................99
B
Battery care....................................158Booster cushions.............................21Integrated booster cushion................21Vario child safety seat.........................23
Brake and clutch fluid check.......152Brakes..............................................118Principle of operation.........................118
C
Cargo nets......................................126Catalytic converter........................103Driving with a catalytic converter.....103Parking.................................................103
187
Index
