2006 FORD MONDEO technical specifications

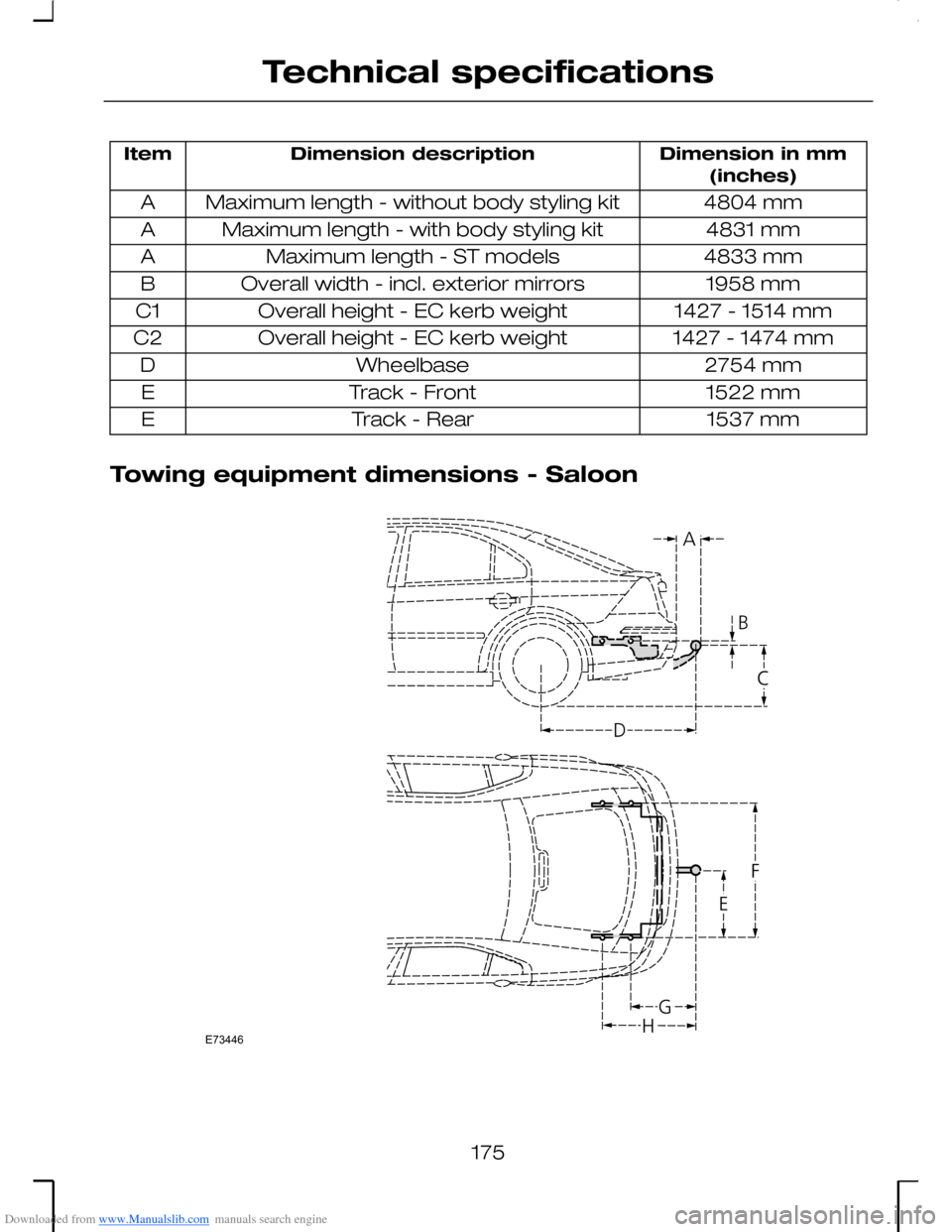

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
4804 mmMaximum length - without body styling kitA
4831 mmMaximum length - with body styling kitA
4833 mmMaximum length - ST modelsA
1958 mmOverall width - incl. exterior mirrorsB
1427 - 1514 mmOverall height - EC kerb weightC1
1427 - 1474 mmOverall height - EC kerb weightC2
2754 mmWheelbaseD
1522 mmTrack - FrontE
1537 mmTrack - RearE
Towing equipment dimensions - Saloon
175
Technical specificationsE73446

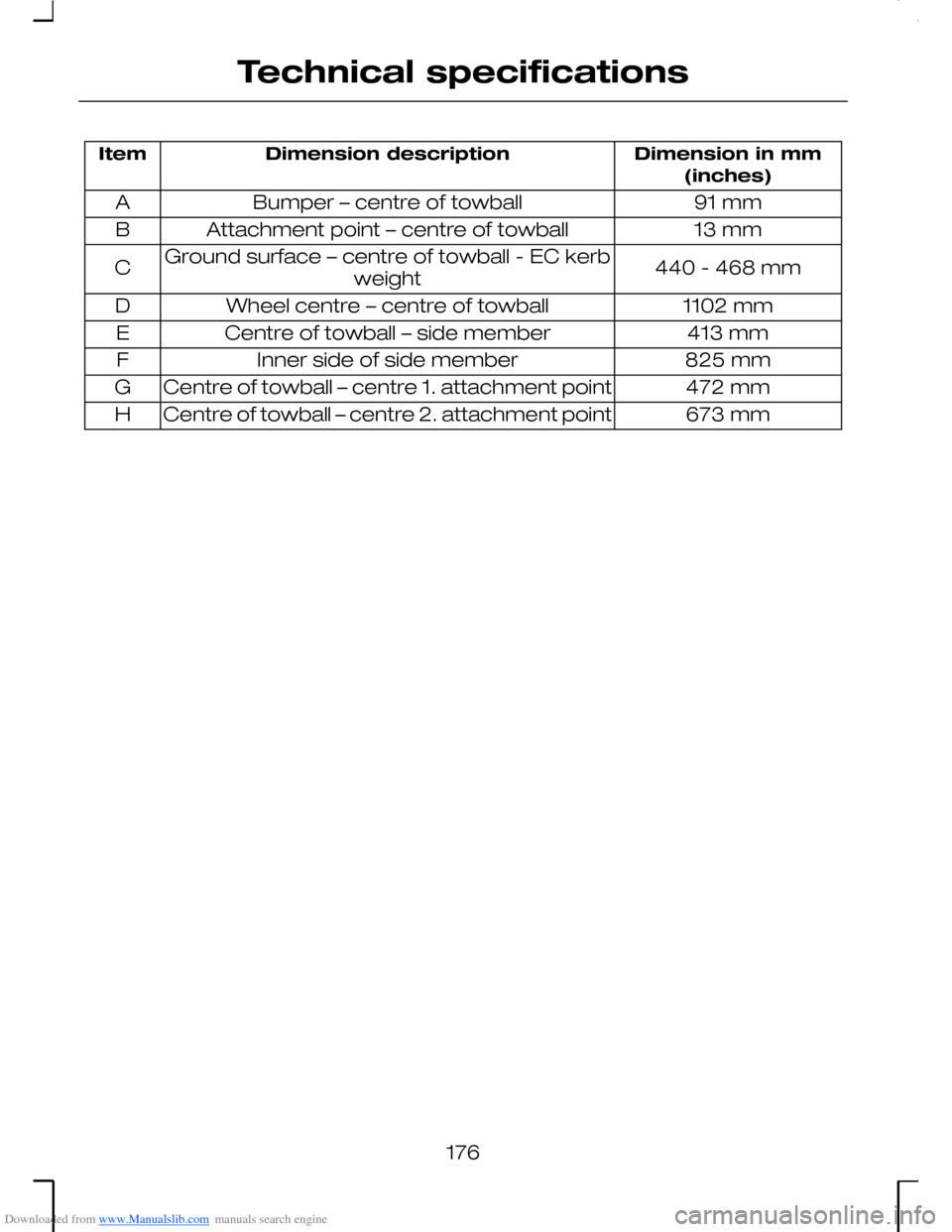

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
91 mmBumper – centre of towballA
13 mmAttachment point – centre of towballB
440 - 468 mmGround surface – centre of towball - EC kerbweightC
1102 mmWheel centre – centre of towballD
413 mmCentre of towball – side memberE
825 mmInner side of side memberF
472 mmCentre of towball – centre 1. attachment pointG
673 mmCentre of towball – centre 2. attachment pointH
176
Technical specifications

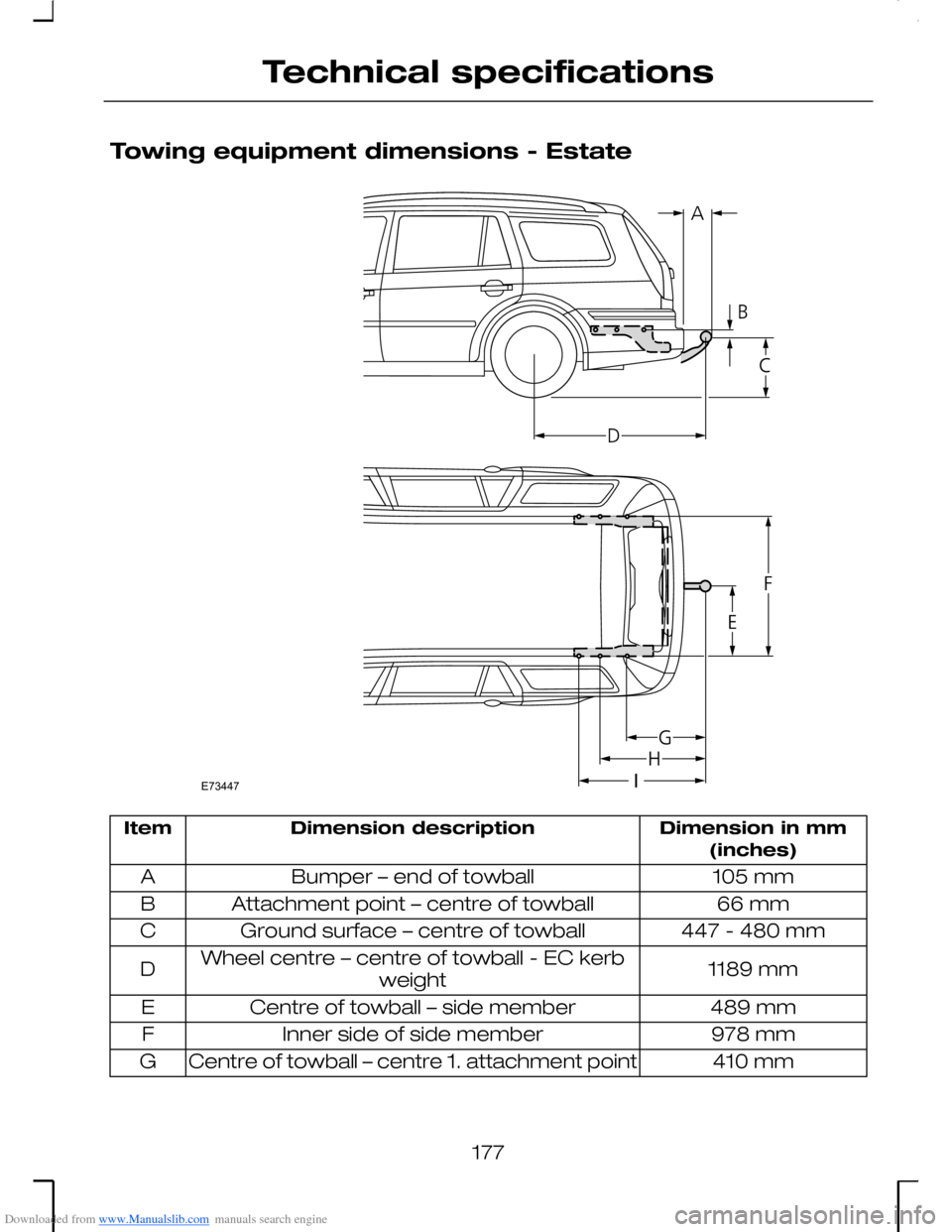

Downloaded from www.Manualslib.com manuals search engine Towing equipment dimensions - Estate
Dimension in mm(inches)Dimension descriptionItem
105 mmBumper – end of towballA
66 mmAttachment point – centre of towballB
447 - 480 mmGround surface – centre of towballC
1189 mmWheel centre – centre of towball - EC kerbweightD
489 mmCentre of towball – side memberE
978 mmInner side of side memberF
410 mmCentre of towball – centre 1. attachment pointG
177
Technical specificationsE73447

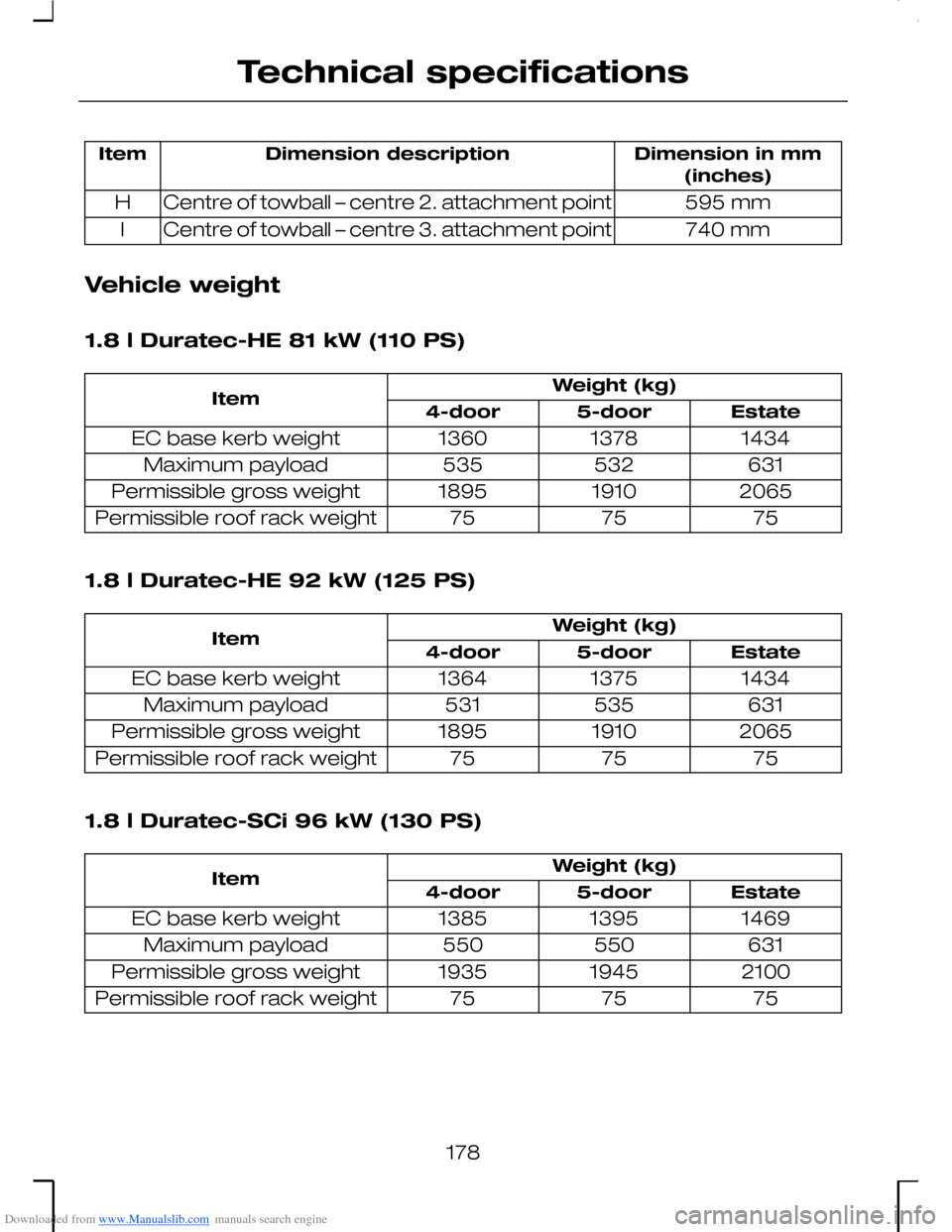

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
595 mmCentre of towball – centre 2. attachment pointH
740 mmCentre of towball – centre 3. attachment pointI
Vehicle weight
1.8 l Duratec-HE 81 kW (110 PS)
Weight (kg)ItemEstate5-door4-door
143413781360EC base kerb weight
631532535Maximum payload
206519101895Permissible gross weight
757575Permissible roof rack weight
1.8 l Duratec-HE 92 kW (125 PS)
Weight (kg)ItemEstate5-door4-door
143413751364EC base kerb weight
631535531Maximum payload
206519101895Permissible gross weight
757575Permissible roof rack weight
1.8 l Duratec-SCi 96 kW (130 PS)
Weight (kg)ItemEstate5-door4-door
146913951385EC base kerb weight
631550550Maximum payload
210019451935Permissible gross weight
757575Permissible roof rack weight
178
Technical specifications

Downloaded from www.Manualslib.com manuals search engine 2.0 l Duratec-HE, Manual
Weight (kg)ItemEstate5-door4-door
143713831369EC base kerb weight
658567566Maximum payload
209519501935Permissible gross weight
757575Permissible roof rack weight
2.0 l Duratec-HE, Automatic
Weight (kg)ItemEstate5-door4-door
147014111391EC base kerb weight
600504514Maximum payload
207019151905Permissible gross weight
757575Permissible roof rack weight
2.5 l Duratec-VE, Manual
Weight (kg)ItemEstate5-door4-door
151114581450EC base kerb weight
629532525Maximum payload
214019901975Permissible gross weight
757575Permissible roof rack weight
2.5 l Duratec-VE, Automatic
Weight (kg)ItemEstate5-door4-door
154514911483EC base kerb weight
625534527Maximum payload
217020252010Permissible gross weight
757575Permissible roof rack weight
179
Technical specifications

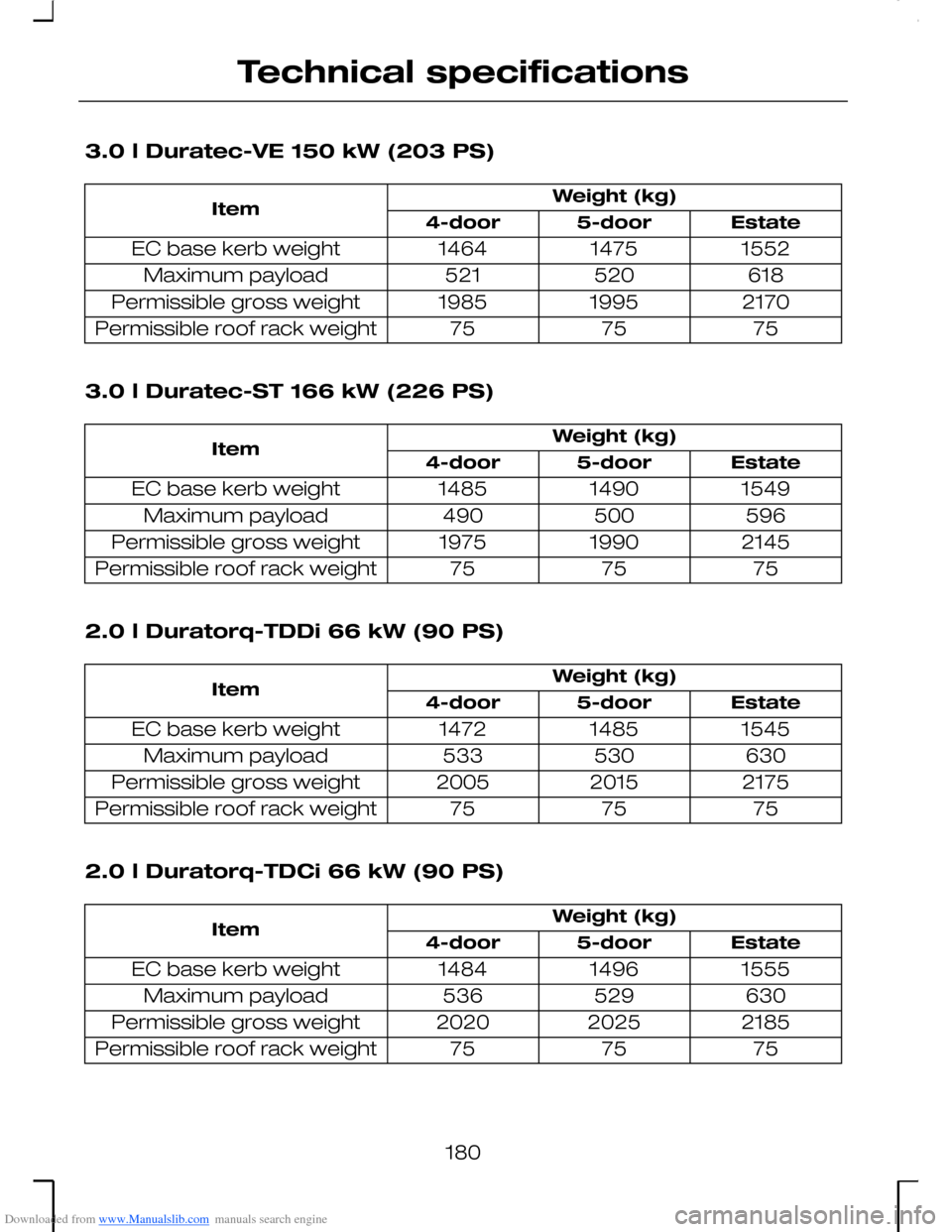

Downloaded from www.Manualslib.com manuals search engine 3.0 l Duratec-VE 150 kW (203 PS)
Weight (kg)ItemEstate5-door4-door
155214751464EC base kerb weight
618520521Maximum payload
217019951985Permissible gross weight
757575Permissible roof rack weight
3.0 l Duratec-ST 166 kW (226 PS)
Weight (kg)ItemEstate5-door4-door
154914901485EC base kerb weight
596500490Maximum payload
214519901975Permissible gross weight
757575Permissible roof rack weight
2.0 l Duratorq-TDDi 66 kW (90 PS)
Weight (kg)ItemEstate5-door4-door
154514851472EC base kerb weight
630530533Maximum payload
217520152005Permissible gross weight
757575Permissible roof rack weight
2.0 l Duratorq-TDCi 66 kW (90 PS)
Weight (kg)ItemEstate5-door4-door
155514961484EC base kerb weight
630529536Maximum payload
218520252020Permissible gross weight
757575Permissible roof rack weight
180
Technical specifications

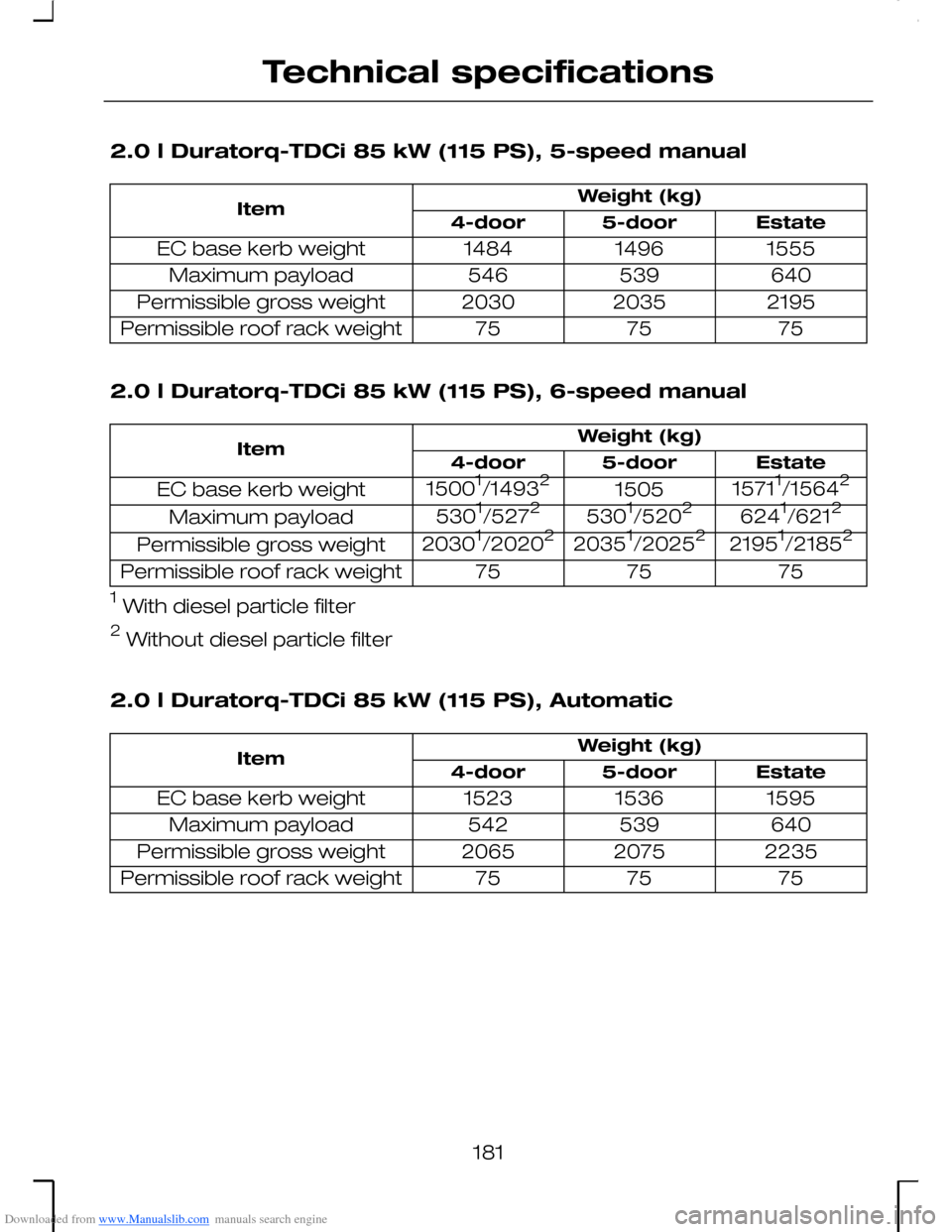

Downloaded from www.Manualslib.com manuals search engine 2.0 l Duratorq-TDCi 85 kW (115 PS), 5-speed manual
Weight (kg)ItemEstate5-door4-door
155514961484EC base kerb weight
640539546Maximum payload
219520352030Permissible gross weight
757575Permissible roof rack weight
2.0 l Duratorq-TDCi 85 kW (115 PS), 6-speed manual
Weight (kg)ItemEstate5-door4-door
15711/15642150515001/14932EC base kerb weight
6241/62125301/52025301/5272Maximum payload
21951/2185220351/2025220301/20202Permissible gross weight
757575Permissible roof rack weight
1 With diesel particle filter
2 Without diesel particle filter
2.0 l Duratorq-TDCi 85 kW (115 PS), Automatic
Weight (kg)ItemEstate5-door4-door
159515361523EC base kerb weight
640539542Maximum payload
223520752065Permissible gross weight
757575Permissible roof rack weight
181
Technical specifications

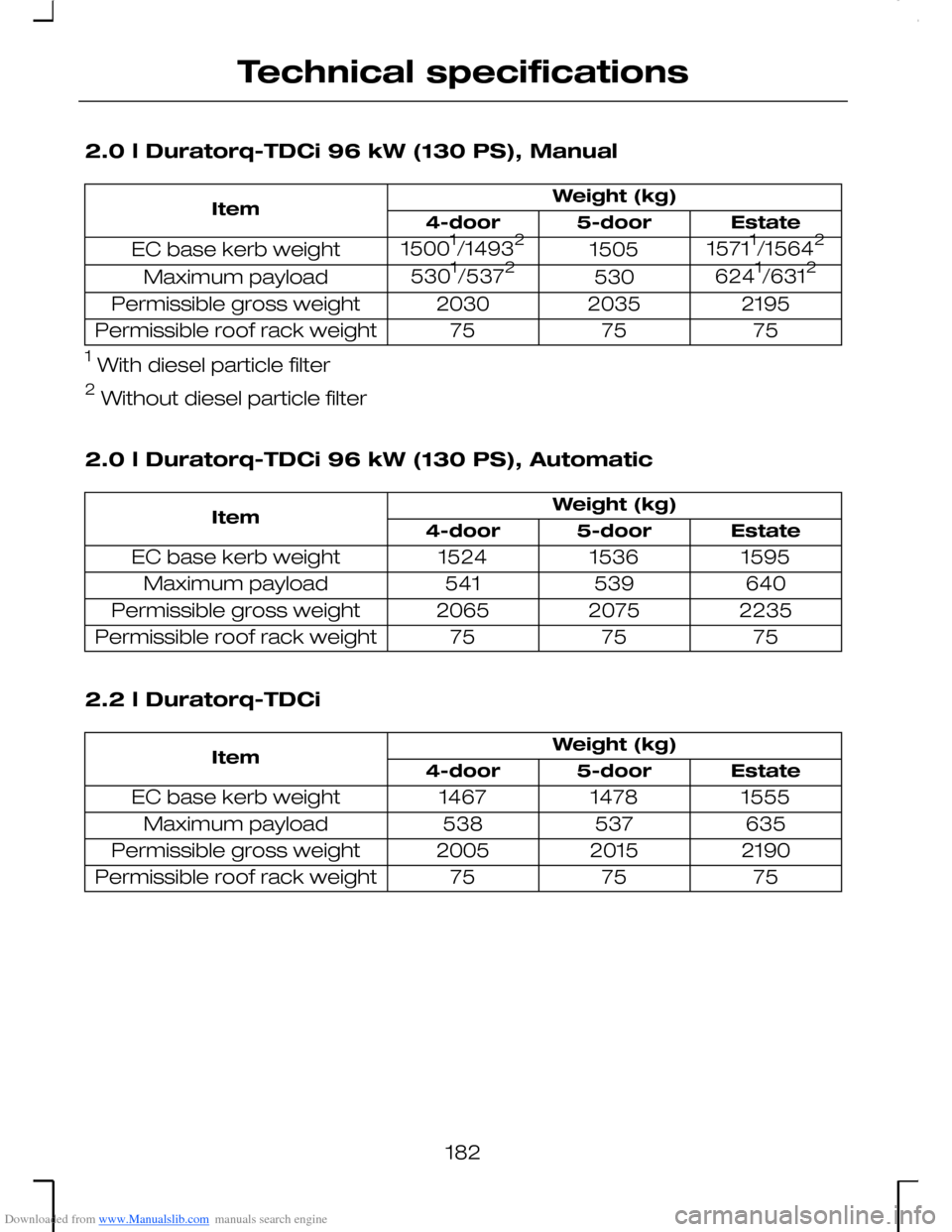

Downloaded from www.Manualslib.com manuals search engine 2.0 l Duratorq-TDCi 96 kW (130 PS), Manual
Weight (kg)ItemEstate5-door4-door
15711/15642150515001/14932EC base kerb weight
6241/63125305301/5372Maximum payload
219520352030Permissible gross weight
757575Permissible roof rack weight
1 With diesel particle filter
2 Without diesel particle filter
2.0 l Duratorq-TDCi 96 kW (130 PS), Automatic
Weight (kg)ItemEstate5-door4-door
159515361524EC base kerb weight
640539541Maximum payload
223520752065Permissible gross weight
757575Permissible roof rack weight
2.2 l Duratorq-TDCi
Weight (kg)ItemEstate5-door4-door
155514781467EC base kerb weight
635537538Maximum payload
219020152005Permissible gross weight
757575Permissible roof rack weight
182
