2006 FORD FUSION (AMERICAS) child restraint

Your vehicle has LATCH anchors for child seat installation at the seating
positions marked with the child seat symbol.
The anchors at the center of the
rear seat are further apart than the
sets of lower anchors for child seat
installation at other seating
positions. A child seat with rigid
LATCH attachments cannot be
installed at this seating position.
LATCH compatible child seats (with
attachments on belt webbing) can
be used at this seating position only if the child seat instructions state
that the child seat can be installed to anchors that are spaced up to
20 inches (500 mm) apart. Do not attach a child seat to any lower
anchor if an adjacent child seat is attached to that anchor.
Never attach two LATCH child safety seats to the same anchor.
In a crash, one anchor may not be strong enough to hold two
child safety seat attachments and may break, causing serious injury or
death.
The lower anchors for child seat
installation are located at the rear
section of the rear seat between the
cushion and seat back. The LATCH
anchors are below the locator
symbols on the seat back.
Follow the child seat manufacturer’s instructions to properly install a
child seat with LATCH attachments.
Attach LATCH lower attachments of the child seat only to the
anchors shown.
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
133

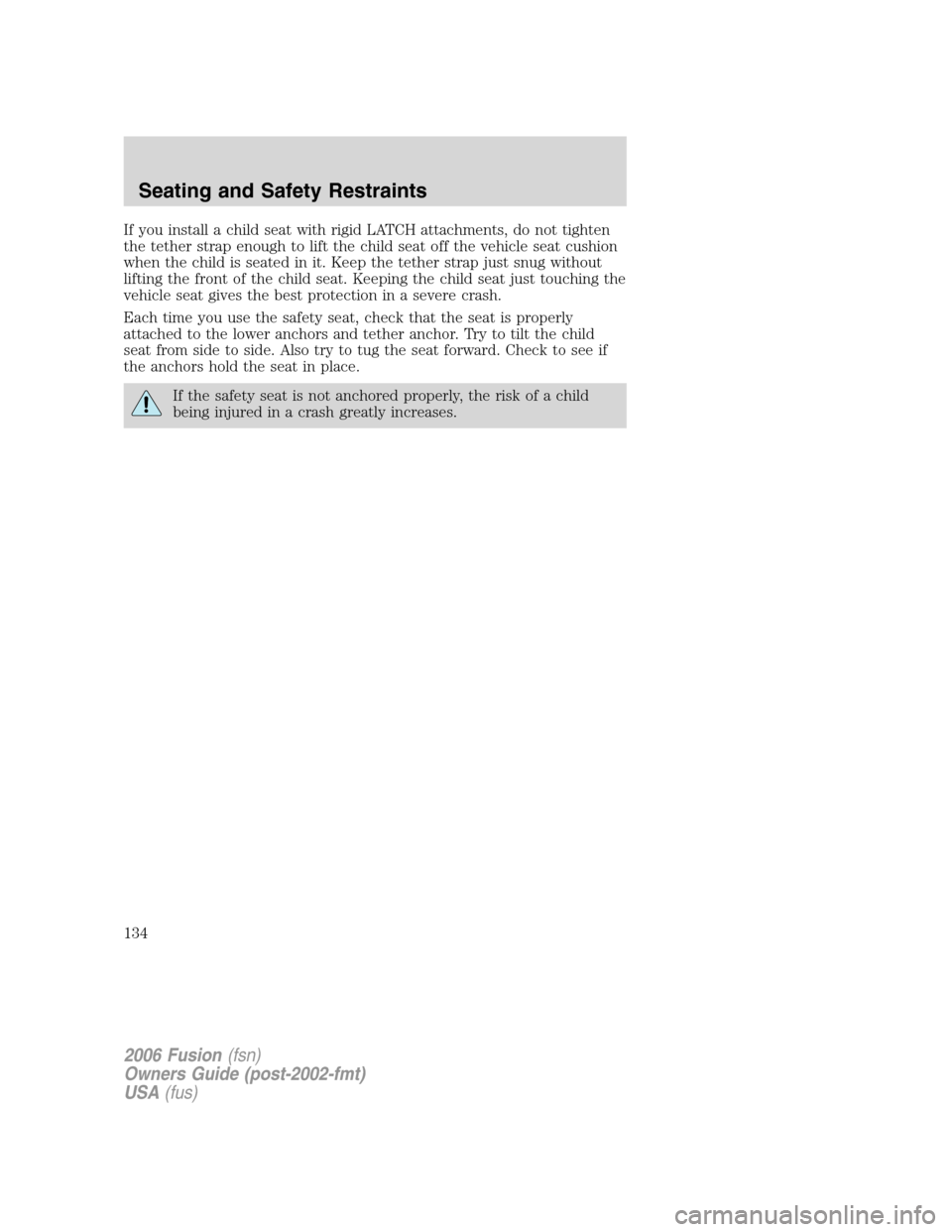

If you install a child seat with rigid LATCH attachments, do not tighten
the tether strap enough to lift the child seat off the vehicle seat cushion
when the child is seated in it. Keep the tether strap just snug without
lifting the front of the child seat. Keeping the child seat just touching the
vehicle seat gives the best protection in a severe crash.
Each time you use the safety seat, check that the seat is properly
attached to the lower anchors and tether anchor. Try to tilt the child
seat from side to side. Also try to tug the seat forward. Check to see if
the anchors hold the seat in place.
If the safety seat is not anchored properly, the risk of a child
being injured in a crash greatly increases.
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
134

A
Accessory delay ..........................53
Air cleaner filter ...............240–242
Air conditioning ....................29, 31
Airbag supplemental restraint
system ................107–108, 116, 119
and child safety seats ............109
description ..............108, 116, 119
disposal ....................................123
driver airbag ............110, 117, 121
indicator light .........116, 118, 122
operation .................110, 117, 121
passenger airbag .....110, 117, 121
side airbag .......................116, 119
Antifreeze
(see Engine coolant) ................218
Anti-lock brake system
(see Brakes) ......................160–161
Anti-theft system ........................85
arming the system ....................85
disarming a triggered system ..86
Audio system (see Radio) ...17, 21
Automatic transaxle
fluid, adding ....................235, 237
fluid, checking ................235, 237
Automatic transmission
driving an automatic
overdrive .........................165–166
fluid, refill capacities ..............243
fluid, specification ..................246
Axle
lubricant specifications ..245–246
B
Battery .......................................216
acid, treating emergencies .....216
jumping a disabled battery ....185maintenance-free ....................216
replacement, specifications ...242
servicing ..................................216
BeltMinder .................................102
Brakes ........................................160
anti-lock ...........................160–161
anti-lock brake system
(ABS) warning light ...............160
fluid, checking and adding ....235
fluid, refill capacities ..............243
fluid, specifications .........245–246
lubricant specifications ..245–246
parking ....................................161
shift interlock ..........................163
Break-in period .............................5
Bulbs ............................................39
C
Capacities for refilling fluids ....243
Cassette tape player ...................17
Cell phone use ..............................7
Changing a tire .........................179
Child safety restraints ..............123
child safety belts ....................123
Child safety seats ......................127
attaching with tether straps ..131
in front seat ............................128
in rear seat ..............................128
Cleaning your vehicle
engine compartment ..............199
instrument panel ....................202
interior .....................................203
interior trim ............................203
plastic parts ............................201
washing ....................................198
waxing .....................................198
wheels ......................................199
wiper blades ............................202
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
254

Safety belts (see
Safety restraints) ..........93, 97–101
Safety defects, reporting ..........197
Safety restraints ............93, 97–101
belt minder .............................102
extension assembly ................106
for adults ...........................98–100
for children .............................123
Occupant Classification
Sensor ........................................95
safety belt maintenance .........106
warning light and chime ........101
Safety seats for children ..........127
Safety Compliance
Certification Label ....................248
Seat belts
(see Safety restraints) ...............93
Seats ............................................88
child safety seats ....................127
front seats ...........................88–89
heated ........................................31
Servicing your vehicle ..............206
Setting the clock
AM/FM/CD .................................17
AM/FM/In-dash 6 CD ................22
Spark plugs,
specifications .............242, 246–247
Specification chart,
lubricants ...........................245–246
Speed control ..............................55
Starting your
vehicle ........................156–157, 159
jump starting ..........................185
Steering
speed sensitive .......................163
Steering wheel
controls ......................................58tilting .........................................50
T
Tilt steering wheel ......................50
Tires ...........................135–136, 179
alignment ................................142
care ..........................................139
changing ..........................179, 181
checking the pressure ............139
inspecting and inflating .........137
label .........................................148
replacing ..................................141
rotating ....................................142
safety practices .......................141
sidewall information ...............143
snow tires and chains ............149
spare tire .................................179
terminology .............................136
tire grades ...............................136
treadwear ........................135, 140
Towing .......................................154
recreational towing .................154
trailer towing ..........................154
wrecker ....................................190
Traction control ........................162
Transaxle
fluid, checking and adding
(automatic) .....................235, 237
fluid, checking and adding
(manual) .................................240
Transmission .............................163
brake-shift interlock (BSI) ....163
fluid, refill capacities ..............243
lubricant specifications ..245–246
manual operation ....................168
Trunk ...........................................73
remote release ....................68, 76
Turn signal ..................................39
V
Vehicle dimensions ...................247
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
258
