PLG encounters an obstacle while opening, the PLG will stop when it
encounters a solid obstacle. Close the liftgate manually and remove the
obstruction. Normal operation can then be resumed.
Resetting the PLG:
The power liftgate may not operate properly if any of the following
conditions occur:
•a low voltage or dead battery
•disconnected battery
•the liftgate has been left open or unlatched for more than six (6)
hours
If any of these conditions occur, the PLG must be reset. To reset the
PLG:
1. Manually close and fully latch the liftgate.
2. Power open the liftgate by using the remote entry transmitter or
overhead console button.
3. Once the liftgate is fully open, close the liftgate using the power
switch on the liftgate, remote entry transmitter or overhead console
button.
Liftgate ajar signal
If the liftgate is not fully latched, you will receive a “LIFTGATE AJAR”
message on the instrument panel. If you see this message, check the
liftgate to ensure it is fully latched.
Make sure the liftgate is closed to prevent exhaust fumes from
being drawn into the vehicle. If you must drive with the liftgate
open, keep the climate control vents open so that fresh outside air
circulates through the vehicle.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
87

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
Refer to theSecuriLock
passive anti-theft systemsection in this
chapter for more information.
POWER DOOR LOCKS
Press the top portion of the control
to unlock all doors and the bottom
portion to lock all doors.Note:
When the perimeter alarm is armed,
the power door locks “inhibit” state
is enabled and this switch is
disabled.
Memory lock
If you lock your doors with the power lock switch, the keyless entry
system or the remote entry transmitter while the sliding door is open,
the door will automatically lock after it is closed.
Smart locks (if equipped)
This feature prevents you from locking yourself out of the vehicle if your
key is still in the ignition.
When you open the driver’s door and you lock the vehicle with the
power door lock control, all the doors will lock, then the driver’s door
will automatically unlock reminding you that your key is still in the
ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock button on the door, locking the driver’s door with a key, by
simultaneously pressing button 7•8 and the 9•0 controls on the
remote entry keypad (if equipped), or using the lock button on the
remote entry transmitter (if equipped).
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
91

CHILDPROOF DOOR LOCKS
•When these locks are set, the
sliding doors cannot be opened
with the inside handle.
•The sliding doors can be opened
from the outside when the doors
are unlocked.
The childproof lock controls are
located on front edge of each sliding
door and must be set separately for each door. Setting the lock for one
door will not automatically set the lock for both doors.
•Move lock control up to engage the childproof lock feature.
•Move control down to disengage childproof lock feature.
If your vehicle is equipped with power sliding door(s), refer to the
Power sliding doorsection of this chapter for more information on how
the childproof locks operate with this system.
REMOTE ENTRY SYSTEM
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
93

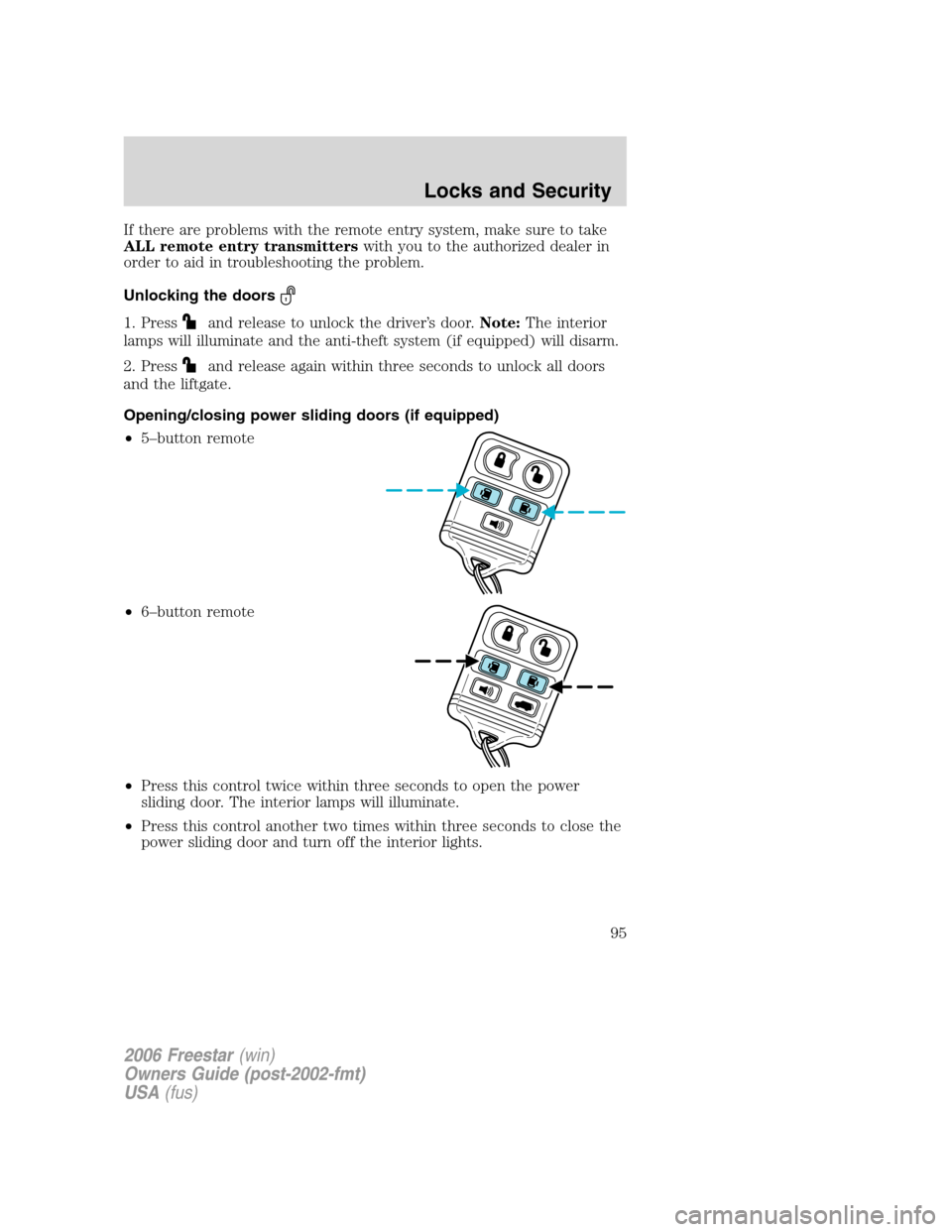

If there are problems with the remote entry system, make sure to take
ALL remote entry transmitterswith you to the authorized dealer in
order to aid in troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate and the anti-theft system (if equipped) will disarm.
2. Press
and release again within three seconds to unlock all doors
and the liftgate.
Opening/closing power sliding doors (if equipped)
•5–button remote
•6–button remote
•Press this control twice within three seconds to open the power
sliding door. The interior lamps will illuminate.
•Press this control another two times within three seconds to close the
power sliding door and turn off the interior lights.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
95

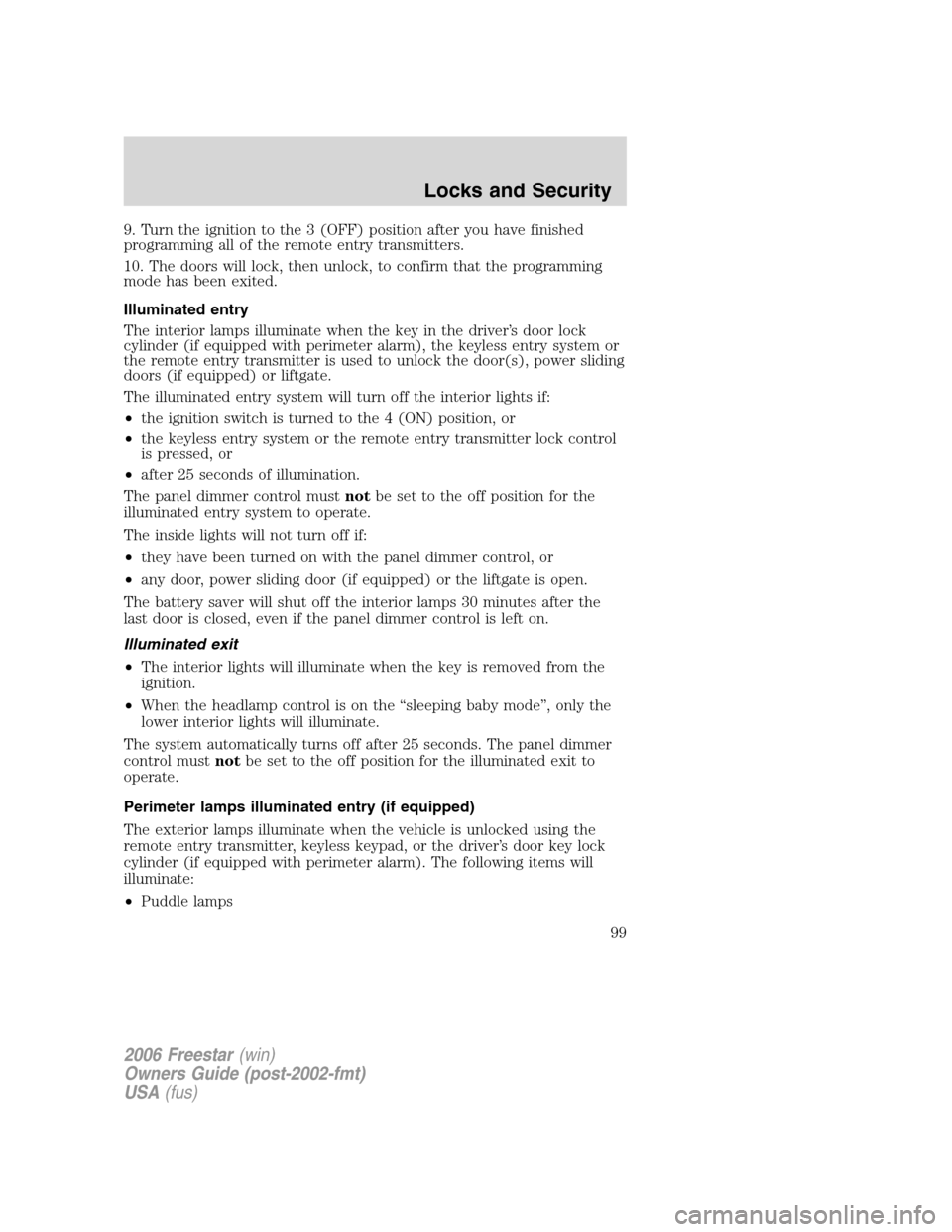

9. Turn the ignition to the 3 (OFF) position after you have finished
programming all of the remote entry transmitters.
10. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Illuminated entry
The interior lamps illuminate when the key in the driver’s door lock
cylinder (if equipped with perimeter alarm), the keyless entry system or
the remote entry transmitter is used to unlock the door(s), power sliding
doors (if equipped) or liftgate.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 4 (ON) position, or
•the keyless entry system or the remote entry transmitter lock control
is pressed, or
•after 25 seconds of illumination.
The panel dimmer control mustnotbe set to the off position for the
illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the panel dimmer control, or
•any door, power sliding door (if equipped) or the liftgate is open.
The battery saver will shut off the interior lamps 30 minutes after the
last door is closed, even if the panel dimmer control is left on.
Illuminated exit
•The interior lights will illuminate when the key is removed from the
ignition.
•When the headlamp control is on the “sleeping baby mode”, only the
lower interior lights will illuminate.
The system automatically turns off after 25 seconds. The panel dimmer
control mustnotbe set to the off position for the illuminated exit to
operate.
Perimeter lamps illuminated entry (if equipped)
The exterior lamps illuminate when the vehicle is unlocked using the
remote entry transmitter, keyless keypad, or the driver’s door key lock
cylinder (if equipped with perimeter alarm). The following items will
illuminate:
•Puddle lamps
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
99

•Head lamps
•Park lamps
•Tail lamps
The system will automatically turn off if:
•the vehicle is locked using the remote entry system, the keyless entry
keypad, or
•the ignition is turned to the 4 (ON) position, or
•after 25 seconds of illumination.
Deactivating/activating perimeter lamps
You may enable/disable this feature by having your vehicle serviced by
your authorized dealer.
You may also perform the following power door lock sequence to
enable/disable the perimeter lamps feature:
1. Turn the ignition to the 4 (ON) position, then press the power door
unlock control 3 times.
2. Turn the ignition to the 3 (OFF) position, then press the power door
unlock control 3 times.
3. Turn the ignition to 4 (ON) position. Completing the sequence within
30 seconds enters a program mode and is confirmed by a horn chirp.
Activating or deactivating perimeter lighting once in program mode is
accomplished by:
•Pressing the power door unlock control twice within five seconds. At
this point, perimeter lighting will be activated if it was previously
deactivated, and deactivated if it was previously activated.
Confirmation of perimeter lighting being activated is provided by a
short horn chirp followed by a long horn sound; Confirmation of
perimeter lighting being deactivated is provided by a short horn chirp
only.
•Exiting the program mode is accomplished by turning the ignition to
any position other than the 4 (ON) position, or two minutes elapsing
since the program mode was entered.
Note:The puddle lamps cannot be deactivated. Performing this
deactivation procedure will only deactivate the head, park and tail lamps.
For information regarding perimeter lamps delay, refer toAutolamps -
Programmable exit delayin theLightschapter.
Memory feature (if equipped)
The remote entry system allows you to recall the memory seat/side view
mirrors/adjustable pedals feature.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
100

Pressto automatically move the driver seat, side view mirrors and
adjustable pedals to the desired memory position.
Associating the remote transmitter with the memory feature
To activate this feature:
1. Position the driver’s seat, side view mirrors and adjustable pedals to
the positions you desire.
2. Press the SET control on the
door next to the window inside from
the mirror.
3. Within 5 five seconds, press any
control on the remote transmitter
and then press the 1 or 2 control on
the driver’s door panel to associate
with the Driver 1 or Driver 2
positions.
4. Repeat this procedure for another
remote transmitter if desired.
Disassociating the memory feature from the remote transmitter
To deactivate this feature:
1. Press the SET control on the driver’s door panel.
2. Within 5 five seconds, press any control on the remote transmitter
which you would like to deactivate and then press the SET control on
the driver’s door panel again.
3. Repeat this procedure for another remote transmitter if desired.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without using a key.
•activate or deactivate the autolock feature.
•open and close the right and left power sliding doors (if equipped).
•recall memory seat/side view mirrors/adjustable pedals position Driver
1 or Driver 2 (if equipped).
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
101

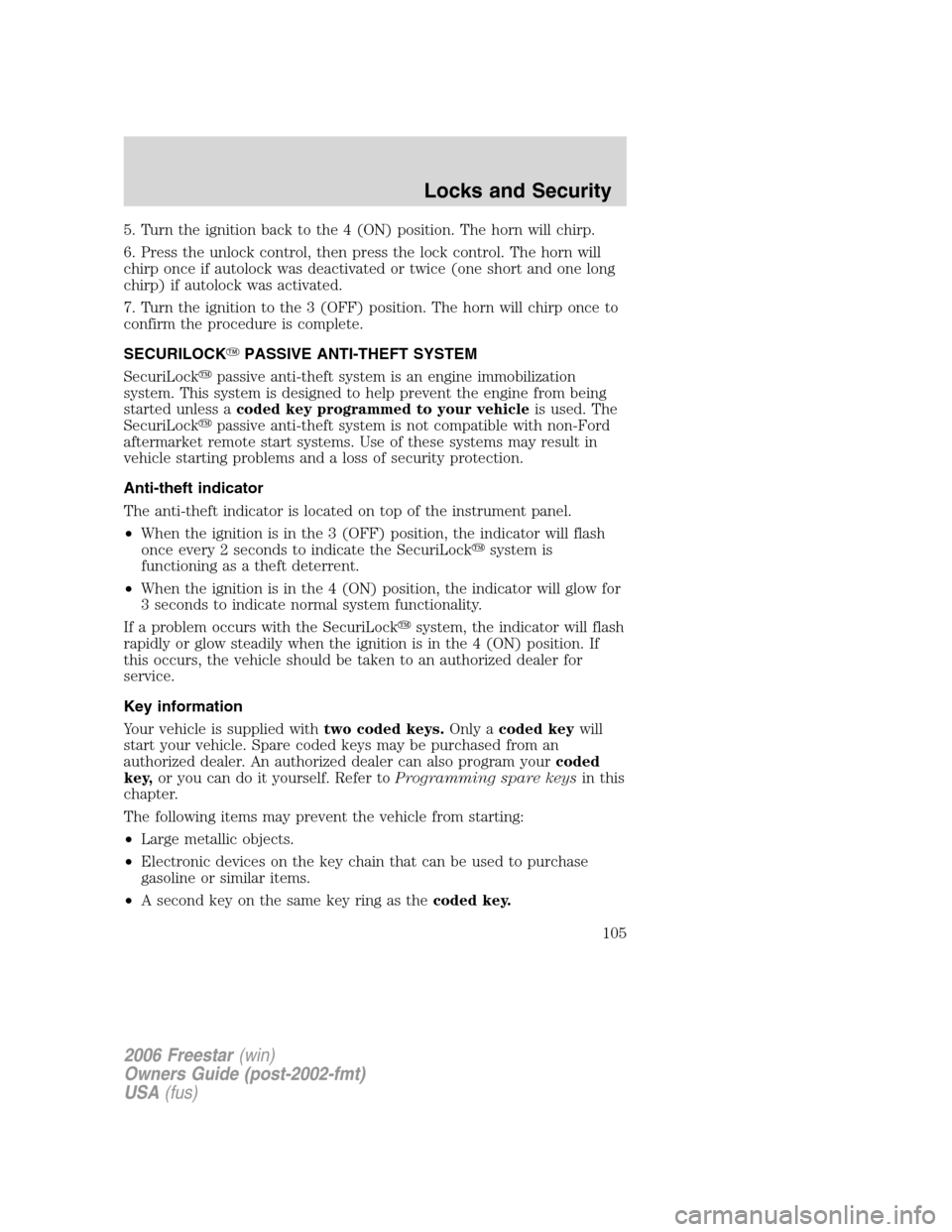

5. Turn the ignition back to the 4 (ON) position. The horn will chirp.
6. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
7. Turn the ignition to the 3 (OFF) position. The horn will chirp once to
confirm the procedure is complete.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
SecuriLock
passive anti-theft system is not compatible with non-Ford
aftermarket remote start systems. Use of these systems may result in
vehicle starting problems and a loss of security protection.
Anti-theft indicator
The anti-theft indicator is located on top of the instrument panel.
•When the ignition is in the 3 (OFF) position, the indicator will flash
once every 2 seconds to indicate the SecuriLock
system is
functioning as a theft deterrent.
•When the ignition is in the 4 (ON) position, the indicator will glow for
3 seconds to indicate normal system functionality.
If a problem occurs with the SecuriLock
system, the indicator will flash
rapidly or glow steadily when the ignition is in the 4 (ON) position. If
this occurs, the vehicle should be taken to an authorized dealer for
service.
Key information
Your vehicle is supplied withtwo coded keys.Only acoded keywill
start your vehicle. Spare coded keys may be purchased from an
authorized dealer. An authorized dealer can also program yourcoded
key,or you can do it yourself. Refer toProgramming spare keysin this
chapter.
The following items may prevent the vehicle from starting:
•Large metallic objects.
•Electronic devices on the key chain that can be used to purchase
gasoline or similar items.
•A second key on the same key ring as thecoded key.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
105
