2006 FORD FIVE HUNDRED Control fuse

Seating and Safety Restraints 101
Seating 101
Safety restraints 109
Airbags 123
Child restraints 137
Tires, Wheels and Loading 149
Tire Information 149
Tire Inflation 151
Vehicle loading 163
Trailer towing 169
Recreational towing 171
Driving 172
Starting 172
Brakes 175
Traction control 178
Transmission operation 179
Roadside Emergencies 192
Getting roadside assistance 192
Hazard flasher switch 194
Fuel pump shut-off switch 194
Fuses and relays 195
Changing tires 201
Lug Nut Torque 208
Jump starting 208
Wrecker towing 214
Customer Assistance 216
Reporting safety defects (U.S. only) 222
Cleaning 223
Table of Contents
2
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat
Child Seat Installation
WarningChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemBrake Fluid -
Non-Petroleum Based
Powertrain MalfunctionSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
8

•Rear vent (if equipped)
Use only soft cups in the cupholder. Hard objects can injure you
in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power points are
located on the instrument panel and
in the center console utility
compartment.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of
12 VDC/180W.
To prevent the battery from being discharged, do not use the power
point longer than necessary when the engine is not running.
Always keep the power point caps closed when not being used.
Cigar/Cigarette lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter
socket.
Do not hold the lighter in with your hand while it is heating, this will
damage the lighter element and socket. The lighter will be released from
its heating position when it is ready to be used.
Improper use of the lighter can cause damage not covered by your
warranty.
POWER WINDOWS
Do not leave children unattended in the vehicle and do not let
children play with the power windows. They may seriously injure
themselves.
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
61

Passenger compartment fuse panel/Smart Junction Box (SJB)
The fuse panel is located under the instrument panel to the left of the
steering wheel.
The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
F1 20A High beams
F2 15A Interior lamps (Courtesy and
demand lamps), Delayed
accessory (Power windows and
moonroof)
F3 25A Access/Security (Power door lock
actuators, Decklid lock actuator,
Decklid solenoid)
F4 15A Adjustable pedal switch
F5 20A Horns
F6 20A Audio (Subwoofer)
F7 7.5A Power/Keep Alive Memory
(KAM): Cluster and Powertrain
Control Module (PCM), Climate
control, Analog clock
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
196

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
F8 15A Park lamps, Side markers, Trailer
tow protect
F9 20A Cigar lighter, Data Link Connector
(DLC)
F10 7.5A Mirrors and memory module
F11 20A Audio, Family Entertainment
System (FES)
F12 10A Back-up lamps, Electrochromatic
mirror, Reverse Sensing System
(RSS), Trailer tow protect
F13 7.5A Audio
F14 7.5A Starter relay coil, PCM
F15 10A Delayed accessory (Driver window
motor logic, Moonroof, Audio,
Driver door lock switch
illumination)
F16 10A Rear defroster indicator, Heated
mirrors
F17 30A Rear defroster
F18 10A PCM relay coil, Shifter Brake-Shift
Interlock (BSI), Passive
Anti-Theft System (PATS)
module, Fuel relay coil, Brake
lamps, Center High-Mounted Stop
Lamp (CHMSL)
F19 10A Anti-lock Brake System
(ABS)/Traction control module,
All Wheel Drive (AWD) module,
RSS, Heated seat modules
F20 7.5A Cluster, Climate control
F21 7.5A Restraint Control Module (RCM)
F22 7.5A Electrochromatic mirror, Compass
module
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
197

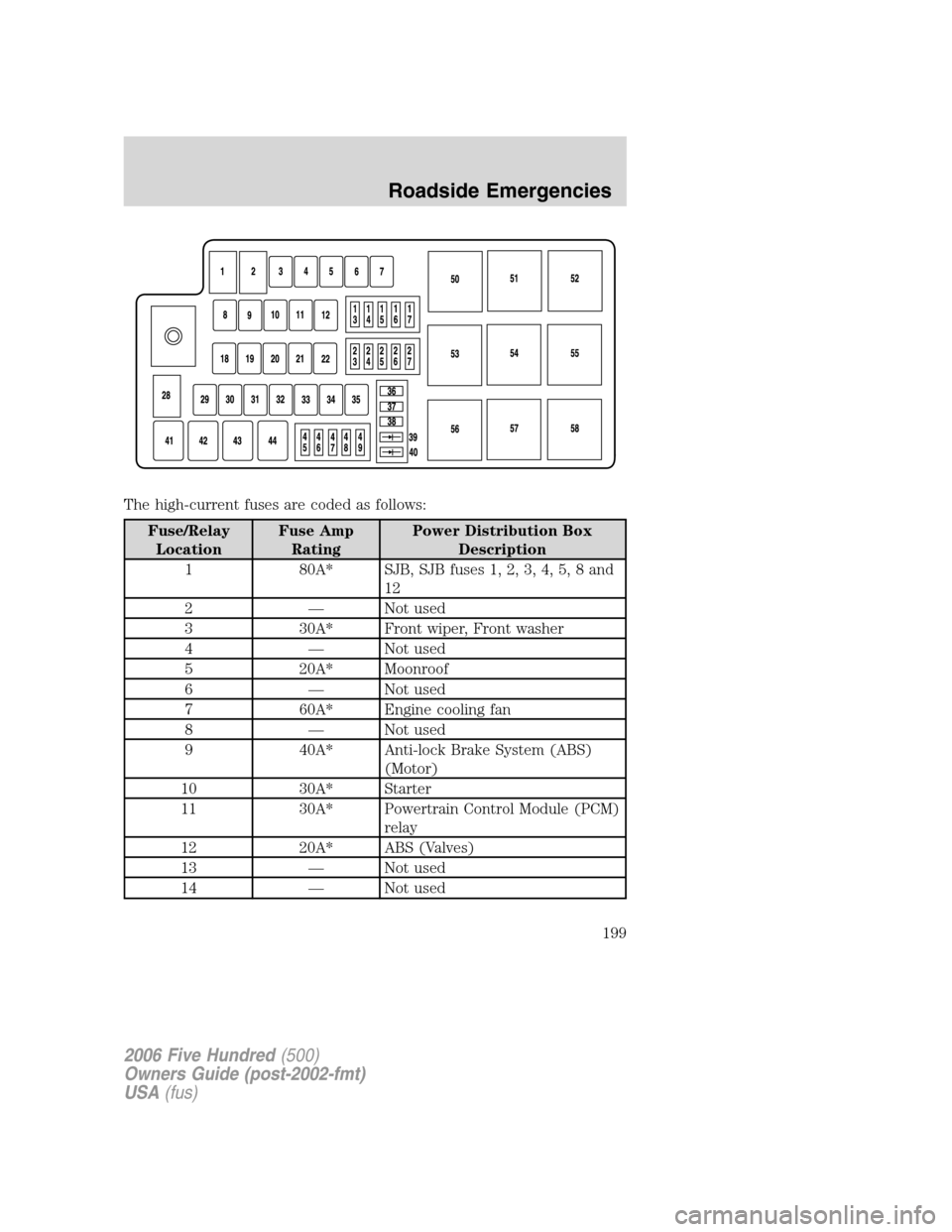

The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 80A* SJB, SJB fuses 1, 2, 3, 4, 5, 8 and
12
2 — Not used
3 30A* Front wiper, Front washer
4 — Not used
5 20A* Moonroof
6 — Not used
7 60A* Engine cooling fan
8 — Not used
9 40A* Anti-lock Brake System (ABS)
(Motor)
10 30A* Starter
11 30A* Powertrain Control Module (PCM)
relay
12 20A* ABS (Valves)
13 — Not used
14 — Not used
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
199

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
15 15A** Traction Control Module (TCM)
16 20A** Power point (Console)
17 10A** Alternator
18 40A* Logic feed to SJB, SJB solid state
devices
19 — Not used
20 40A* Rear defroster
21 30A* Power seat motors (passenger)
22 30A* Heated seat modules
23 15A** Fog lamps
24 10A** A/C clutch relay, A/C compressor
clutch
25 — Not used
26 — Not used
27 15A** Fuel relay (Fuel pump driver
module, Fuel pump)
28 80A* SJB power, SJB (Circuit breaker,
Fuses 6, 7, 9, 10, 11 and 15)
29 30A* Driver window motor
30 — Not used
31 — Not used
32 30A* Driver seat motors, Memory
module
33 30A* Ignition switch (to SJB)
34 — Not used
35 40A* Front A/C blower motor
36 — Not used
37 — Not used
38 — Not used
39 1A Diode PCM
40 1A Diode A/C clutch
41
12ISO relay Fog lamps
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
200

specifications ..................262, 264
Exhaust fumes ..........................175
F
Fluid capacities .........................260
Foglamps .....................................49
Four-Wheel Drive vehicles
driving off road .......................185
Fuel ............................................245
calculating fuel
economy ............................75, 250
cap ...........................................247
capacity ...................................260
choosing the right fuel ...........248
comparisons with EPA fuel
economy estimates .................253
detergent in fuel .....................249
filling your vehicle with
fuel ...........................245, 247, 250
filter, specifications ........245, 259
fuel pump shut-off switch .....194
improving fuel economy ........250
octane rating ...................249, 264
quality ......................................249
running out of fuel .................249
safety information relating to
automotive fuels .....................245
Fuel pump shut-off switch .......194
Fuses ..........................................195
G
Gas cap (see Fuel cap) ............247
Gas mileage
(see Fuel economy) .................250
Gauges .........................................14
H
Hazard flashers .........................194Head restraints .................101, 107
Headlamps ...................................48
aiming ........................................50
autolamp system .......................48
bulb specifications ....................53
daytime running lights .............50
flash to pass ..............................49
high beam .................................49
replacing bulbs ...................53–54
turning on and off ....................48
Heating
heating and air conditioning
system ...........................40, 42, 44
Homelink wireless control
system ..........................................70
Hood ..........................................231
I
Ignition ...............................172, 264
Illuminated visor mirror .............59
Infant seats
(see Safety seats) .....................141
Inspection/maintenance (I/M)
testing ........................................255
Instrument panel ........................60
cleaning ...................................226
cluster ........................................10
lighting up panel and
interior .......................................50
J
Jack ............................................201
positioning ...............................201
storage .....................................201
Jump-starting your vehicle ......208
K
Keyless entry system .................93
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
273
