1. To disable/enable the autolamp
delay feature, select this function
from the SETUP control for the
current display mode.
2. Press the RESET control to select
the new Autolamp delay values of >0, >10, >20, >30, >60, >90, >120 or
>180.
Reverse Sensing System (if equipped)
This feature sounds a warning tone to warn the driver of obstacles near
the rear bumper, and functions only when R (Reverse) gear is selected.
1. To disable/enable the reverse
sensing system feature, put the
vehicle in R (Reverse).
2. Press the RESET control to turn
the park assist ON or OFF.
Language
1. Select this function from the
SETUP menu for the current
language to be displayed.
2. Pressing the RESET control
cycles the message center through
each of the language choices.
3. Press and hold the RESET
control to set the language choice.
Units (English/Metric)
1. Select this function from the
SETUP menu for the current units
to be displayed.
2. Press the RESET control to
change from English to Metric.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
130

System check
Selecting this function from the
SETUP menu causes the message
center to cycle through each of the
systems being monitored. For each
of the monitored systems, the
message center will indicate either an OK message or a warning message
for three seconds.
Pressing the RESET control cycles the message center through each of
the systems being monitored.
The sequence of the system check report and how it appears in the
message center is as follows:
1. DOOR STATUS
2. ENGINE TEMP
3. CHARGING SYSTEM
4. OIL PRESSURE
5. BRAKE FLUID LEVEL
6. TIRE PRESSURE SYSTEM (if equipped)
7. ADVANCETRAC
with RSC (if equipped)
8. AIR SUSPENSION SYSTEM
9. WASHER FLUID LEVEL
10. FUEL LEVEL
11. DTE
System warnings
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for 4
seconds.
The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
RESET control and clearing the warning message.
Warning messages that have been reset are divided into three categories:
•They cannot be cleared until the condition is corrected.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
131

•They will reappear on the display ten minutes from the reset.
•They will not reappear until an ignition OFF-ON cycle has been
completed.
This acts as a reminder that these warning conditions still exist within
the vehicle.
Warning display Status
Park assist ON/OFF (if
equipped)Warning displays when R (reverse)
gear is selected.
Liftgate or liftglass ajar Warning returns after 10 minutes
Low fuel level
Check charging system
Low brake fluid level
Low oil pressure
Check engine temperature
Check AdvTrac (if equipped)
Temporary 4X4 high
Low tire pressure (if equipped) Warning returns after the ignition key
is turned from OFF to ON.
Tire pressure monitor fault (if
equipped)
Tire pressure sensor fault (if
equipped)
Check park assist (if equipped)
Low washer fluid level
Check air suspension (if
equipped)
Air suspension switched OFF
(if equipped)
Check compass module
Compass no response
Check fuel cap
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
132

Warning display Status
Door ajar Will not clear until condition is
corrected
Reduced engine power
Stop engine safely
Check electronic throttle
control or engine fail safe mode
Park brake engaged
PARK ASSIST ON/OFF (if equipped).Displayed when the
transmission is in R (Reverse) and the Backup Aid is disabled. Refer to
Backup Aidin this section to enable.
CHECK PARK ASSIST (if equipped).Displayed when the
transmission is in R (Reverse) and the Backup Aid is disabled. Refer to
Backup Aidin this section to enable.
ADVTRAC ON (if equipped).Displayed when the AdvanceTrac
with
RSC is ON.
ADVTRAC OFF (if equipped).Displayed when the AdvanceTrac
with
RSC is OFF.
DOOR AJAR.Displayed when a door is not completely closed.
LIFTGATE OR LIFTGLASS AJAR.Displayed when the liftgate or
liftgate glass is not completely closed.
CHECK ENGINE TEMPERATURE.Displayed when the engine
coolant is overheating. Stop the vehicle as soon as safely possible, turn
off the engine and let it cool. Check the coolant and coolant level. Refer
toEngine coolantin theMaintenance and Specificationschapter. If
the warning stays on or continues to come on, contact your authorized
dealer as soon as safely possible.
REDUCED ENGINE POWER.Displayed when the engine is
overheating. Stop the vehicle as soon as safely possible, turn off the
engine. If the warning stays on or continues to come on, contact your
authorized dealer as soon as safely possible.
CHECK ELECTRONIC THROTTLE CONTROL or ENGINE FAIL
SAFE MODE.Displayed when the engine has defaulted to a
“limp-home” operation. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
STOP ENGINE SAFELY.Displayed when the engine is overheating.
Stop the vehicle as soon as safely possible, turn off the engine. If the
warning stays on or continues to come on, contact your authorized
dealer as soon as safely possible.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
133

LOW TIRE PRESSURE (if equipped).Displayed when one or more
tires on your vehicle have low tire pressure. Refer toInspecting and
Inflating Your Tiresin theTires, Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT (if equipped).Displayed when
the Tire Pressure Monitoring System is malfunctioning. If the warning
stays on or continues to come on, have the system inspected by your
servicing dealer
TIRE PRESSURE SENSOR FAULT (if equipped).Displayed when a
tire pressure sensor is malfunctioning, or your spare tire is in use. For
more information on how the system operates under these conditions,
refer toUnderstanding Your Tire Pressure Monitoring Systemin the
Tires, Wheels and Loadingchapter. If the warning stays on or
continues to come on, have the system inspected by your servicing
dealer
LOW FUEL LEVEL.Displayed as an early reminder of a low fuel
condition.
CHECK CHARGING SYSTEM.Displayed when the electrical system is
not maintaining proper voltage. If you are operating electrical accessories
when the engine is idling at a low speed, turn off as many of the
electrical loads as soon as possible. If the warning stays on or comes on
when the engine is operating at normal speeds, have the electrical
system checked as soon as possible.
PARK BRAKE ENGAGED.Displayed when the park brake is engaged.
If the warning stays on after the park brake is off, contact your
authorized dealer as soon as possible.
LOW BRAKE FLUID LEVEL.Indicates the brake fluid level is low and
the brake system should be inspected immediately. Refer toBrake fluid
reservoirin theMaintenance and Specificationschapter.
LOW OIL PRESSURE.Displayed when the engine oil pressure is low. If
this warning message is displayed, check the level of the engine oil.
Refer toEngine oilin theMaintenance and Specificationschapter for
information about adding engine oil. If the oil level is OK and this
warning persists, shut down the engine immediately and contact your
authorized dealer for service.
LOW WASHER FLUID LEVEL.Indicates the washer fluid reservoir is
less than one quarter full. Check the washer fluid level. Refer to
Windshield washer fluidin theMaintenance and Specifications
chapter.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
134

CHECK ADVTRAC (if equipped).Displayed when the AdvanceTrac

with RSC system is not operating properly. If this message is displayed
on the message center the AdvanceTrac
with RSC system may be
partially operable. If this warning stays on while the engine is running,
contact your authorized dealer for service as soon as possible. For
further information, refer toAdvanceTrac
with RSC stability
enhancement systemin theDrivingchapter.
ADVTRAC OFF T/C ON with RSC (if equipped).Displayed on 4x4
vehicles only when 4x4 Low Range is selected. In this mode, the stability
enhancement portion of the AdvanceTrac
with RSC is disabled, but the
traction enhancement feature remains enabled. For further information,
refer toAdvanceTrac
with RSC stability enhancement systemin the
Drivingchapter.
TEMPORARY 4X4 HIGH.Displayed when the 4X4 system
automatically locks to prevent damage from overheating.
CHECK SUSPENSION (if equipped).Displayed when the air
suspension system is not operating properly. If this message is displayed
while driving, pull off the road as soon as safely possible. For more
information, refer toAir suspensionin theDrivingchapter.
AIR SUSPENSION OFF (if equipped).Displayed when the air
suspension switch is in the OFF position. For more information, refer to
Air suspensionin theDrivingchapter.
CHECK FUEL CAP.Displayed when the fuel filler cap is not properly
installed. Check the fuel filler cap for proper installation. Refer toFuel
filler capin theMaintenance and Specificationschapter.
CHECK COMPASS MODULE.Displayed when the compass is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
COMPASS NO RESPONSE.Displayed when the compass is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
DATA ERR.These messages indicate improper operation of the vehicle
network communication between electronic modules.
•Fuel computer
•Charging system
•Door sensor
•Compass
•Outside temperature
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
135

•Driving on slick surfaces
•Cornering while towing a heavily loaded trailer (refer toTrailer
Towingin this chapter)
The RSC feature works to further enhance the vehicle’s overall stability
during aggressive maneuvers. The RSC feature helps maintain roll
stability of the vehicle during aggressive maneuvers by applying brake
force to one or more wheels.
The AdvanceTrac
with RSC system automatically turns on when the
engine is started. However, the system does not function when the
vehicle is traveling in R (Reverse) or, if equipped with four-wheel drive,
in 4L (4X4 LOW). In R (Reverse) or in 4L (4X4 LOW), ABS and the
traction enhancement feature will continue to function.
The AdvanceTrac
with RSC button,
located on the center console,
allows the driver to control the
availability of the AdvanceTrac

with RSC system. The RSC system
status is indicated by a warning indicator light with a “sliding car” icon in
the instrument cluster that will flash when the system is activated and
an indicator light in the control button that will illuminate when the
system is turned off. In vehicles with a message center, the message
“ADVANCETRAC OFF” will be displayed.
If a failure is detected in the AdvanceTrac
with RSC system, the
warning indicator light in the instrument cluster will stay on. If the
warning indicator light in the instrument cluster remains on while the
engine is running, have the system serviced by an authorized dealer
immediately.
Pressing the button once will disable the AdvanceTrac
with RSC
stability enhancement system and the engine power reduction portion of
the traction enhancement feature; the brake portion of the traction
enhancement feature will still function normally. Pressing and holding
the button for more than five seconds will disable the AdvanceTrac
with
RSC stability enhancementandtraction enhancement feature. If the
vehicle is stuck in snow or mud or when driving in deep sand, switching
off the AdvanceTrac
with RSC system may be beneficial so the wheels
are allowed to spin. If your vehicle seems to lose engine power while
driving in deep sand or very deep snow, switching off the AdvanceTrac

with RSC stability enhancement system will restore full engine power
and will enhance momentum through the obstacle.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
243

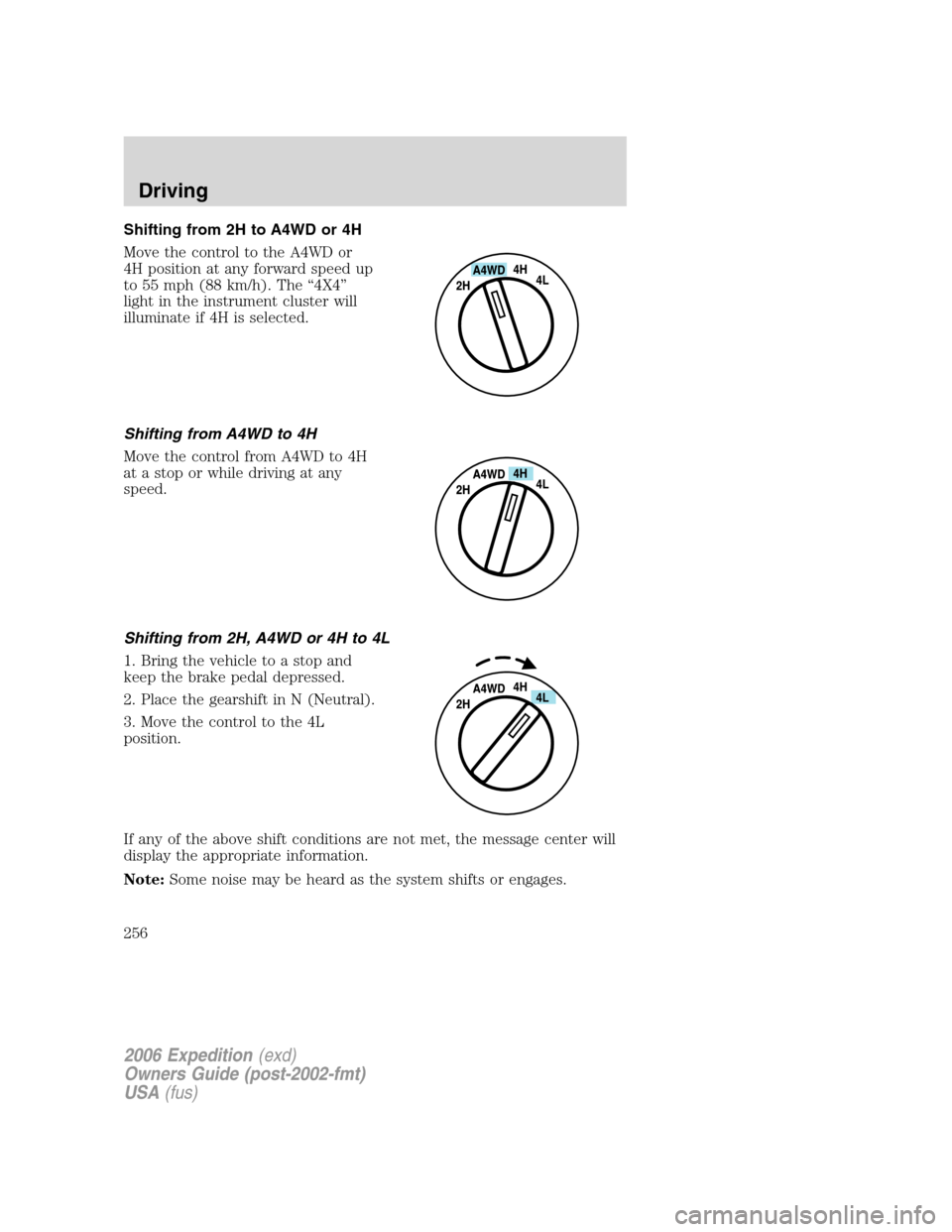

Shifting from 2H to A4WD or 4H
Move the control to the A4WD or
4H position at any forward speed up
to 55 mph (88 km/h). The “4X4”
light in the instrument cluster will
illuminate if 4H is selected.
Shifting from A4WD to 4H
Move the control from A4WD to 4H
at a stop or while driving at any
speed.
Shifting from 2H, A4WD or 4H to 4L
1. Bring the vehicle to a stop and
keep the brake pedal depressed.
2. Place the gearshift in N (Neutral).
3. Move the control to the 4L
position.
If any of the above shift conditions are not met, the message center will
display the appropriate information.
Note:Some noise may be heard as the system shifts or engages.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
256
