2006 FORD EXPEDITION relay

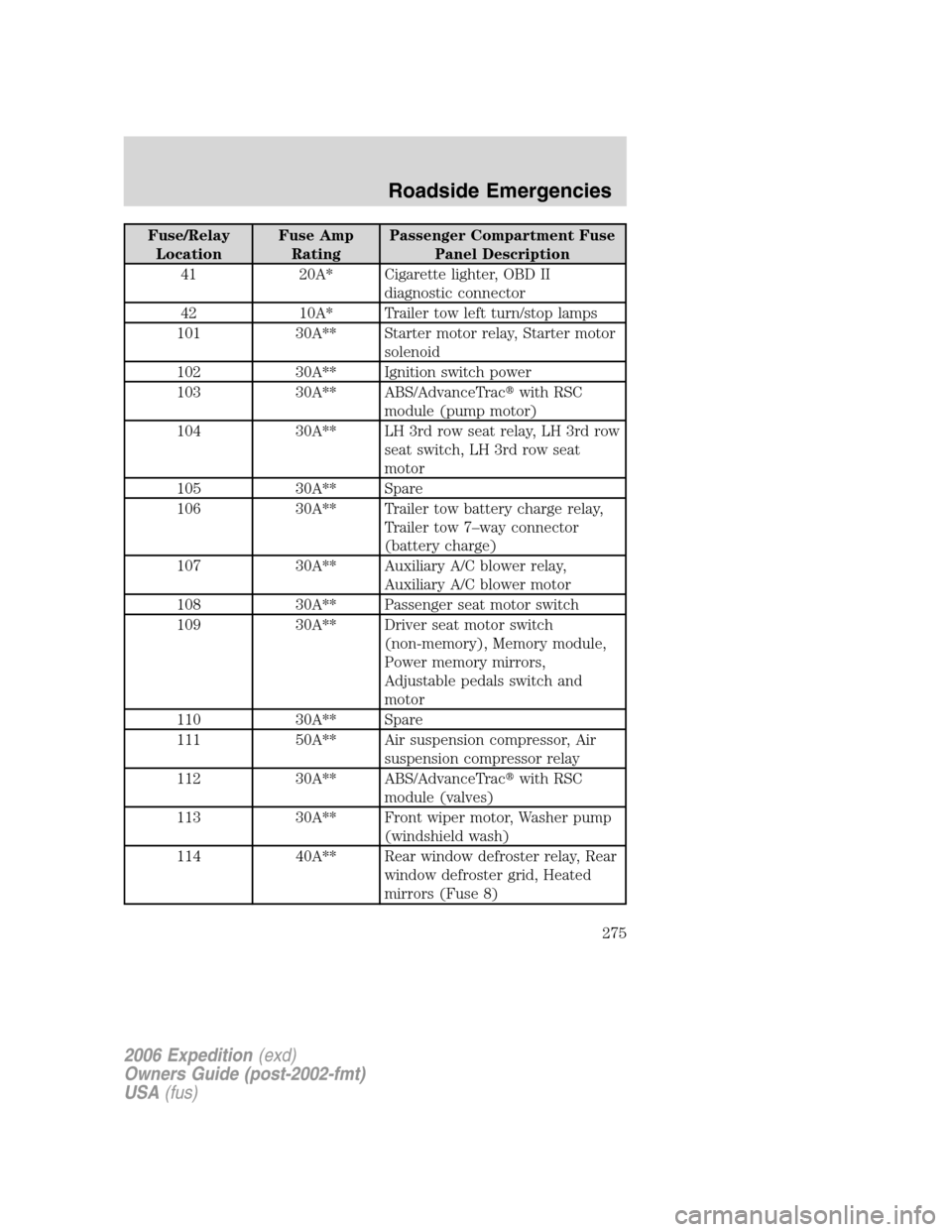

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
41 20A* Cigarette lighter, OBD II
diagnostic connector
42 10A* Trailer tow left turn/stop lamps
101 30A** Starter motor relay, Starter motor
solenoid
102 30A** Ignition switch power
103 30A** ABS/AdvanceTrac
with RSC
module (pump motor)
104 30A** LH 3rd row seat relay, LH 3rd row
seat switch, LH 3rd row seat
motor
105 30A** Spare
106 30A** Trailer tow battery charge relay,
Trailer tow 7–way connector
(battery charge)
107 30A** Auxiliary A/C blower relay,
Auxiliary A/C blower motor
108 30A** Passenger seat motor switch
109 30A** Driver seat motor switch
(non-memory), Memory module,
Power memory mirrors,
Adjustable pedals switch and
motor
110 30A** Spare
111 50A** Air suspension compressor, Air
suspension compressor relay
112 30A** ABS/AdvanceTrac
with RSC
module (valves)
113 30A** Front wiper motor, Washer pump
(windshield wash)
114 40A** Rear window defroster relay, Rear
window defroster grid, Heated
mirrors (Fuse 8)
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
275

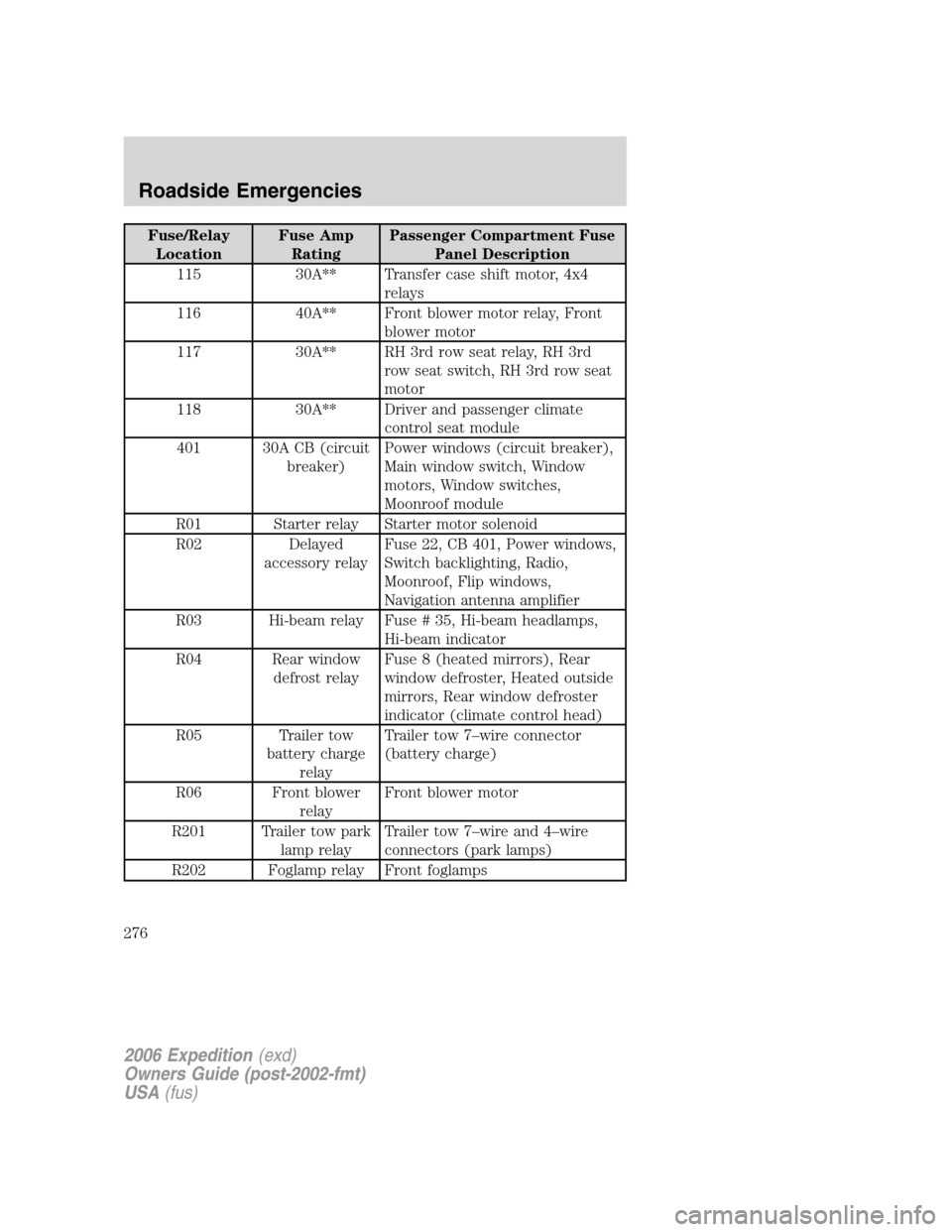

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
115 30A** Transfer case shift motor, 4x4
relays
116 40A** Front blower motor relay, Front
blower motor
117 30A** RH 3rd row seat relay, RH 3rd
row seat switch, RH 3rd row seat
motor
118 30A** Driver and passenger climate
control seat module
401 30A CB (circuit
breaker)Power windows (circuit breaker),
Main window switch, Window
motors, Window switches,
Moonroof module
R01 Starter relay Starter motor solenoid
R02 Delayed
accessory relayFuse 22, CB 401, Power windows,
Switch backlighting, Radio,
Moonroof, Flip windows,
Navigation antenna amplifier
R03 Hi-beam relay Fuse # 35, Hi-beam headlamps,
Hi-beam indicator
R04 Rear window
defrost relayFuse 8 (heated mirrors), Rear
window defroster, Heated outside
mirrors, Rear window defroster
indicator (climate control head)
R05 Trailer tow
battery charge
relayTrailer tow 7–wire connector
(battery charge)
R06 Front blower
relayFront blower motor
R201 Trailer tow park
lamp relayTrailer tow 7–wire and 4–wire
connectors (park lamps)
R202 Foglamp relay Front foglamps
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
276

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
R203 PCM relay Fuse 32, Fuse 34, PCM solenoids
and sensors
R301 Trailer tow
back-up lamp
relayTrailer tow 7–wire connector
(back-up lamps)
R302 Heated PCV
valve relayHeated PCV valve
R303 Fuel pump relay Fuel pump shut-off switch, PCM
(fuel pump monitor), Fuel pump,
Fuel pump driver module
R304 Battery saver
relayRoof rail lamps, Vanity mirror
lamps, Map/Dome lamp, Glove box
lamp, Cargo area lamp, Outside
mirror puddle lamps, Instrument
cluster (interior lamps)
R305 Horn relay Dual note horn
* Mini Fuses ** Maxi Fuses
Note:Relays R301–R305 are not serviceable components; see your
authorized dealer for assistance.
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Your vehicle may be equipped with a conventional spare tire that is
different in one or more of the following: type, brand, size, speed rating
and tread design. If this is the case, this dissimilar spare tire is still rated
for your vehicle loads (GAWR and GVWR). Your vehicle may be equipped
with a spare wheel that may not match the road wheels and is not
equipped with a Tire Pressure Monitor System (TPMS) sensor.
The use of tire sealants may damage your tires. The use of tire
sealants may also damage your Tire Pressure Monitoring System.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
277

Pedals (see Power adjustable
foot pedals) ...............................114
Power adjustable foot pedals ...114
Power distribution box
(see Fuses) ...............................269
Power door locks ......................138
Power mirrors ...........................112
Power point ...............................108
Power steering ..........................244
fluid, checking and adding ....335
fluid, refill capacity ................340
fluid, specifications .........343, 345
Power Windows .........................111
Preparing to drive
your vehicle ...............................247
R
Radio ......................................19, 24
Rear window defroster ...............92
Relays ........................................268
Remote entry system .......139, 141
illuminated entry ....................144
locking/unlocking doors .........140
opening the trunk ...................140
panic alarm .............................141
replacement/additional
transmitters .............................143
Reverse sensing system ...........252
Roadside assistance ..................265
S
Safety Belt Maintenance ..........175
Safety belts
(see Safety restraints) ............166,
169–170, 172–173, 175Safety Canopy ...........................184
Safety defects, reporting ..........300
Safety restraints .......................166,
169–170, 172–175
belt minder .............................176
extension assembly ................175
for adults .................170, 172–173
for children .....................187–188
lap belt ....................................171
safety belt maintenance .........175
warning light and chime ........176
Safety seats for children ..........191
Safety Compliance
Certification Label ....................347
Seat belts
(see Safety restraints) .............166
Seats ..........................................151
child safety seats ....................191
cleaning ...................................305
memory seat ...................141, 155
SecuriLock passive
anti-theft system ...............147–149
Servicing your vehicle ..............308
Setting the clock
AM/FM/In-dash 6 CD ................26
Snowplowing .................................8
Spare tire
(see Changing the Tire) ...........279
Spark plugs,
specifications .............339, 345–346
Special notice
utility-type vehicles ....................8
Specification chart,
lubricants ...........................343, 345
Speed control ............................114
Starting your vehicle ........235–237
jump starting ..........................285
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
357
