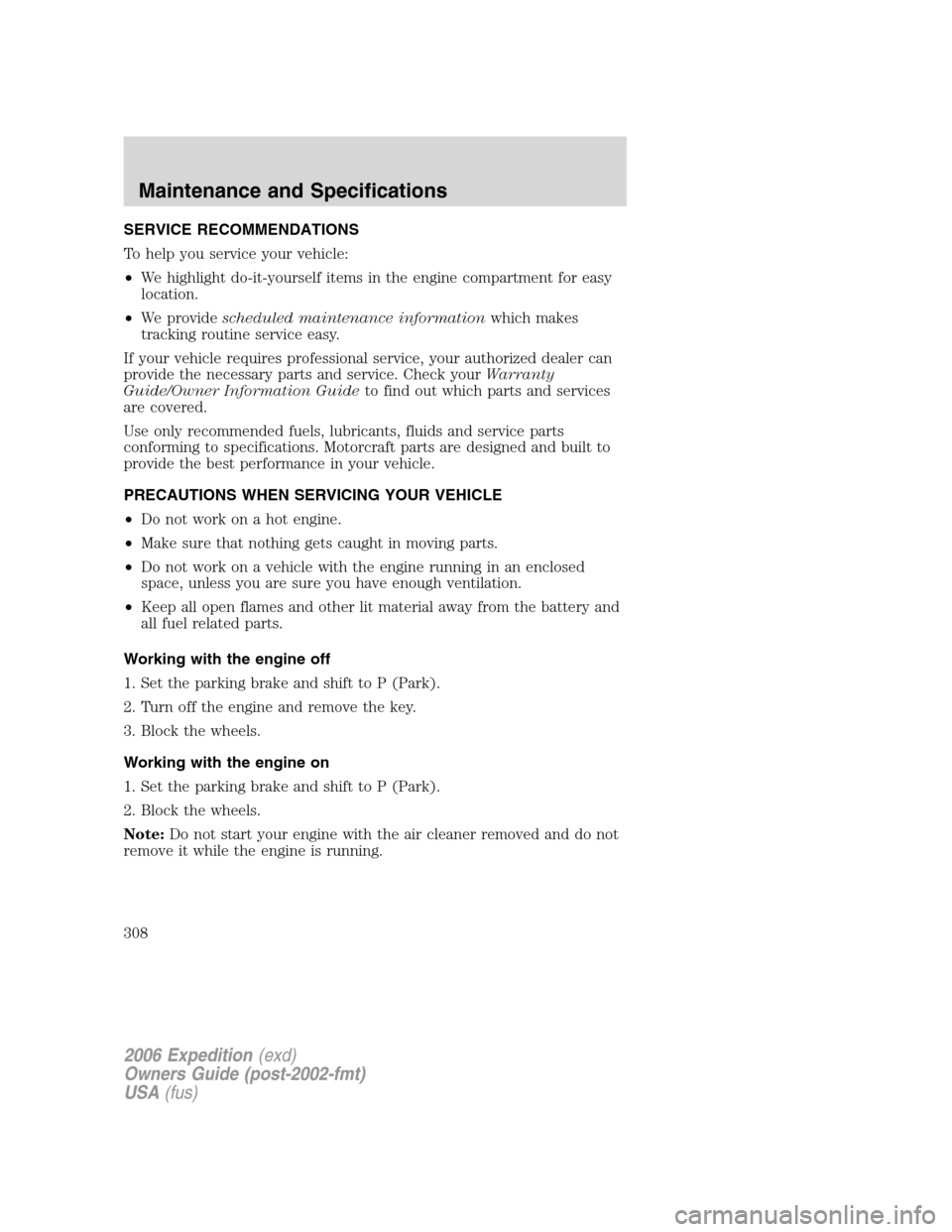

SERVICE RECOMMENDATIONS
To help you service your vehicle:
•We highlight do-it-yourself items in the engine compartment for easy
location.
•We providescheduled maintenance informationwhich makes
tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide the necessary parts and service. Check yourWarranty
Guide/Owner Information Guideto find out which parts and services
are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Motorcraft parts are designed and built to
provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other lit material away from the battery and
all fuel related parts.
Working with the engine off
1. Set the parking brake and shift to P (Park).
2. Turn off the engine and remove the key.
3. Block the wheels.
Working with the engine on
1. Set the parking brake and shift to P (Park).
2. Block the wheels.
Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
308

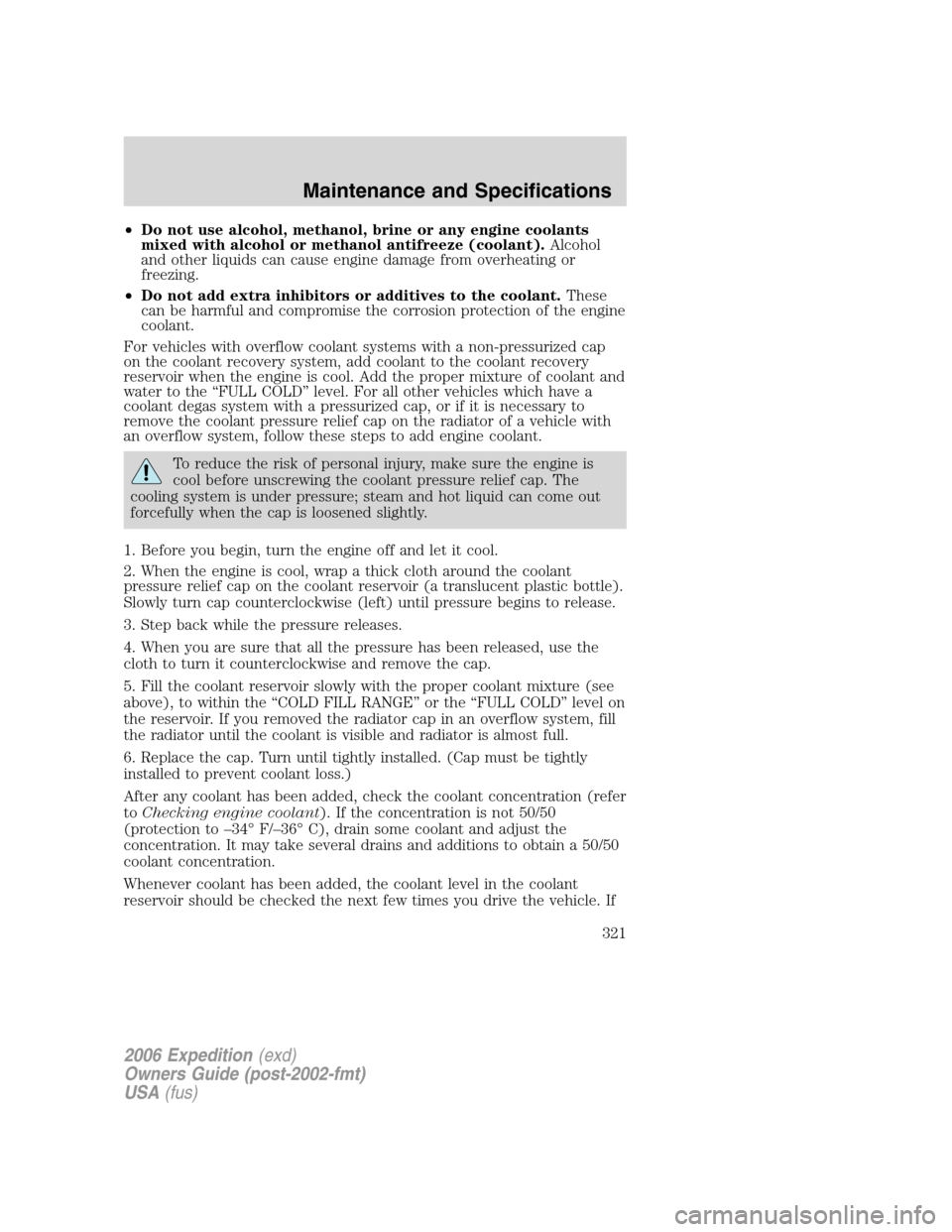

•Do not use alcohol, methanol, brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol
and other liquids can cause engine damage from overheating or
freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
For vehicles with overflow coolant systems with a non-pressurized cap
on the coolant recovery system, add coolant to the coolant recovery
reservoir when the engine is cool. Add the proper mixture of coolant and
water to the “FULL COLD” level. For all other vehicles which have a
coolant degas system with a pressurized cap, or if it is necessary to
remove the coolant pressure relief cap on the radiator of a vehicle with
an overflow system, follow these steps to add engine coolant.
To reduce the risk of personal injury, make sure the engine is
cool before unscrewing the coolant pressure relief cap. The
cooling system is under pressure; steam and hot liquid can come out
forcefully when the cap is loosened slightly.
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture (see
above), to within the “COLD FILL RANGE” or the “FULL COLD” level on
the reservoir. If you removed the radiator cap in an overflow system, fill
the radiator until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. (Cap must be tightly
installed to prevent coolant loss.)
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34° F/–36° C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
321

•NEVER decrease the coolant concentration below 40%.
•Decreased engine coolant concentrations below 40% will
decrease the corrosion protection characteristics of the engine
coolant and may cause engine damage.
•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
What you should know about fail-safe cooling
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature
gauge will move to the red (hot)
area.
•CHECK ENGINE TEMPERATURE
will illuminate in the message
center (if equipped).
•The
indicator light will illuminate.
•CHECK GAGE will appear on the instrument panel cluster.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
•Warning messages will appear in the message center (if equipped).
CH
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
323

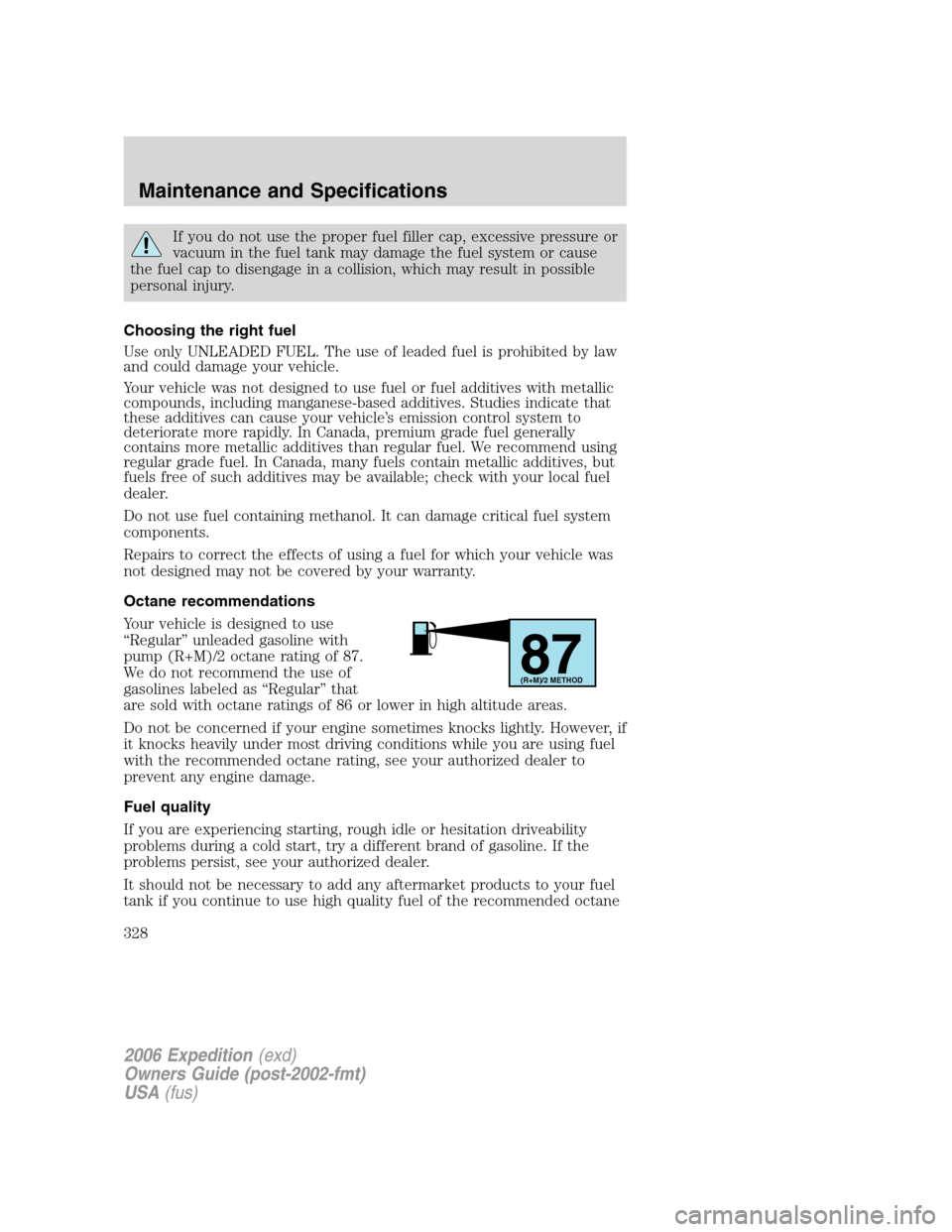

If you do not use the proper fuel filler cap, excessive pressure or
vacuum in the fuel tank may damage the fuel system or cause
the fuel cap to disengage in a collision, which may result in possible
personal injury.
Choosing the right fuel
Use only UNLEADED FUEL. The use of leaded fuel is prohibited by law
and could damage your vehicle.
Your vehicle was not designed to use fuel or fuel additives with metallic
compounds, including manganese-based additives. Studies indicate that
these additives can cause your vehicle’s emission control system to
deteriorate more rapidly. In Canada, premium grade fuel generally
contains more metallic additives than regular fuel. We recommend using
regular grade fuel. In Canada, many fuels contain metallic additives, but
fuels free of such additives may be available; check with your local fuel
dealer.
Do not use fuel containing methanol. It can damage critical fuel system
components.
Repairs to correct the effects of using a fuel for which your vehicle was
not designed may not be covered by your warranty.
Octane recommendations
Your vehicle is designed to use
“Regular” unleaded gasoline with
pump (R+M)/2 octane rating of 87.
We do not recommend the use of
gasolines labeled as “Regular” that
are sold with octane ratings of 86 or lower in high altitude areas.
Do not be concerned if your engine sometimes knocks lightly. However, if
it knocks heavily under most driving conditions while you are using fuel
with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
Fuel quality
If you are experiencing starting, rough idle or hesitation driveability
problems during a cold start, try a different brand of gasoline. If the
problems persist, see your authorized dealer.
It should not be necessary to add any aftermarket products to your fuel
tank if you continue to use high quality fuel of the recommended octane
87(R+M)/2 METHOD
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
328

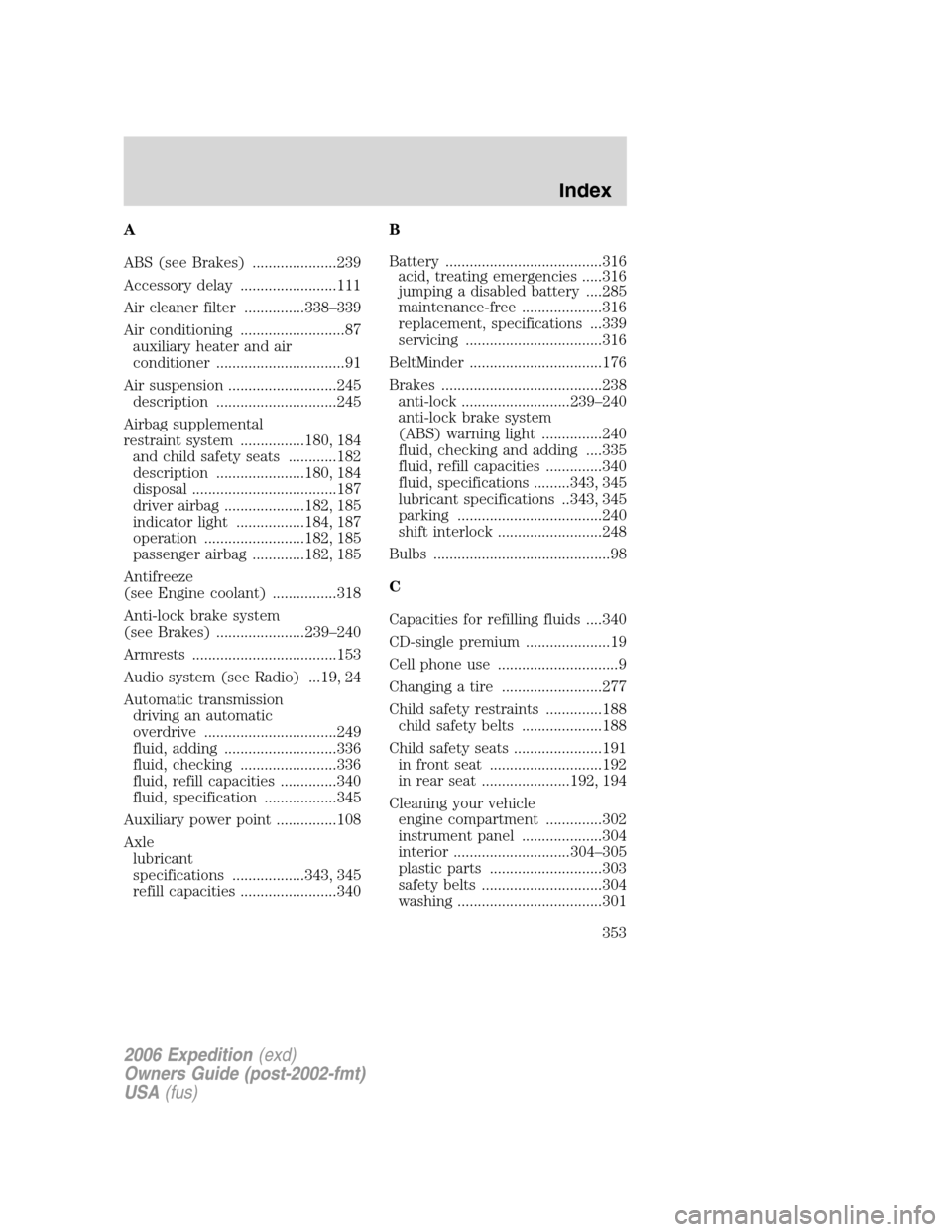

A
ABS (see Brakes) .....................239
Accessory delay ........................111
Air cleaner filter ...............338–339
Air conditioning ..........................87
auxiliary heater and air
conditioner ................................91
Air suspension ...........................245
description ..............................245
Airbag supplemental
restraint system ................180, 184
and child safety seats ............182
description ......................180, 184
disposal ....................................187
driver airbag ....................182, 185
indicator light .................184, 187
operation .........................182, 185
passenger airbag .............182, 185
Antifreeze
(see Engine coolant) ................318
Anti-lock brake system
(see Brakes) ......................239–240
Armrests ....................................153
Audio system (see Radio) ...19, 24
Automatic transmission
driving an automatic
overdrive .................................249
fluid, adding ............................336
fluid, checking ........................336
fluid, refill capacities ..............340
fluid, specification ..................345
Auxiliary power point ...............108
Axle
lubricant
specifications ..................343, 345
refill capacities ........................340B
Battery .......................................316
acid, treating emergencies .....316
jumping a disabled battery ....285
maintenance-free ....................316
replacement, specifications ...339
servicing ..................................316
BeltMinder .................................176
Brakes ........................................238
anti-lock ...........................239–240
anti-lock brake system
(ABS) warning light ...............240
fluid, checking and adding ....335
fluid, refill capacities ..............340
fluid, specifications .........343, 345
lubricant specifications ..343, 345
parking ....................................240
shift interlock ..........................248
Bulbs ............................................98
C
Capacities for refilling fluids ....340
CD-single premium .....................19
Cell phone use ..............................9
Changing a tire .........................277
Child safety restraints ..............188
child safety belts ....................188
Child safety seats ......................191
in front seat ............................192
in rear seat ......................192, 194
Cleaning your vehicle
engine compartment ..............302
instrument panel ....................304
interior .............................304–305
plastic parts ............................303
safety belts ..............................304
washing ....................................301
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
353

lighting up panel and
interior .......................................95
J
Jack ............................................277
positioning ...............................277
storage .....................................277
Jump-starting your vehicle ......285
K
Keyless entry system
programming entry code .......146
Keys ...................................147–149
positions of the ignition .........235
L
Lamps
autolamp system .......................93
bulb replacement
specifications chart ..................98
daytime running light ...............94
fog lamps ...................................94
headlamps .................................93
headlamps, flash to pass ..........94
instrument panel, dimming .....95
interior lamps ...............96–97, 99
replacing bulbs ... 98–99, 101–103
Lane change indicator
(see Turn signal) ........................96
Liftgate ..............................136, 140
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........240
Limited-slip axle .......................246
Load limits .................................221
Loading instructions .................228Locks
childproof ................................139
doors ........................................138
Lubricant specifications ...343, 345
Lug nuts ....................................284
Lumbar support, seats .............153
M
Message center .........................125
english/metric button .............130
system check button ..............131
warning messages ...................131
Mirrors ...............................106, 112
automatic dimming
rearview mirror .......................112
fold away .................................113
heated ......................................113
programmable memory ..141, 155
signal .......................................114
Motorcraft parts ........306, 324, 339
N
Navigation system .......................47
quick start .................................52
radio functions ..........................53
setting the clock .......................80
O
Octane rating ............................328
Oil (see Engine oil) ..................313
P
Panic alarm feature, remote
entry system ..............................141
Parking brake ............................240
Parts (see Motorcraft parts) ....339
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
356
