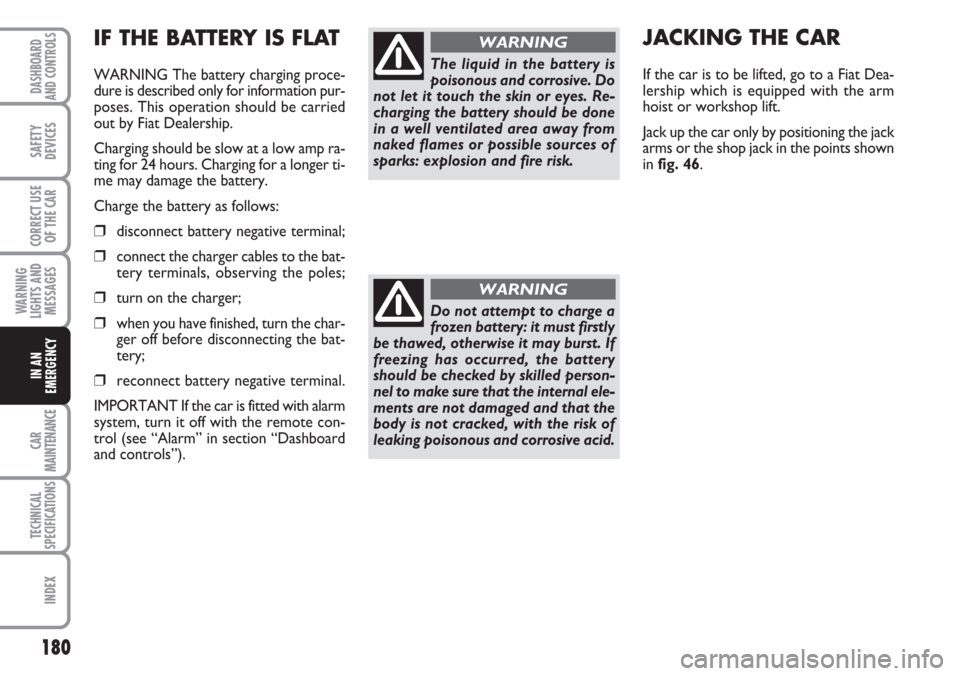

IF THE BATTERY IS FLAT
WARNING The battery charging proce-
dure is described only for information pur-
poses. This operation should be carried
out by Fiat Dealership.
Charging should be slow at a low amp ra-
ting for 24 hours. Charging for a longer ti-
me may damage the battery.
Charge the battery as follows:
❒disconnect battery negative terminal;
❒connect the charger cables to the bat-
tery terminals, observing the poles;
❒turn on the charger;
❒when you have finished, turn the char-
ger off before disconnecting the bat-
tery;
❒reconnect battery negative terminal.
IMPORTANT If the car is fitted with alarm
system, turn it off with the remote con-
trol (see “Alarm” in section “Dashboard
and controls”).
The liquid in the battery is
poisonous and corrosive. Do
not let it touch the skin or eyes. Re-
charging the battery should be done
in a well ventilated area away from
naked flames or possible sources of
sparks: explosion and fire risk.
WARNING
Do not attempt to charge a
frozen battery: it must firstly
be thawed, otherwise it may burst. If
freezing has occurred, the battery
should be checked by skilled person-
nel to make sure that the internal ele-
ments are not damaged and that the
body is not cracked, with the risk of
leaking poisonous and corrosive acid.
WARNING
JACKING THE CAR
If the car is to be lifted, go to a Fiat Dea-
lership which is equipped with the arm
hoist or workshop lift.
Jack up the car only by positioning the jack
arms or the shop jack in the points shown
in fig. 46.
