2006 CHEVROLET SILVERADO warning

Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together if
the vehicle is to have really good braking. Your
vehicle was designed and tested with top-quality
GM brake parts. When you replace parts of your braking
system — for example, when your brake linings wear
down and you need new ones put in — be sure you get
new approved GM replacement parts. If you do not,
your brakes may no longer work properly. For example,
if someone puts in brake linings that are wrong for
your vehicle, the balance between your front and rear
brakes can change — for the worse. The braking
performance you have come to expect can change in
many other ways if someone puts in the wrong
replacement brake parts.
Battery
Your vehicle has a maintenance free battery. When it is
time for a new battery, get one that has the replacement
number shown on the original battery’s label. We
recommend an ACDelco
®replacement battery. See
Engine Compartment Overview on page 5-14for battery
location.Warning:Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after
handling.
Vehicle Storage
If you are not going to drive your vehicle for 25 days or
more, remove the black, negative (−) cable from the
battery. This will help keep your battery from
running down.
{CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if
you are not careful. SeeJump Starting on
page 5-52for tips on working around a battery
without getting hurt.
5-51

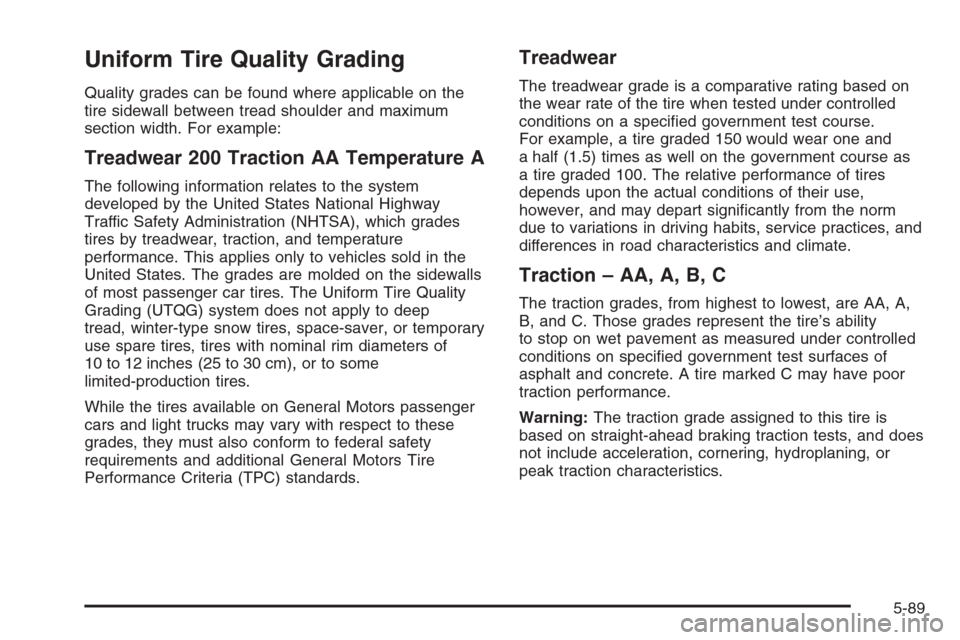

Uniform Tire Quality Grading
Quality grades can be found where applicable on the
tire sidewall between tread shoulder and maximum
section width. For example:
Treadwear 200 Traction AA Temperature A
The following information relates to the system
developed by the United States National Highway
Traffic Safety Administration (NHTSA), which grades
tires by treadwear, traction, and temperature
performance. This applies only to vehicles sold in the
United States. The grades are molded on the sidewalls
of most passenger car tires. The Uniform Tire Quality
Grading (UTQG) system does not apply to deep
tread, winter-type snow tires, space-saver, or temporary
use spare tires, tires with nominal rim diameters of
10 to 12 inches (25 to 30 cm), or to some
limited-production tires.
While the tires available on General Motors passenger
cars and light trucks may vary with respect to these
grades, they must also conform to federal safety
requirements and additional General Motors Tire
Performance Criteria (TPC) standards.
Treadwear
The treadwear grade is a comparative rating based on
the wear rate of the tire when tested under controlled
conditions on a specied government test course.
For example, a tire graded 150 would wear one and
a half (1.5) times as well on the government course as
a tire graded 100. The relative performance of tires
depends upon the actual conditions of their use,
however, and may depart signicantly from the norm
due to variations in driving habits, service practices, and
differences in road characteristics and climate.
Traction – AA, A, B, C
The traction grades, from highest to lowest, are AA, A,
B, and C. Those grades represent the tire’s ability
to stop on wet pavement as measured under controlled
conditions on specied government test surfaces of
asphalt and concrete. A tire marked C may have poor
traction performance.
Warning:The traction grade assigned to this tire is
based on straight-ahead braking traction tests, and does
not include acceleration, cornering, hydroplaning, or
peak traction characteristics.
5-89

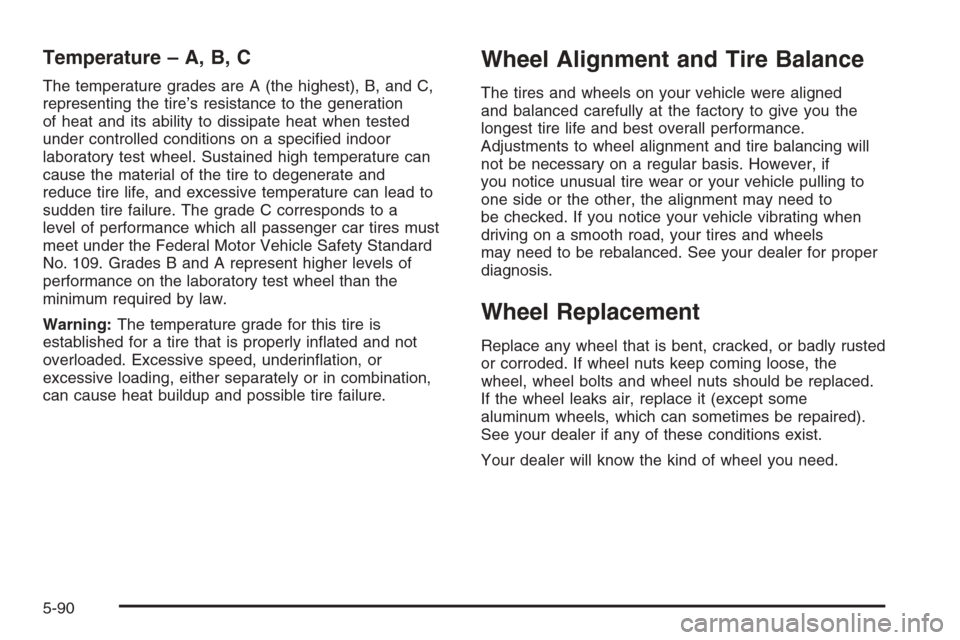

Temperature – A, B, C
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation
of heat and its ability to dissipate heat when tested
under controlled conditions on a specied indoor
laboratory test wheel. Sustained high temperature can
cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to a
level of performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard
No. 109. Grades B and A represent higher levels of
performance on the laboratory test wheel than the
minimum required by law.
Warning:The temperature grade for this tire is
established for a tire that is properly inated and not
overloaded. Excessive speed, underination, or
excessive loading, either separately or in combination,
can cause heat buildup and possible tire failure.
Wheel Alignment and Tire Balance
The tires and wheels on your vehicle were aligned
and balanced carefully at the factory to give you the
longest tire life and best overall performance.
Adjustments to wheel alignment and tire balancing will
not be necessary on a regular basis. However, if
you notice unusual tire wear or your vehicle pulling to
one side or the other, the alignment may need to
be checked. If you notice your vehicle vibrating when
driving on a smooth road, your tires and wheels
may need to be rebalanced. See your dealer for proper
diagnosis.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the
wheel, wheel bolts and wheel nuts should be replaced.
If the wheel leaks air, replace it (except some
aluminum wheels, which can sometimes be repaired).
See your dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
5-90

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel damage by
driving slowly to a level place. Turn on your hazard
warning ashers. SeeHazard Warning Flashers on
page 3-6for more information.
{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you
or other people. You and they could be badly
injured or even killed. Find a level place to
change your tire. To help prevent the vehicle
from moving:
1. Set the parking brake rmly.
2. Put an automatic transmission shift lever in
PARK (P), or shift a manual transmission to
FIRST (1) or REVERSE (R).
3. If you have a four-wheel-drive vehicle,
be sure the transfer case is in a drive
gear — not in NEUTRAL.
4. Turn off the engine and do not restart while
the vehicle is raised.
5. Do not allow passengers to remain in
the vehicle.
CAUTION: (Continued)
CAUTION: (Continued)
To be even more certain the vehicle will not
move, put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side, at the
opposite end of the vehicle.
When your vehicle has a at tire, use the following
example as a guide to assist you in the placement of
the wheel blocks.
The following information will tell you next how to use
the jack and change a tire.
5-94

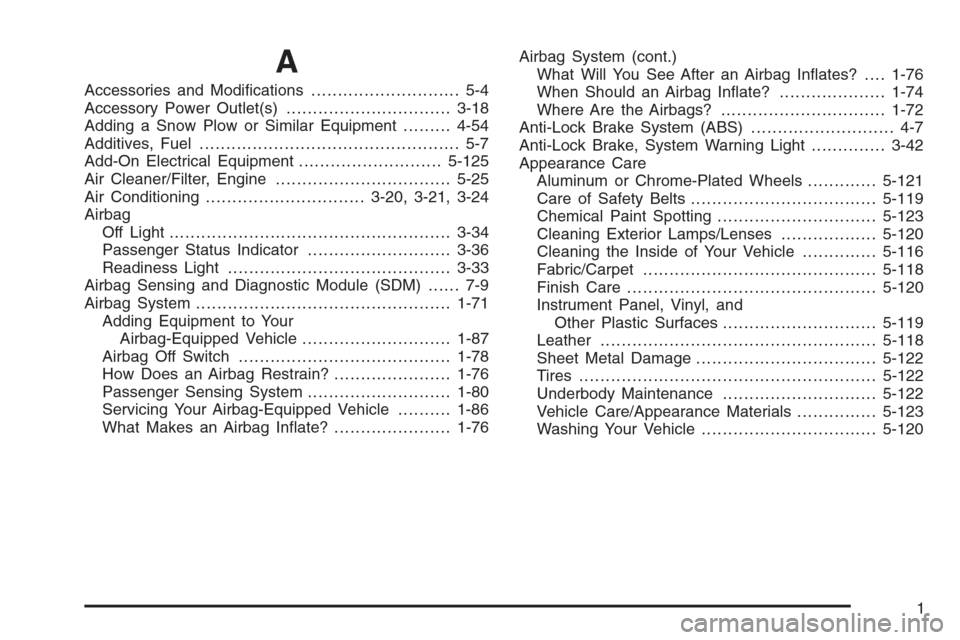

A
Accessories and Modications............................ 5-4
Accessory Power Outlet(s)...............................3-18
Adding a Snow Plow or Similar Equipment.........4-54
Additives, Fuel................................................. 5-7
Add-On Electrical Equipment...........................5-125
Air Cleaner/Filter, Engine.................................5-25
Air Conditioning..............................3-20, 3-21, 3-24
Airbag
Off Light.....................................................3-34
Passenger Status Indicator...........................3-36
Readiness Light..........................................3-33
Airbag Sensing and Diagnostic Module (SDM)...... 7-9
Airbag System................................................1-71
Adding Equipment to Your
Airbag-Equipped Vehicle............................1-87
Airbag Off Switch........................................1-78
How Does an Airbag Restrain?......................1-76
Passenger Sensing System...........................1-80
Servicing Your Airbag-Equipped Vehicle..........1-86
What Makes an Airbag Inate?......................1-76Airbag System (cont.)
What Will You See After an Airbag Inates?....1-76
When Should an Airbag Inate?....................1-74
Where Are the Airbags?...............................1-72
Anti-Lock Brake System (ABS)........................... 4-7
Anti-Lock Brake, System Warning Light..............3-42
Appearance Care
Aluminum or Chrome-Plated Wheels.............5-121
Care of Safety Belts...................................5-119
Chemical Paint Spotting..............................5-123
Cleaning Exterior Lamps/Lenses..................5-120
Cleaning the Inside of Your Vehicle..............5-116
Fabric/Carpet............................................5-118
Finish Care...............................................5-120
Instrument Panel, Vinyl, and
Other Plastic Surfaces.............................5-119
Leather....................................................5-118
Sheet Metal Damage..................................5-122
Tires........................................................5-122
Underbody Maintenance.............................5-122
Vehicle Care/Appearance Materials...............5-123
Washing Your Vehicle.................................5-120
1

Appearance Care (cont.)
Weatherstrips............................................5-119
Windshield and Wiper Blades......................5-121
Ashtray(s)......................................................3-19
Audio System(s).............................................3-70
AM-FM Radio.............................................3-72
Audio Steering Wheel Controls....................3-127
Care of Your Cassette Tape Player...............3-128
Care of Your CD and DVD Player................3-130
Care of Your CDs and DVDs .......................3-129
Chime Level Adjustment.............................3-130
Fixed Mast Antenna...................................3-130
Radio with Cassette and CD.........................3-85
Radio with CD............................................3-74
Radio with Six-Disc CD................................3-99
Rear Seat Audio (RSA)...............................3-125
Setting the Time for Radios with
Radio Data Systems (RDS).......................3-71
Setting the Time for Radios without
Radio Data Systems (RDS).......................3-71
Theft-Deterrent Feature...............................3-126
Understanding Radio Reception...................3-128
XM™ Satellite Radio Antenna System...........3-130
Automatic Headlamp System............................3-14
Automatic Transmission
Fluid..................................................5-27, 5-30
Operation...................................................2-24
Auxiliary Roof Mounted Lamp Switch.................3-16B
Battery..........................................................5-51
Battery Warning Light......................................3-39
Before Leaving on a Long Trip.........................4-39
Brake
Anti-Lock Brake System (ABS)........................ 4-7
Emergencies................................................ 4-9
Parking......................................................2-49
System Warning Light..................................3-41
Brakes..........................................................5-48
Braking........................................................... 4-6
Braking in Emergencies..................................... 4-9
Break-In, New Vehicle.....................................2-20
Bulb Replacement...........................................5-62
Center High-Mounted Stoplamp (CHMSL)
and Cargo Lamp......................................5-67
Front Turn Signal, Sidemarker
and Daytime Running Lamps.....................5-64
Halogen Bulbs............................................5-62
Headlamps.................................................5-62
License Plate Lamps....................................5-71
Pickup Box Identication and
Fender Marker Lamps...............................5-69
Replacement Bulbs......................................5-72
Roof Marker Lamps.....................................5-66
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps.................................5-69
Buying New Tires...........................................5-87
2

C
Calibration.............................2-56, 2-58, 2-60, 2-62
California Fuel.................................................. 5-7
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications..........................5-134
Carbon Monoxide...................2-14, 2-54, 4-42, 4-67
Care of
Safety Belts..............................................5-119
Your Cassette Tape Player..........................3-128
Your CD and DVD Player...........................3-130
Your CDs and DVDs ..................................3-129
Cargo Lamp...................................................3-18
Cargo Lamp Light...........................................3-49
Center Console Storage Area...........................2-76
Center Front Passenger Position, Safety Belts....1-26
Center High-Mounted Stoplamp (CHMSL)
and Cargo Lamp.........................................5-67
Chains, Tire...................................................5-92
Check
Engine Light...............................................3-45
Checking Things Under the Hood......................5-12
Chemical Paint Spotting.................................5-123
Child Restraints
Child Restraint Systems...............................1-38
Infants and Young Children...........................1-34
Lower Anchors and Tethers for Children..........1-44
Older Children.............................................1-32
Securing a Child Restraint in
a Rear Seat Position................................1-55Child Restraints (cont.)
Securing a Child Restraint in
the Center Front Seat Position...................1-57
Securing a Child Restraint in the
Right Front Seat Position (Crew Cab).........1-58
Securing a Child Restraint in
the Right Front Seat Position
(Regular and Extended Cab).............1-60, 1-66
Where to Put the Restraint...........................1-42
Chime Level Adjustment.................................3-130
Cigarette Lighter.............................................3-19
Cleaning
Aluminum or Chrome-Plated Wheels.............5-121
Exterior Lamps/Lenses................................5-120
Fabric/Carpet............................................5-118
Finish Care...............................................5-120
Inside of Your Vehicle.................................5-116
Instrument Panel, Vinyl, and
Other Plastic Surfaces.............................5-119
Leather....................................................5-118
Tires........................................................5-122
Underbody Maintenance.............................5-122
Washing Your Vehicle.................................5-120
Weatherstrips............................................5-119
Windshield and Wiper Blades......................5-121
Climate Control System...................................3-20
Dual ..........................................................3-21
Dual Automatic............................................3-24
Outlet Adjustment........................................3-29
3

Clutch, Hydraulic.............................................5-34
Coinholder(s)..................................................2-75
Collision Damage Repair..................................7-10
Comfort Guides, Rear Safety Belt.....................1-30
Content Theft-Deterrent....................................2-18
Control of a Vehicle.......................................... 4-6
Coolant
Engine Temperature Gage............................3-43
Heater, Engine............................................2-23
Surge Tank Pressure Cap.............................5-37
Cooling System..............................................5-40
Cruise Control................................................3-10
Cruise Control Light........................................3-48
Cupholder(s)..................................................2-75
Customer Assistance Information
Courtesy Transportation.................................. 7-7
Customer Assistance for
Text Telephone (TTY) Users........................ 7-4
Customer Assistance Offices........................... 7-4
Customer Satisfaction Procedure..................... 7-2
GM Mobility Reimbursement Program............... 7-5
Reporting Safety Defects to General Motors....7-14
Reporting Safety Defects to
the Canadian Government.........................7-14
Reporting Safety Defects to
the United States Government...................7-13
Roadside Assistance Program......................... 7-6
Service Publications Ordering Information........7-14D
Daytime Running Lamps..................................3-14
Doing Your Own Service Work........................... 5-5
Dome Lamp Override......................................3-17
Dome Lamps .................................................3-17
Door
Delayed Locking........................................... 2-9
Locks.......................................................... 2-8
Power Door Locks......................................... 2-8
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-12
Rear Doors.................................................2-13
Driver
Position, Safety Belt.....................................1-18
Driver Information Center (DIC).........................3-51
DIC Operation and Displays..........................3-52
DIC Vehicle Customization............................3-64
DIC Warnings and Messages........................3-54
Driving
At Night.....................................................4-33
City ...........................................................4-37
Defensive..................................................... 4-2
Drunken....................................................... 4-3
Freeway.....................................................4-38
Hill and Mountain Roads..............................4-40
In Rain and on Wet Roads...........................4-34
Off-Road ....................................................4-17
4
