2006 CHEVROLET CORVETTE key fob

K(Unlock):Press this button to unlock the driver’s
door. The light on the door will ash two times. Press the
button two times within 10 seconds to unlock both
doors. If it is dark enough outside, your interior lamps
will come on.
Your memory settings may also be recalled when you
press the unlock button on the keyless access
transmitter. SeeMemory on page 2-72for more
information.
}(Hatch/Trunk):Press and hold this button for
approximately one second to open the hatch/trunk
lid while the engine is turned off. If the engine is running
the shifter needs to be in PARK (P) for an automatic
transmission or NEUTRAL with the parking brake set
for a manual transmission. SeeParking Brake on
page 2-33.
L(Panic):Press this button to sound the vehicle
alarm. Press any other button on the keyless access
transmitter to stop the vehicle alarm.
Matching Transmitter(s) to Your Vehicle
Each keyless access transmitter is coded to allow only
transmitters programmed to your vehicle, to work.
If a transmitter is lost or stolen, a replacement can
be purchased and programmed through your GM dealer.
Your GM dealer can reprogram your vehicle so lost or
stolen transmitters no longer work with your vehicle.
Each vehicle can have a maximum of four transmitters
matched to it.
To match a new transmitter to your vehicle when
you have a recognized transmitter (two recognized
transmitters are required for Canadian owners), do the
following:
1. The vehicle must be off.
2. Have the recognized and new, unrecognized
transmitters on your person.
3. Go to the rear of the vehicle and insert the vehicle
key into the key cylinder located above the license
plate. SeeHatch/Trunk on page 2-14for more
information on the key cylinder.
4. Open the trunk.
5. Turn the key ve times within ve seconds.
6. The DIC will display READY FOR FOB #X, where
X can be 2, 3 or 4.
2-6

7. Place the new, unrecognized transmitter in the
glove box transmitter pocket with the buttons
facing towards the passenger’s side.
8. Once the transmitter is programmed, a beep will
sound. The DIC will display READY FOR #X,
whereXcanbe3or4,orMAX#FOBSLEARNED.
9. Press the ACC button (ignition switch).
The Canadian immobilizer standard requires Canadian
owners to see their GM dealer for matching new
transmitters when a recognized transmitter is not
available. United States owners are permitted to match
a new transmitter to their vehicle when a recognized
transmitter is not available.The procedure will require three ten minutes cycles to
complete the matching process. Do the following:
1. The vehicle must be off.
2. Place the new, unrecognized transmitter in the
glove box transmitter pocket with the buttons
facing towards the passenger’s side.
3. Go to the rear of the vehicle and insert the vehicle
key into the key cylinder located above the license
plate. SeeHatch/Trunk on page 2-14for more
information on the key cylinder.
4. Open the trunk.
2-7

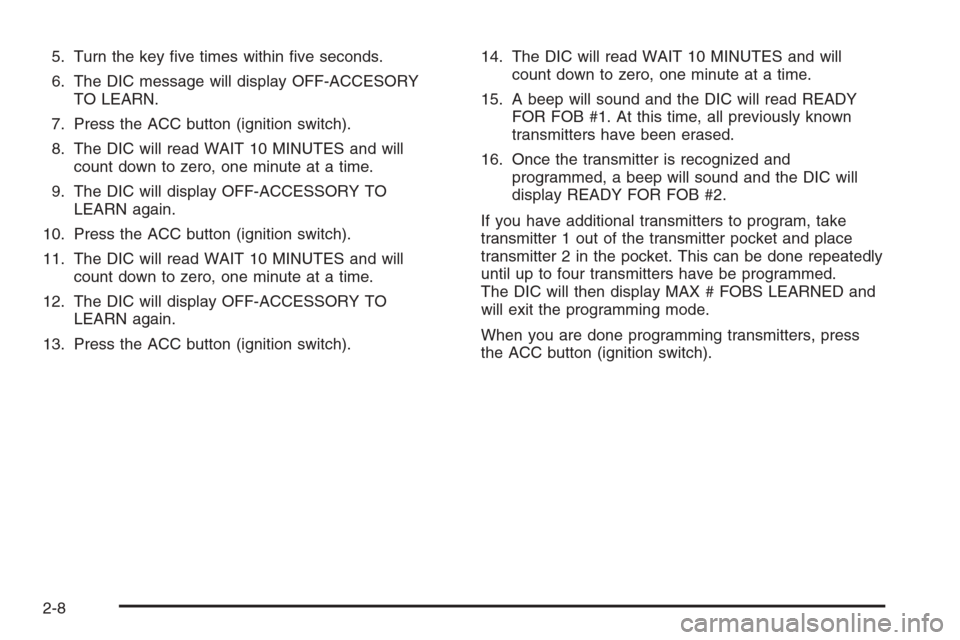

5. Turn the key ve times within ve seconds.
6. The DIC message will display OFF-ACCESORY
TO LEARN.
7. Press the ACC button (ignition switch).
8. The DIC will read WAIT 10 MINUTES and will
count down to zero, one minute at a time.
9. The DIC will display OFF-ACCESSORY TO
LEARN again.
10. Press the ACC button (ignition switch).
11. The DIC will read WAIT 10 MINUTES and will
count down to zero, one minute at a time.
12. The DIC will display OFF-ACCESSORY TO
LEARN again.
13. Press the ACC button (ignition switch).14. The DIC will read WAIT 10 MINUTES and will
count down to zero, one minute at a time.
15. A beep will sound and the DIC will read READY
FOR FOB #1. At this time, all previously known
transmitters have been erased.
16. Once the transmitter is recognized and
programmed, a beep will sound and the DIC will
display READY FOR FOB #2.
If you have additional transmitters to program, take
transmitter 1 out of the transmitter pocket and place
transmitter 2 in the pocket. This can be done repeatedly
until up to four transmitters have be programmed.
The DIC will then display MAX # FOBS LEARNED and
will exit the programming mode.
When you are done programming transmitters, press
the ACC button (ignition switch).
2-8

Battery Replacement
Under normal use, the battery in your keyless access
transmitter should last about three years.
You can tell the battery is weak if the transmitter will not
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it is probably time to change the battery.
A weak battery may also cause the DIC to display NO
FOBS DETECTED when you try to start the vehicle.
If this happens, place the transmitter in the glove
box transmitter pocket with the buttons facing towards
the passenger’s side. Then, with the vehicle in PARK (P)
for an automatic transmission press the brake pedal
and the START button, or if your vehicle has a manual
transmission, press the clutch and the START button.
Although this will start the vehicle, it is recommended
that you replace the transmitter battery as soon as
possible. The DIC may display FOB BATTERY LOW.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.1. Insert a coin or similar object into the slot on the
back of the transmitter and gently pry apart the
front and back.
2. Gently pull the battery out of the transmitter.
3. Put the new battery in the transmitter, positive (+)
side down. Use a battery, type CR2032, or
equivalent.
4. Reassemble the transmitter. Make sure to put it
together so water will not get in.
5. Test the transmitter.
2-9

Retained Accessory Power (RAP)
With RAP, your power windows and the audio system
will continue to work for up to 10 minutes after the
engine is turned off or until either door is opened. If a
door is opened, the power windows and audio system
will shut off.
Starting the Engine
Move the shift lever to PARK (P) or NEUTRAL (N) for
an automatic transmission. For a manual transmission
the vehicle can be started in NEUTRAL or any other
gear as long as the clutch is depressed. To restart
a manual when you are already moving, use the
NEUTRAL position only. To restart an automatic when
you are already moving, use NEUTRAL (N).
The keyless access transmitter must be inside the
vehicle for the ignition to work.
Cell phone chargers may interfere with the operation of
the Keyless Access System. Battery chargers should
not be plugged in when starting or turning off the engine.
Notice:Do not try to shift to PARK (P) if your
vehicle is moving. If you do, you could damage the
transmission. Shift to PARK (P) only when your
vehicle is stopped.To start you vehicle, do the following:
1. For an automatic transmission, with your foot on the
brake pedal, press the START button located on the
instrument panel. For a manual transmission, while
pressing in the clutch, press the START button.
If there is not a keyless access transmitter in the
vehicle or if there is something causing interference
with it, the DIC will display NO FOB DETECTED.
SeeDIC Warnings and Messages on page 3-53for
more information.
2. When the engine begins cranking, let go of the
button. The idle speed will decrease as your
engine gets warm.
If the battery in the keyless access transmitter
is weak, the DIC will display FOB BATTERY LOW.
You can still drive the vehicle. See “Battery
Replacement” underKeyless Access System
Operation on page 2-5for more information.
3. If the engine does not start and no DIC message is
displayed, wait 15 seconds before trying again.
Notice:Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way the
engine operates. Before adding electrical equipment,
check with your dealer. If you do not, your engine
might not perform properly. Any resulting damage
would not be covered by your vehicle’s warranty.
2-23

Stopping Your Engine
If your vehicle has an automatic transmission, move the
shift lever to PARK (P) and press the ACC button
located on the instrument panel. If the shifter is not in
PARK (P), the vehicle will go into accessory mode
and the DIC will display SHIFT TO PARK. Once the
shifter is moved to PARK (P), the vehicle will turn off.
If your vehicle has a manual transmission, move the shift
lever to REVERSE (R).
If the keyless access transmitter is not detected inside
the vehicle when it is turned to off, the DIC will
display NO FOB – OFF OR RUN?.
SeeDIC Warnings and Messages on page 3-53for
more information.
Engine Coolant Heater
Your vehicle may be equipped with an engine coolant
heater.
In very cold weather, 0°F (−18°C) or colder, the engine
coolant heater can help. You will get easier starting
and better fuel economy during engine warm-up.
Usually, the coolant heater should be plugged in a
minimum of four hours prior to starting your vehicle.
At temperatures above 32°F (0°C), use of the coolant
heater is not required. Your vehicle may also have
an internal thermostat in the plug end of the cord. This
will prevent operation of the engine coolant heater
when the temperature is at or above 0°F (−18°C) as
noted on the cord.
2-24

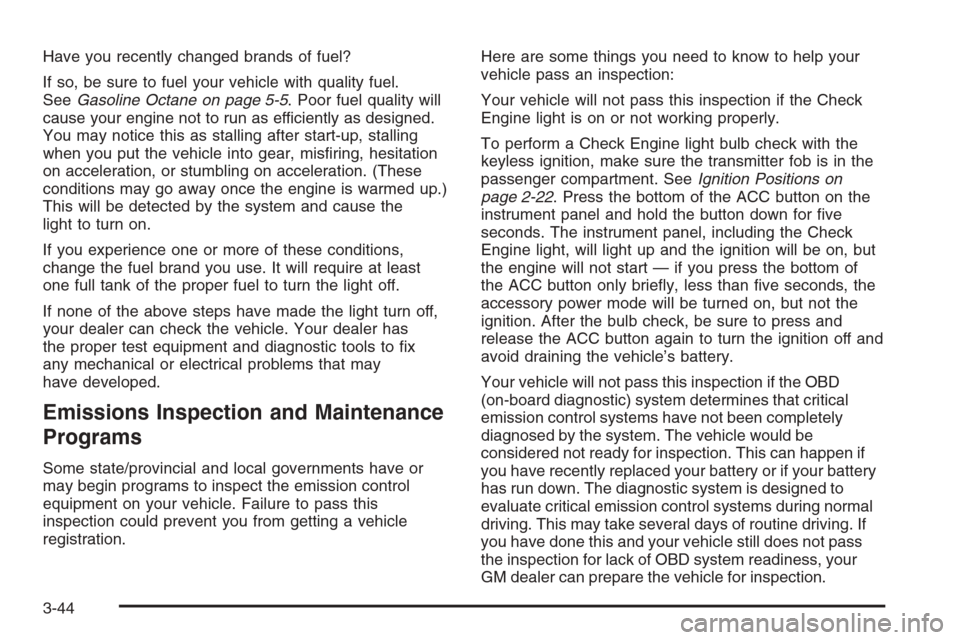

Have you recently changed brands of fuel?
If so, be sure to fuel your vehicle with quality fuel.
SeeGasoline Octane on page 5-5. Poor fuel quality will
cause your engine not to run as efficiently as designed.
You may notice this as stalling after start-up, stalling
when you put the vehicle into gear, misring, hesitation
on acceleration, or stumbling on acceleration. (These
conditions may go away once the engine is warmed up.)
This will be detected by the system and cause the
light to turn on.
If you experience one or more of these conditions,
change the fuel brand you use. It will require at least
one full tank of the proper fuel to turn the light off.
If none of the above steps have made the light turn off,
your dealer can check the vehicle. Your dealer has
the proper test equipment and diagnostic tools to x
any mechanical or electrical problems that may
have developed.
Emissions Inspection and Maintenance
Programs
Some state/provincial and local governments have or
may begin programs to inspect the emission control
equipment on your vehicle. Failure to pass this
inspection could prevent you from getting a vehicle
registration.Here are some things you need to know to help your
vehicle pass an inspection:
Your vehicle will not pass this inspection if the Check
Engine light is on or not working properly.
To perform a Check Engine light bulb check with the
keyless ignition, make sure the transmitter fob is in the
passenger compartment. SeeIgnition Positions on
page 2-22. Press the bottom of the ACC button on the
instrument panel and hold the button down for ve
seconds. The instrument panel, including the Check
Engine light, will light up and the ignition will be on, but
the engine will not start — if you press the bottom of
the ACC button only briey, less than ve seconds, the
accessory power mode will be turned on, but not the
ignition. After the bulb check, be sure to press and
release the ACC button again to turn the ignition off and
avoid draining the vehicle’s battery.
Your vehicle will not pass this inspection if the OBD
(on-board diagnostic) system determines that critical
emission control systems have not been completely
diagnosed by the system. The vehicle would be
considered not ready for inspection. This can happen if
you have recently replaced your battery or if your battery
has run down. The diagnostic system is designed to
evaluate critical emission control systems during normal
driving. This may take several days of routine driving. If
you have done this and your vehicle still does not pass
the inspection for lack of OBD system readiness, your
GM dealer can prepare the vehicle for inspection.
3-44

NO FOBS DETECTED:This message is displayed if
the vehicle does not detect the presence of a keyless
access transmitter when you have attempted to start the
vehicle or a vehicle door has just closed. The following
conditions may cause this message to appear:
Driver-added equipment plugged into the accessory
power outlet on the center console is causing
interference. Examples of these devices are cell
phones and cell phone chargers, two-way radios,
power inverters, or similar items. Try moving the
keyless access transmitter away from these devices
when starting the vehicle. In addition, PDA devices
and remote garage and gate openers may also
generate Electromagnetic Interference (EMI) that
may interfere with the keyless access transmitter.
Do not carry the keyless access transmitter in the
same pocket or bag as these devices.
The vehicle is experiencing Electromagnetic
Interference (EMI). Some locations, such as airports,
automatic toll booths, and some gas stations, have
EMI elds which may interfere with your keyless
access transmitter.If moving the transmitter to different locations within
the vehicle does not help, place the transmitter in the
glove box transmitter pocket with the buttons facing
to the right and then press the START button.
3-59
