2006 BUICK RANDEZVOUS windshield wipers

Ignition Positions
With the key in the ignition, you can turn it to
four different positions.
A (OFF):This is the only position in which you can
remove the key. This position locks the ignition
and transaxle.
Notice:Using a tool to force the key from the
ignition switch could cause damage or break the
key. Use the correct key and turn the key only with
your hand. Make sure the key is all the way in. If
none of this works, then your vehicle needs service.B (ACCESSORY):This position allows you to use
things like the radio and the windshield wipers while the
engine is off. This position will also allow you to turn
off the engine. Use ACCESSORY if you must have your
vehicle in motion while the engine is off, for example,
if your vehicle is being pushed or towed.
C (ON):This is the position that the switch returns
to after you start your engine and release the key.
The switch stays in ON when the engine is running.
But even when the engine is not running, you can use
ON to operate your electrical power accessories, and
to display some instrument panel warning lights.
D (START):This position starts the engine. When
the engine starts, release the key. The ignition switch
will return to ON for normal driving.
Retained Accessory Power (RAP)
With RAP, the power windows, the audio system,
the sunroof and the automatic level control will continue
to work for up to 10 minutes after the ignition key is
turned to OFF or until one of the doors is opened.
2-20

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-6
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-7
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-8
Windshield Wipers..........................................3-9
Windshield Washer.........................................3-9
Rear Window Wiper/Washer...........................3-10
Cruise Control..............................................3-10
Exterior Lamps.............................................3-14
Daytime Running Lamps (DRL).......................3-14
Automatic Headlamp System..........................3-15
Fog Lamps..................................................3-15
Interior Lamps..............................................3-16
Instrument Panel Brightness...........................3-16
Interior Lamps Control...................................3-16
Headlamp Exit Delay.....................................3-17
Entry Lighting...............................................3-17
Delayed Lighting...........................................3-18
Exit Lighting.................................................3-18
Perimeter Lighting.........................................3-19
Front Reading Lamps....................................3-19
Rear Reading Lamps....................................3-19Cargo Lamp.................................................3-19
Battery Run-Down Protection..........................3-20
Instrument Panel Switchbank..........................3-20
Head-Up Display (HUD).................................3-21
Ultrasonic Rear Parking Assist (URPA)............3-24
Accessory Power Outlet(s).............................3-26
Ashtray(s) and Cigarette Lighter......................3-27
Climate Controls............................................3-28
Climate Control System.................................3-28
Dual Climate Control System..........................3-30
Dual Automatic Climate Control System...........3-33
Outlet Adjustment.........................................3-36
Warning Lights, Gages, and Indicators............3-37
Instrument Panel Cluster................................3-38
Speedometer and Odometer...........................3-39
Trip Odometer..............................................3-39
Tachometer.................................................3-40
Safety Belt Reminder Light.............................3-40
Airbag Readiness Light..................................3-41
Passenger Airbag Status Indicator...................3-42
Brake System Warning Light..........................3-44
Anti-Lock Brake System Warning Light.............3-45
Traction Control System (TCS) Warning Light......3-45
Engine Coolant Temperature Gage..................3-46
Malfunction Indicator Lamp.............................3-46
Fuel Gage...................................................3-50
Section 3 Instrument Panel
3-1

Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane-Change Signals. SeeTurn and
Lane-Change Signals on page 3-7.
53Headlamp High/Low-Beam Changer. See
Headlamp High/Low-Beam Changer on page 3-8.
Flash-to-Pass. SeeFlash-to-Pass on page 3-8.
WIPERNWindshield Wipers. SeeWindshield
Wipers on page 3-9.
LPUSHWindshield Washer. SeeWindshield
Washer on page 3-9.
CRUISEICruise Control. SeeCruise Control
on page 3-10.
Turn and Lane-Change Signals
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever will return
automatically.
An arrow on the instrument
panel cluster and the HUD
display will ash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to ash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrow
ashes faster than normal, a signal bulb may be burned
out and other drivers will not see your turn signal.
3-7

Windshield Wipers
WIPERN:Turn the band marked WIPER to control
the windshield wipers.
MIST:For a single wiping cycle, turn the band to MIST.
Hold it there until the wipers start, then let go.
The wipers will stop after one cycle. If you want more
cycles, hold the band on MIST longer.
Delay:For delayed wiping cycles, you can set the
wiper speed for a long or short delay between wipes.
This can be very useful in light rain or snow. Turn
the band to choose the delay time. The closer to LO,
the shorter the delay time.
LO:For steady wiping cycles at low speed, turn the
band away from you to the LO position.
HI:For high-speed wiping, turn the band away from
you to the HI position.
OFF:To stop the wipers, turn the band to OFF.
Remember that damaged wiper blades may prevent you
from seeing well enough to drive safely. To avoid
damage, clear ice and snow from the wiper blades
before using them. If they are frozen to the windshield,
carefully loosen or thaw them. If your blades do
become damaged, get new blades or blade inserts.Heavy snow or ice can overload your wipers. A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.
Windshield Washer
LPUSH:To wash your windshield, press and hold
the paddle with the windshield washer symbol. The
washers and wipers will operate. When you release the
paddle, the washers will stop, and the wipers will
continue to operate for two cycles, unless your wipers
were already on. In that case, the wipers will resume the
wiper speed you selected earlier.
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
3-9

Rear Window Wiper/Washer
The rear window
washer/wiper switch is
located in the instrument
panel switchbank.
SeeInstrument Panel
Switchbank on page 3-20.
Z(Rear Intermittent Wiper)Press the wiper symbol
on the top of the switch to turn on the intermittent
wiper. To turn off the wiper, gently press the bottom
of the switch.
=(Rear Wiper/Washer)To wash and wipe the rear
window, press the washer symbol on the bottom of
the switch. Washer uid will spray as long as the switch
is held in. When the switch is released, the wiper will
continue to cycle three more times. There is only
one washer uid reservoir for the front and rear
windshield wipers. SeeWindshield Washer Fluid
on page 5-33.To wash the rear window while the rear wiper is already
on, press the bottom of the switch. Press the top of
the switch to continue the intermittent wiper cycle after
the washing cycle is completed.
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
Cruise Control
With cruise control, you can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot
on the accelerator. This can really help on long trips.
Cruise control does not work at speeds below about
25 mph (40 km/h).
When you apply your brakes, the cruise control
disengages.
3-10

Fuse Usage
1 Empty
2 Steering Wheel Radio Controls
3 Power Door Locks
4 Empty
5 Empty
6 Empty
7 Empty
8 Empty
9 Empty
10Turn Signal and Hazard Lamp
Flashers
Fuse Usage
11 Power Seats
12Electronic Level Control (ELC)
Compressor
13 Liftgate and Endgate
14 Rear Auxiliary Power Outlet
15Electronic Level Control (ELC)
Compressor Relay and Height
Sensor
16 Heated Mirrors
17 Power Mirrors
18 Ignition 1 Module
19 Turn Signal Switch
21 Rear Defogger
22 Air Bag Module
24 TCC Switch
25 HVAC Blower Motor
26HVAC Mode and Temperature
Motors and Head-Up Display
28 Not Used
29 Windshield Wipers and Washer
30Instrument Panel Cluster, Body
Control Module (BCM),
PASS-Key
®III
31 Park Lock Ignition Key Solenoid
32 Rear Window Wiper/Washer
5-102

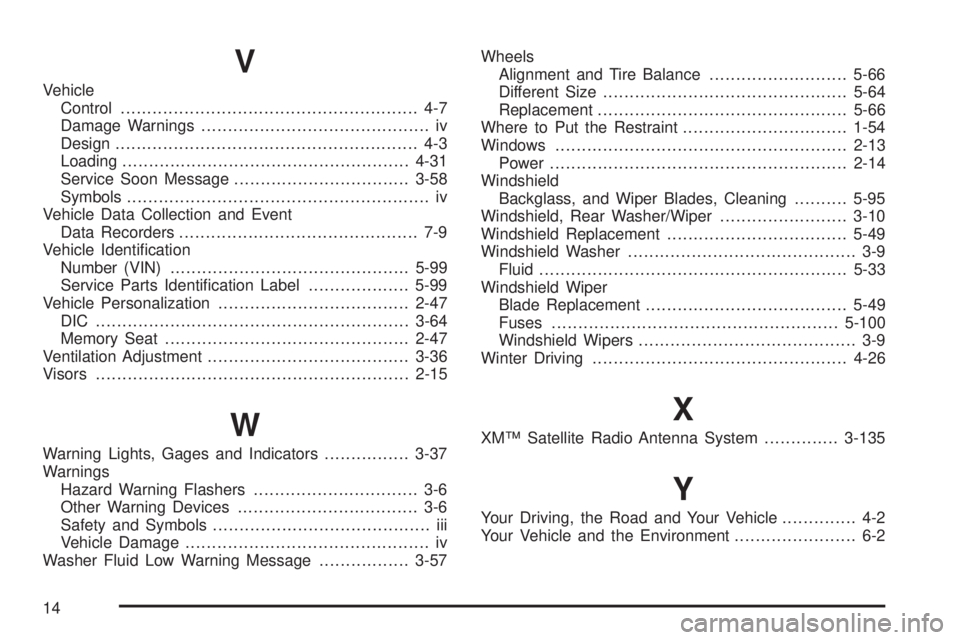

V
Vehicle
Control........................................................ 4-7
Damage Warnings........................................... iv
Design......................................................... 4-3
Loading......................................................4-31
Service Soon Message.................................3-58
Symbols......................................................... iv
Vehicle Data Collection and Event
Data Recorders............................................. 7-9
Vehicle Identication
Number (VIN).............................................5-99
Service Parts Identication Label...................5-99
Vehicle Personalization....................................2-47
DIC ...........................................................3-64
Memory Seat..............................................2-47
Ventilation Adjustment......................................3-36
Visors...........................................................2-15
W
Warning Lights, Gages and Indicators................3-37
Warnings
Hazard Warning Flashers............................... 3-6
Other Warning Devices.................................. 3-6
Safety and Symbols......................................... iii
Vehicle Damage.............................................. iv
Washer Fluid Low Warning Message.................3-57Wheels
Alignment and Tire Balance..........................5-66
Different Size..............................................5-64
Replacement...............................................5-66
Where to Put the Restraint...............................1-54
Windows.......................................................2-13
Power........................................................2-14
Windshield
Backglass, and Wiper Blades, Cleaning..........5-95
Windshield, Rear Washer/Wiper........................3-10
Windshield Replacement..................................5-49
Windshield Washer........................................... 3-9
Fluid..........................................................5-33
Windshield Wiper
Blade Replacement......................................5-49
Fuses......................................................5-100
Windshield Wipers......................................... 3-9
Winter Driving................................................4-26
X
XM™ Satellite Radio Antenna System..............3-135
Y
Your Driving, the Road and Your Vehicle.............. 4-2
Your Vehicle and the Environment....................... 6-2
14
