Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-3
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside of
Your Vehicle..............................................5-4
Fuel................................................................5-4
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-5
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-6
Filling the Tank..............................................5-7
Filling a Portable Fuel Container.......................5-8
Checking Things Under the Hood.....................5-9
Hood Release................................................5-9
Engine Compartment Overview.......................5-10
Engine Oil...................................................5-13
Engine Oil Life System..................................5-16
Engine Air Cleaner/Filter................................5-18
Automatic Transaxle Fluid..............................5-19
Engine Coolant.............................................5-21
Radiator Pressure Cap..................................5-23
Engine Overheating.......................................5-23
Overheated Engine Protection
Operating Mode........................................5-25Cooling System............................................5-26
Power Steering Fluid.....................................5-32
Windshield Washer Fluid................................5-33
Brakes........................................................5-34
Battery........................................................5-37
Jump Starting...............................................5-38
All-Wheel Drive..............................................5-43
Bulb Replacement..........................................5-44
Halogen Bulbs..............................................5-44
Headlamps, Front Turn Signal, Sidemarker,
and Parking Lamps....................................5-45
Taillamps, Turn Signal, and Stoplamps............5-47
Taillamps and Back-Up Lamps.......................5-48
Replacement Bulbs.......................................5-49
Windshield Replacement.................................5-49
Windshield Wiper Blade Replacement..............5-49
Tires..............................................................5-51
Tire Sidewall Labeling...................................5-52
Tire Terminology and Denitions.....................5-55
Ination - Tire Pressure.................................5-57
Check Tire Pressure System..........................5-59
Tire Inspection and Rotation...........................5-60
When It Is Time for New Tires.......................5-62
Buying New Tires.........................................5-62
Different Size Tires and Wheels......................5-64
Section 5 Service and Appearance Care
5-1

Uniform Tire Quality Grading..........................5-64
Wheel Alignment and Tire Balance..................5-66
Wheel Replacement......................................5-66
Tire Chains..................................................5-67
Accessory Inator.........................................5-68
If a Tire Goes Flat........................................5-69
Changing a Flat Tire.....................................5-70
Removing the Spare Tire and Tools................5-71
Removing the Flat Tire and Installing
the Spare Tire..........................................5-77
Secondary Latch System...............................5-81
Storing a Flat or Spare Tire and Tools................5-84
Compact Spare Tire......................................5-90
Appearance Care............................................5-91
Cleaning the Inside of Your Vehicle.................5-91
Fabric/Carpet...............................................5-92
Leather.......................................................5-93
Instrument Panel, Vinyl, and Other
Plastic Surfaces........................................5-93
Care of Safety Belts......................................5-94
Weatherstrips...............................................5-94
Washing Your Vehicle...................................5-94
Cleaning Exterior Lamps/Lenses.....................5-94Finish Care..................................................5-95
Windshield, Backglass, and Wiper Blades.........5-95
Aluminum or Chrome-Plated Wheels................5-96
Tires...........................................................5-96
Sheet Metal Damage.....................................5-97
Finish Damage.............................................5-97
Underbody Maintenance................................5-97
Chemical Paint Spotting.................................5-97
Vehicle Care/Appearance Materials..................5-98
Vehicle Identication......................................5-99
Vehicle Identication Number (VIN).................5-99
Service Parts Identication Label.....................5-99
Electrical System..........................................5-100
Add-On Electrical Equipment.........................5-100
Headlamp Wiring........................................5-100
Windshield Wiper Fuses...............................5-100
Power Windows and Other Power Options......5-100
Fuses and Circuit Breakers..........................5-101
Floor Console Fuse Block............................5-101
Underhood Fuse Block................................5-103
Capacities and Specications........................5-106
Section 5 Service and Appearance Care
5-2

Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps
1. Open the hood. SeeHood Release on page 5-9for
more information.
2. Push in on the
headlamp panel and
lift up the headlamp
retaining clip partway,
but do not remove.
3. Remove the wing stud on the upper, outboard side
of the lamp assembly.4. Unsnap the headlamp assembly by pulling it
forward, away from the vehicle.
5. Disconnect the electrical connector by pulling
back on the locking tab, located on the electrical
connector, to separate the two connectors.
6. Turn the bulb socket
one-quarter of a turn
clockwise.
7. Pull the bulb assembly out from the lamp housing.
5-45

8. Unhook the electrical connector by lifting up the
gray tabs and separate the connector from the
bulb base.9. Install the appropriate new bulb into the electrical
connector. Push the bulb rmly enough so that the
gray tabs hook over the tab on the bulb.
10. Put the bulb assembly back into the lamp housing
and turn the bulb socket one-quarter of a turn
counterclockwise.
11. Align the retaining clips on the back of the headlamp
with the rectangular holes in the mounting panel.
12. Push rmly on both ends of the headlamp to snap it
into position.
13. Push the retaining clip down to its original position.
14. Reinstall the wing stud.
5-46

11. Reinstall the lamp assembly on the liftgate.
12. Gently lift the liftgate.
13. Reinstall the seven wing nuts and the
four outboard nuts.
14. Reinstall the panel inside the liftgate by
connecting the tabs.
15. Close the liftgate.
Replacement Bulbs
Exterior Lamp Bulb Number
Front Turn Signal/Parking Lamp 3457K
Headlamps
High-beam 9005
Low-beam 9006
Liftgate-Mounted
Back-up Lamp 921
Taillamp 161
Rear Outboard Stoplamp/
Taillamp/Turn Signal Lamp3057K
Sidemarker Lamp 168
For replacement bulbs not listed here, contact
your dealer.
Windshield Replacement
Keep in mind that your windshield is part of the Head-Up
Display (HUD) system. If you ever have to get your
windshield replaced, be sure to get one that is designed
for HUD or your HUD image may look blurred or out
of focus.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear
and cracking. SeeScheduled Maintenance on page 6-4
for more information.
Replacement blades come in different types and are
removed in different ways. For proper type and length,
seeNormal Maintenance Replacement Parts on
page 6-13.
5-49

Wheel Alignment and Tire Balance
The tires and wheels on your vehicle were aligned and
balanced carefully at the factory to give you the longest
tire life and best overall performance. Adjustments to
wheel alignment and tire balancing will not be necessary
on a regular basis. However, if you notice unusual tire
wear or your vehicle pulling to one side or the other,
the alignment may need to be checked. If you notice your
vehicle vibrating when driving on a smooth road, your
tires and wheels may need to be rebalanced. See your
dealer for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent, cracked or badly
rusted or corroded. If wheel nuts keep coming loose,
the wheel, wheel bolts and wheel nuts should be
replaced. If the wheel leaks air, replace it (except some
aluminum wheels, which can sometimes be repaired).
See your dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.If you need to replace any of your wheels, wheel bolts or
wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
{CAUTION:
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance and tire or tire chain
clearance to the body and chassis.
SeeChanging a Flat Tire on page 5-70for more
information.
5-66

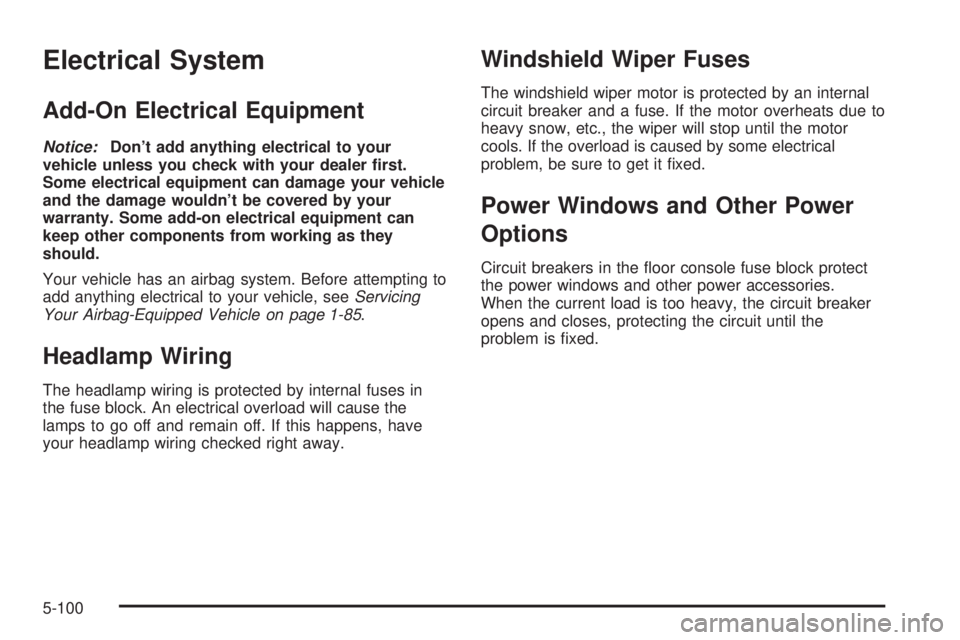

Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your
vehicle unless you check with your dealer rst.
Some electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working as they
should.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-85.
Headlamp Wiring
The headlamp wiring is protected by internal fuses in
the fuse block. An electrical overload will cause the
lamps to go off and remain off. If this happens, have
your headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools. If the overload is caused by some electrical
problem, be sure to get it xed.
Power Windows and Other Power
Options
Circuit breakers in the oor console fuse block protect
the power windows and other power accessories.
When the current load is too heavy, the circuit breaker
opens and closes, protecting the circuit until the
problem is xed.
5-100

Fuse Usage
1 Fuel Pump
2 Air Conditioning Compressor Clutch
3 Horn
4 Anti-lock Brake System (ABS)
5 Engine Control Module (ECM)
6 Powertrain Relay
7 Powertrain Sensors
8 Transmission Control Module (TCM)
9Anti-lock Brake System (ABS)
Solenoids Valves
10 Oxygen Sensor/MAF Sensor
Fuse Usage
11 Fuel Injectors (Even)
13 Fuel Injectors (Odd)
14 Daytime Running Lamps (DRL)
15 Passenger’s Low-Beam Headlamp
16 Transmission
17 Driver’s Low-Beam Headlamp
18 Driver’s High-Beam Headlamp
19 Ignition Switch Battery Power
20 Parking Lamps
21 Engine Control Module (ECM)
23 Passenger’s High-Beam Headlamp
24 Vent Solenoids
25 DVD
26 Front Fog Lamps
27 Ignition Relay
28 Body Control Module (BCM)
29 S-Band
30 All-Wheel Drive (AWD) Module
31 Cruise Control
32 Front Power Outlets/Lights, OnStar
®
33Automatic Transaxle Shift Lock
Control System
34 Starter Solenoid Battery Fuse
5-104
