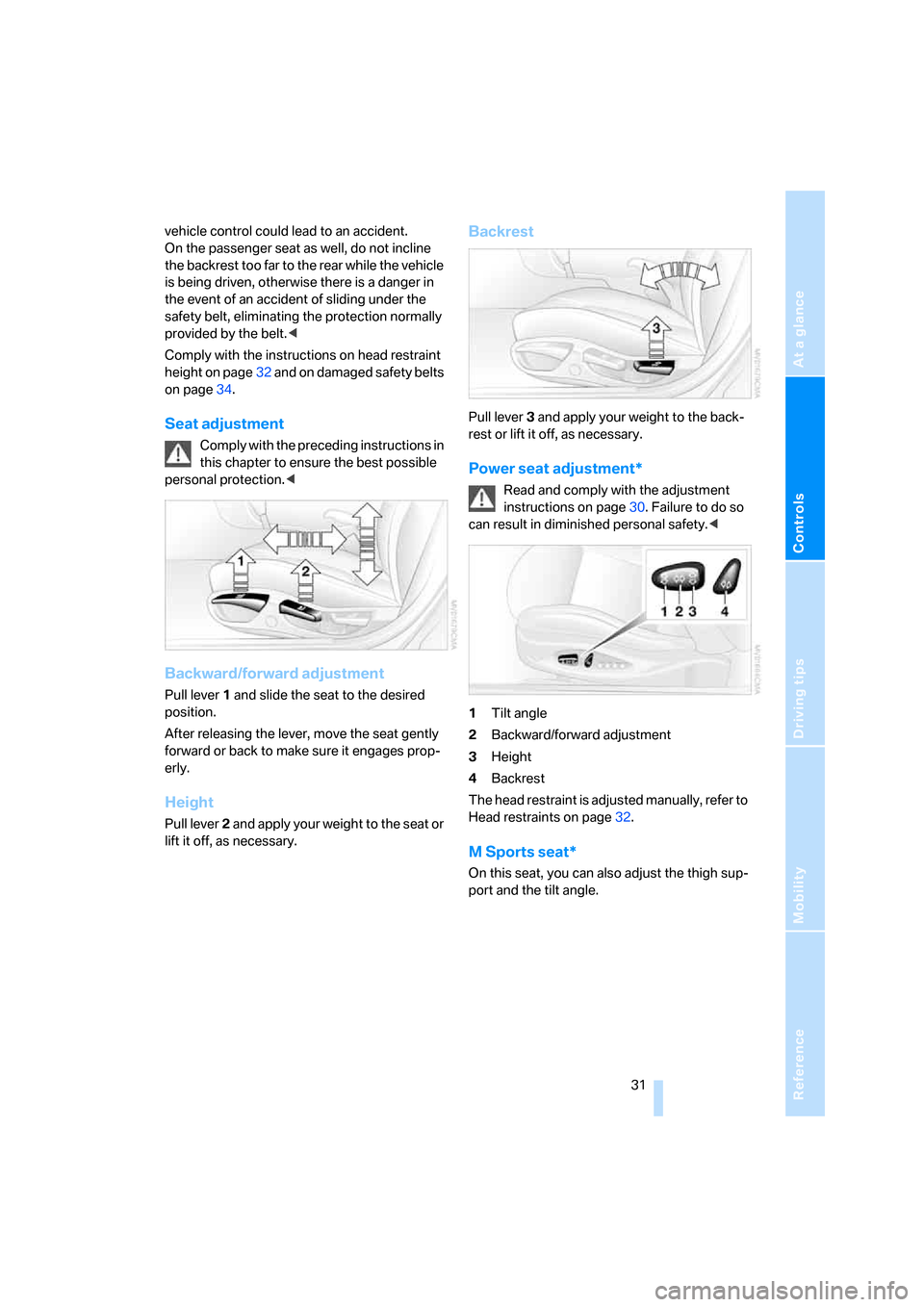

31
vehicle control could lead to an accident.
On the passenger seat as well, do not incline
the backrest too far to the rear while the vehicle
is being driven, otherwise there is a danger in
the event of an accident of sliding under the
safety belt, eliminating the protection normally
provided by the belt.<
Comply with the instructions on head restraint
height on page32 and on damaged safety belts
on page34.
Seat adjustment
Comply with the preceding instructions in
this chapter to ensure the best possible
personal protection.<
Backward/forward adjustment
Pull lever 1 and slide the seat to the desired
position.
After releasing the lever, move the seat gently
forward or back to make sure it engages prop-
erly.
Height
Pull lever 2 and apply your weight to the seat or
lift it off, as necessary.
Backrest
Pull lever 3 and apply your weight to the back-
rest or lift it off, as necessary.
Power seat adjustment*
Read and comply with the adjustment
instructions on page30. Failure to do so
can result in diminished personal safety.<
1Tilt angle
2Backward/forward adjustment
3Height
4Backrest
The head restraint is adjusted manually, refer to
Head restraints on page32.
M Sports seat*
On this seat, you can also adjust the thigh sup-
port and the tilt angle.
Adjustments
32
Tilting upward
Pull lever1 repeatedly until the desired tilt has
been reached.
Tilting downward
Press lever2 repeatedly until the desired tilt has
been reached.
Thigh support
Pull lever3 and move the thigh support forward
or back.
Head restraints
A correctly adjusted head restraint reduces the
risk of neck injury in the event of an accident.
Adjust the head restraint in such a way
that its center is at approx. ear level. Oth-
erwise, there is an increased risk of injury in the
event of an accident.<
Adjusting the height
>To move up: pull up.
>To move down: press button1 and push
the head restraint downward.
M Sports seat*
The head restraints are integrated in the back-
rests and cannot be adjusted in height.
Removal
1.Pull up all the way.
2.Press button1 and pull out the head
restraint completely.
M Sports seat*
The head restraints are integrated in the back-
rests and cannot be removed.
Seat memory*
You can store and recall three different driver's
seat positions.
Storing
Ignition key in position 1 or higher
1.Adjust seat to desired position.
2.Press the M
EMORY button.
The LED in the button lights up.
3.Press memory button 1, 2 or 3.
The LED goes out.
Manual call-up
Do not select a memory position while the
vehicle is moving. If you do, there is a risk
of accident from an unexpected movement of
the seat.<
Adjustments
34
Damaged safety belts
If the safety belts are damaged or
stressed in an accident: have the belt sys-
tem, including any belt tensioners, replaced and
the belt anchors checked. Have this work done
o nly by your BMW Center o r at a workshop that
works according to BMW repair procedures
with correspondingly trained personnel. Other-
wise, it is not guaranteed that the safety devices
will function properly.<
Mirrors
Exterior mirrors
The passenger's mirror is more convex
than the driver's mirror. The objects seen
in the mirror are closer than they appear. Do not
gauge your distance from traffic behind you on
the basis of what you see in the mirror; other-
wise there is an increased risk of an accident.<
1Adjustments
2To switch from one mirror to the other
3To fold the mirrors in or out
*
Manual adjustment
The mirrors can also be adjusted manually:
press on the edges of the lens.
Folding mirrors in or out*
The mirrors can be folded in or out up to a road
speed of approx. 6 mph/10 km/h by pressing
button3. This can be useful on narrow roads,
for example, or to reset the mirrors to their cor-
rect positions after they were folded in.
Automatic heating*
Both exterior mirrors are automatically heated
when the engine is running or the ignition is
switched on.
Interior rearview mirror
Turn the knob to reduce glare from the head-
lamps of cars behind you when driving at night.
Automatically dimming mirrors, refer to
page71.
Steering wheel
Adjustments
Never attempt to adjust the steering
wheel while driving the vehicle. It could
respond with unexpected movement, posing a
potential accident hazard.<
1.Fold the lever down.
2.Move the steering wheel to the preferred
height and angle to suit your seated posi-
tion.
3.Swing the lever back up.
Reference
At a glance
Controls
Driving tips
Mobility

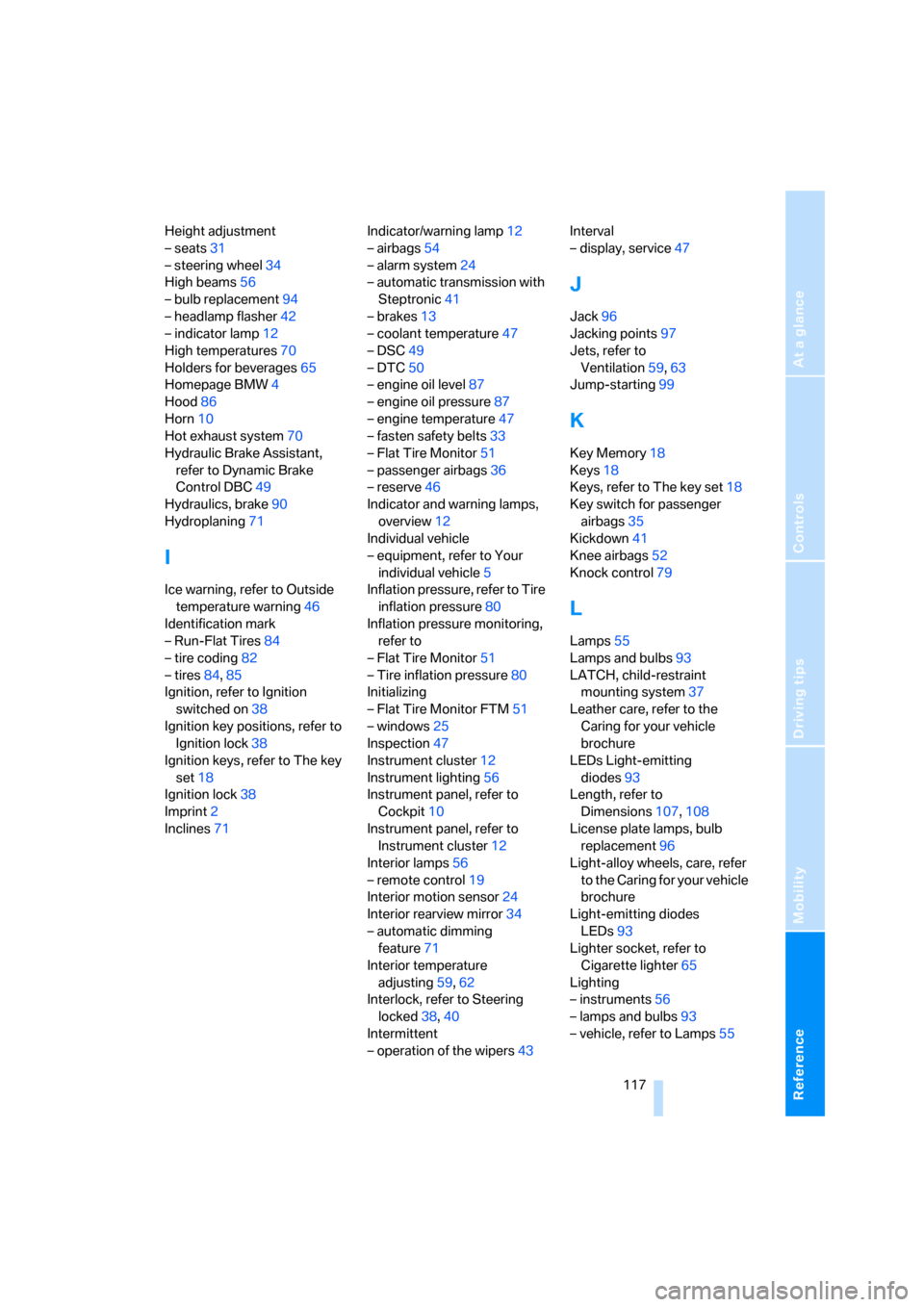

117
Height adjustment
– seats31
– steering wheel34
High beams56
– bulb replacement94
– headlamp flasher42
– indicator lamp12
High temperatures70
Holders for beverages65
Homepage BMW4
Hood86
Horn10
Hot exhaust system70
Hydraulic Brake Assistant,
refer to Dynamic Brake
Control DBC49
Hydraulics, brake90
Hydroplaning71
I
Ice warning, refer to Outside
temperature warning46
Identification mark
– Run-Flat Tires84
– tire coding82
– tires84,85
Ignition, refer to Ignition
switched on38
Ignition key positions, refer to
Ignition lock38
Ignition keys, refer to The key
set18
Ignition lock38
Imprint2
Inclines71Indicator/warning lamp12
– airbags54
– alarm system24
– automatic transmission with
Steptronic41
– brakes13
– coolant temperature47
– DSC49
– DTC50
– engine oil level87
– engine oil pressure87
– engine temperature47
– fasten safety belts33
– Flat Tire Monitor51
– passenger airbags36
– reserve46
Indicator and warning lamps,
overview12
Individual vehicle
– equipment, refer to Your
individual vehicle5
Inflation pressure, refer to Tire
inflation pressure80
Inflation pressure monitoring,
refer to
– Flat Tire Monitor51
– Tire inflation pressure80
Initializing
– Flat Tire Monitor FTM51
– windows25
Inspection47
Instrument cluster12
Instrument lighting56
Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Instrument cluster12
Interior lamps56
– remote control19
Interior motion sensor24
Interior rearview mirror34
– automatic dimming
feature
71
Interior temperature
adjusting59,62
Interlock, refer to Steering
locked38,40
Intermittent
– operation of the wipers43Interval
– display, service47
J
Jack96
Jacking points97
Jets, refer to
Ventilation59,63
Jump-starting99
K
Key Memory18
Keys18
Keys, refer to The key set18
Key switch for passenger
airbags35
Kickdown41
Knee airbags52
Knock control79
L
Lamps55
Lamps and bulbs93
LATCH, child-restraint
mounting system37
Leather care, refer to the
Caring for your vehicle
brochure
LEDs Light-emitting
diodes93
Length, refer to
Dimensions107,108
License plate lamps, bulb
replacement96
Light-alloy wheels, care, refer
to the Caring for your vehicle
brochure
Light-emitting diodes
LEDs93
Lighter socket, refer to
Cigarette lighter65
Lighting
– instruments56
– lamps and bulbs93
– vehicle, refer to Lamps55
