Table of Contents
Page
The BMW Maintenance Program - 2006 BMW Z4 Roadster 3.0i, 3.0si and Z4 Coupe 3.0si . . ................................................ 1
Coverage ......................................................1
Maintenance Intervals ..............................................1
Exclusions from coverage ...........................................1
Maintenance Upgrade Option .........................................1
Maintenance Program . . ............................................ 2
Unscheduled Maintenance .......................................... 4
Special Note .................................................... 4
Engine Compartment ..............................................5
Inspection I . .................................................... 6
Undercarriage ...................................................6
Engine Compartment ..............................................6
Body/Electrical ...................................................7
Final Inspection ..................................................7
Engine Compartment ..............................................8
Brake Fluid Service ................................................8
Oxygen Sensor Service .............................................8
Spark Plug Service ................................................8
Automatic Transmission Service .......................................8
BMW Engine Oil Service stamps ......................................10
BatteryCare .................................................... 14
Corrosion Protection ............................................. 14
Restoring corrosion protection .......................................14
Underbody maintenance ...........................................14
Body Inspection — Z4 Roadster 3.0i, 3.0si .............................. 15
Body Inspection — Z4 Coupe 3.0si .................................... 21
Customer Assistance Information .................................... 27
Customer Assistance - Notification ................................... 28
BBB AUTO LINE ................................................. 28
California Residents ..............................................29
Special Programs ................................................ 30
BMW Import Processing Centers ..................................... 30
Owner’s Eligibility ................................................31
Getting Started .................................................31
Calling For Assistance .............................................31

BMW recommends that you check engine oil
level whenever fuel is added to your vehicle.
– Inspection I: Major vehicle maintenance as specified in the following pages under Inspec-
tion I.
– Inspection II: Additional major vehicle mainte- nance as specified in the following pages under
Inspection II.
The following maintenance elements must be
performed at the mileage/time stated (time inter-
vals begin from the vehicle’s production date):
– Brake Fluid Service: Change brake fluid every two years.
– Oxygen Sensor Service: The oxygen sensor deteriorates strictly on a mileage basis and
must therefore be replaced every 120,000
miles to maximize vehicle fuel economy and
minimize exhaust pollution. The replacement of
the oxygen sensor is required under the terms
of the applicable BMW emission system war-
ranties.
– Spark Plug Service: Replace spark plugs every 100,000 miles.
– Automatic Transmission Service: Change ATF every 100,000 miles. The engine coolant has a lifetime rating and does
not need to be changed.
For your convenience, you may also wish to have
your BMW center perform any necessary opera-
tions to fulfill any state inspection requirements
in your area concurrent with the maintenance
elements specified above during other repairs.
Make sure that confirmation of maintenance
work is always entered in this Service and War-
ranty Information Statement. You may need this
for any warranty claims that become necessary,
and later on as evidence that your car has been
given the correct and regular maintenance that
justifies its resale or trade-in value.
BMW has applied the most modern technologi-
cal advances not only to the design and produc-
tion of your vehicle, but also to computing of the
optimum maintenance interval for your type of
operations and driving style. Your BMW center
has made a substantial investment in unique
BMW special service tools to enable his BMW
factory trained service technicians to perform
quality repairs on your BMW in minimal time.
He/she looks forward to serving your every ser-
vice need and to help maximize your satisfaction
with your BMW, its longevity, and resale value.
3

Inspection II
Includes all items listed under Inspection I, and the following checks and maintenance operations.
Engine Compartment
Z4 Roadster 3.0i, 3.0si Coupe 3.0si
Replace air cleaner element. (Note: Reduce replacement interval in dusty
operating conditions). •
Brake Fluid Service
Replace brake fluid every 2 years (time interval begins from the vehicle’s production
date). •
Oxygen Sensor Service
Replace Oxygen Sensor every 120,000 miles.
•
Spark Plug Service
Replace spark plugs every 100,000 miles. •
Automatic Transmission Service
Replace ATF every 100,000 miles.•
8

Speedometer
(Odometer Memory)
changed:
MileageDate
Record of Spark Plug
Replacement (Every 100,000 Mi. ) Record of Oxygen Sensor
replacement (Every 120,000 Miles) Record of
brake/clutch
fluid changes (Every 2years) Record of
ATF change (Every
100,000 Mi.)
Date Mileage Date Mileage Date Mileage
Speedometer
(Odometer Memory)
changed:
Mileage
Date
9

Emission Control Maintenance Schedule BMW Z4 Roadster 3.0i, 3.0si
and Coupe 3.0si
The maintenance schedule as shown is required
for the proper functioning of the emission control
systems for optimum vehicle performance and
fuel economy.
Abbreviations:
I - Inspect
R - Replace part(s) and/or fluid listed
Basic Engine
Engine oil .........................
Engine oil filter .....................
Fuel System
Air filter ..........................
Ignition System
Spark plugs .......................
Emission Control Components
Oxygen sensor .....................
BMW Z4 Roadster
3.0i/3.0si
Coupe 3.0si
Oil Service
Inspection I
Oil Service
Inspection II
R
R R
R R
R R
R
R
Replace at intervals of 100,000 miles
Replace at intervals of 120,000 miles
Oxygen Sensor Service: The oxygen sensor deteriorates strictly on a mileage basis and must therefore
be replaced to maximize vehicle fuel economy and minimize exhaust pollution.
The mileage interval varies according to individual driving conditions and is determined by the service
interval indicator.
13

The following systems are covered by the Fed-
eral Emission Performance Warranty for a period
of two years or 24,000 miles, whichever occurs
first. The specific systems may vary according to
model, therefore, all of the systems listed may
not be used on your vehicle. For assistance in
determining which systems and specific compo-
nents within these systems apply to your vehicle,
please contact your BMW center.
AIR INDUCTION SYSTEM
FUEL METERING SYSTEM
IGNITION SYSTEM
POSITIVE CRANKCASE VENTILATION SYS-
TEM (PCV)
FUEL EVAPORATIVE CONTROL SYSTEM
EXHAUST SYSTEM
ENGINE EMISSION CONTROL SYSTEM
SENSORS/DEVICES
ON BOARD DIAGNOSTIC SYSTEM (OBD)
RELATED PARTS ASSOCIATED WITH THE
ABOVE SYSTEMS
The following components and/or system are/is
covered under the Federal Emission Perfor-
mance Warranty for a period of 8 years or 80,000
miles, whichever occurs first.
CATALYTIC CONVERTER
ENGINE CONTROL MODULE (INCLUDING ON-
BOARD DIAGNOSTIC SYSTEM)
For assistance in determining coverage of the
specific components of the on-board diagnostic
system, please contact your BMW center.
41

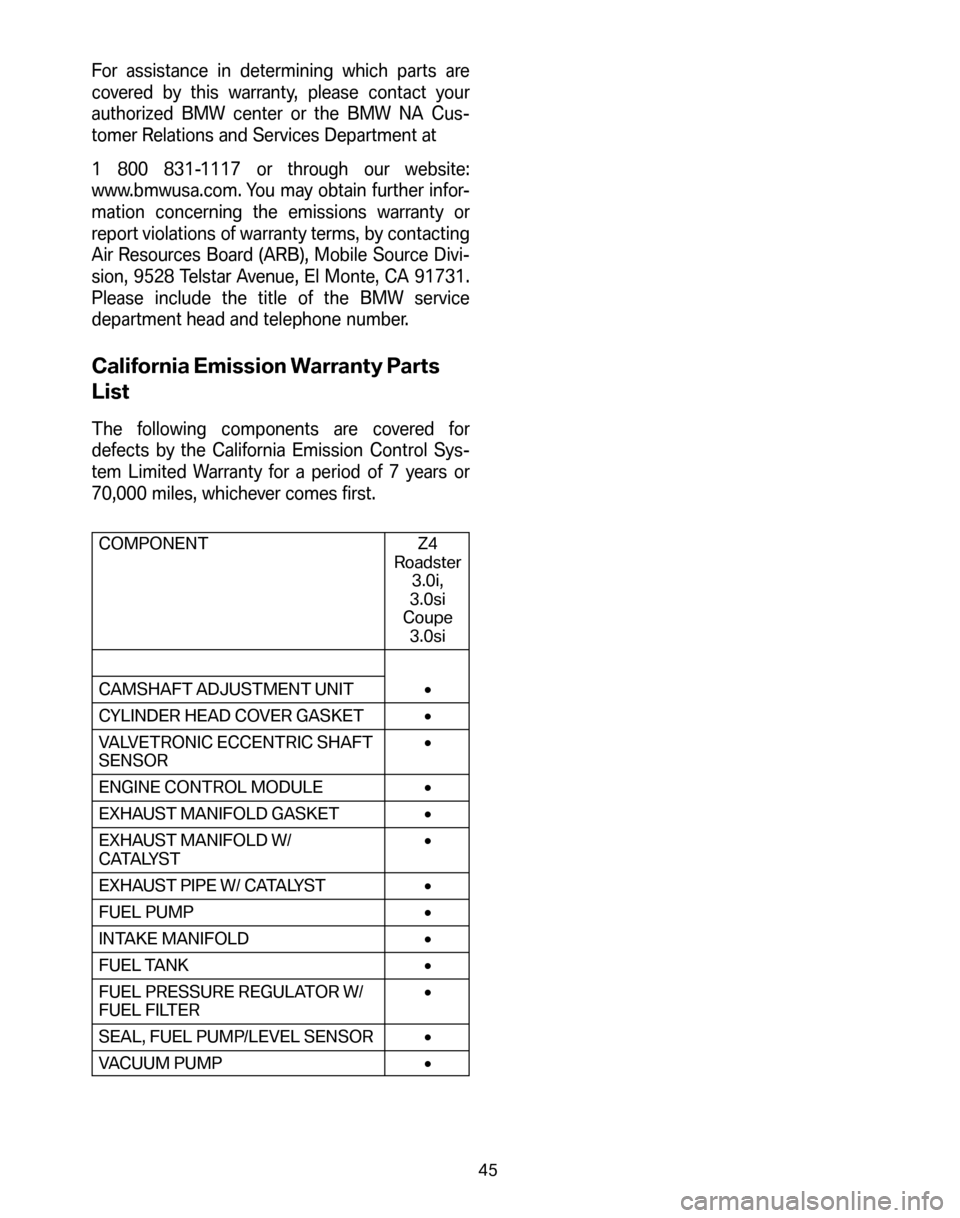

For assistance in determining which parts are
covered by this warranty, please contact your
authorized BMW center or the BMW NA Cus-
tomer Relations and Services Department at
1 800 831-1117 or through our website:
www.bmwusa.com. You may obtain further infor-
mation concerning the emissions warranty or
report violations of warranty terms, by contacting
Air Resources Board (ARB), Mobile Source Divi-
sion, 9528 Telstar Avenue, El Monte, CA 91731.
Please include the title of the BMW service
department head and telephone number.
California Emission Warranty Parts
List
The following components are covered for
defects by the California Emission Control Sys-
tem Limited Warranty for a period of 7 years or
70,000 miles, whichever comes first.
COMPONENT Z4 Roadster3.0i,
3.0si
Coupe 3.0si
CAMSHAFT ADJUSTMENT UNIT •
CYLINDER HEAD COVER GASKET •
VALVETRONIC ECCENTRIC SHAFT
SENSOR •
ENGINE CONTROL MODULE •
EXHAUST MANIFOLD GASKET •
EXHAUST MANIFOLD W/
C ATA LY S T •
EXHAUST PIPE W/ CATALYST •
FUEL PUMP •
INTAKE MANIFOLD •
FUEL TANK •
FUEL PRESSURE REGULATOR W/
FUEL FILTER •
SEAL, FUEL PUMP/LEVEL SENSOR •
VACUUM PUMP •
45
